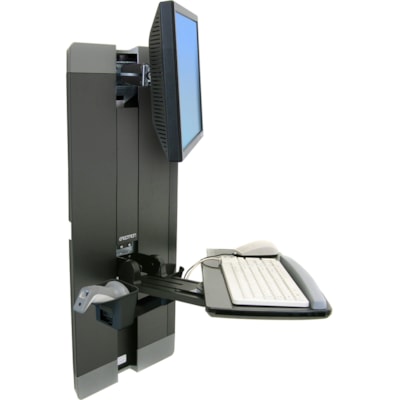

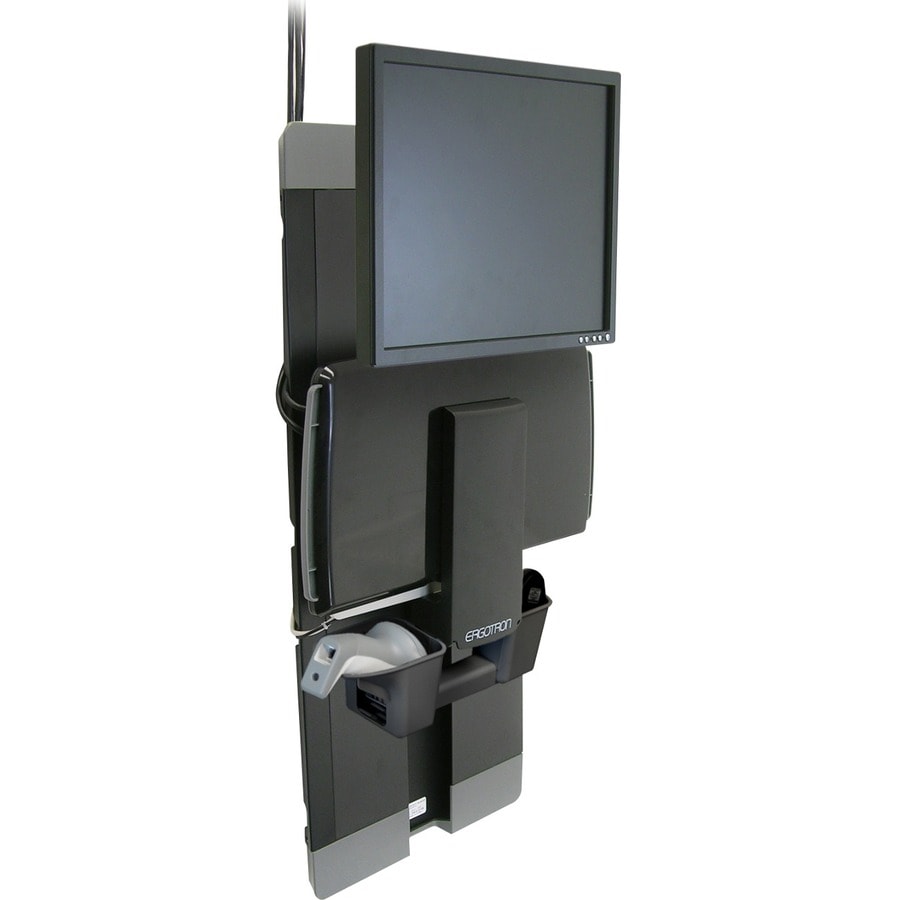

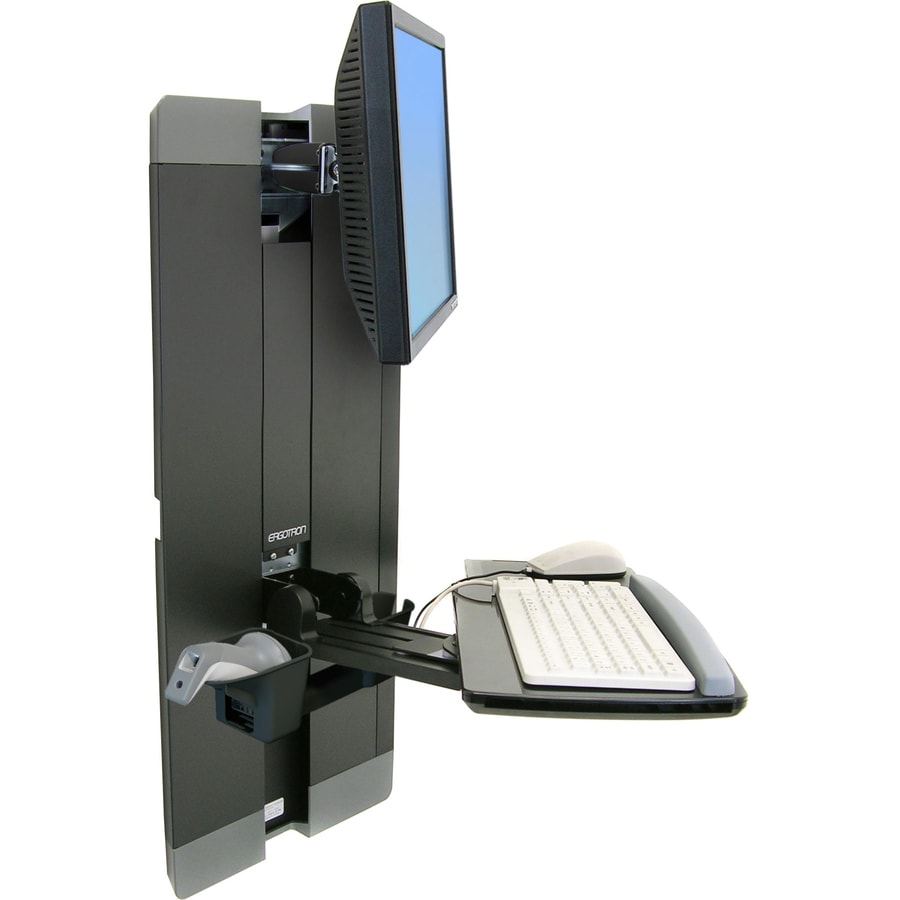

Ergotron StyleView Lift for Flat Panel Display, Keyboard, Mouse - Black - 24" Screen Support - 33 lb (14968.55 g) Load Capacity - 75 x 75, 100 x 100 - VESA Mount Compatible - Steel

60-609-195
Also known as SY4627442

Ergotron StyleView Lift for Flat Panel Display, Keyboard, Mouse - Black - 24" Screen Support - 33 lb (14968.55 g) Load Capacity - 75 x 75, 100 x 100 - VESA Mount Compatible - Steel FT PATIENT ROOM CHG

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Perfect for space-constrained patient exam rooms, the low-profile vertical lift provides 9" (23 cm) of smooth vertical adjustment and folds into a slim, compact unit when not in use.

The slide-out, negative tilt keyboard enhances user comfort, while the monitor and keyboard pan capability promote patient-caregiver interaction. A unique cable management system conceals and organizes cords and makes cleaning a snap!

DETAILS

  • Device Supported : Flat Panel Display,Keyboard,Mouse
  • Maximum Load Capacity : 33 lb (14968.55 g)
  • Maximum Screen Size Supported : 24"
  • Features : Cable Management,Tilt,Pan,Durable
  • Product Color : Black
  • Product Material : Steel
  • VESA Mount Compatible : Yes
  • Mounting Pattern : 75 x 75,100 x 100
  • Height : 30.65" (778.51 mm)
  • Width : 18.34" (465.84 mm)
  • Depth : 4.50" (114.30 mm)
  • Compatibility :

    LCD Screen

  • Country of Origin : China
  • Limited Warranty : 5 Year
  • Can withstand a maximum weight of 33 lb (14968.55 g)
  • Compatible with the screen size of 24"

SPECIFICATIONS

Manufacturer Ergotron, Inc
Manufacturer Part Number 60-609-195
Manufacturer Website Address http://www.ergotron.com
Brand Name Ergotron
Product Line StyleView
Product Name StyleView Vertical Lift
Product Type Lift
Device Supported Flat Panel Display
Device Supported Keyboard
Device Supported Mouse
Maximum Load Capacity 33 lb (14968.55 g)
Maximum Screen Size Supported 24"
Features Pan
Features Tilt
Features Durable
Features Cable Management
Product Color Black
VESA Mount Compatible Yes
Mounting Pattern 75 x 75
Mounting Pattern 100 x 100
Product Material Steel
Height 30.65" (778.51 mm)
Width 18.34" (465.84 mm)
Depth 4.50" (114.30 mm)
Package Contents
  • StyleView Vertical Lift
  • Mouse Pad
  • Wrist Rest
  • Mouse Pouch
  • Mouse Holder
  • Scanner Holder
  • Slide Out Panning Keyboard Tray
  • Mounting Hardware
Additional Information
  • Lift: 9"
  • Pan: 50°
  • Monitor pans left/right up to 50° (varies per size of monitor)
  • Fold-down keyboard with built-in mouse pad surface
  • Keyboard tray extends out up to 5" (127 mm) inches when in use
  • Keyboard tray pans left/right up to 120°
  • Back-tilt keyboard tray adjustable (0 to -10 degrees)
  • Scanner and mouse holder integrated into the keyboard tray
  • Integrated cable management system can be configured on either side
  • Easy-to-clean exterior
  • Side-to-side pan of keyboard and display promote patient-caregiver interaction while accessing data
Compatibility

LCD Screen
Certifications & Standards VESA MIS-D
Country of Origin China
Limited Warranty 5 Year
