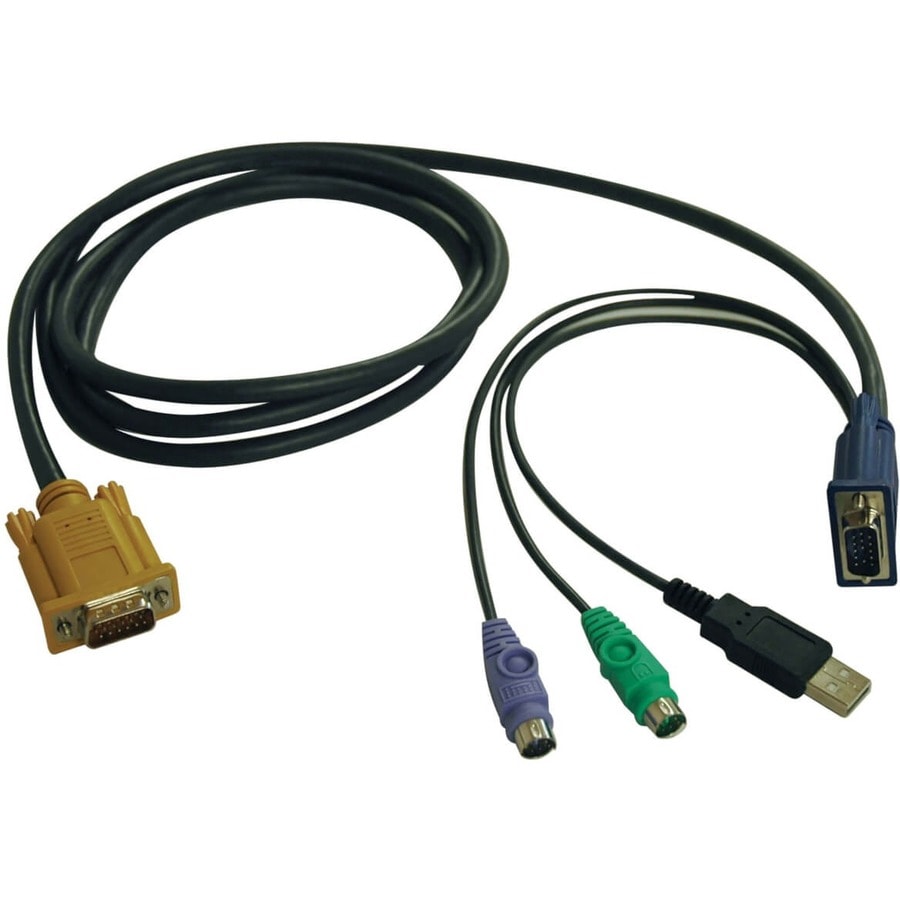

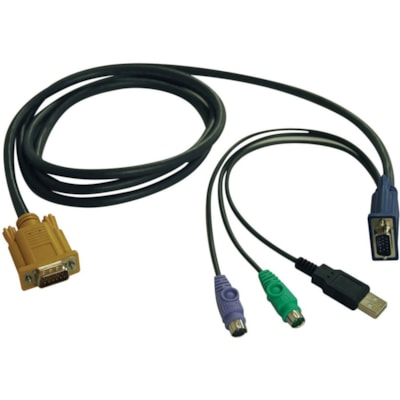

Tripp Lite series P778-006 PS2/USB Combo Cable Kit - 6 ft (1.83 m) KVM Cable - First End: 1 x 18-pin HD-18 Keyboard/Mouse/Video - Male - Second End: 1 x 15-pin HD-15 - Male, 1 x USB Type A - Male, 1 x 6-pin Mini-DIN (PS/2) - Male, 1 x 6-pin Mini-DIN (PS/2) - Male - Black

P778-006
Also known as SY4515298

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Tripp Lite's 6-ft. P778-006 KVM cable kit is designed to connect a USB or PS2 computer to Tripp Lite NetDirector KVM Switches (only Models # B020-U08-19-K, B020-U16-19-K and B022-U16). This premium All-in-1 cable provides superior performance and cable management. It consists of a USB and PS/2 keyboard/mouse cable and a monitor cable bonded into a single unit. This low profile cable is incredibly flexible making cable management a breeze. All cables are manufactured from superior molded cable with integral strain relief and foil shielding for maximum EMI/RFI protection.

DETAILS

  • Cable Length : 6 ft (1.83 m)
  • Connector Type on First End : HD-18 Keyboard/Mouse/Video - Male
  • Connector on First End Details : 1 x 18-pin HD-18 Keyboard/Mouse/Video - Male
  • Connector Type on Second End : HD-15 - Male,USB Type A - Male,Mini-DIN (PS/2) - Male
  • Connector on Second End Details : 1 x 15-pin HD-15 - Male,1 x USB Type A - Male,1 x 6-pin Mini-DIN (PS/2) - Male
  • Features : Molded
  • Color Family : Black
  • Product Color : Black
  • Compatibility :

    Tripp Lite NetDirector KVM Switch:

    • B022-U16
    • B020-U08-19-K
    • B020-U16-19-K
  • Environmentally Friendly : Yes
  • Country of Origin : China
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : Lifetime
  • Connects a USB or PS2 Computer to Tripp Lite's NetDirector B020-U08-19-K and B020-U16-19-K KVM Switches
  • Makes management and organization of cables much easier
  • KVM Switch side of the cable kit consists of a modified HD18 Male cable
  • Computer side of the cable kit consists of a HD15 Male cable, USB A Male cable, and 2 x PS/2 Male cables
  • Molded, color-coded connectors

SPECIFICATIONS

Manufacturer Eaton Corporation
Manufacturer Part Number P778006
Manufacturer Website Address http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name Tripp Lite series
Product Model P778-006
Product Name P778-006 PS2/USB Combo Cable Kit
Product Type KVM Cable
Cable Length 6 ft (1.83 m)
Connector Type on First End HD-18 Keyboard/Mouse/Video - Male
Connector on First End Details 1 x 18-pin HD-18 Keyboard/Mouse/Video - Male
Connector Type on Second End Mini-DIN (PS/2) - Male
Connector Type on Second End USB Type A - Male
Connector Type on Second End HD-15 - Male
Connector on Second End Details 1 x 6-pin Mini-DIN (PS/2) - Male
Connector on Second End Details 1 x USB Type A - Male
Connector on Second End Details 1 x 15-pin HD-15 - Male
Conductor Copper
Features Molded
Color Family Black
Product Color Black
Shipping Height 8" (203.20 mm)
Shipping Width 10" (254 mm)
Shipping Weight (Approximate) 7.20 oz (204.12 g)
Compatibility

Tripp Lite NetDirector KVM Switch:

  • B022-U16
  • B020-U08-19-K
  • B020-U16-19-K
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Country of Origin China
Limited Warranty Lifetime
