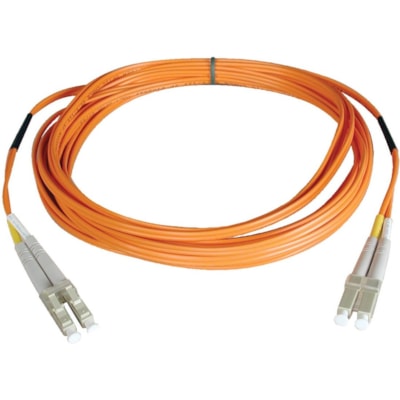

Tripp Lite Fiber Optic Duplex Patch Cable (Riser) - LC - LC - 1m - Orange

N320-01M
Also known as SY4515151

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Tripp Lite's 1-meter multimode duplex micron fiber optic LC/LC patch cable is manufactured from 62.5/125 zipcord fiber. The cable has LC connectors on each end, a PVC jacket and is FDDI and OFNR rated. Duplex multimode fiber is most commonly used in LAN applications where links are 10-ft. or less. Tripp Lite warrants this product to be free from defects in materials and workmanship for life.

DETAILS

  • Cable Type : Fiber Optic
  • Cable Characteristic : Patch Cable
  • Fiber Optic Cable Core/Cladding Specification : 62.5/125 µm
  • Cable Length : 3.3 ft (1.01 m)
  • Connector Type on First End : LC
  • Connector on First End Details : 2 x LC
  • Connector Type on Second End : LC
  • Connector on Second End Details : 2 x LC
  • Color Family : Orange
  • Product Color : Orange
  • Jacket Material : Polyvinyl Chloride (PVC)
  • Package Contents :
    • Fiber Optic Duplex Patch Cable (Riser)
    • 1-meter Duplex MMF LC/LC 62.5/125 Micron Fiber Cable
  • Country of Origin : China
  • Limited Warranty : Lifetime
  • Manufactured from 62.5/125 duplex (Zipcord) fiber
  • Length: 1-meter / Connectors: 2 LC connectors on each end
  • Insertion loss testing performed on every connector (0.2dB typical)
  • Duplex multimode fiber is most commonly used in LAN applications where links are 10 feet or less
  • Fiber Optic Distributed Data Interface (FDDI) Rated

SPECIFICATIONS

Manufacturer Eaton Corporation
Manufacturer Part Number N320-01M
Manufacturer Website Address http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name Tripp Lite series
Product Model N320-01M
Product Name Fiber Optic Duplex Patch Cable (Riser)
Product Type Network Cable
Cable Type Fiber Optic
Cable Characteristic Patch Cable
Cable Length 3.3 ft (1.01 m)
Connector Type on First End LC
Connector on First End Details 2 x LC
Connector Type on Second End LC
Connector on Second End Details 2 x LC
Color Family Orange
Product Color Orange
Jacket Material Polyvinyl Chloride (PVC)
Shipping Height 0.10" (2.54 mm)
Shipping Width 6" (152.40 mm)
Shipping Weight (Approximate) 0.80 oz (22.68 g)
Package Contents
  • Fiber Optic Duplex Patch Cable (Riser)
  • 1-meter Duplex MMF LC/LC 62.5/125 Micron Fiber Cable
Additional Information
  • Color coded shrouds
  • Insertion loss testing performed on every connector (0.2db typical)
Certifications & Standards
  • FDDI
  • OFNR
Country of Origin China
Limited Warranty Lifetime
