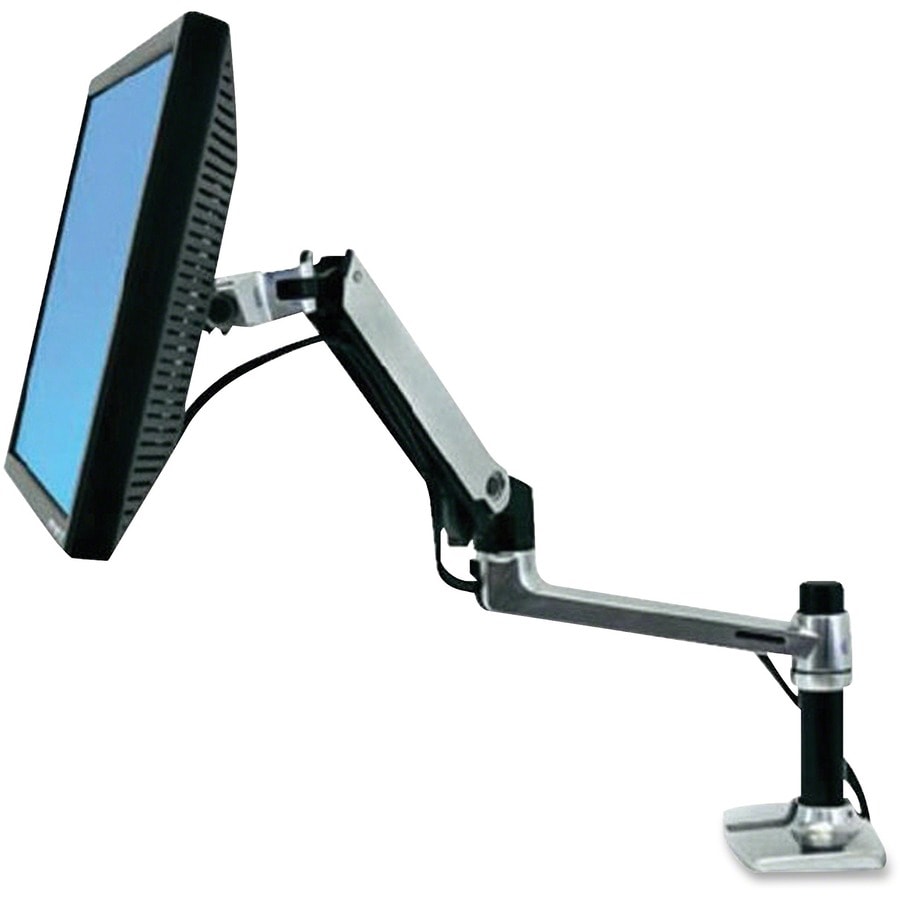

Ergotron Mounting Arm for Flat Panel Display - 1 Display(s) Supported - 32" Screen Support - 24.91 lb (11300 g) Load Capacity - 75 x 75, 100 x 100 - VESA Mount Compatible - Aluminum - 1 Each

45-241-026
Also known as SY4514968

Ergotron Mounting Arm for Flat Panel Display - 1 Display(s) Supported - 32" Screen Support - 24.91 lb (11300 g) Load Capacity - 75 x 75, 100 x 100 - VESA Mount Compatible - Aluminum - 1 Each space and discover your most productive self tha

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Find your best view, save desk space and discover your most productive self with this monitor arm. Constant Force lift-and-pivot motion technology means you can adjust your monitor with a light touch. Full monitor movement allows you to place your screen where you need it for each project, and then reclaim a space full of opportunities by folding the arm and pushing it aside during a much-needed screen break. Its sleek build and polished aluminum construction create a streamlined look to enhance your work area. Foldable design allows you to fit this arm under storage shelves or cabinets for easy storage. Integrated cable management system keeps cords hidden to maintain a clean, sleek desktop.

DETAILS

  • Device Supported : Flat Panel Display
  • Number of Displays Supported : 1
  • Maximum Load Capacity : 24.91 lb (11300 g)
  • Maximum Screen Size Supported : 32"
  • Features : Tilt,Pan,360° Rotation
  • Product Material : Aluminum
  • VESA Mount Compatible : Yes
  • Mounting Pattern : 75 x 75,100 x 100
  • Weight (Approximate) : 7.80 lb (3538.02 g)
  • Package Contents :
    • LX Desk Mount LCD Monitor Arm
    • Extension
    • Desk Clamp and grommet mount bases
    • 7" Pole
  • Compatibility :

    Upto 24" LCD

  • Assembly Required : No
  • Country of Origin : China
  • Limited Warranty : 5 Year
  • Additional Warranty Information :

    Five (5) years

  • Sustains a maximum load capacity of 24.91 lb (11300 g)
  • Supports 32" displays

SPECIFICATIONS

Manufacturer Ergotron, Inc
Manufacturer Part Number 45241026
Manufacturer Website Address http://www.ergotron.com
Brand Name Ergotron
Product Series LX
Product Name LX Desk Mount LCD Monitor Arm
Packaged Quantity 1 Each
Product Type Mounting Arm
Device Supported Flat Panel Display
Number of Displays Supported 1
Maximum Load Capacity 24.91 lb (11300 g)
Maximum Screen Size Supported 32"
Features Tilt
Features Pan
Features 360° Rotation
VESA Mount Compatible Yes
Mounting Pattern 75 x 75
Mounting Pattern 100 x 100
Product Material Aluminum
Weight (Approximate) 7.80 lb (3538.02 g)
Package Contents
  • LX Desk Mount LCD Monitor Arm
  • Extension
  • Desk Clamp and grommet mount bases
  • 7" Pole
Additional Information
  • Description: LX Desk Mount LCD Monitor Arm (polished aluminum)
  • Includes LX arm, extension, desk clamp and grommet mount bases, 7" pole
  • Can be configured to hold a laptop instead of an LCD display; also order the Notebook Tray (50-193-200)
  • Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
  • Improved LX Arm Features & Benefits
  • Polished aluminum construction offers greater durability and enhanced aesthetics
  • Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
  • Snap-fit cap secures interface of arm to extension for greater stability
  • New clamp and grommet mount base ensures greater stability of display and arm; also includes theft deterrent anchor holes for cable locks
  • Mounting Options: Desk Clamp attaches to surface edge .4" to 2.4" (10 to 60 mm) thick; Grommet Mount attaches through surface holes .31" to 2" (8 to 50 mm) wide and up to 3" (76 mm) thick
  • Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
  • Weight Capacity: 5 to 25 lbs (2.3 to 11.3 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)
  • Tilt Range: 70° backward, 5° forward
  • Product Weight: 7.8 lbs (3.6 kg)
  • Shipping Dimensions: 17.75" x 10.5" x 6.75" (45 x 27 x 17 cm)
  • Shipping Weight: 9.75 lbs (4.4 kg)
  • Warranty: Ten (10) years
Compatibility

Upto 24" LCD
Recycled No
Assembly Required No
Country of Origin China
Limited Warranty 5 Year
Additional Warranty Information

Five (5) years
