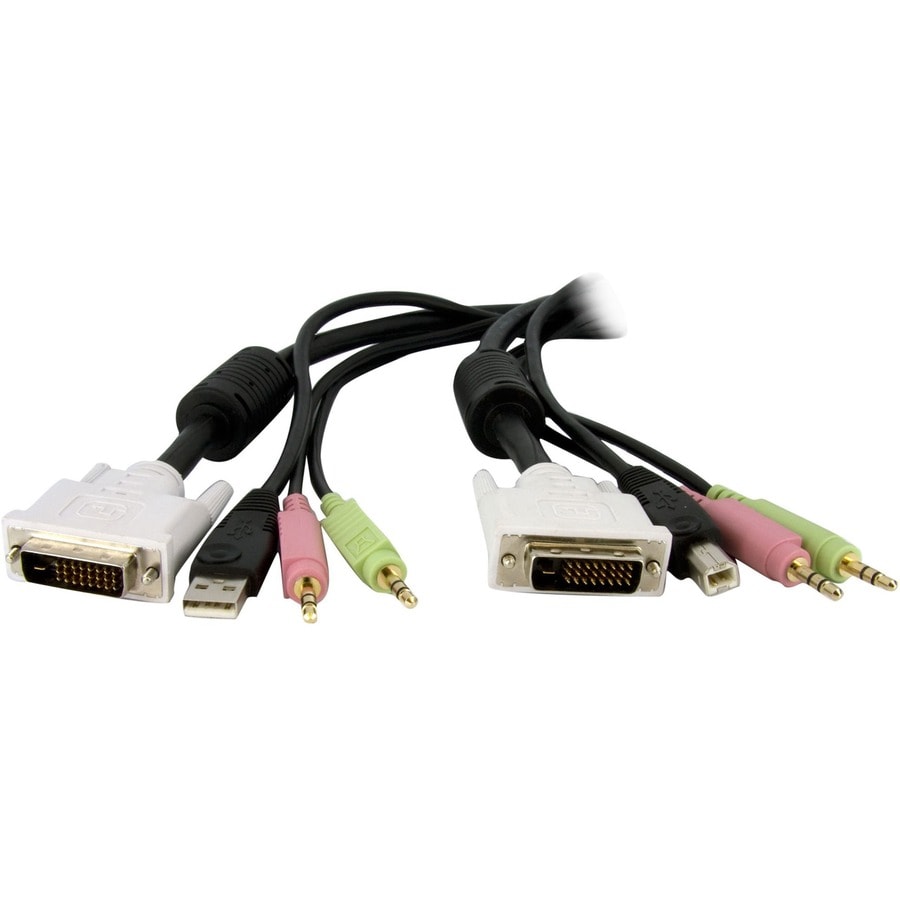

StarTech.com 6 ft 4-in-1 USB DVI KVM Switch Cable with Audio - Connect high resolution DVI video, USB, and audio all in one cable
DVID4N1USB6
Also known as SY4510207
MARKETING INFORMATION
The DVID4N1USB6 6ft 4-in-1 USB Dual Link DVI-D KVM Switch Cable w/ Audio & Microphone integrates dual link DVI video quality with USB mouse, keyboard, 3.5mm audio out and microphone connections into a single, compact cable.
The 4-in-1 KVM cable is a cost-effective and convenient solution that's suitable for use with dual link DVI supported USB KVM switches, allowing you to share a USB peripheral set between two computers configured for high definition output.
Backed by a StarTech.com Lifetime Warranty.
Works with: Compatible StarTech.com KVMs can be found under the Accessories section. Aten models (CS1642, CS1644, CS1784, CS1782, CS1762, CS1764) Avocent models (2SVDVI10-001, 4SVDVI10-001, SC4UAD, SC420, SC440, SC540) Belkin models (F1DN102D, F1DN104D, F1DD102L, F1DD104L) Cables to go models (52047, 52048)
More from the Manufacturer
DETAILS
- Cable Type : DVI/Mini-phone/USB
- Cable Length : 6 ft (1.83 m)
- Connector Type on First End : DVI-D (Dual-Link) Digital Video - Male,USB 2.0 Type A - Male,Mini-phone Stereo Audio - Male
- Connector Gender on First End : Male
- Connector on First End Details : 1 x 25-pin DVI-D (Dual-Link) Digital Video - Male,1 x 4-pin USB 2.0 Type A - Male,2 x Mini-phone Stereo Audio - Male
- Connector Type on Second End : DVI-D (Dual-Link) Digital Video - Male,USB 2.0 Type B - Male,Mini-phone Stereo Audio - Male
- Connector Gender on Second End : Male
- Connector on Second End Details : 1 x 25-pin DVI-D (Dual-Link) Digital Video - Male,1 x 4-pin USB 2.0 Type B - Male,2 x Mini-phone Stereo Audio - Male
- Device Supported : Audio/Video Device,Keyboard/Mouse,Microphone,KVM Switch,TV,HDTV,Peripheral Device,Computer
- Data Transfer Rate : 7.9 Gbit/s
- Supported Resolution : 2560 x 1600
- Color Family : Black
- Product Color : Black
- Jacket Material : Polyvinyl Chloride (PVC)
- Weight (Approximate) : 1.01 lb (456 g)
- Environmentally Friendly : Yes
- Environmental Certification : RoHS
- Country of Origin : China
- Environmental Compliance : Restriction of Hazardous Substances (RoHS)
- Limited Warranty : Lifetime
- Combines 4 peripheral cables into one
- Dual Link DVI-D signal is supported
- Backwards compatible with DVI-D single link signals and devices
- Supports HDTV quality signal and above (2560 x 1600 @ Hz and higher resolutions at lower refresh rates)
- Meets and exceeds all DVI-D and USB 2.0 specifications
- Supports DVI-D Maximum clock frequency in dual link mode up to 7.92 Gbps)
SPECIFICATIONS
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DVID4N1USB6 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 6ft 4-in-1 USB Dual Link DVI-D KVM Switch Cable w/ Audio & Microphone |
| Packaged Quantity | 1 Each |
| Product Type | KVM Cable |
| Cable Type | DVI/Mini-phone/USB |
| Cable Length | 6 ft (1.83 m) |
| Connector Type on First End | USB 2.0 Type A - Male |
| Connector Type on First End | DVI-D (Dual-Link) Digital Video - Male |
| Connector Type on First End | Mini-phone Stereo Audio - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x 4-pin USB 2.0 Type A - Male |
| Connector on First End Details | 2 x Mini-phone Stereo Audio - Male |
| Connector on First End Details | 1 x 25-pin DVI-D (Dual-Link) Digital Video - Male |
| Connector Type on Second End | DVI-D (Dual-Link) Digital Video - Male |
| Connector Type on Second End | USB 2.0 Type B - Male |
| Connector Type on Second End | Mini-phone Stereo Audio - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x 4-pin USB 2.0 Type B - Male |
| Connector on Second End Details | 2 x Mini-phone Stereo Audio - Male |
| Connector on Second End Details | 1 x 25-pin DVI-D (Dual-Link) Digital Video - Male |
| Conductor | Copper |
| Device Supported | Keyboard/Mouse |
| Device Supported | Computer |
| Device Supported | Peripheral Device |
| Device Supported | HDTV |
| Device Supported | TV |
| Device Supported | KVM Switch |
| Device Supported | Microphone |
| Device Supported | Audio/Video Device |
| Data Transfer Rate | 7.9 Gbit/s |
| Supported Resolution | 2560 x 1600 |
| Color Family | Black |
| Product Color | Black |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 1.01 lb (456 g) |
| Shipping Height | 1.57" (39.88 mm) |
| Shipping Width | 10.04" (255.02 mm) |
| Shipping Weight (Approximate) | 1.04 lb (471.74 g) |
| Compatibility | StarTech KVM Switches:
Aten KVM Switches:
Avocent KVM Switches:
Belkin KVM Switches:
Cables to go KVM Switches:
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Limited Warranty | Lifetime |
