MARKETING INFORMATION

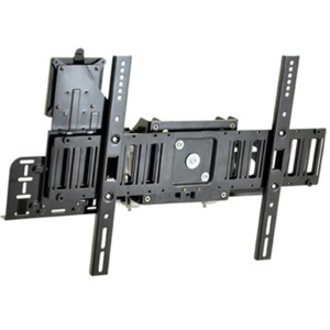

Complete, fully integrated, all-in-one mounting system includes all components for installing large display digital signage solutions. Easy, do-it-yourself portrait or landscape adjustment, no need to reinstall display, knobs are available for locking tilt orientation in place. Security fasteners deter theft to protect your investment. Display can be positioned at different points on the wall bracket, this lateral shift of the display's position relative to the wall studs can be as much as 5.7". Portrait or landscape orientation may be dependant on content software or graphic card capabilities. Complete wall mount solution for digital signage applications. Mounting Hole Patterns, Horizontal measurement is 200 mm, 300 mm, 400 mm, 440 mm, 500 mm or 600 mm. Vertical measurement is 200 mm or 225 mm to 400 mm. With optional 800 mm Accessory Kit, horizontal measurement can be expanded to 800 mm or 660 mm.

DETAILS

• Device Supported : Flat Panel Display
• Maximum Load Capacity : 105 lb (47627.20 g)
• Maximum Screen Size Supported : 32"
• Features : Tilt,Swivel
• Color Family : Black
• Product Color : Black
• Height : 17.70" (449.58 mm)
• Width : 19" (482.60 mm)
• Depth : 4.80" (121.92 mm)
• Compatibility :

  32" LCD

• Country of Origin : China

• Sustains a maximum load capacity of 105 lb (47627.20 g)
• Supports 32" displays
