StarTech.com KVM Console to USB 2.0 Portable Laptop Crash Cart Adapter, Compact Notebook/Netbook KVM to USB Portable KVM Console, TAA - Turn any laptop into a console for headless servers, PCs, ATMs, kiosks and more - usb crash cart adapter - laptop crash cart - laptop kvm console -portable crash ca

NOTECONS01
Also known as SY4457776,DHNOTECONS01CA

New! Log in or create an account to see price and availability


MARKETING INFORMATION

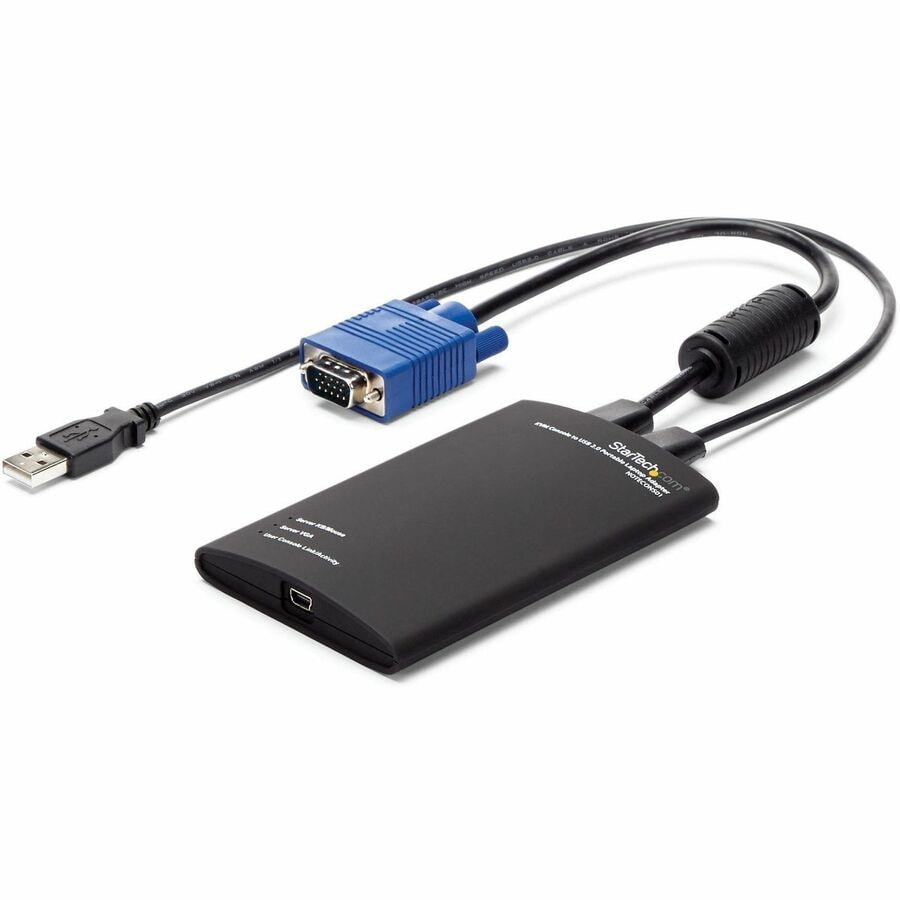

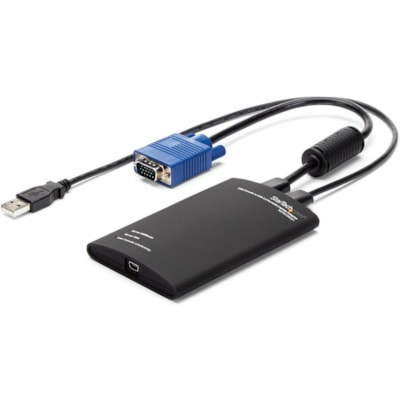

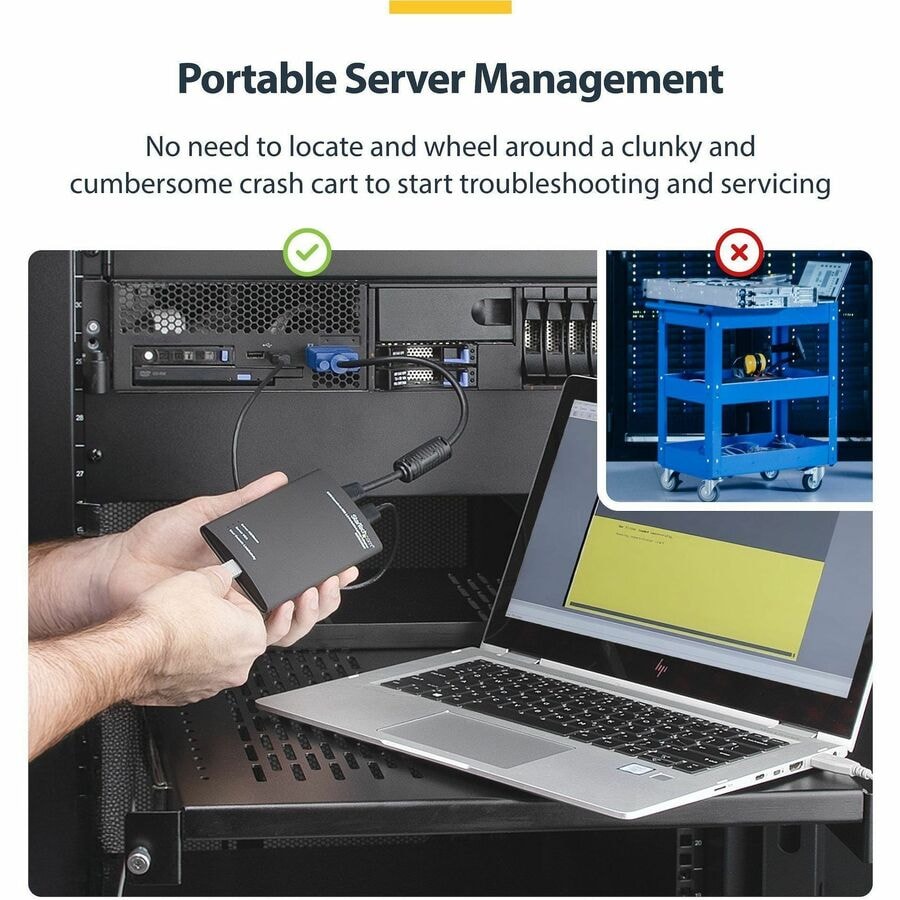

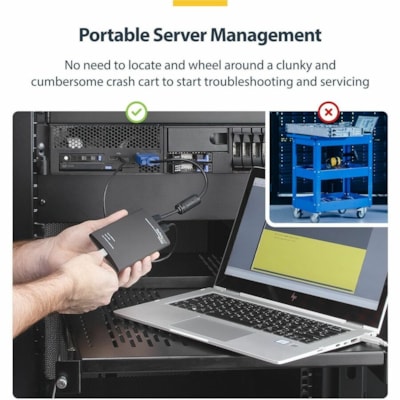

The NOTECONS01 KVM Console to USB 2.0 Portable Laptop Crash Cart Adapter turns your notebook or netbook into a portable server crashcart, eliminating the need to lug around a large, heavy and awkward video screen, keyboard, and mouse. This adapter delivers the VGA stream from any host computer to a laptop and emulates the laptop mouse and keyboard outputs for simple access and control of connected servers, PCs or other "headless" devices.

"StarTech.com's USB KVM may be your new best friend for trips to the datacenter... you can use this from the back of the rack. So if you are handling issues that require moving cables or network connections... this can be a major timesaver." - everythingUSB.com "The CRN Test Center recommends StarTech's Crash Cart Adapter for any company with a data center or with technicians servicing computers in the field" - CRN

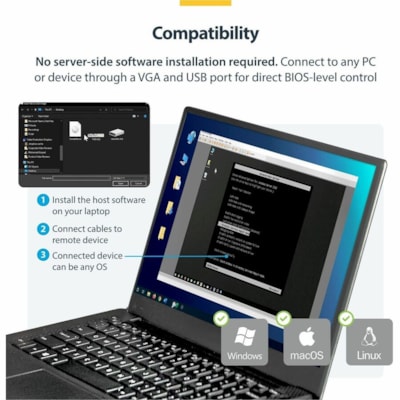

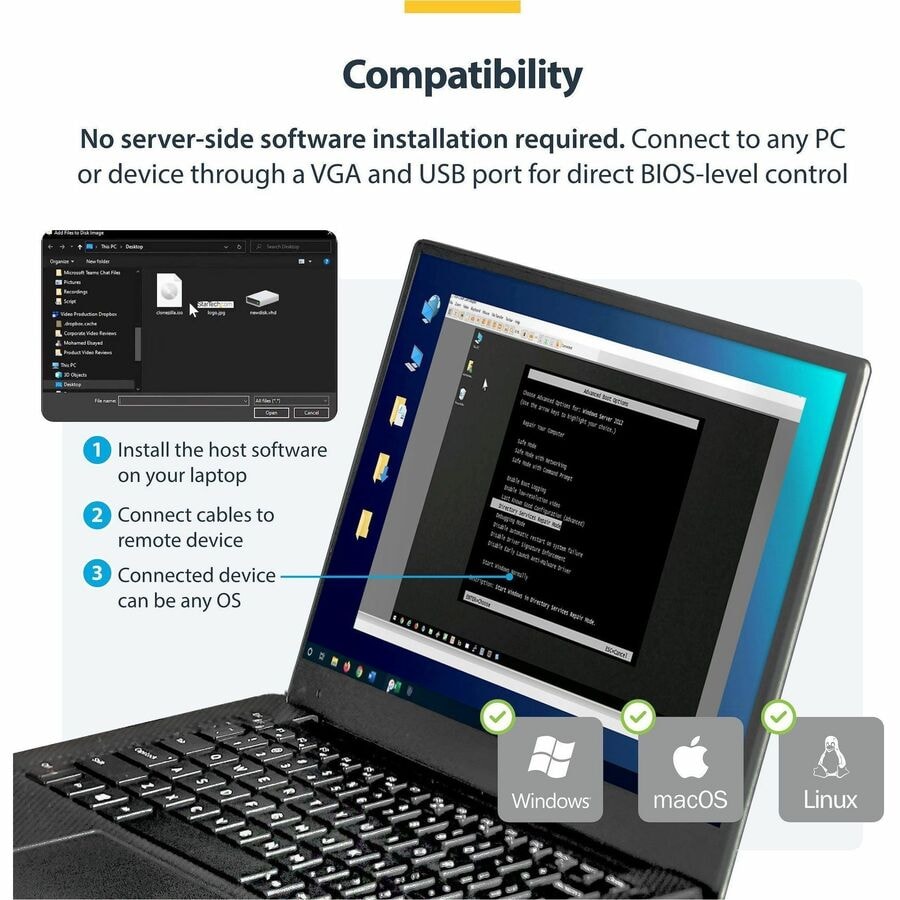

With portability for the mobile administrator or repair technician in mind, this USB-powered adapter features a small-footprint design that requires no additional accessories to connect to most servers, and requires no server-side software installation. Plus, the pocket-sized adapter draws its power from the server-side USB connections, allowing the laptop/netbook to last longer without consuming battery power.

Ensuring full control of the connected units, the Laptop KVM Server Console Adapter provides immediate access to the POST screen and BIOS, plus the ability to handle full configuration of the attached PC or machine; administrators can connect to a headless server/device without the need of an expensive LCD rackmount console or bulky monitor, keyboard and mouse solution.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

How it works:

More from the Manufacturer

DETAILS

  • Connector Type on First End : USB Type A - Female
  • Connector on First End Details : 1 x USB Type A - Female
  • Connector Type on Second End : USB Type A - Male,HD-15 - Male
  • Connector on Second End Details : 1 x USB Type A - Male,1 x 15-pin HD-15 - Male
  • Features : USB- Power Delivery (USB PD)
  • Color Family : Black
  • Product Color : Black
  • Weight (Approximate) : 6 oz (170 g)
  • Package Contents :
    • USB PS/2 KVM Console Adapter
    • USB Cable
    • USB to PS/2 Adapter
  • Country of Origin : Canada
  • TAA Compliant : Yes
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
  • Limited Warranty : 2 Year

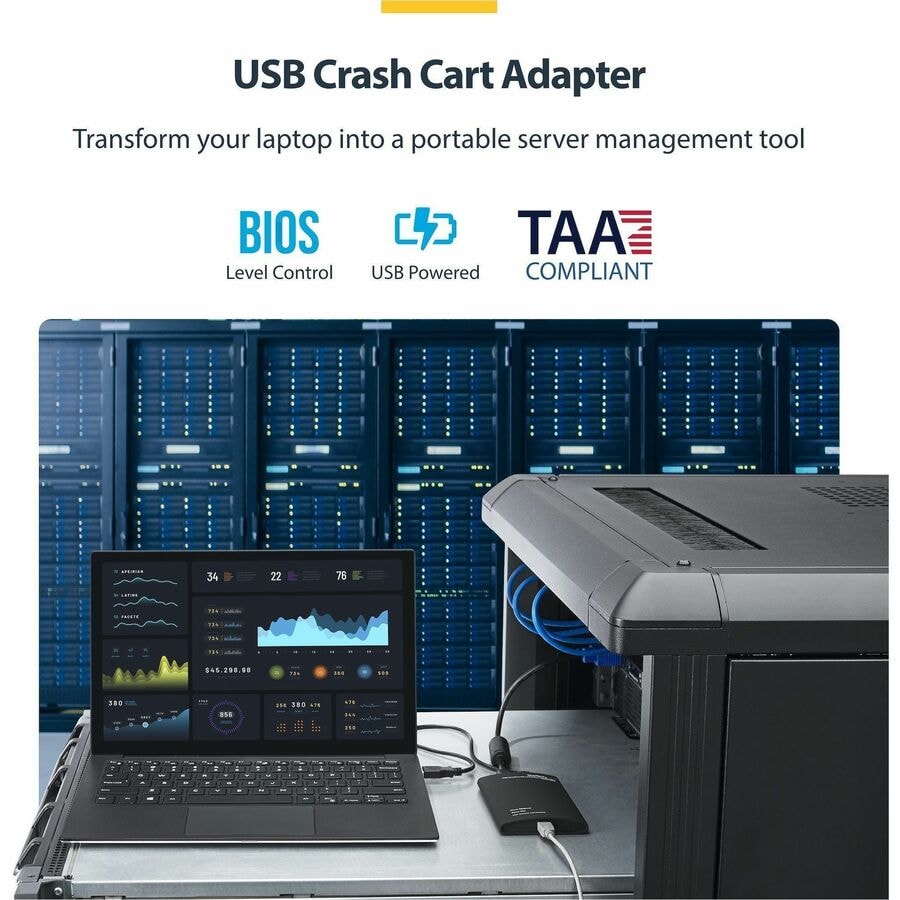

  • LAPTOP TO SERVER: USB crash cart adapter connects your laptop to a headless system, turning your laptop into a portable console for rack servers in your server room, PCs, ATMs, kiosks, etc
  • EFFICIENT TROUBLESHOOTING: Easily log server activity using the crash cart adapter software; For optimal performance, be sure to install the latest drivers; Note: Please make sure to download the drivers specifically for the NOTECONS01

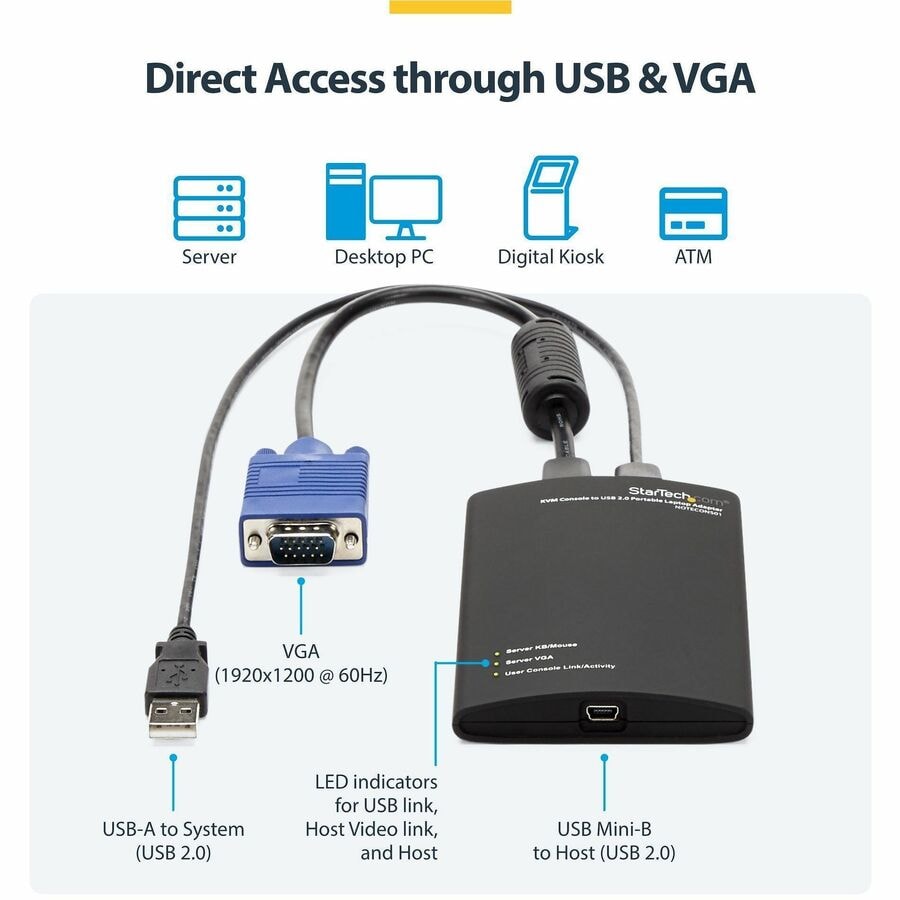

  • BIOS-LEVEL CONTROL: Connect the laptop crash cart adapter to your computer using the included USB cable, then connect the integrated USB and VGA cables to your server for instant BIOS-level control
  • SELF-POWERED: The KVM adapter is powered by the server-side USB connection, reducing strain on the laptop's battery and eliminating the need for an AC outlet, allowing you to connect to any PC or device with a VGA output port and USB connection
  • COMPACT DESIGN: This TAA Compliant pocket-sized data center crash cart adapter requires no additional accessories, eliminating the need to carry around a traditional crash cart/trolley when troubleshooting and servicing your systems

SPECIFICATIONS

Manufacturer StarTech.com
Manufacturer Part Number NOTECONS01
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name KVM Console to USB 2.0 Portable Laptop Adapter
Packaged Quantity 1 Each
Product Type KVM Adapter
Connector Type on First End USB Type A - Female
Connector Gender on First End Female
Connector on First End Details 1 x USB Type A - Female
Connector Type on Second End HD-15 - Male
Connector Type on Second End USB Type A - Male
Connector Gender on Second End Male
Connector on Second End Details 1 x 15-pin HD-15 - Male
Connector on Second End Details 1 x USB Type A - Male
Features USB- Power Delivery (USB PD)
Color Family Black
Product Color Black
Weight (Approximate) 6 oz (170 g)
Package Contents
  • USB PS/2 KVM Console Adapter
  • USB Cable
  • USB to PS/2 Adapter
Operating System Compatibility macOS Big Sur 11.0
Operating System Compatibility macOS Monterey 12.0
Operating System Compatibility macOS Ventura 13.0
Operating System Compatibility Linux 2.6.x+ LTS
Operating System Compatibility Windows Vista
Operating System Compatibility Windows XP
Operating System Compatibility macOS Catalina 10.15
Operating System Compatibility Mac OS X 10.6 Snow Leopard
Operating System Compatibility Windows Server 2022
Operating System Compatibility Windows Server 2019
Operating System Compatibility Windows Server 2016
Operating System Compatibility Windows Server 2012
Operating System Compatibility Windows Server 2008 R2
Operating System Compatibility Windows 11
Operating System Compatibility Windows 10
Operating System Compatibility Windows 7
Operating System Compatibility Windows 8
Operating System Compatibility Windows 8.1
Additional Information

OS Compatibility:

  • Windows® XP, Vista, 7, 8, 8.1, 10
  • Windows Server® 2008 R2, 2012, 2016, 2019
  • Mac OS® 10.6 to 10.14
  • Linux 2.6.x to 4.11.x (LTS Versions Only)

Country of Origin Canada
TAA Compliant Yes
Environmentally Friendly Yes
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty 2 Year
