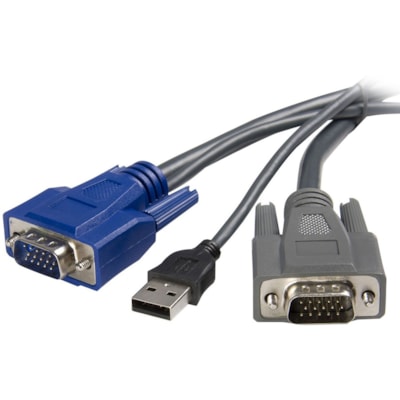

StarTech.com 2-in-1 - USB/ VGA cable - 4 pin USB Type A, HD-15 (M) - HD-15 (M) - 6 ft - Connect VGA video and USB using a single thin KVM cable
SVUSBVGA6
Also known as SY4421853
MARKETING INFORMATION
The SVUSBVGA6 6-foot 2-in-1 USB KVM cable is specifically designed to work with any of our VGA USB KVM switches, helping to reduce tangles while maintaining excellent connectivity and performance.
To reduce clutter and optimize cable management efficiency, this professional grade USB KVM cable features an ultra-thin design that combines VGA and USB connectors into a single cable, making it ideal for connecting KVM switches inside a cabinet.
This high-performance 2-in-1 cable provides excellent video quality even for applications requiring high resolution performance.
Backed by a StarTech.com lifetime warranty.
Works with the following series of StarTech.com KVM Switches:
CABx31HD
CABx41HDIE
SVx31DUSB
SVx31DUSBA
SVx31DUSBAU
SVx31DUSBU
SVx31DUSBUK
SVx31HD
SVx41DUSBI
SVx41HDI
SVx41HDIE
More from the Manufacturer
DETAILS
- Cable Type : USB/VGA
- Cable Length : 6 ft (1.83 m)
- Connector Type on First End : HD-15 - Male
- Connector Gender on First End : Male
- Connector on First End Details : 1 x 15-pin HD-15 - Male
- Connector Type on Second End : HD-15 - Male,USB Type A - Male
- Connector Gender on Second End : Male
- Connector on Second End Details : 1 x 15-pin HD-15 - Male,1 x 4-pin USB Type A - Male
- Device Supported : Keyboard/Mouse,KVM Switch,Video Device,PC,Computer
- Features : Tangle Resistant
- Color Family : Black
- Product Color : Black
- Weight (Approximate) : 6.70 oz (189.94 g)
- Environmentally Friendly : Yes
- Country of Origin : Taiwan
- Environmental Compliance : Restriction of Hazardous Substances (RoHS)
- Limited Warranty : Lifetime
- Connectors are color coded to PC99 specifications for easy installation
- Single cable design sends VGA video and USB keyboard and mouse signals to the host PC from the KVM switch
- Video cable is constructed of mini-coax wire for excellent picture clarity
- Allows for file transfer between KVM and PC
SPECIFICATIONS
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SVUSBVGA6 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Line | UltraThin |
| Product Name | 6 ft Ultra-Thin USB VGA 2-in-1 KVM Cable |
| Packaged Quantity | 1 Each |
| Product Type | KVM Cable |
| Cable Type | USB/VGA |
| Cable Length | 6 ft (1.83 m) |
| Connector Type on First End | HD-15 - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x 15-pin HD-15 - Male |
| Connector Type on Second End | USB Type A - Male |
| Connector Type on Second End | HD-15 - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x 15-pin HD-15 - Male |
| Connector on Second End Details | 1 x 4-pin USB Type A - Male |
| Conductor | Copper |
| Device Supported | Computer |
| Device Supported | PC |
| Device Supported | Video Device |
| Device Supported | KVM Switch |
| Device Supported | Keyboard/Mouse |
| Features | Tangle Resistant |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 6.70 oz (189.94 g) |
| Additional Information |
|
| Compatibility | StarTech KVM Switches:
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| Limited Warranty | Lifetime |
