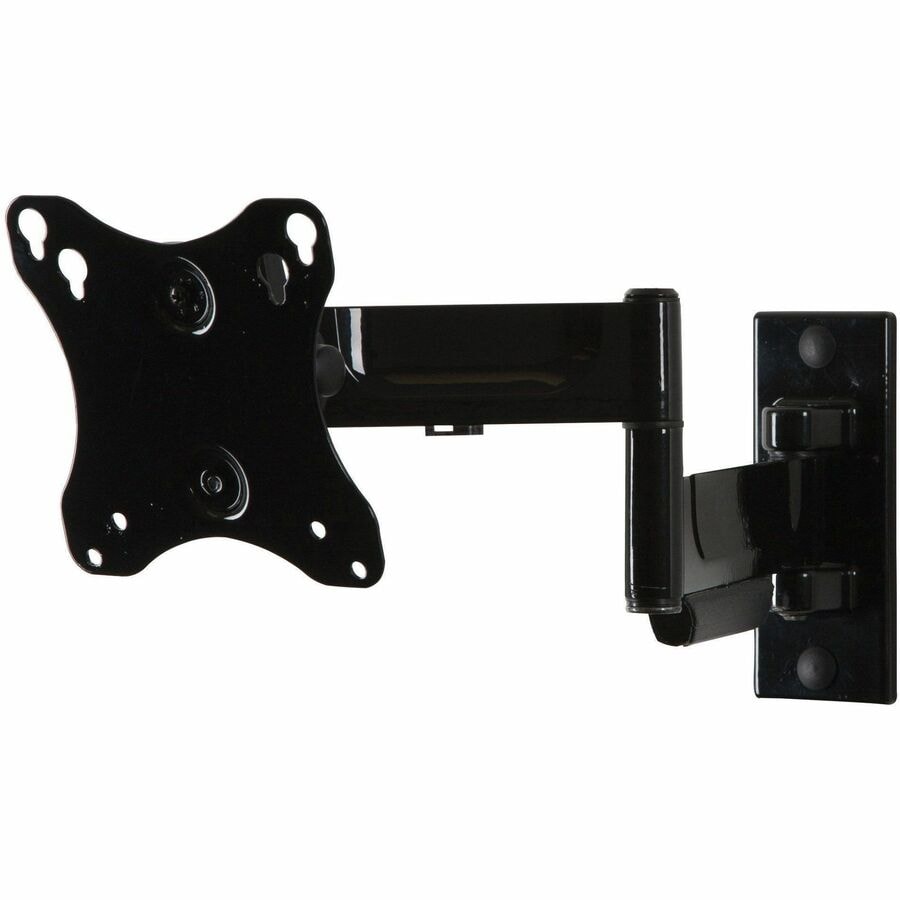

Peerless-AV® Paramount(tm) Articulating Wall Mount for 10" to 29" Displays - 10" to 29" Screen Support - 25 lb (11339.81 g) Load Capacity - 75 x 75, 100 x 100 - VESA Mount Compatible - 1 Unit
PA730
Also known as SY4406394
MARKETING INFORMATION
The Paramount™ series wall mounts provide versatile and multi-functional features. With PA730, extend the display up to 14.85" (377mm) or fully-retract it to just 2.73" (69mm) from the wall for the perfect viewing angle. The Hook-and-Hang™ system offers easy, one-person installation of the display. One-Touch™ tilt technology offers ±15° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
DETAILS
- Device Supported : Display
- Maximum Load Capacity : 25 lb (11339.81 g)
- Minimum Screen Size Supported : 10"
- Maximum Screen Size Supported : 29"
- Features : Retractable,Adjustable Angle,Hook-and-Hang Design,+/- 5° Roll,+/- 90° Pivot,Vertical Tilt,Vertical Adjustment,Flexible
- Minimum Adjustable Depth : 2.73" (69.34 mm)
- Maximum Adjustable Depth : 14.85" (377.19 mm)
- Minimum Tilt Angle : -15°
- Maximum Tilt Angle : 15°
- Minimum Swivel Angle : -90°
- Maximum Swivel Angle : 90°
- Mount Function : Extendable,Cable Management,Tilt,Articulating,Wall Mount
- Mount Surface : Wall
- Durability : Scratch Resistant
- Color Family : Black
- Product Color : Gloss Black
- VESA Mount Compatible : Yes
- Mounting Pattern : 75 x 75,100 x 100
- Form Factor : Wall Mountable
- Height : 7.41" (188.21 mm)
- Width : 8.96" (227.58 mm)
- Depth : 14.85" (377.19 mm)
- Weight (Approximate) : 2.65 lb (1202.02 g)
- Application/Usage : Wall,Concrete,Wood Stud,Breeze Block,Cinder Block
- Indoor/Outdoor : Indoor
- Assembly Required : Yes
- Country of Origin : Taiwan
- Manufacturer Product Class : Articulating
- TAA Compliant : Yes
- UL Listed : Yes
- Environmental Compliance : Restriction of Hazardous Substances (RoHS)
- Limited Warranty : 5 Year
- Design is UL listed and tested to four times stated load capacity
- Accommodates 75 x 75 or 100 x 100mm VESA® mounting patterns
- Extends 14.85" (377mm) from the wall
- Retracts to 2.73" (69mm) to save space
- One-Touch™ tilt mechanism offers ±15° of tilt angle adjustment
- Quickly adjust your viewing angle without tools
- ±5° of roll for post installation display leveling
- ±90° of pivot
- Hook-and-Hang™, one-person display installation
- Integrated cable management protects, contains and conceals cables for a clean, professional installation
- Mounts to wood stud, concrete, cinder or breeze block
SPECIFICATIONS
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | PA730 |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | Paramount™ |
| Product Series | PA730 |
| Product Model | PA730 |
| Product Name | Articulating Wall Mount for 10" to 29" Displays |
| Packaged Quantity | 1 Unit |
| Product Type | Wall Mount |
| Device Supported | Display |
| Maximum Load Capacity | 25 lb (11339.81 g) |
| Minimum Screen Size Supported | 10" |
| Maximum Screen Size Supported | 29" |
| Minimum Adjustable Depth | 2.73" (69.34 mm) |
| Maximum Adjustable Depth | 14.85" (377.19 mm) |
| Features | Vertical Adjustment |
| Features | Flexible |
| Features | Vertical Tilt |
| Features | +/- 90° Pivot |
| Features | +/- 5° Roll |
| Features | Hook-and-Hang Design |
| Features | Adjustable Angle |
| Features | Retractable |
| Minimum Tilt Angle | -15° |
| Maximum Tilt Angle | 15° |
| Minimum Swivel Angle | -90° |
| Maximum Swivel Angle | 90° |
| Mount Function | Extendable |
| Mount Function | Cable Management |
| Mount Function | Tilt |
| Mount Function | Articulating |
| Mount Function | Wall Mount |
| Mount Surface | Wall |
| Durability | Scratch Resistant |
| Color Family | Black |
| Product Color | Gloss Black |
| Finishing | High Gloss |
| Finishing | Fused Epoxy |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 75 x 75 |
| Mounting Pattern | 100 x 100 |
| Form Factor | Wall Mountable |
| Height | 7.41" (188.21 mm) |
| Width | 8.96" (227.58 mm) |
| Depth | 14.85" (377.19 mm) |
| Weight (Approximate) | 2.65 lb (1202.02 g) |
| Package Contents |
|
| Application/Usage | Wall |
| Application/Usage | Concrete |
| Application/Usage | Wood Stud |
| Application/Usage | Breeze Block |
| Application/Usage | Cinder Block |
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, VESA, UL, OSHPD |
| Assembly Required | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| UL Listed | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 5 Year |
