Peerless-AV® Paramount(tm) Tilting Wall Mount for 22" to 43" Displays - 22" to 43" Screen Support - 80 lb (36287.39 g) Load Capacity - 100 x 100, 200 x 100, 200 x 200 - VESA Mount Compatible - 1 Unit
PT632
Also known as SY4391932
MARKETING INFORMATION

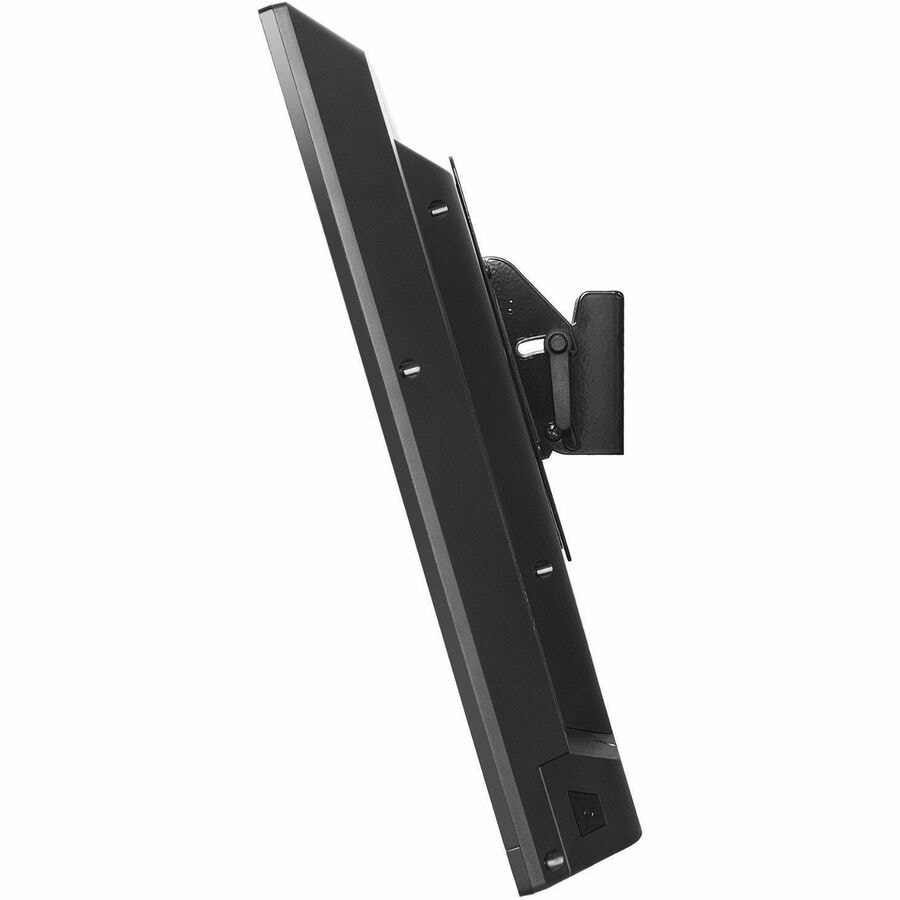

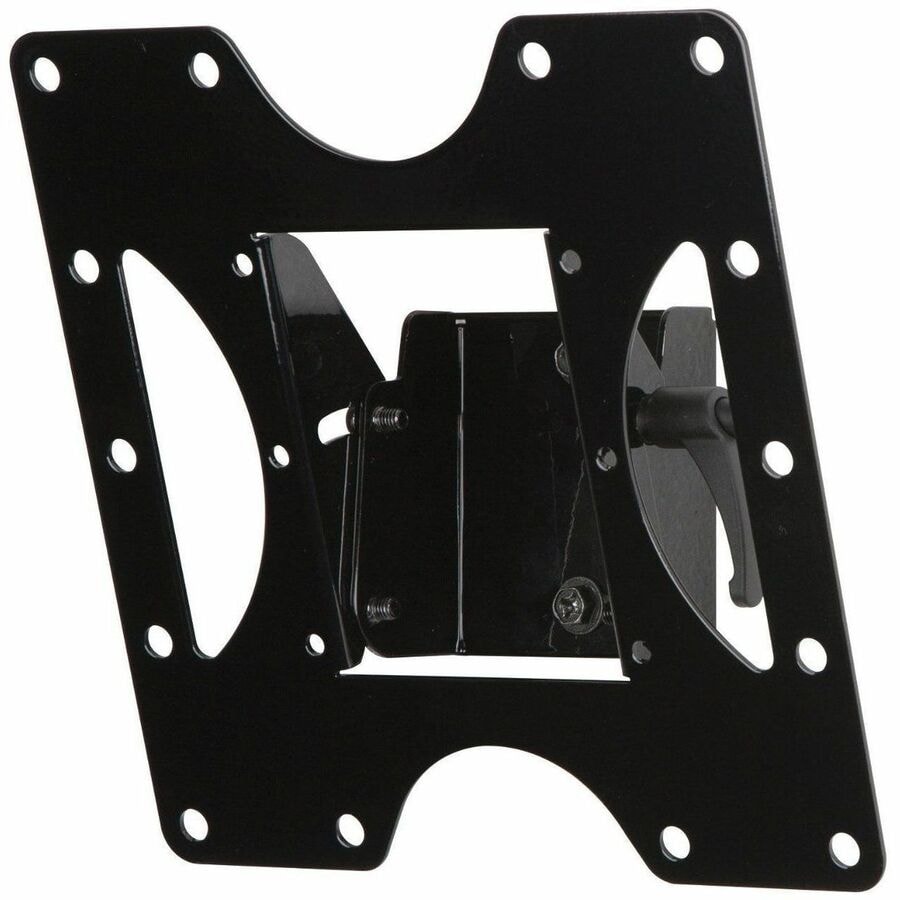

The Paramount™ series wall mounts provide versatile and multi-functional features. With PT632, a low-profile design positions the display just 2.1" (51mm) from the wall. The Hook-and-Hang™ system offers easy, one-person installation of the display. A ratcheting handle provides locking tilt capability for quick adjustments to the amount of tilt, reducing glare and optimizing the viewing angle.
DETAILS
- Device Supported : OLED TV,Display
- Maximum Load Capacity : 80 lb (36287.39 g)
- Minimum Screen Size Supported : 22"
- Maximum Screen Size Supported : 43"
- Features : Tilt,Locking Mechanism,Hook-and-Hang Design,Ratcheting Handle,Reduced Glare,Adjustable Tilt
- Minimum Adjustable Depth : 2.01" (51.05 mm)
- Maximum Adjustable Depth : 3.78" (96.01 mm)
- Mount Profile : Low Profile
- Minimum Tilt Angle : 5°
- Maximum Tilt Angle : 15°
- Mount Function : Tilt,Wall Mount
- Mount Surface : Wall
- Durability : Scratch Resistant
- Color Family : Black
- Product Color : Black
- VESA Mount Compatible : Yes
- Mounting Pattern : 100 x 100,200 x 100,200 x 200
- Form Factor : Wall Mountable
- Height : 8.74" (222 mm)
- Width : 8.74" (222 mm)
- Depth : 3.78" (96.01 mm)
- Weight (Approximate) : 1.75 lb (793.79 g)
- Application/Usage : Wall,Wood Stud,Concrete,Cinder Block,Breeze Block
- Indoor/Outdoor : Indoor
- Assembly Required : Yes
- Country of Origin : Taiwan
- Manufacturer Product Class : Tilt
- TAA Compliant : Yes
- UL Listed : Yes
- Environmental Compliance : Restriction of Hazardous Substances (RoHS)
- Limited Warranty : Lifetime
- Accommodates 100, 200 x 100, or 200 x 200mm VESA® mounting patterns
- Adjustable 15° forward tilt and 5° backward tilt for finding the optimal viewing angle
- Display is positioned only 2.01" (51mm) from wall for a low-profile application
- Design is UL listed and tested to four times stated load capacity
- Includes all necessary wall and display attachment hardware
SPECIFICATIONS
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Part Number | PT632 |
| Manufacturer Website Address | http://www.peerless-av.com |
| Brand Name | Paramount™ |
| Product Series | PT632 |
| Product Model | PT632 |
| Product Name | Tilting Wall Mount for 22" to 43" Displays |
| Packaged Quantity | 1 Unit |
| Product Type | Wall Mount |
| Device Supported | OLED TV |
| Device Supported | Display |
| Maximum Load Capacity | 80 lb (36287.39 g) |
| Minimum Screen Size Supported | 22" |
| Maximum Screen Size Supported | 43" |
| Minimum Adjustable Depth | 2.01" (51.05 mm) |
| Maximum Adjustable Depth | 3.78" (96.01 mm) |
| Features | Reduced Glare |
| Features | Tilt |
| Features | Adjustable Tilt |
| Features | Locking Mechanism |
| Features | Ratcheting Handle |
| Features | Hook-and-Hang Design |
| Mount Pattern | Dedicated |
| Mount Profile | Low Profile |
| Minimum Tilt Angle | 5° |
| Maximum Tilt Angle | 15° |
| Mount Function | Wall Mount |
| Mount Function | Tilt |
| Mount Surface | Wall |
| Durability | Scratch Resistant |
| Color Family | Black |
| Product Color | Black |
| Finishing | Fused Epoxy |
| Finishing | High Gloss |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 100 x 100 |
| Mounting Pattern | 200 x 100 |
| Mounting Pattern | 200 x 200 |
| Form Factor | Wall Mountable |
| Height | 8.74" (222 mm) |
| Width | 8.74" (222 mm) |
| Depth | 3.78" (96.01 mm) |
| Weight (Approximate) | 1.75 lb (793.79 g) |
| Package Contents |
|
| Application/Usage | Wood Stud |
| Application/Usage | Concrete |
| Application/Usage | Breeze Block |
| Application/Usage | Cinder Block |
| Application/Usage | Wall |
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, VESA, UL |
| Assembly Required | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| UL Listed | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | Lifetime |
