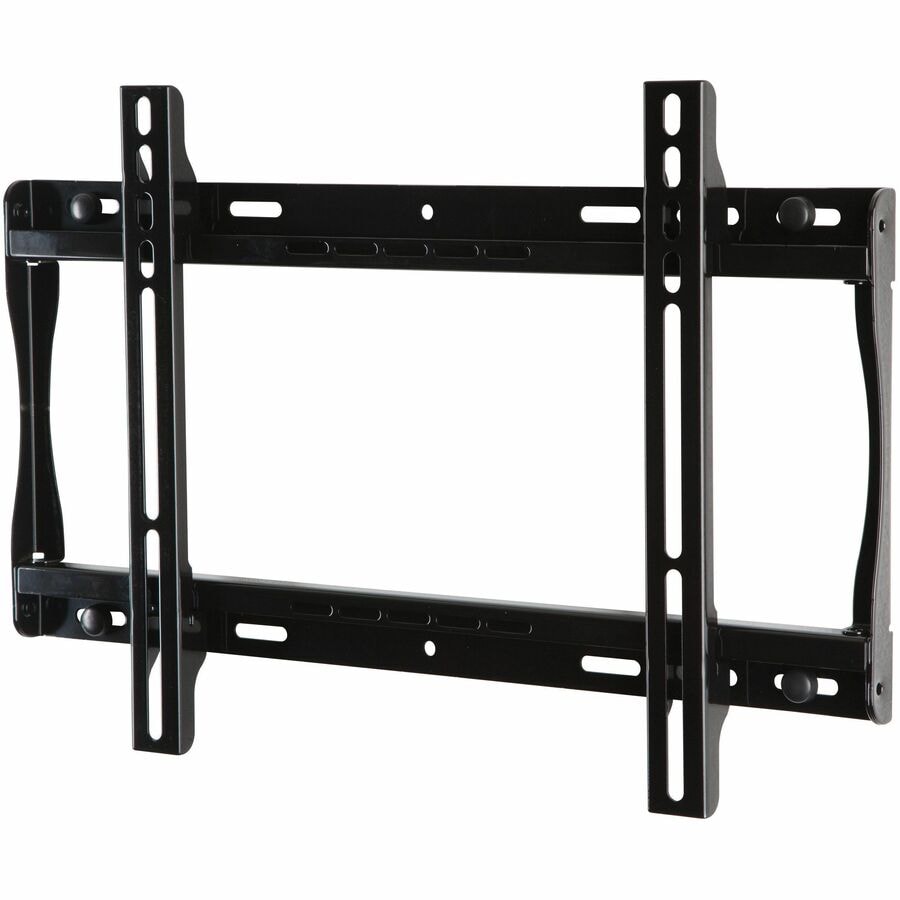

Peerless-AV® Paramount(tm) Universal Flat Wall Mount for 32" to 46" Displays - 32" to 46" Screen Support - 100 lb (45359.24 g) Load Capacity - 200 x 100, 200 x 200, 300 x 200, 300 x 300, 400 x 200, 400 x 300 - VESA Mount Compatible - 1 Unit
PF640
Also known as SY4391909
MARKETING INFORMATION
The Paramount™ series wall mounts provide versatile and multi-functional features. With PF640, a low-profile design positions the display just 1.26" (32mm) from the wall. The Hook-and-Hang™ system offers easy, one-person installation of the display. The Easy-Glide™ adaptors hook onto the wall plate for a quick, simple, and secure installation. After installation, achieve perfect display positioning with side-to-side adjustment capabilities.
DETAILS
- Device Supported : Flat Panel Display
- Maximum Load Capacity : 100 lb (45359.24 g)
- Minimum Screen Size Supported : 32"
- Maximum Screen Size Supported : 46"
- Features : Horizontal Adjustment,Hook-and-Hang Design,Easy to Install,Cable Management
- Mount Profile : Low Profile
- Orientation : Landscape/Portrait
- Mount Function : Wall Mount
- Mount Surface : Wall
- Durability : Scratch Resistant
- Color Family : Black
- Product Color : Black
- VESA Mount Compatible : Yes
- Mounting Pattern : 200 x 100,200 x 200,300 x 200,300 x 300,400 x 200,400 x 300
- Form Factor : Wall Mountable
- Height : 12.81" (325.37 mm)
- Width : 19.37" (492 mm)
- Depth : 1.26" (32 mm)
- Weight (Approximate) : 3.65 lb (1655.61 g)
- Application/Usage : Wall
- Indoor/Outdoor : Indoor
- Assembly Required : Yes
- Country of Origin : Taiwan
- Manufacturer Product Class : Flat
- TAA Compliant : Yes
- UL Listed : Yes
- Environmental Compliance : Restriction of Hazardous Substances (RoHS)
- Limited Warranty : Lifetime
- Universal mount fits displays with mounting patterns up to 450 x 305mm (17.72" W x12.01" H) and accommodates up to 400 x300mm VESA mounting patterns

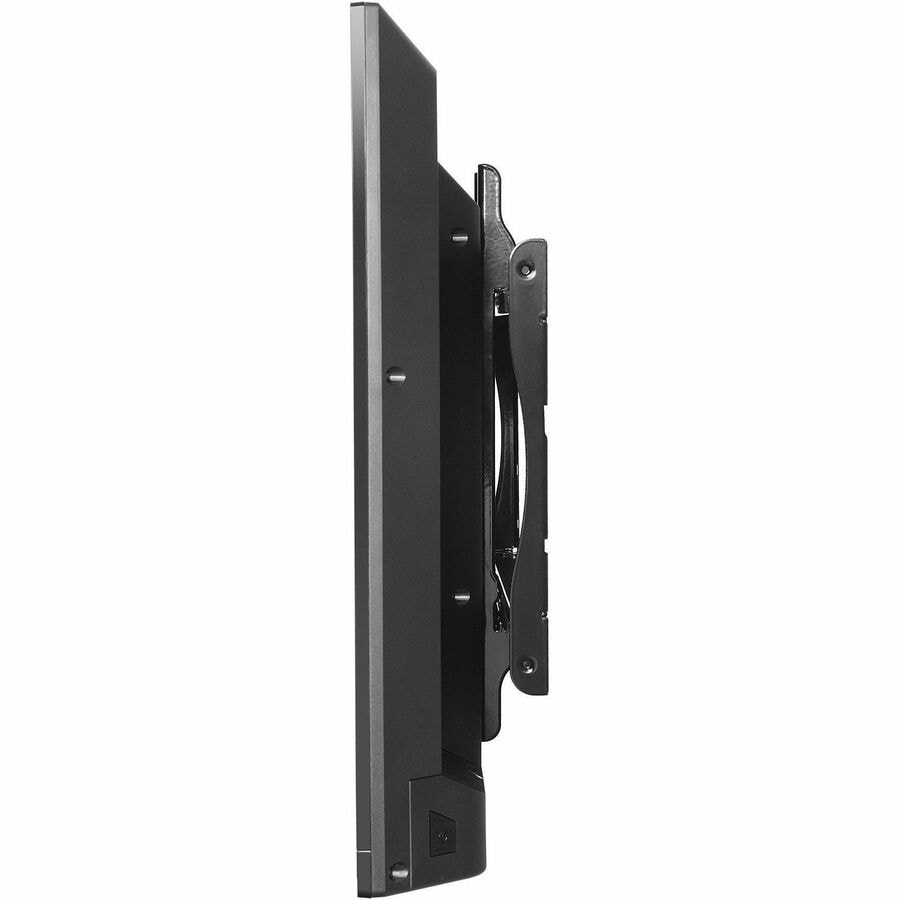

- Low-profile design holds display only 1.26"(32mm)
- Horizontal display adjustment up to 6.00"(152mm) for centering display on wall
- Landscape to Portrait mounting options increases installation versatility. Please check display dimensions against the wall plate when used in Portrait mode*
- Includes all necessary wall and display attachment hardware
- Design is UL listed and tested to four times stated load capacity
- Works with thinner displays, such as OLED
- * Requires display to be removed and reset on mount
SPECIFICATIONS
Manufacturer | Peerless Industries, Inc |
Manufacturer Part Number | PF640 |
Manufacturer Website Address | http://www.peerless-av.com |
Brand Name | Paramount™ |
Product Series | PF640 |
Product Model | PF640 |
Product Name | Universal Flat Wall Mount for 32" to 46" Displays |
Packaged Quantity | 1 Unit |
Product Type | Wall Mount |
Device Supported | Flat Panel Display |
Maximum Load Capacity | 100 lb (45359.24 g) |
Minimum Screen Size Supported | 32" |
Maximum Screen Size Supported | 46" |
Features | Horizontal Adjustment |
Features | Hook-and-Hang Design |
Features | Easy to Install |
Features | Cable Management |
Orientation | Landscape/Portrait |
Mount Pattern | Universal |
Mount Profile | Low Profile |
Mount Function | Wall Mount |
Mount Surface | Wall |
Durability | Scratch Resistant |
Color Family | Black |
Product Color | Black |
Finishing | High Gloss |
Finishing | Fused Epoxy |
VESA Mount Compatible | Yes |
Mounting Pattern | 400 x 300 |
Mounting Pattern | 400 x 200 |
Mounting Pattern | 300 x 300 |
Mounting Pattern | 200 x 200 |
Mounting Pattern | 200 x 100 |
Mounting Pattern | 300 x 200 |
Form Factor | Wall Mountable |
Height | 12.81" (325.37 mm) |
Width | 19.37" (492 mm) |
Depth | 1.26" (32 mm) |
Weight (Approximate) | 3.65 lb (1655.61 g) |
Package Contents |
|
Application/Usage | Wall |
Indoor/Outdoor | Indoor |
Certifications & Standards | RoHS, TAA, VESA, UL, OSHPD |
Assembly Required | Yes |
Country of Origin | Taiwan |
TAA Compliant | Yes |
UL Listed | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Limited Warranty | Lifetime |
