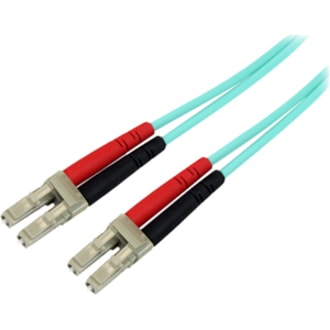

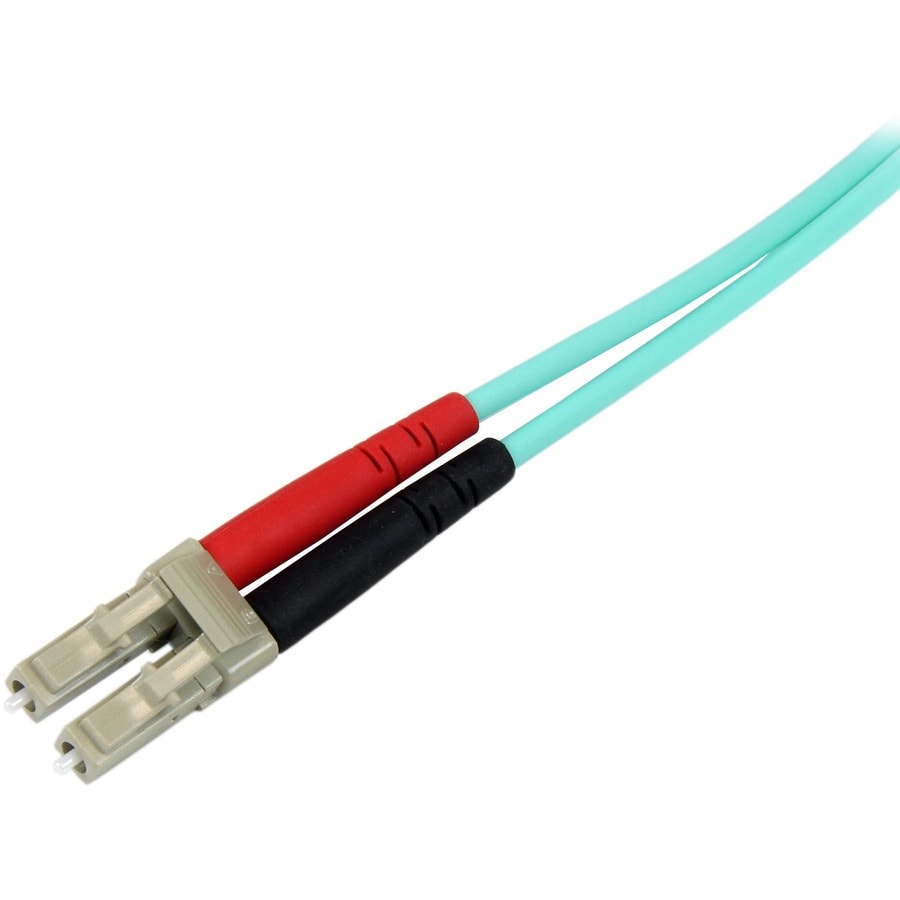

The A50FBLCLC10 10m 850nm Laser-Optimized Multimode Fiber (LOMMF) Aqua Cord features 50/125 micron fiber for high-speed, high bandwidth data transmissions over 10 Gigabit Ethernet and Fiber Channel networks - the perfect solution for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment.

This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire - an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

Each Duplex 50/125 (OM3) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.

More from the Manufacturer

DETAILS

• Cable Type : Fiber Optic
• Cable Characteristic : Patch Cable
• Fiber Optic Mode : Multi-mode
• Fiber Optic Cable Core/Cladding Specification : 50/125 µm
• Cable Length : 32.8 ft (10 m)
• Connector Type on First End : LC Network - Male
• Connector Gender on First End : Male
• Connector on First End Details : 2 x LC Network - Male
• Connector Type on Second End : LC Network - Male
• Connector Gender on Second End : Male
• Connector on Second End Details : 2 x LC Network - Male
• Jacket Type : LSZH
• Device Supported : Network Device
• Data Transfer Rate : 10 Gbit/s
• Features : Flame Retardant,Molded,Halogen Free,Corrosion Resistant
• Color Family : Green
• Product Color : Aqua
• Weight (Approximate) : 4.90 oz (139 g)
• Country of Origin : China
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)
• Limited Warranty : Lifetime

• OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
• QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
• RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
• WIDE COMPATIBILITY: OM3 LC/LC multimode cable supports 1/10/40/100 Gbps networks; Backward compatible with OM3; For high-density network applications such as SANs, data servers, fiber switches, SFP+, QSFP+, and QSFP28 transceivers
• SPECS: 10m (33ft); Color: Aqua (OM3); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
