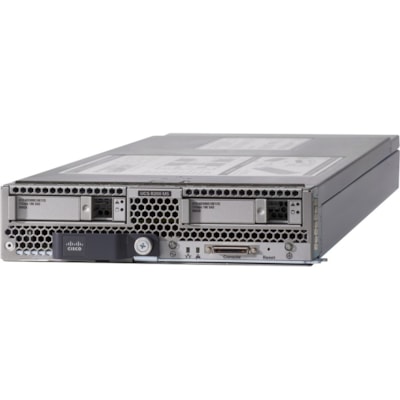

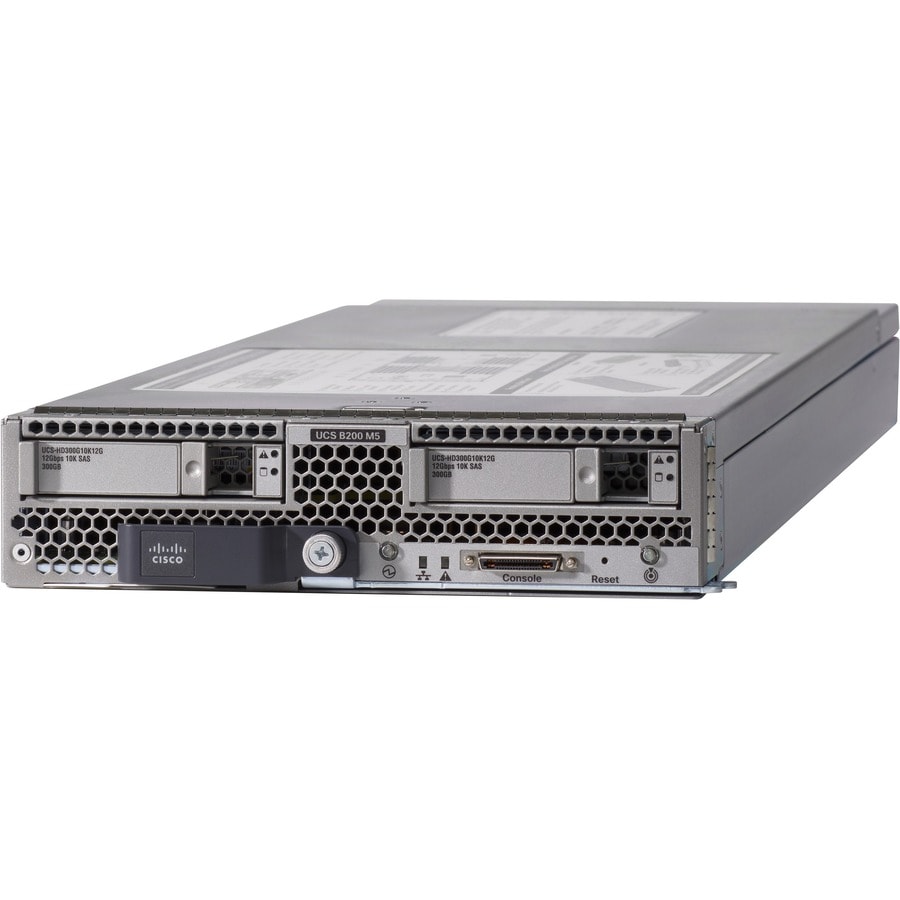

Cisco Barebone System - Blade - 2 x Processor Support - Intel C620 Chip - 3 TB DDR4 SDRAM DDR4-2666/PC4-21300 Maximum RAM Support - 24 Total Memory Slots - 12Gb/s SAS RAID Supported Controller - G200e 8 MB Graphic(s) - Processor Support (Xeon) - Ethernet - 1 USB 3.0 Port(s)
UCSB-B200-M5
Also known as SY11201730
MARKETING INFORMATION
Delivering performance, versatility and density without compromise, the Cisco UCS B200 M5 Blade Server addresses the broadest set of workloads, from IT and web infrastructure through distributed database.The enterprise-class Cisco UCS B200 M5 blade server extends the capabilities of Cisco's Unified Computing System portfolio in a half-width blade form factor. The Cisco UCS B200 M5 harnesses the power of the latest Intel® Xeon® processor scalable family CPUs with up to 3072 GB of RAM (using 128 GB DIMMs), two solid-state drives (SSDs) or hard disk drives (HDDs), and up to 80 Gbps throughput connectivity.
DETAILS
- Number of Processors Supported : 2
- Processor Supported : Xeon
- 64-bit Processing : Yes
- Chipset Manufacturer : Intel
- Chipset Model : C620
- Maximum Memory Supported : 3 TB
- Memory Technology : DDR4 SDRAM
- Memory Standard : DDR4-2666/PC4-21300
- Total Number of Memory Slots : 24
- Controller Type : 12Gb/s SAS
- RAID Supported : Yes
- Graphics Controller Model : G200e
- Graphics Memory Capacity : 8 MB
- Ethernet Technology : Ethernet
- Number of Total Expansion Bays : 2
- Total Number of USB Ports : 1
- Number of USB 3.0 Ports : 1
- Form Factor : Blade
- Height : 1.95" (49.53 mm)
- Width : 8" (203.20 mm)
- Depth : 24.40" (619.76 mm)
- Weight (Approximate) : 9.50 lb (4310 g)
- Experience high performance, built-in security and remote management capabilities with Intel Xeon processor
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Optimize workflows by sharing the resources of the workstation using Ethernet connectivity
- Can connect up to 1 USB peripherals
- 12Gb/s SAS interface for high speed and reliability
SPECIFICATIONS
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | UCSB-B200-M5 |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Series | B200 M5 |
| Product Name | UCS B200 M5 Barebone System |
| Product Type | Barebone System |
| Number of Processors Supported | 2 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | C620 |
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 24 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 8 MB |
| Ethernet Technology | Ethernet |
| Number of Total Expansion Bays | 2 |
| Total Number of USB Ports | 1 |
| Number of USB 3.0 Ports | 1 |
| Form Factor | Blade |
| Height | 1.95" (49.53 mm) |
| Width | 8" (203.20 mm) |
| Depth | 24.40" (619.76 mm) |
| Weight (Approximate) | 9.50 lb (4310 g) |
