MARKETING INFORMATION

Cisco UCS E-Series Servers

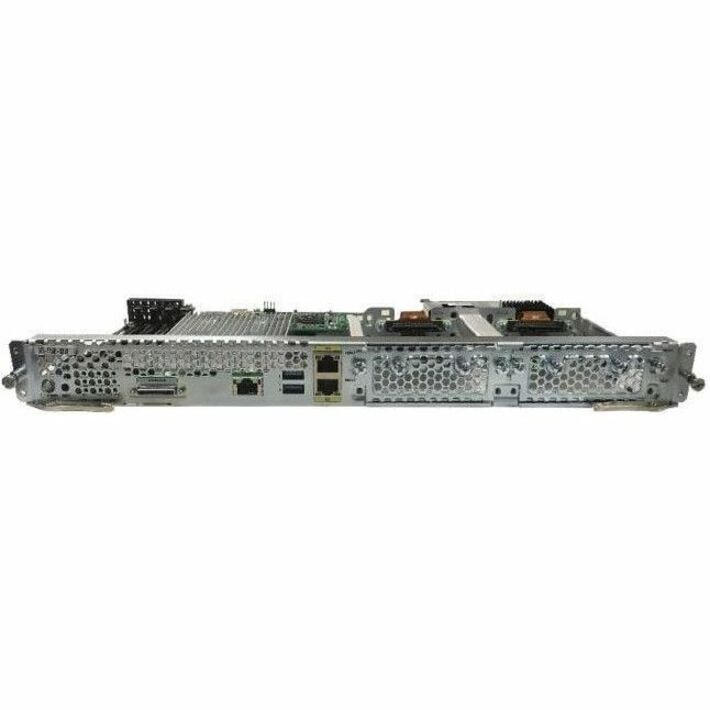

The Cisco Unified Computing System™ (Cisco UCS) E-series M3 Server is available in two flavors: as singlewide and as doublewide module. The singlewide version occupies a single service-module slot in the Cisco 4000 Series ISR as shown above. The doublewide module occupies two service-module slots sideby-side.

All Cisco UCS E-Series M3 Servers are high-density blade servers with single-socket Intel Xeon-D processors. They balance simplicity, performance, and application density while operating in an energyefficient environment providing better energy efficiency than preceding models. The servers also include integrated remote lights-out management.

They thus provide an excellent platform for introducing virtualization into the branch office and supporting mission-critical business applications. The innovative, zero-footprint form factor of the Cisco UCS E-Series Servers in conjunction with the lower total cost of ownership (TCO) of the Intel Xeon processor increases business agility and enhances reliability when compared to standalone rack-mount and tower servers.

DETAILS

• Number of Processors Supported : 1
• Number of Processors Installed : 1
• Processor Socket : Socket BGA-1667
• Processor Type : Xeon
• Processor Model : D-1548
• Processor Core : Octa-core (8 Core)
• Processor Speed : 2 GHz
• Maximum Turbo Speed : 2.60 GHz
• 64-bit Processing : Yes
• Chipset Manufacturer : Intel
• Maximum Memory Supported : 128 GB
• Memory Technology : DDR4 SDRAM
• Total Number of Memory Slots : 4
• Controller Type : Serial Attached SCSI (SAS)
• RAID Supported : Yes
• RAID Levels : 0, 1, 5, 10
• Ethernet Technology : Gigabit Ethernet,10 Gigabit Ethernet
• Number of Total Expansion Bays : 4
• Network (RJ-45) : Yes
• Number of Network (RJ-45) Ports : 4
• Form Factor : Blade
• Height : 1.58" (40.13 mm)
• Width : 16.23" (412.24 mm)
• Depth : 7.50" (190.50 mm)
• Weight (Approximate) : 7.05 lb (3200 g)
• Environmentally Friendly : Yes
• Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
• Limited Warranty : 90 Day

• DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
• Gigabit Ethernet enables higher aggregate data transfer capacity which results in a better overall performance
• Serial Attached SCSI (SAS) interface provides quick data transfer and greater throughput
