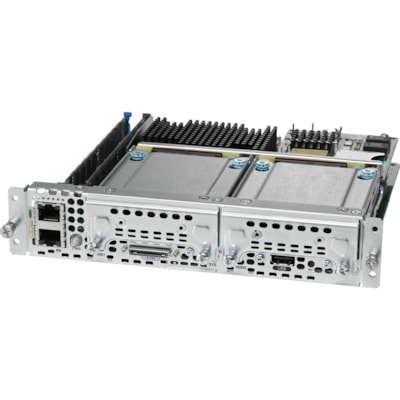

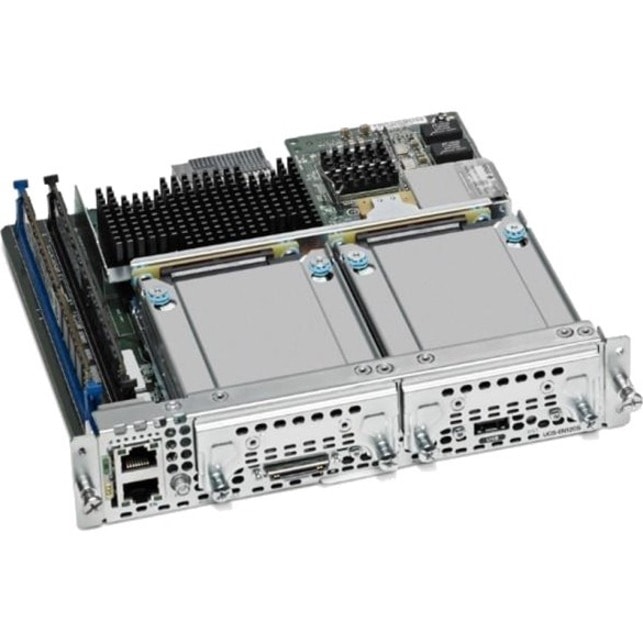

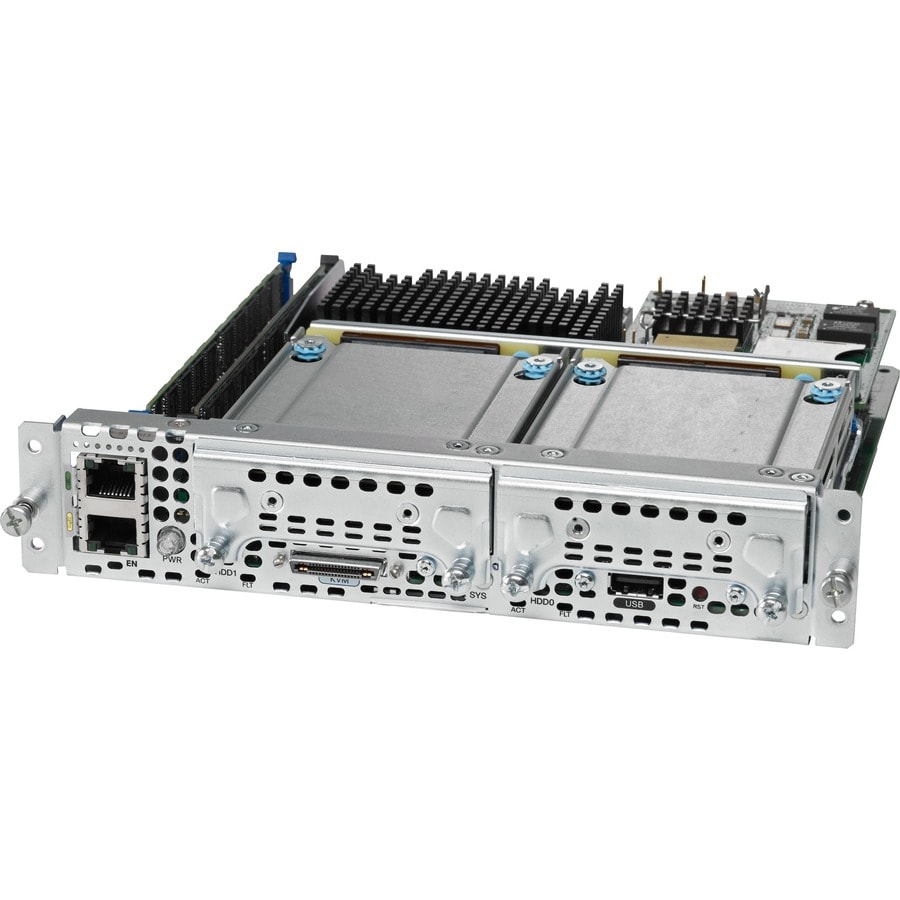

Cisco E160S M3 Blade Server - 1 Xeon D-1528 1.90 GHz - 8 GB RAM - Serial Attached SCSI (SAS) Controller - 32 GB RAM Support - DDR4 SDRAM - 0, 1 RAID Levels - Gigabit Ethernet, 10 Gigabit Ethernet
UCS-E160S-M3/K9
Also known as SY10976406
MARKETING INFORMATION
With powerful data center-class servers that are virtualization-ready, you can host business applications and network services right in your branch-office router.Cisco UCS® E-Series Servers bring data center-class blade servers to the branch office. These powerful, small-form-factor, x86 64-bit blade servers reside in Cisco® branch-office routers: the Cisco 4000 Series Integrated Services Routers (ISRs) networking platforms. The blades are virtualization-ready and host essential infrastructure services and mission-critical business applications, all while you maintain a lean branch-office environment.
DETAILS
- Number of Processors Installed : 1
- Processor Type : Xeon
- Processor Model : D-1528
- Processor Core : Hexa-core (6 Core)
- Processor Speed : 1.90 GHz
- Standard Memory : 8 GB
- Maximum Memory Supported : 32 GB
- Memory Technology : DDR4 SDRAM
- Controller Type : Serial Attached SCSI (SAS)
- RAID Supported : Yes
- RAID Levels : 0, 1
- Ethernet Technology : Gigabit Ethernet,10 Gigabit Ethernet
- Country of Origin : China
- Form Factor : Blade
- Height : 1.58" (40.13 mm)
- Width : 7.44" (188.98 mm)
- Depth : 7.50" (190.50 mm)
- Weight (Approximate) : 2.50 lb (1133.98 g)
- Limited Warranty : 90 Day
- Experience high performance, built-in security and remote management capabilities with Intel Xeon 1.90 GHz processor
- With 8 GB memory, improve system performance to execute complex applications
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
SPECIFICATIONS
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | UCS-E160S-M3/K9 |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Series | E |
| Product Model | E160S M3 |
| Product Name | UCS E160S M3 Server |
| Product Type | Server |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | D-1528 |
| Processor Core | Hexa-core (6 Core) |
| Processor Speed | 1.90 GHz |
| Standard Memory | 8 GB |
| Maximum Memory Supported | 32 GB |
| Memory Technology | DDR4 SDRAM |
| Controller Type | Serial Attached SCSI (SAS) |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Form Factor | Blade |
| Height | 1.58" (40.13 mm) |
| Width | 7.44" (188.98 mm) |
| Depth | 7.50" (190.50 mm) |
| Weight (Approximate) | 2.50 lb (1133.98 g) |
| Country of Origin | China |
| Limited Warranty | 90 Day |
