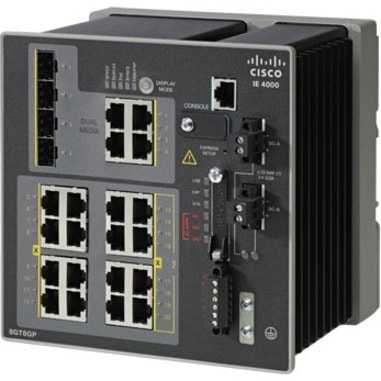

Cisco 4000 Layer 3 Switch - 20 Ports - Manageable - 10/100/1000Base-T - 3 Layer Supported - 5 Year Limited Warranty
IE-4000-16GT4G-E
Also known as SY10683411
MARKETING INFORMATION
Developed specifically to withstand the harshest industrial manufacturing environments, these switches offer today's most flexible and scalable industrial Ethernet platform that will grow with your network.The Cisco® Industrial Ethernet (IE) 4000 Series is the latest addition to our ruggedized switching platforms and provides superior high-bandwidth switching and proven Cisco IOS® Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements.
The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth, a richer feature set, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000.
DETAILS
- Total Number of Network Ports : 20
- Uplink Port : Yes
- Modular : No
- Port/Expansion Slot Details : 16 x Gigabit Ethernet Network,4 x Gigabit Ethernet Uplink
- Media Type Supported : Twisted Pair
- Ethernet Technology : Gigabit Ethernet
- Network Technology : 10/100/1000Base-T
- Layer Supported : 3
- Manageable : Yes
- PoE (RJ-45) Port : No
- Power Source : Power Supply
- Height : 6.12" (155.45 mm)
- Width : 6.12" (155.45 mm)
- Depth : 5.09" (129.29 mm)
- Weight (Approximate) : 6.35 lb (2880 g)
- Environmentally Friendly : Yes
- TAA Compliant : Yes
- Limited Warranty : 5 Year
- Cascade to other network devices through the uplink port to expand your local area network
- Quickly and easily set up a wired network with 20 networking ports
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Can work as layer 3 routing for scalable network design
- Gigabit Ethernet port for ultra-fast network speeds
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
SPECIFICATIONS
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | IE-4000-16GT4G-E |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Series | 4000 |
| Product Name | 4000 Layer 3 Switch |
| Product Type | Layer 3 Switch |
| Total Number of Network Ports | 20 |
| Token Ring Port | No |
| LRE Port | No |
| Uplink Port | Yes |
| Bypass | No |
| Modular | No |
| Management Port | No |
| USB | No |
| Number of Network (RJ-45) Ports | 20 |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Uplink |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet Network |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Layer Supported | 3 |
| Manageable | Yes |
| Management |
|
| Standard Memory | 512 MB |
| Memory Technology | DRAM |
| Flash Memory | 128 MB |
| Memory Card Supported | SD |
| MTBF | 558630 Hour |
| PoE (RJ-45) Port | No |
| Power Source | Power Supply |
| Height | 6.12" (155.45 mm) |
| Width | 6.12" (155.45 mm) |
| Depth | 5.09" (129.29 mm) |
| Weight (Approximate) | 6.35 lb (2880 g) |
| Certifications & Standards | Electromagnetic Emissions:
Electromagnetic Immunity:
Industry Standards:
Safety Standards and Certifications: Information Technology Equipment:
Industrial Floor (Control Equipment):
Hazardous Locations:
|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Limited Warranty | 5 Year |
