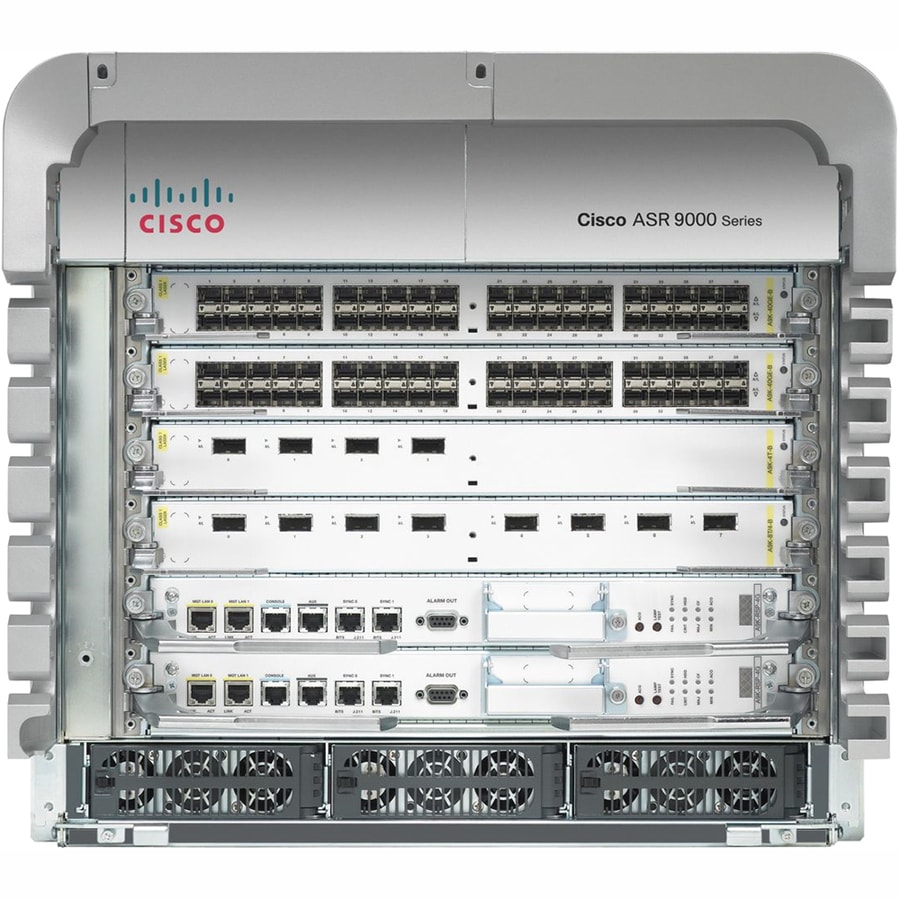

Cisco ASR 9006 Chassis - 4 - Rack-mountable - 1 Year

ASR-9006-AC-V2
Also known as SY10146794

Cisco ASR 9006 Chassis - 4 - Rack-mountable - 1 Year ERSION 2

New! Log in or create an account to see price and availability


MARKETING INFORMATION

The Cisco ASR 9000 Series is an operationally simple, future-optimized platform using next-generation hardware and software. The following are highlights of this next-generation platform.

  • The Cisco ASR 9000 System brings increased power and simplicity to the edge, and the ASR 9000v sets the industry benchmark as a virtualized compact carrier-class converged access and aggregation platform. Leveraging Cisco's "network virtualization" or nV Technology, the Cisco ASR 9000 System offers exceptional pay as you grow scale, carrier-class reliability, and simplified service provisioning.

DETAILS

  • Management Port : No
  • Total Number of Expansion Slots : 4
  • Expansion Slot Type : Line Card
  • VoIP Supported : No
  • PoE (RJ-45) Port : No
  • Redundant Power Supply Supported : Yes
  • Form Factor : Rack-mountable
  • Height : 17.50" (444.50 mm)
  • Width : 17.50" (444.50 mm)
  • Depth : 31.45" (798.83 mm)
  • Weight (Approximate) : 11 lb (4989.52 g)
  • Limited Warranty : 1 Year
  • With the versatile chassis, build a network that suits your needs by installing multiple modules and have more flexibility in expanding your router when required
  • The unmanaged router provides a quick, easy and cost-saving way to connect with the wired network; no intervention needed
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • Rack-mountable feature for convenient and safe installation of the router

SPECIFICATIONS

Manufacturer Cisco Systems, Inc
Manufacturer Part Number ASR-9006-AC-V2
Manufacturer Website Address http://www.cisco.com
Brand Name Cisco
Product Series ASR 9000
Product Model ASR 9006
Product Name ASR 9006 Chassis
Product Type Router Chassis
Management Port No
Total Number of Expansion Slots 4
Expansion Slot Type Line Card
VoIP Supported No
Security Features
  • Authentication, Authorization, and Accounting (AAA)
  • Bridge-Protocol-Data-Unit (BPDU) Filtering
  • Control-Plane Protection
  • Layer 2 Control Protocol
  • Access Control List
  • IP Source Guard
  • MAC Limiting
  • Secure Shell
  • TACACS+
PoE (RJ-45) Port No
Redundant Power Supply Supported Yes
Power Source Power Supply
Form Factor Rack-mountable
Height 17.50" (444.50 mm)
Width 17.50" (444.50 mm)
Depth 31.45" (798.83 mm)
Weight (Approximate) 11 lb (4989.52 g)
Certifications & Standards

ETSI Standards:

  • EN300 386: Telecommunications Network Equipment (EMC)
  • ETSI 300 019 Storage Class 1.1
  • ETSI 300 019 Transportation Class 2.3
  • ETSI 300 019 Stationary Use Class 3.1

EMC Standards Emission:

  • FCC Class 47CFR15 A
  • ICES 003 Class A
  • AS/NZS CISRP22 Class A
  • CISPR 22 (EN55022) Class A
  • VCCI Class A
  • BSMI Class A
  • IEC/EN 61000-3-12: Power Line Harmonics
  • IEC/EN 61000-3-11: Voltage Fluctuations and Flicker
  • EN55022: Information Technology Equipment (Emissions)
  • EN 50121-4: Railway EMC

EMC Standards Immunity:

  • IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)
  • IEC/EN-61000-4-3: Radiated Immunity (10V/m)
  • IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)
  • IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)
  • IEC/EN-61000-4-5: Signal Surge Ports (1kV)
  • IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM)
  • IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)
  • IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)
  • IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations
  • EN55024: Information Technology Equipment (Immunity)
  • EN50082-1/EN-61000-6-1: Generic Immunity Standard
  • EN 50121-4: Railway EMC

Safety:

  • UL/CSA/IEC/EN 60950-1
  • IEC/EN 60825 Laser Safety
  • ACA TS001
  • AS/NZS 60950
  • FDA Code of Federal Regulations Laser Safety
  • OSHA acoustic requirements
Limited Warranty 1 Year
