MARKETING INFORMATION

Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss

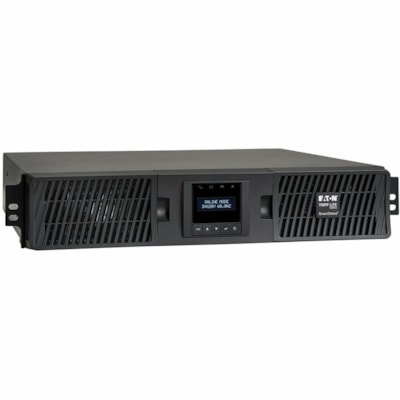

This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation isolates sensitive equipment from power problems on the AC line. The SmartOnline® SU3000RTXLCD2U provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP72RT, sold separately).

Optional LX Platform Network Management Card Allows Remote Access 24/7

The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.

NEMA Outlets Protect Your Connected Components

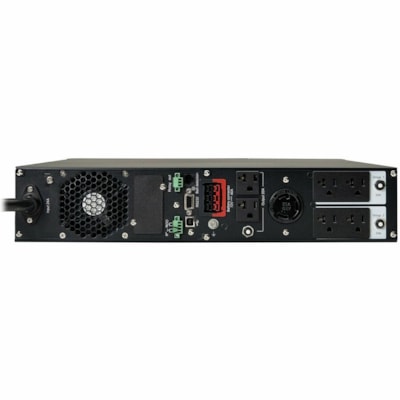

One L5-30R and six 5-20R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four 5-20R outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better

This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

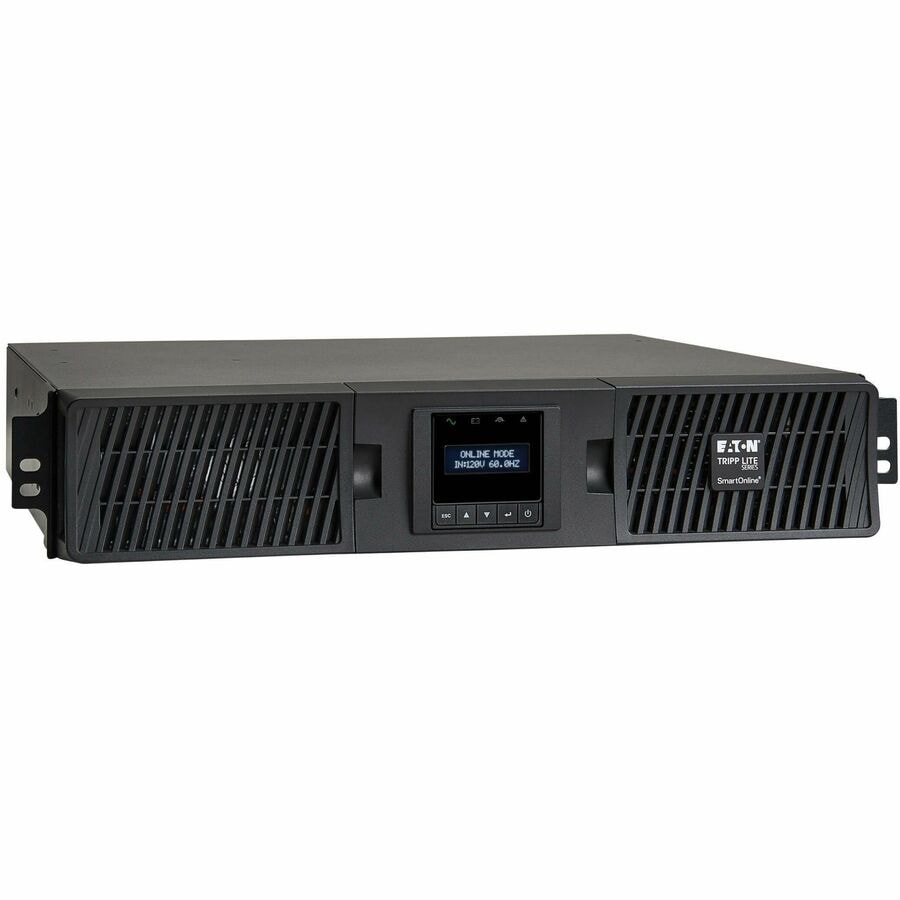

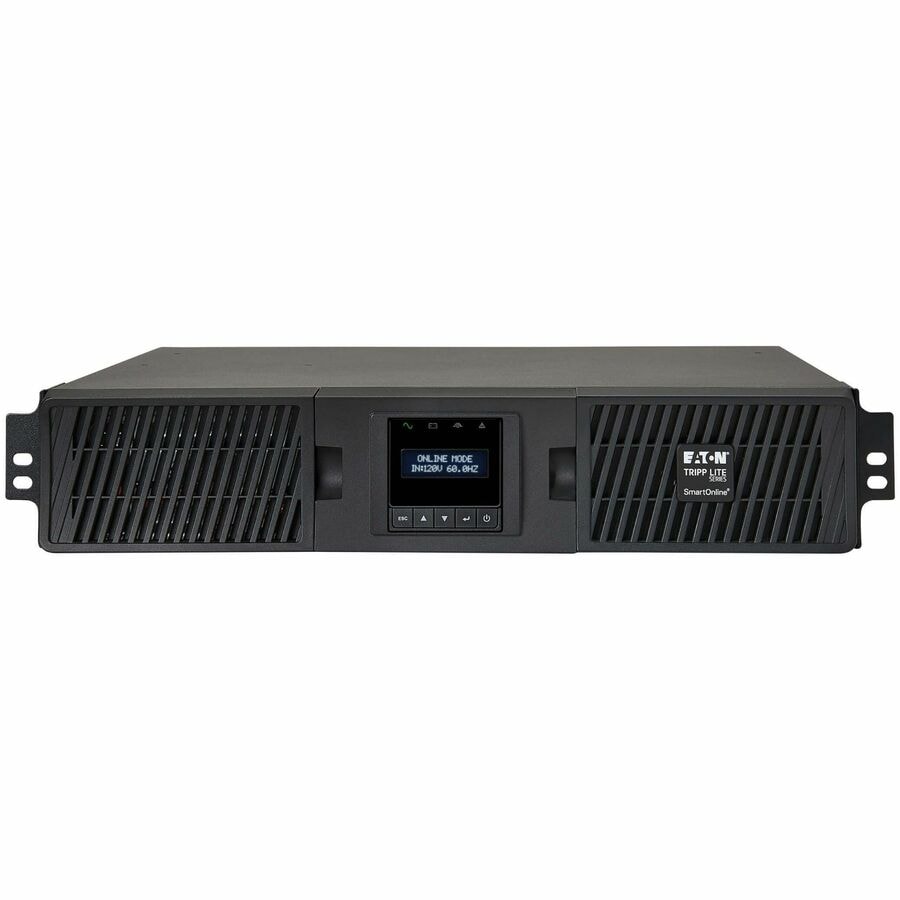

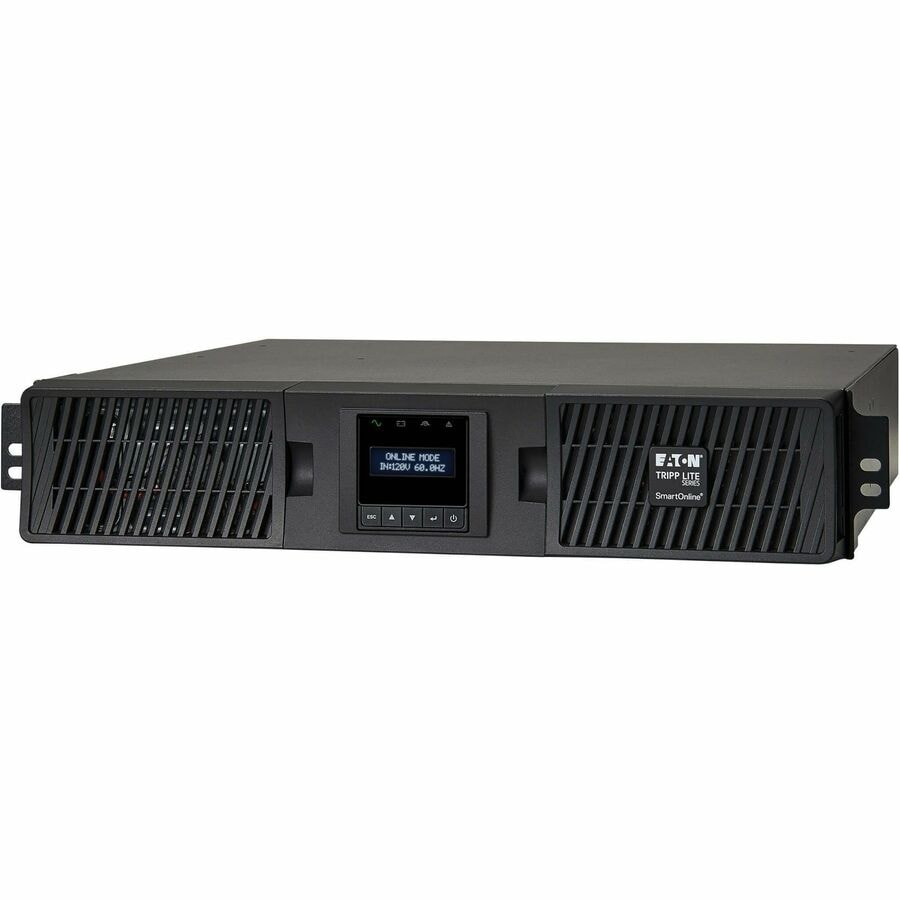

Clear LCD Interface Keeps You Informed at a Glance

The menu-driven front-panel LCD provides detailed alarms and notifications to help diagnose any issues. It provides system status, event logs, battery and power module status, usage analytics, serial number, firmware update info and more. Audible alarms can be disabled through the front menu when the UPS goes to battery power. The LCD rotates to accommodate both rack-mount and tower installation.

Advanced Communications Ports Allow for Automatic Saves and Shutdowns

RS-232 and USB ports connect to a device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO port permits emergency shutdown or remote restart of all connected equipment.

DETAILS

• Plug/Connector Type : NEMA L5-30P
• Receptacle Type : NEMA 5-15R,NEMA 5-15/20R,NEMA L5-30R
• Receptacle Detail : 4 x NEMA 5-15R,4 x NEMA 5-15/20R,1 x NEMA L5-30R
• Cord Length : 10 ft (3.05 m)
• Load Capacity (VA) : 3 kVA
• Load Capacity (Watt) : 2.70 kW
• Input Voltage : 127 V AC
• Output Voltage : 127 V AC
• Waveform Type : Pure Sine Wave
• Surge Energy Rating : 570 J
• Circuit Breaker : Yes
• Network Management : SNMP Manageable
• Alarm : Low Battery,Power Failure,Overload,UPS Fault,Remote Shutdown
• Serial Port : Yes
• USB : Yes
• Battery Chemistry : Lead Acid
• Backup/Run Time (Full Load) : 4.10 Minute
• Backup/Run Time (Half Load) : 11.30 Minute
• Battery Life : 6 Year
• Hot Swappable : Yes
• Typical Battery Recharge Time : 3 Hour
• Maximum Operating Temperature : 104°F (40°C)
• Sound Emission (A-Weighted) : 50 dB(A)
• Thermal Dissipation : 801 BTU/h
• Height : 3.40" (86.36 mm)
• Width : 17.30" (439.42 mm)
• Depth : 25.50" (647.70 mm)
• Rack Height : 2U
• Form Factor : Rack/Tower
• Weight (Approximate) : 70.50 lb (31978.26 g)
• Package Contents :
  • SmartOnline SU3000RTXLCD2U 3000VA Tower/Rack Mountable UPS
  • PowerAlert UPS Monitoring Software CD
  • USB Cable
  • DB9 Cable
• Software Included : PowerAlert UPS Monitoring Software
• Country of Origin : Philippines
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)
• Limited Warranty : 2 Year

• 3000VA / 3kVA / 2700W on-line double-conversion 2U rackmount UPS
• 100/110/120/127V 50/60Hz output; High 98% full load efficiency economy mode option
• Interactive LCD with 9 selectable screens of UPS and site power data
• Expandable runtime, Hot-swap batteries, 25.5 in / 64.8 cm depth
