Tripp Lite series SmartOnline SU1000RTXLCD2UN 1000VA Rack-mountable UPS - 2U Rack-mountable - 3 Hour Recharge - 4.80 Minute Stand-by - 120 V AC Input - 100 V AC, 110 V AC, 115 V AC, 127 V AC Output - Single Phase - Serial Port - 6 x NEMA 5-15R Receptacle(s)

SU1000RTXLCD2UN
Also known as SU1000RTXLCD2CA,IM494PPN,SY6555330

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss
This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SU1000RTXLCD2UN provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP36RT, sold separately).

Pre-Installed LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.

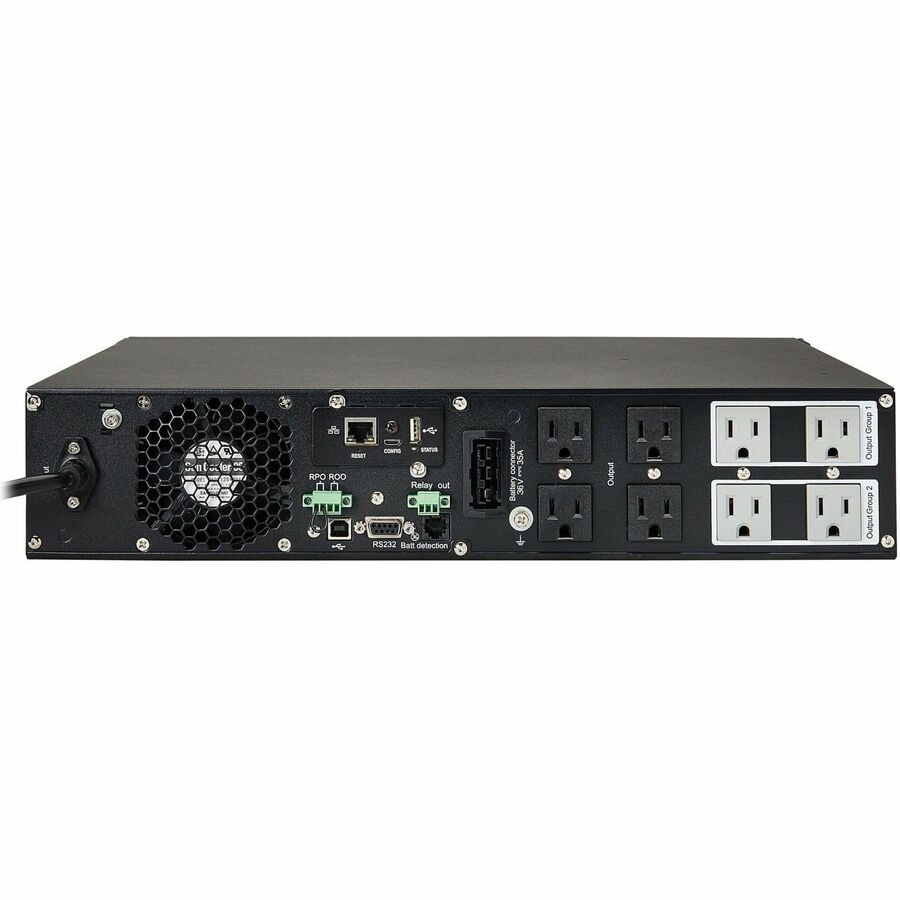

NEMA Outlets Protect Your Connected Components
Eight 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to manage power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

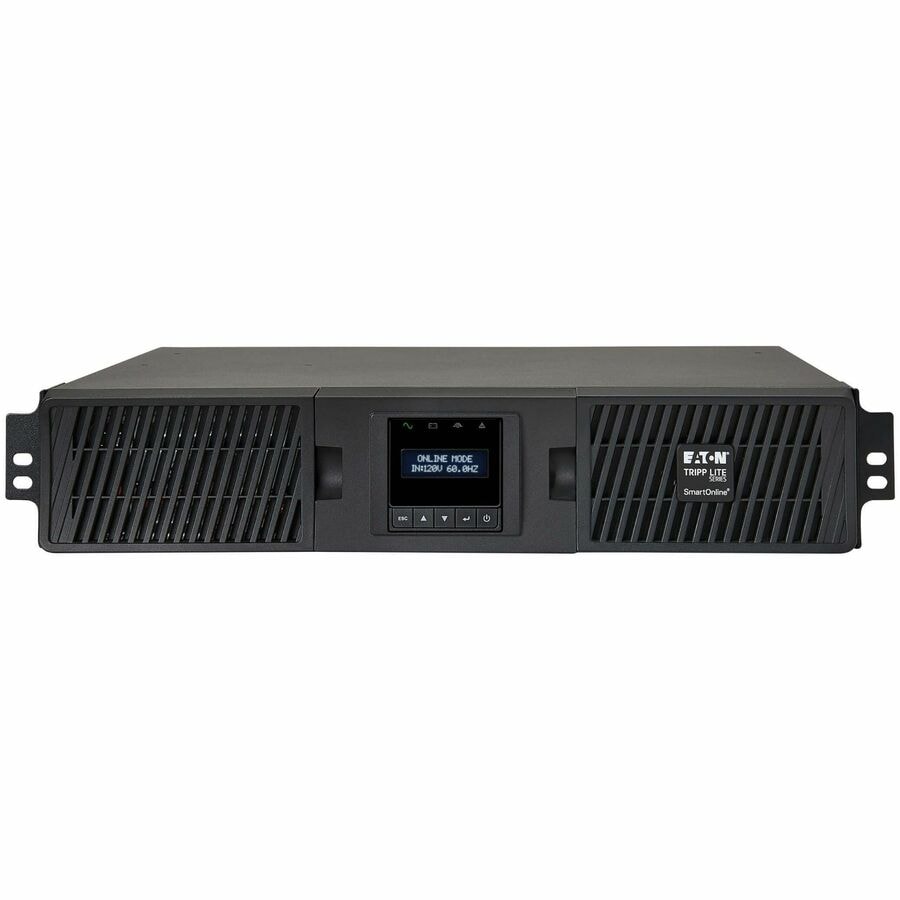

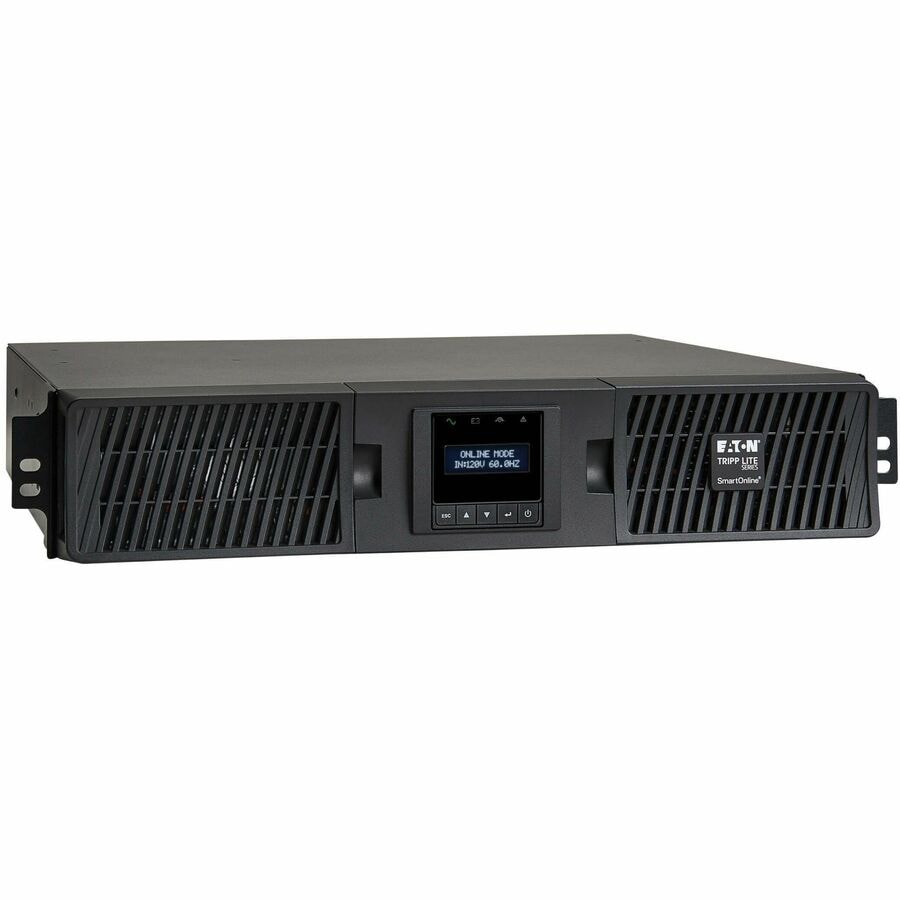

Clear LCD Interface Keeps You Informed at a Glance

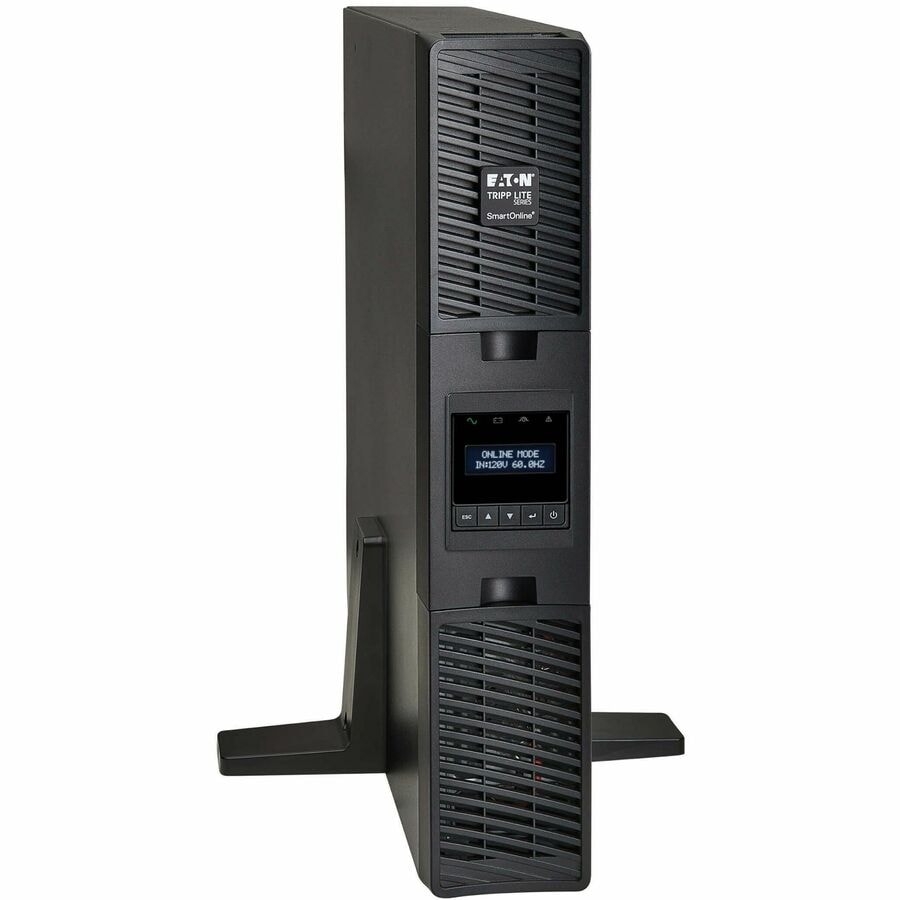

The menu-driven front-panel LCD provides detailed alarms and notifications to help diagnose any issues. It provides system status, event logs, battery and power module status, usage analytics, serial number, firmware update info and more. Audible alarms can be disabled through the front menu when the UPS goes to battery power. The LCD rotates to accommodate both rack-mount and tower installation.

Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and USB ports connect to a device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO port permits emergency shutdown or remote restart of all connected equipment.

DETAILS

  • Plug/Connector Type : NEMA 5-15P
  • Receptacle Type : NEMA 5-15R
  • Receptacle Detail : 6 x NEMA 5-15R
  • Dataline Protection : RJ-11,RJ-45
  • Overload Protection : Yes
  • Transfer Time : 0 ns
  • EMI/RFI Noise Filter : Yes
  • Phase : Single Phase
  • Energy Saving : Green Energy-Saving
  • Application/Usage : Mission Critical Equipment,Data Center,Computer Room,Network Closet,Server
  • Load Capacity (VA) : 1 kVA
  • Load Capacity (Watt) : 900 W
  • Input Voltage : 120 V AC
  • Output Voltage : 100 V AC,110 V AC,115 V AC,127 V AC
  • Output Frequency : 60 Hz
  • Waveform Type : Pure Sine Wave
  • Surge Energy Rating : 570 J
  • Network Management : SNMP/HTTP Remote Monitoring
  • Alarm : UPS StartUp,Power Failure,Low Battery,Overload,UPS Fault,Remote Shutdown
  • Serial Port : Yes
  • EPO Port : Yes
  • USB (HID Compliant) Port : Yes
  • DC System Voltage : 24 V DC
  • Backup/Run Time (Full Load) : 4.80 Minute
  • Backup/Run Time (Half Load) : 14 Minute
  • Hot Swappable : Yes
  • Typical Battery Recharge Time : 3 Hour
  • Replaceable Battery : Yes
  • Maximum Operating Elevation : 10000 ft (3048000 mm)
  • Storage Temperature : 5°F (-15°C) - 122°F (50°C)
  • Maximum Operating Temperature : 104°F (40°C)
  • Sound Emission (A-Weighted) : 50 dB(A)
  • Height : 3.50" (89 mm)
  • Width : 17.52" (445 mm)
  • Depth : 12.52" (318 mm)
  • Rack Height : 2U
  • Form Factor : Rack-mountable
  • Weight (Approximate) : 28.99 lb (13150 g)
  • Energy Star : Yes
  • Country of Origin : Philippines
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 2 Year
  • Offers network-grade protection against power failures and voltage fluctuations
  • Zero transfer time between on-line and battery modes for uninterrupted operation
  • Optional external battery packs provide additional runtime for applications requiring it
  • Included WEBCARDLX network interface allows you 24/7 remote access from anywhere
  • ENERGY STAR-certified to save electricity, lower costs, and protect the environment
  • 2-year limited warranty
  • $250,000 Ultimate Lifetime Insurance

SPECIFICATIONS

Manufacturer Eaton Corporation
Manufacturer Part Number SU1000RTXLCD2UN
Manufacturer Website Address http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name Tripp Lite series
Product Line SmartOnline
Product Model SU1000RTXLCD2UN
Product Name SmartOnline SU1000RTXLCD2UN 1000VA Rack-mountable UPS
Product Type Double Conversion Online UPS
Plug/Connector Type NEMA 5-15P
Receptacle Type NEMA 5-15R
Receptacle Detail 6 x NEMA 5-15R
Dataline Protection RJ-11
Dataline Protection RJ-45
Overload Protection Yes
Transfer Time 0 ns
EMI/RFI Noise Filter Yes
Phase Single Phase
Energy Saving Green Energy-Saving
Application/Usage Data Center
Application/Usage Network Closet
Application/Usage Computer Room
Application/Usage Mission Critical Equipment
Application/Usage Server
Load Capacity (VA) 1 kVA
Load Capacity (Watt) 900 W
Input Voltage 120 V AC
Output Voltage 110 V AC
Output Voltage 127 V AC
Output Voltage 100 V AC
Output Voltage 115 V AC
Output Frequency 60 Hz
Waveform Type Pure Sine Wave
Surge Energy Rating 570 J
Network Management SNMP/HTTP Remote Monitoring
Alarm Remote Shutdown
Alarm Overload
Alarm Low Battery
Alarm Power Failure
Alarm UPS StartUp
Alarm UPS Fault
Status Indicators

7 Front Panel LEDs Indicator:

  • AC To DC Conversion
  • Battery Mode Operation
  • Inverter Mode
  • ECO Mode Operation
  • Bypass Mode Operation
  • AC Output Status

Front Panel LCD Display:

  • UPS And Site Power Status And Operating Data
  • Configuration Of Voltage
  • Frequency
  • Operating Mode
  • Alarm Function And A Variety Of Additional Options
Serial Port Yes
EPO Port Yes
USB (HID Compliant) Port Yes
DC System Voltage 24 V DC
Backup/Run Time (Full Load) 4.80 Minute
Backup/Run Time (Half Load) 14 Minute
Typical Battery Recharge Time 3 Hour
Hot Swappable Yes
Replaceable Battery Yes
Maximum Operating Temperature 104°F (40°C)
Storage Temperature 5°F (-15°C) - 122°F (50°C)
Maximum Operating Elevation 10000 ft (3048000 mm)
Sound Emission (A-Weighted) 50 dB(A)
Height 3.50" (89 mm)
Width 17.52" (445 mm)
Depth 12.52" (318 mm)
Rack Height 2U
Form Factor Rack-mountable
Weight (Approximate) 28.99 lb (13150 g)
Package Contents
  • SmartOnline SU1000RTXLCD2UN 1000VA Rack-mountable UPS
  • WEBCARDLX Network Interface Card
  • USB Cable
  • RS-232 Cable
  • EPO Cable
  • 4-post Rack-mounting Hardware
  • Owner's Manual
Energy Star Yes
Country of Origin Philippines
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty 2 Year
