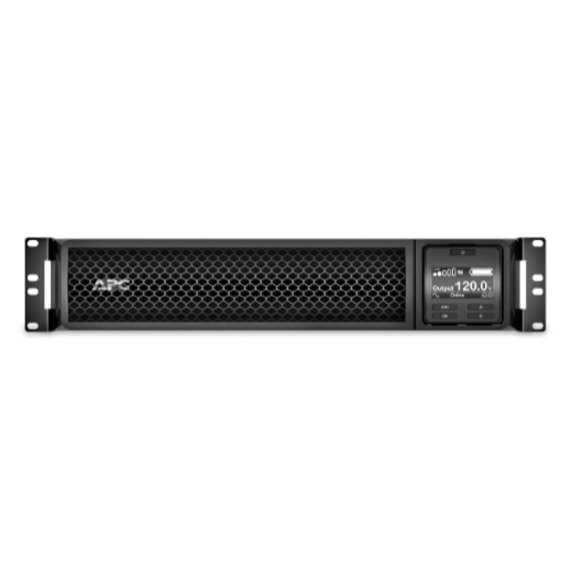

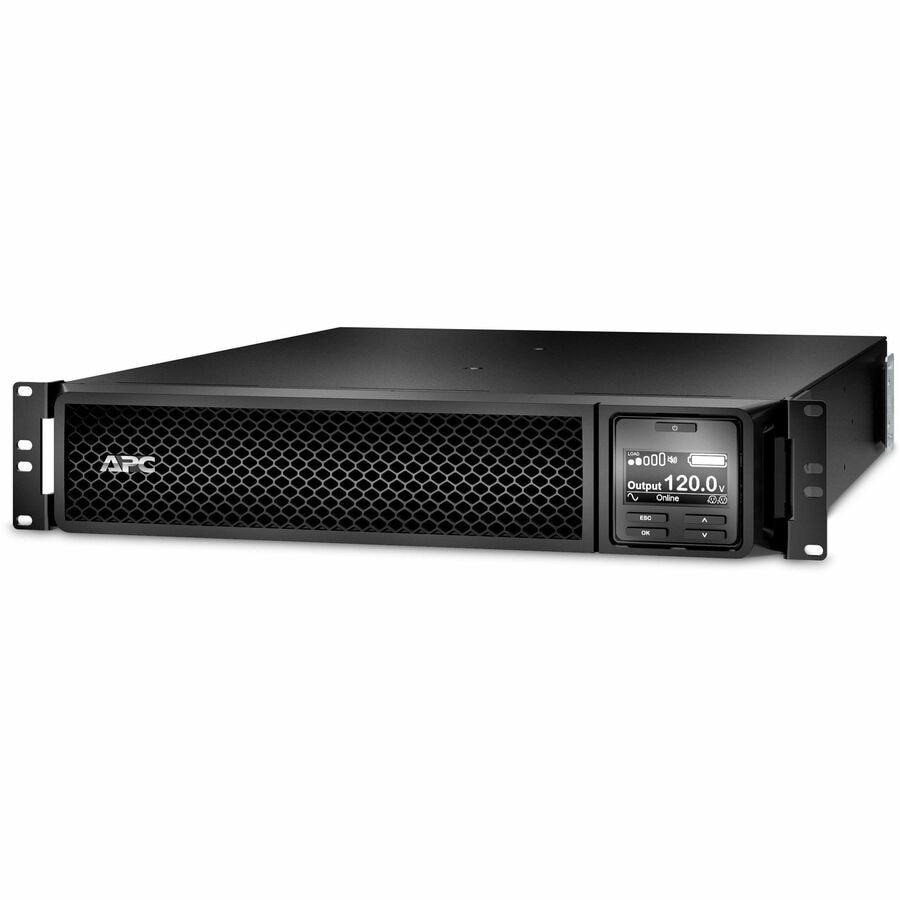

APC by Schneider Electric Smart-UPS SRT 3000VA RM 120V Network Card - 2U Rack-mountable - 3 Hour Recharge - 120 V Input - 120 V AC Output - Sine Wave - 1 x NEMA L5-30R, 8 x NEMA 5-20R Receptacle(s) - 9 x Battery/Surge Outlet
SRT3000RMXLA-NC
Also known as SRT3000RMXLANCC,SY5705930
MARKETING INFORMATION
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L5-30P input, 8x NEMA 5-20R and 1x NEMA L5-30R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.DETAILS
- Plug/Connector Type : NEMA L5-30P
- Receptacle Type : NEMA L5-30P

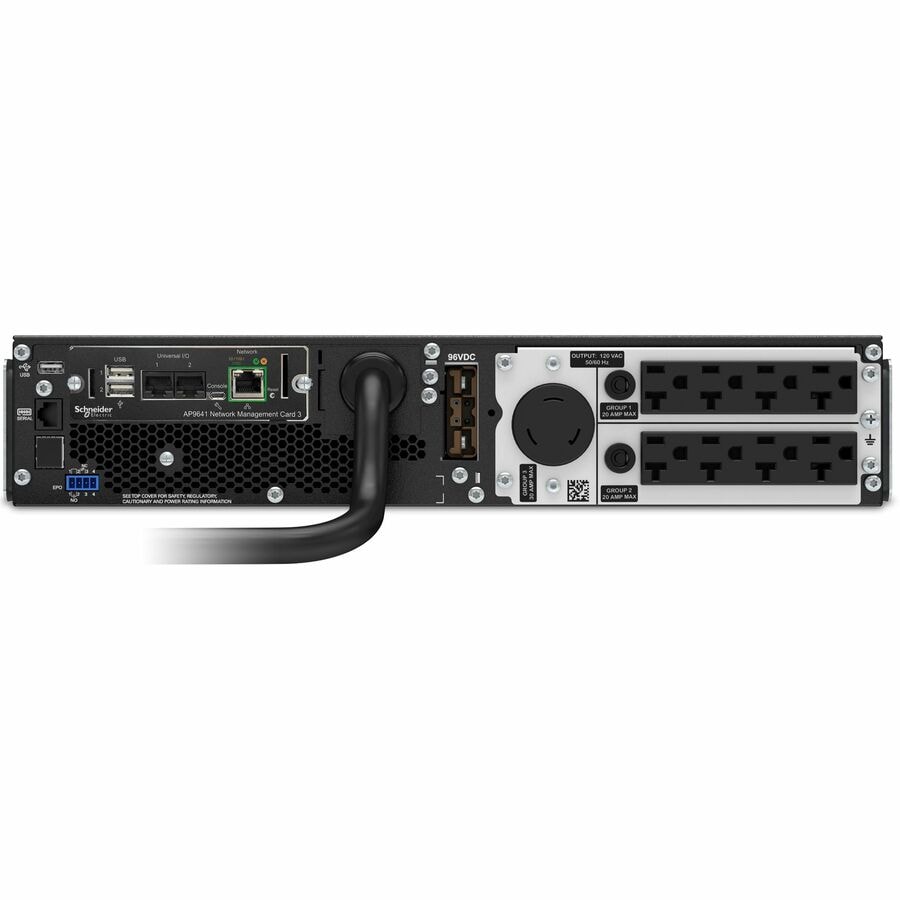

- Receptacle Detail : 1 x NEMA L5-30R,8 x NEMA 5-20R
- Number of Battery & Surge Outlets : 9
- Cord Length : 8 ft (2.44 m)
- Load Capacity (VA) : 3 kVA
- Load Capacity (Watt) : 2.70 kW
- Input Voltage : 120 V
- Output Voltage : 120 V AC
- Waveform Type : Sine Wave
- Surge Energy Rating : 340 J
- Battery Chemistry : Lead Acid
- Typical Battery Recharge Time : 3 Hour
- Product Color : Black
- Height : 3.35" (85 mm)
- Width : 17.01" (432 mm)
- Depth : 25" (635 mm)
- Rack Height : 2U
- Form Factor : Rack-mountable
- Weight (Approximate) : 69 lb (31297.87 g)
- Energy Star : Yes
- Environmentally Friendly : Yes
- Environmental Compliance : Restriction of Hazardous Substances (RoHS)
- Limited Warranty : 3 Year
- Additional Warranty Information : 3 years repair or replace (excluding battery) and 2 years for battery
- 2.70 kW load capacity - backup power for your valuable electronics
- 3 kVA load capacity - work without any interruption during power outages
SPECIFICATIONS
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRT3000RMXLA-NC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS SRT 3000VA RM 120V Network Card |
| Product Type | Double Conversion Online UPS |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA L5-30P |
| Receptacle Detail | 1 x NEMA L5-30R |
| Receptacle Detail | 8 x NEMA 5-20R |
| Number of Battery & Surge Outlets | 9 |
| Cord Length | 8 ft (2.44 m) |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 340 J |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 3 Hour |
| Color Family | Black |
| Product Color | Black |
| Height | 3.35" (85 mm) |
| Width | 17.01" (432 mm) |
| Depth | 25" (635 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Mounting Preference | Lower |
| Mounting Location | Front |
| Weight (Approximate) | 69 lb (31297.87 g) |
| For Country/Region | United States |
| Package Contents | |
| Certifications & Standards | ENERGY STAR V2.0 (USA) |
| Energy Star | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT3000RMXLA-NC_ROHS_DECLARATION&p_FileName=SRT3000RMXLA-NCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458563186&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458563186&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512017_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512017_EN |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
