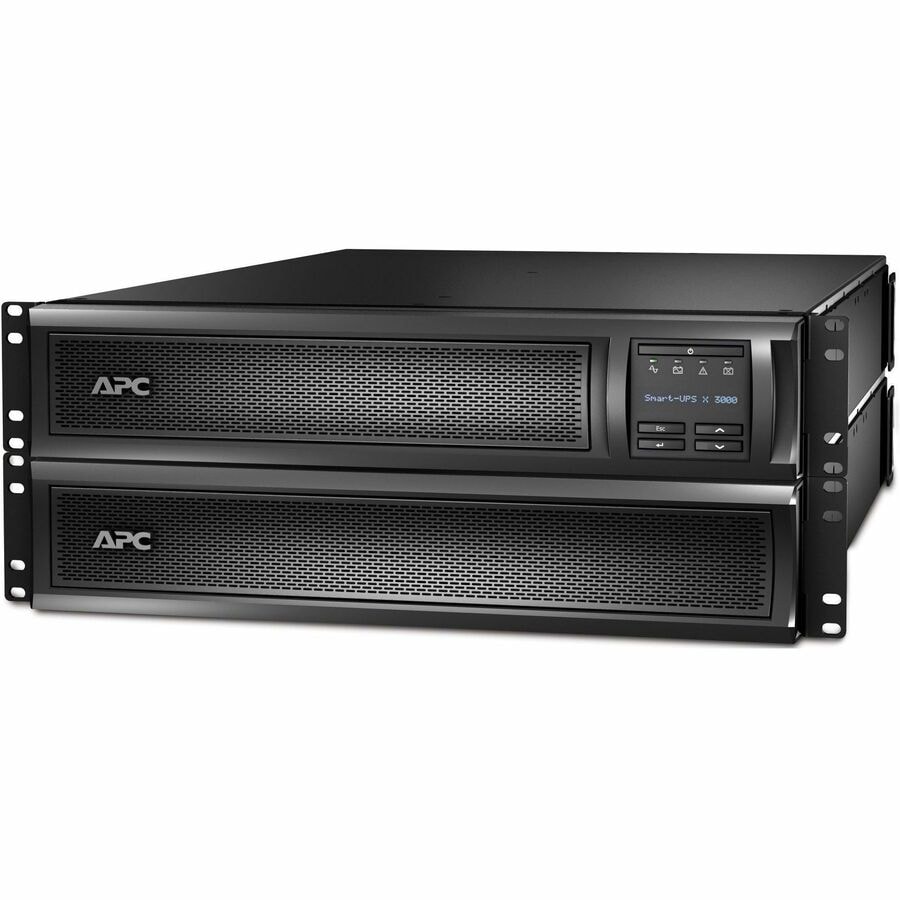

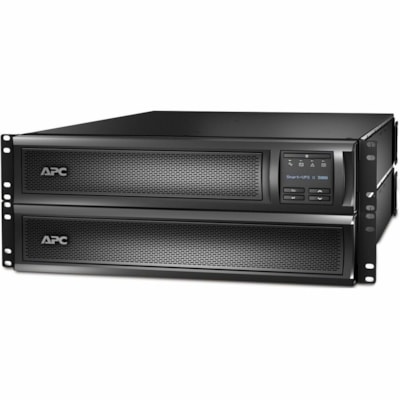

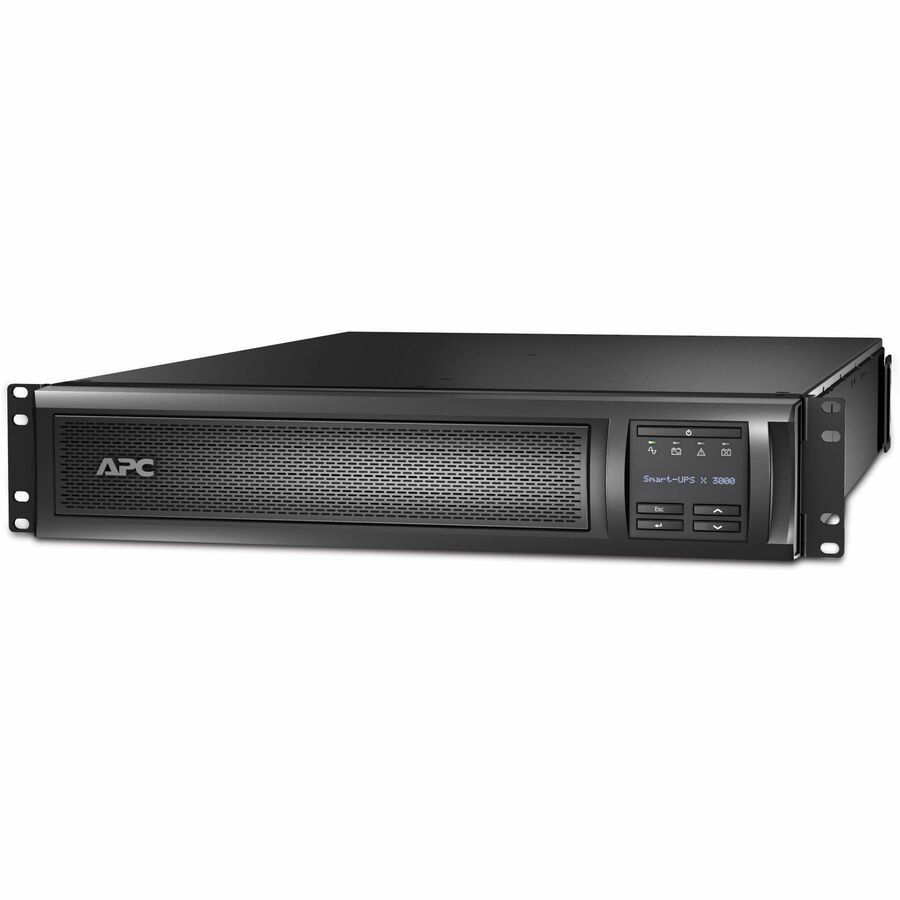

APC by Schneider Electric Smart-UPS X 3000VA Tower/Rack Convertible UPS - 2U Tower/Rack Convertible - 3 Hour Recharge - 120 V Input - 120 V AC Output - 1 x NEMA L5-30R, 3 x NEMA 5-15R, 3 x NEMA 5-20R Receptacle(s) - 7 x Battery/Surge Outlet
SMX3KR2UNCX145
Also known as SMX3KR2UNCX145C,IMAQ6953,SY7290131
MARKETING INFORMATION

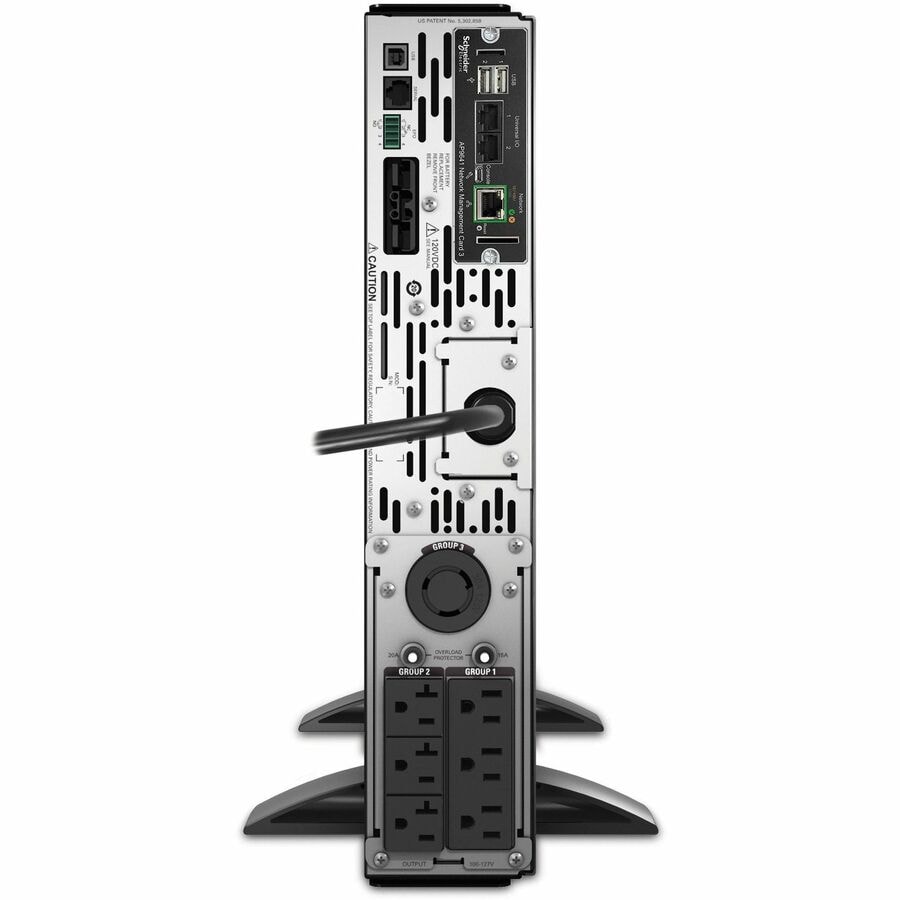

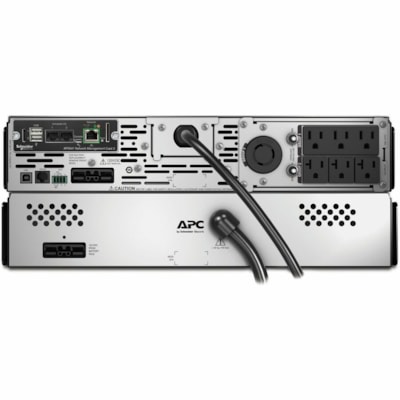

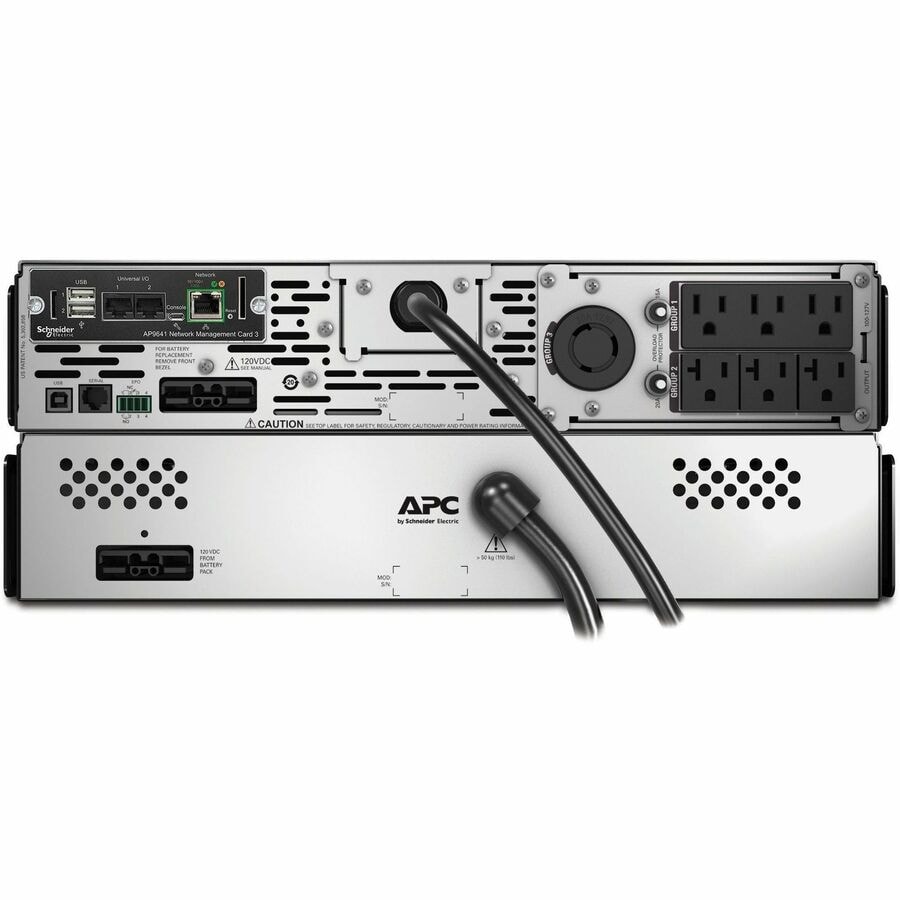

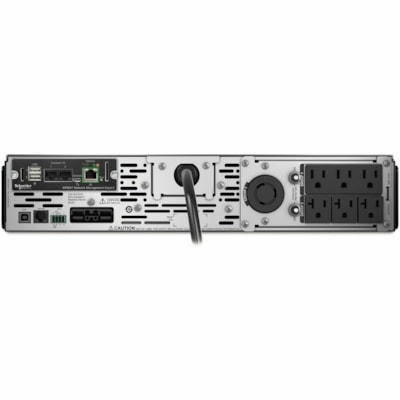

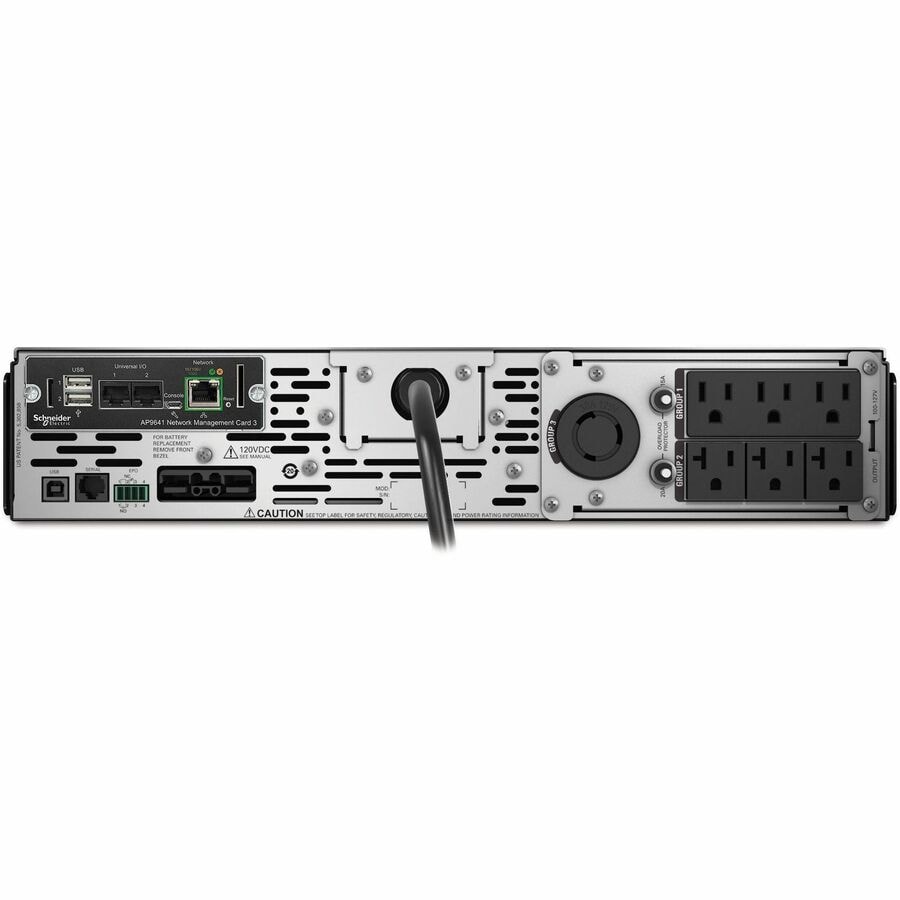

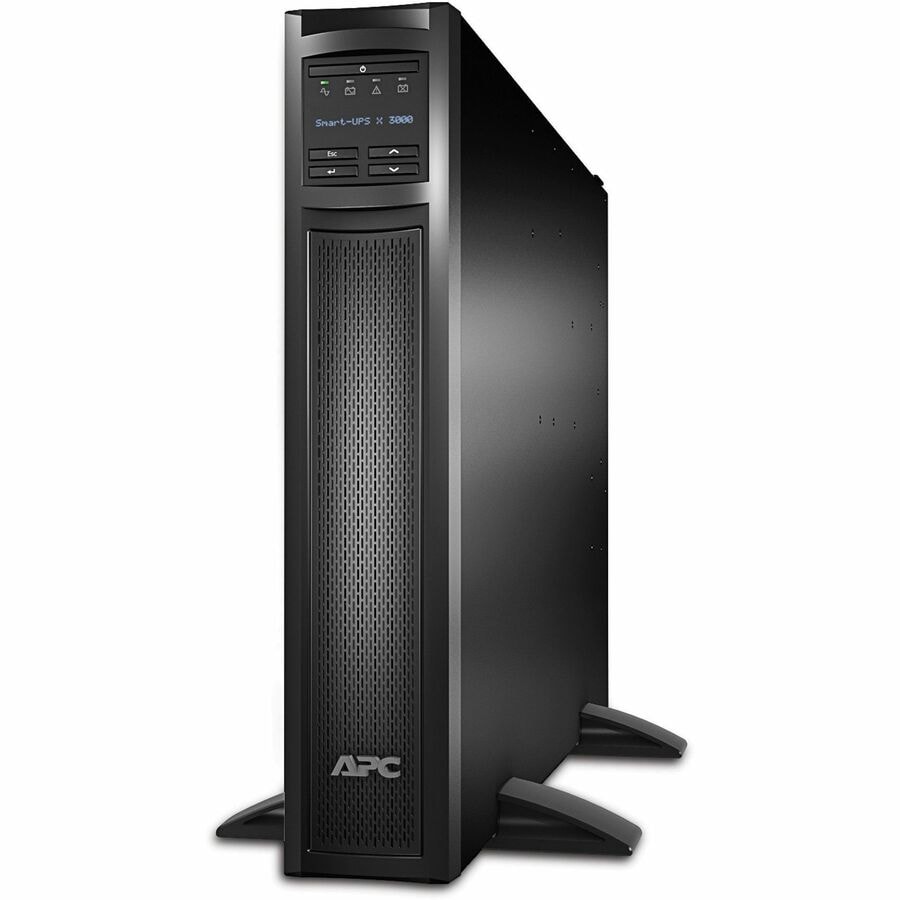

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.DETAILS
- Plug/Connector Type : NEMA L5-30P
- Receptacle Type : NEMA L5-30P
- Receptacle Detail : 1 x NEMA L5-30R,3 x NEMA 5-15R,3 x NEMA 5-20R
- Number of Battery & Surge Outlets : 7
- Cord Length : 10 ft (3.05 m)
- Transfer Time : 4 ms
- Application/Usage : Server,POS,Router,Switch,Hub,Network Device
- Load Capacity (VA) : 2.88 kVA
- Load Capacity (Watt) : 2.70 kW
- Input Voltage : 120 V
- Input Voltage Range : 70 V AC - 153 V AC
- Input Current : 15 A
- Output Voltage : 120 V AC
- Input Frequency : 60 Hz
- Output Frequency : 60 Hz
- Waveform Type : Sine Wave
- Surge Energy Rating : 540 J
- Alarm : On Battery,Low Battery,Configurable Delay
- Status Indicators :
LED:
- On Line
- On Battery
- Replace Battery
- Overload Indicators
- EPO Port : Yes
- USB (HID Compliant) Port : No
- Battery Chemistry : Lead Acid
- Battery Life : 5 Year
- Typical Battery Recharge Time : 3 Hour
- Maximum Operating Elevation : 10000 ft (3048000 mm)
- Maximum Storage Elevation : 50000 ft (15240000 mm)
- Storage Temperature : 5°F (-15°C) - 113°F (45°C)
- Storage Relative Humidity : 0% - 95%
- Maximum Operating Temperature : 104°F (40°C)
- Sound Emission (A-Weighted) : 55 dB(A)
- Thermal Dissipation : 276 BTU/h
- Product Color : Black
- Height : 3.35" (85 mm)
- Width : 17.01" (432 mm)
- Depth : 26.26" (667 mm)
- Rack Height : 2U

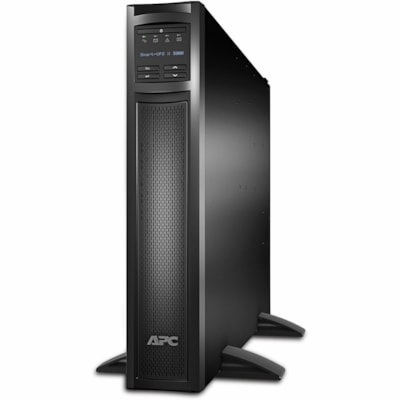

- Form Factor : Tower/Rack Convertible
- Weight (Approximate) : 84.59 lb (38369.38 g)
- Environmentally Friendly : Yes
- Environmental Compliance : Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
- Limited Warranty : 3 Year
- Additional Warranty Information : 3 years repair or replace (excluding battery) and 2 years for battery
- Experience higher efficiency with lower energy cost
- 2.70 kW load capacity - backup power for your valuable electronics
- 2.88 kVA load capacity provides sufficient backup during power failures
SPECIFICATIONS
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMX3KR2UNCX145 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS X |
| Product Name | Smart-UPS X 3000VA Tower/Rack Convertible UPS |
| Packaged Quantity | 1 |
| Product Type | Line-interactive UPS |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA L5-30P |
| Receptacle Detail | 3 x NEMA 5-15R |
| Receptacle Detail | 3 x NEMA 5-20R |
| Receptacle Detail | 1 x NEMA L5-30R |
| Number of Battery & Surge Outlets | 7 |
| Cord Length | 10 ft (3.05 m) |
| Transfer Time | 4 ms |
| Application/Usage | Server |
| Application/Usage | POS |
| Application/Usage | Router |
| Application/Usage | Switch |
| Application/Usage | Hub |
| Application/Usage | Network Device |
| Load Capacity (VA) | 2.88 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Voltage | 120 V |
| Input Voltage Range | 70 V AC - 153 V AC |
| Input Current | 15 A |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 540 J |
| Alarm | Low Battery |
| Alarm | On Battery |
| Alarm | Configurable Delay |
| Status Indicators | LED:
|
| EPO Port | Yes |
| USB (HID Compliant) Port | No |
| Battery Chemistry | Lead Acid |
| Battery Life | 5 Year |
| Typical Battery Recharge Time | 3 Hour |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Thermal Dissipation | 276 BTU/h |
| Color Family | Black |
| Product Color | Black |
| Height | 3.35" (85 mm) |
| Width | 17.01" (432 mm) |
| Depth | 26.26" (667 mm) |
| Rack Height | 2U |
| Form Factor | Tower/Rack Convertible |
| Mounting Preference | Lower |
| Mounting Location | Front |
| Weight (Approximate) | 84.59 lb (38369.38 g) |
| For Country/Region | United States |
| Package Contents |
|
| Certifications & Standards | BSMI|CSA|NOM|TÜV|VCCI Class A |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | No |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX3KR2UNCX145_ROHS_DECLARATION&p_FileName=SMX3KR2UNCX145KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=557301549&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557301549&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 years repair or replace (excluding battery) and 2 years for battery |
| Directly Connected Equipment Guarantee | $150000 Lifetime |
