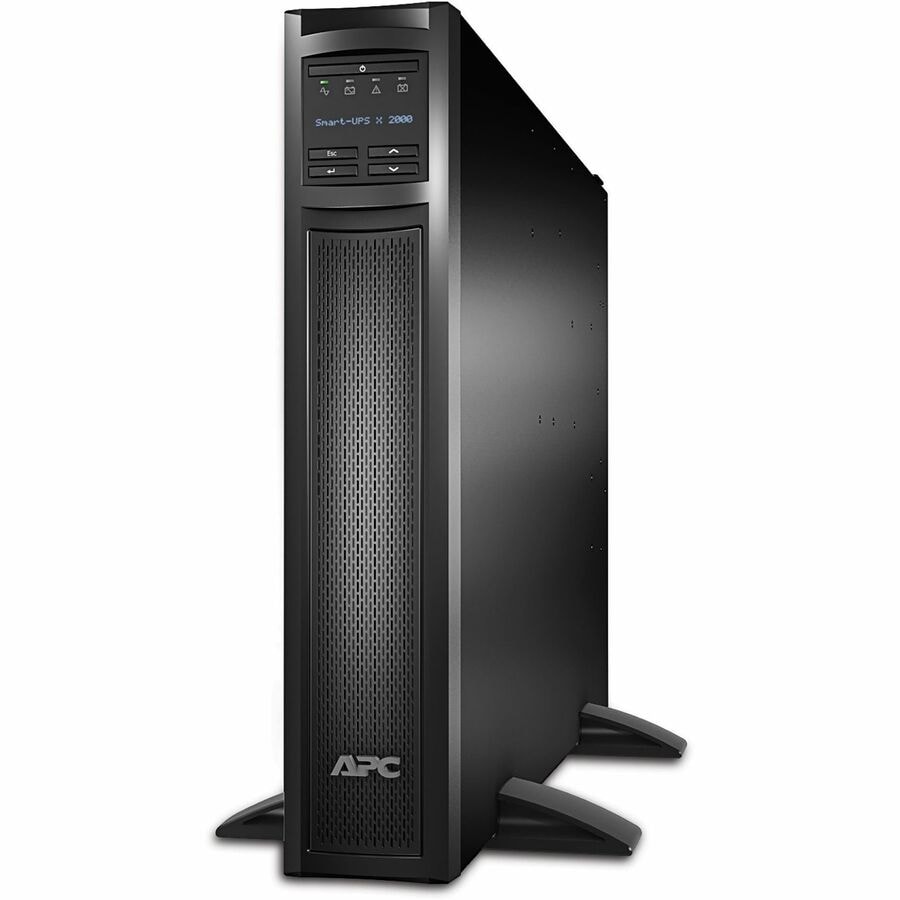

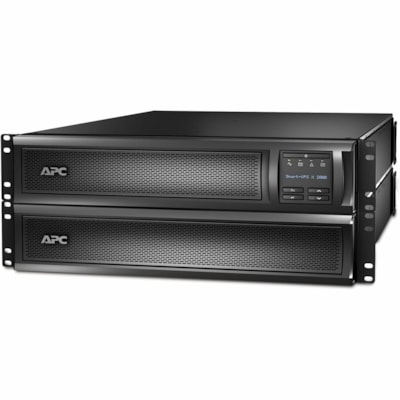

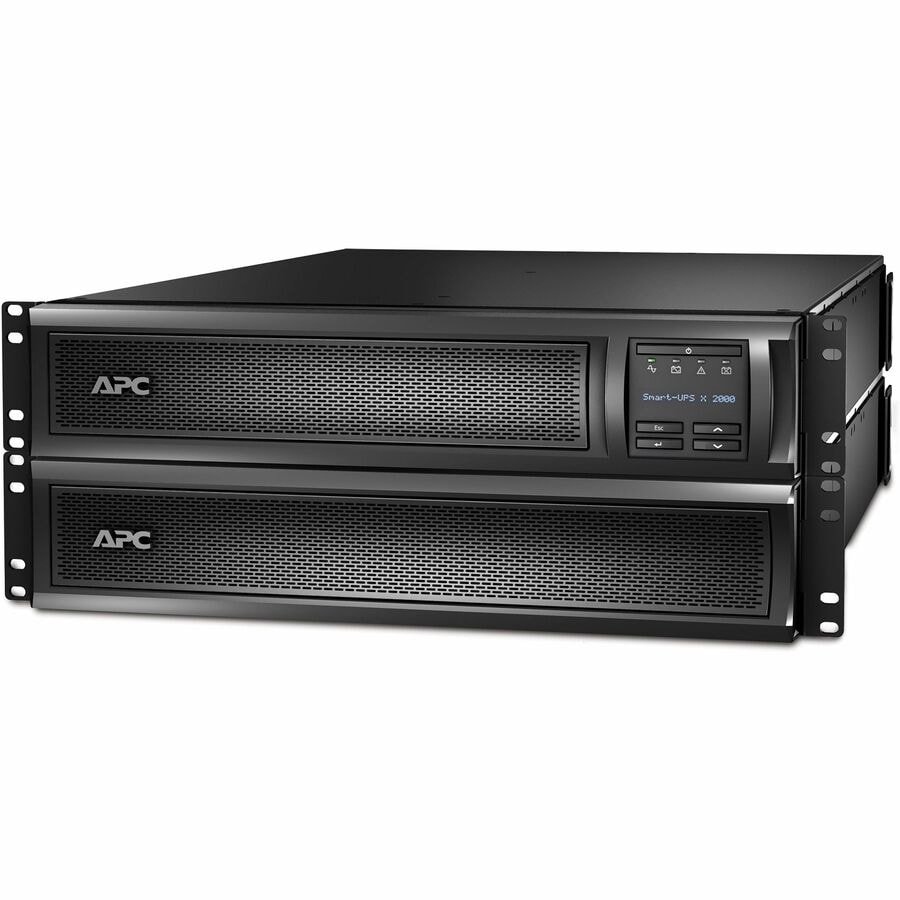

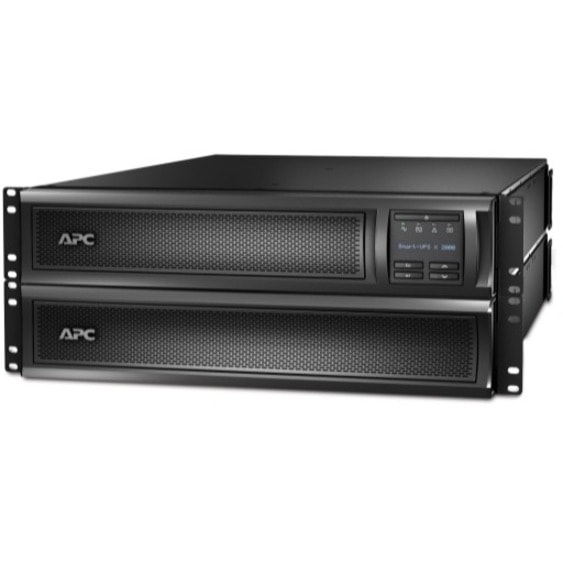

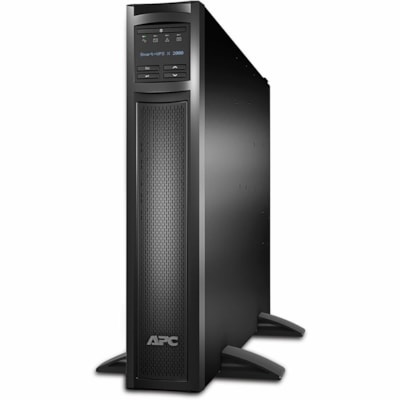

APC by Schneider Electric Smart-UPS X 1920 VA Tower/Rack Mountable - 2U Rack-mountable - 3 Hour Recharge - 11 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - Serial Port - USB - 1 x NEMA L5-20R, 3 x NEMA 5-15R, 3 x NEMA 5-20R Receptacle(s) - 7 x Battery/Surge Outlet

SMX2000RMLV2UNC
Also known as SMX2000RMLV2CCA,SY4721550,IM83341P

New! Log in or create an account to see price and availability


MARKETING INFORMATION

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1920VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature in a data center or network closet. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

More from the Manufacturer

DETAILS

  • Plug/Connector Type : NEMA 5-20P
  • Receptacle Type : NEMA 5-20P

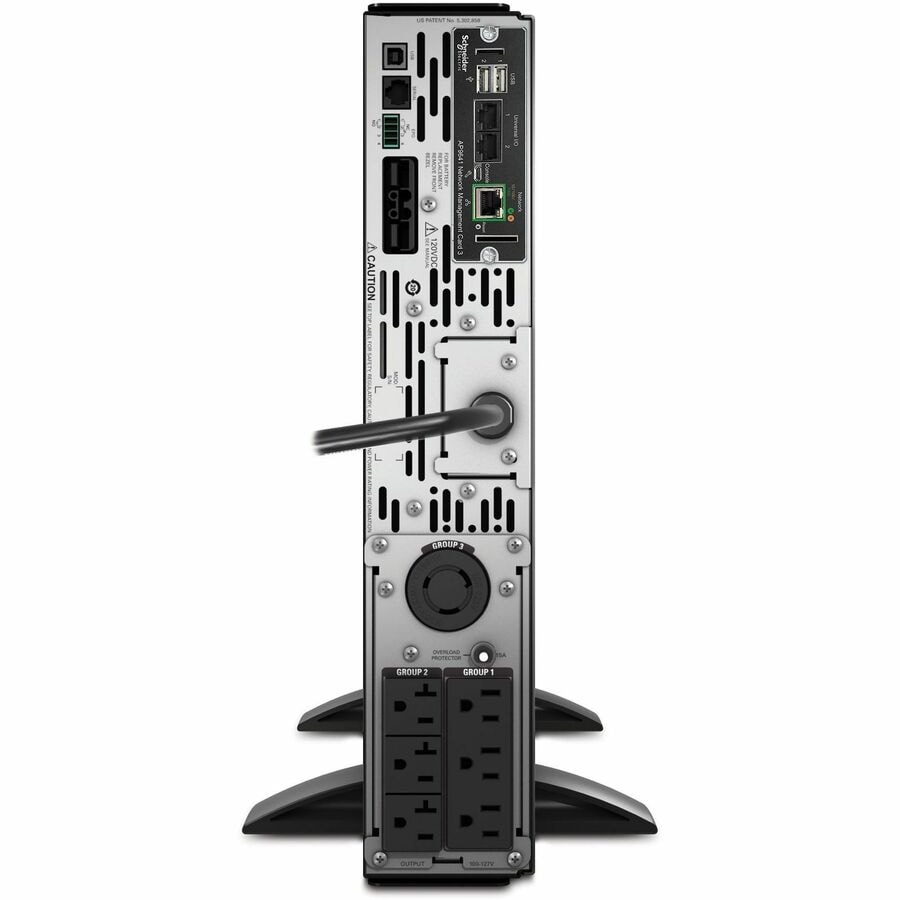

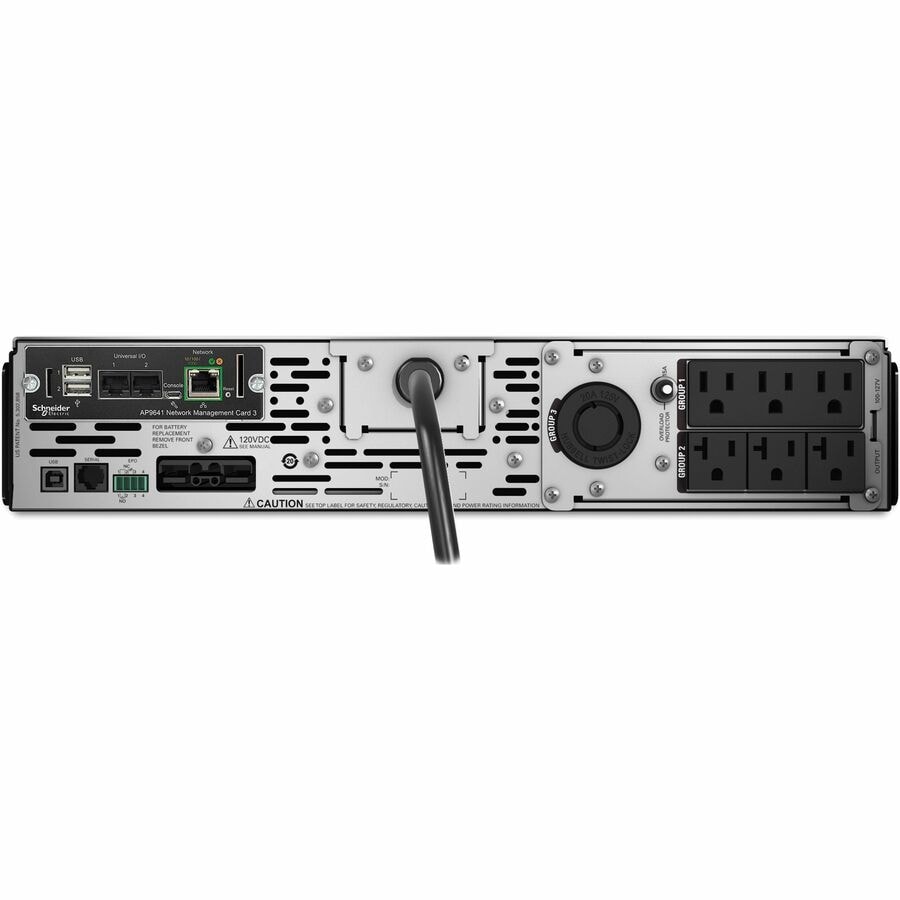

  • Receptacle Detail : 1 x NEMA L5-20R,3 x NEMA 5-15R,3 x NEMA 5-20R
  • Number of Battery & Surge Outlets : 7
  • Cord Length : 8 ft (2.44 m)
  • Load Capacity (VA) : 1.92 kVA
  • Load Capacity (Watt) : 1.80 kW
  • Input Voltage : 120 V
  • Output Voltage : 120 V AC
  • Waveform Type : Sine Wave
  • Surge Energy Rating : 540 J
  • Serial Port : Yes
  • USB : Yes
  • Network (RJ-45) : Yes
  • Battery Characteristics : Maintenance-free, Sealed, Spill-proof
  • Battery Chemistry : Lead Acid
  • Backup/Run Time (Full Load) : 11 Minute
  • Backup/Run Time (Half Load) : 28 Minute
  • Hot Swappable : Yes
  • Typical Battery Recharge Time : 3 Hour
  • Product Color : Black
  • Height : 3.35" (85 mm)
  • Width : 17.01" (432 mm)
  • Depth : 26.26" (667 mm)
  • Rack Height : 2U
  • Form Factor : Rack-mountable
  • Weight (Approximate) : 84.77 lb (38451.03 g)
  • Environmentally Friendly : Yes
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 3 Year
  • Additional Warranty Information : 3 years repair or replace (excluding battery) and 2 years for battery
  • Works adequately in situations where the supply is prone to sags and surges
  • Prevent critical data loss by staying powered during a blackout with up to 1.80 kW load capacity
  • Up to 11 minute runtime on full load to preserve critical data from power shortage interruptions
  • 1.92 kVA load capacity - work without any interruption during power outages

SPECIFICATIONS

Manufacturer Schneider Electric SA
Manufacturer Part Number SMX2000RMLV2UNC
Manufacturer Website Address http://www.schneider-electric.com
Brand Name APC by Schneider Electric
Product Line Smart-UPS
Product Series X
Product Model SMX2000RMLV2UNC
Product Name Smart-UPS X 1920 VA Tower/Rack Mountable
Product Type Line-interactive UPS
Plug/Connector Type NEMA 5-20P
Receptacle Type NEMA 5-20P
Receptacle Detail 1 x NEMA L5-20R
Receptacle Detail 3 x NEMA 5-15R
Receptacle Detail 3 x NEMA 5-20R
Number of Battery & Surge Outlets 7
Cord Length 8 ft (2.44 m)
Load Capacity (VA) 1.92 kVA
Load Capacity (Watt) 1.80 kW
Input Voltage 120 V
Output Voltage 120 V AC
Waveform Type Sine Wave
Surge Energy Rating 540 J
Serial Port Yes
Network (RJ-45) Yes
USB Yes
Battery Characteristics Maintenance-free, Sealed, Spill-proof
Battery Chemistry Lead Acid
Backup/Run Time (Full Load) 11 Minute
Backup/Run Time (Half Load) 28 Minute
Typical Battery Recharge Time 3 Hour
Hot Swappable Yes
Color Family Black
Product Color Black
Height 3.35" (85 mm)
Width 17.01" (432 mm)
Depth 26.26" (667 mm)
Rack Height 2U
Form Factor Rack-mountable
Mounting Preference Lower
Mounting Location Front
Weight (Approximate) 84.77 lb (38451.03 g)
For Country/Region United States
Package Contents
  • Smart-UPS X 1920 VA Tower/Rack Mountable
  • CD with software
  • Documentation CD
  • Installation guide
  • Network management card
  • Rack mounting brackets
  • Rack mounting hardware
  • Rack mounting support rails
  • Smart UPS signalling RS-232 cable
  • USB cable
  • Certifications & Standards BSMI|CSA|NOM|TÜV|VCCI Class A
    Optimized Energy Efficiency Yes
    Product Take Back Program Yes
    Mercury Free Yes
    RoHS Exemption Information https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX2000RMLV2UNC_ROHS_DECLARATION&p_FileName=SMX2000RMLV2UNCKIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65035420&lang=en-us
    EU RoHS Declaration URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65035420&lang=en-us
    Environmental Profile Availability https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
    End of Life Manual Availability https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
    California Proposition 65 Warning WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    REACH free of SVHC No
    Environmentally Friendly Yes
    Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Limited Warranty 3 Year
    Additional Warranty Information 3 years repair or replace (excluding battery) and 2 years for battery
    Directly Connected Equipment Guarantee $150000 Lifetime
