APC by Schneider Electric Smart-UPS 1500VA LCD RM 2U 120V with SmartConnect - 2U Rack-mountable - 3 Hour Recharge - 120 V Input - 120 V AC Output - Sine Wave - Serial Port - 6 x NEMA 5-15R Receptacle(s) - 6 x Battery/Surge Outlet - SmartConnect

SMT1500RM2UC
Also known as SMT1500RM2UCCA,IM4812DW,SY6005935

New! Log in or create an account to see price and availability


MARKETING INFORMATION

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1440VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

More from the Manufacturer

DETAILS

  • Plug/Connector Type : NEMA 5-15P
  • Receptacle Type : NEMA 5-15P
  • Receptacle Detail : 6 x NEMA 5-15R
  • Number of Battery & Surge Outlets : 6
  • Cord Length : 8 ft (2.44 m)
  • Transfer Time : 10 ms
  • Load Capacity (VA) : 1.44 kVA
  • Load Capacity (Watt) : 1 kW
  • Input Voltage : 120 V
  • Input Voltage Range : 82 V AC - 144 V AC
  • Output Voltage : 120 V AC
  • Input Frequency : 60 Hz
  • Output Frequency : 60 Hz
  • Waveform Type : Sine Wave
  • Surge Energy Rating : 680 J
  • Network Management : SmartConnect
  • Alarm : Low Battery,Configurable Delay
  • Status Indicators : LCD Status
  • Serial Port : Yes
  • Network (RJ-45) : Yes
  • USB (HID Compliant) Port : Yes
  • Number of Batteries : 1
  • Battery Chemistry : Lead Acid
  • Battery Energy : 1555.2 kJ
  • Battery Life : 6 Year
  • Typical Battery Recharge Time : 3 Hour
  • Maximum Operating Elevation : 10000 ft (3048000 mm)
  • Maximum Storage Elevation : 50000 ft (15240000 mm)
  • Storage Temperature : 41°F (5°C) - 235.4°F (113°C)
  • Operating Humidity : 0% - 95%
  • Storage Relative Humidity : 0% - 95%
  • Maximum Operating Temperature : 104°F (40°C)
  • Sound Emission (A-Weighted) : 45 dB(A)
  • Thermal Dissipation : 225 BTU/h
  • Product Color : Black

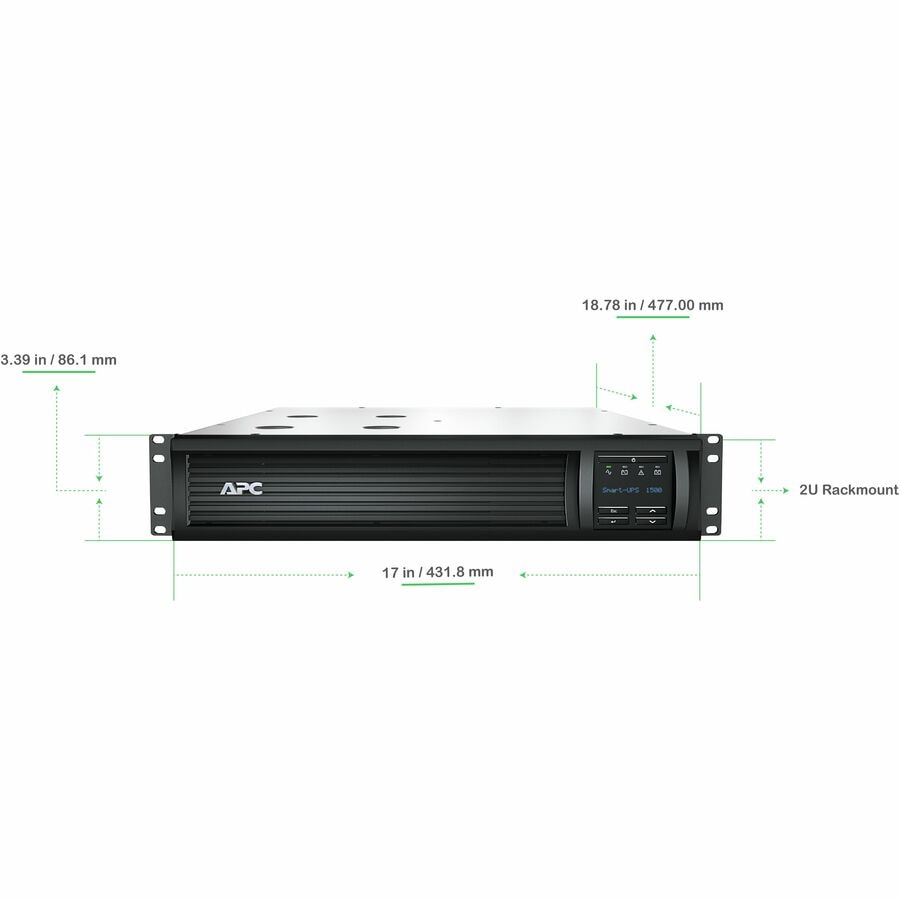

  • Height : 3.39" (86 mm)
  • Width : 17.01" (432 mm)
  • Depth : 18.78" (477 mm)
  • Rack Height : 2U
  • Form Factor : Rack-mountable
  • Weight (Approximate) : 58.42 lb (26498.87 g)
  • Package Contents :
  • Smart-UPS 1500VA LCD RM 2U 120V with SmartConnect
  • Installation guide
  • Rack mounting support rails
  • USB cable
  • Software Included : Powerchute Serial Edition
  • Energy Star : Yes
  • Country of Origin : Philippines
  • Environmentally Friendly : Yes
  • Energy Efficiency Certification : ENERGY STAR 2.0
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 3 Year
  • Additional Warranty Information : 3 years repair or replace (excluding battery) and 2 years for battery
  • Works adequately in situations where the supply is prone to sags and surges
  • 1 kW load capacity - backup power for your valuable electronics
  • Prevent critical data loss by staying powered during a blackout with up to 1 kW load capacity
  • 1.44 kVA load capacity - work without any interruption during power outages
  • 1.44 kVA load capacity provides sufficient backup during power failures

SPECIFICATIONS

Manufacturer Schneider Electric SA
Manufacturer Part Number SMT1500RM2UC
Manufacturer Website Address http://www.schneider-electric.com
Brand Name APC by Schneider Electric
Product Line Smart-UPS
Product Name Smart-UPS 1500VA LCD RM 2U 120V with SmartConnect
Packaged Quantity 1 Each
Product Type Line-interactive UPS
Plug/Connector Type NEMA 5-15P
Receptacle Type NEMA 5-15P
Receptacle Detail 6 x NEMA 5-15R
Number of Battery & Surge Outlets 6
Cord Length 8 ft (2.44 m)
Transfer Time 10 ms
Load Capacity (VA) 1.44 kVA
Load Capacity (Watt) 1 kW
Input Voltage 120 V
Input Voltage Range 82 V AC - 144 V AC
Output Voltage 120 V AC
Input Frequency 60 Hz
Output Frequency 60 Hz
Waveform Type Sine Wave
Surge Energy Rating 680 J
Network Management SmartConnect
Alarm Low Battery
Alarm Configurable Delay
Status Indicators LCD Status
Serial Port Yes
Network (RJ-45) Yes
USB (HID Compliant) Port Yes
Number of Batteries 1
Battery Chemistry Lead Acid
Battery Energy 1555.2 kJ
Battery Life 6 Year
Typical Battery Recharge Time 3 Hour
Maximum Operating Temperature 104°F (40°C)
Storage Temperature 41°F (5°C) - 235.4°F (113°C)
Maximum Operating Elevation 10000 ft (3048000 mm)
Maximum Storage Elevation 50000 ft (15240000 mm)
Operating Humidity 0% - 95%
Storage Relative Humidity 0% - 95%
Sound Emission (A-Weighted) 45 dB(A)
Thermal Dissipation 225 BTU/h
Color Family Black
Product Color Black
Height 3.39" (86 mm)
Width 17.01" (432 mm)
Depth 18.78" (477 mm)
Rack Height 2U
Form Factor Rack-mountable
Mounting Preference Lower
Mounting Location Front
Weight (Approximate) 58.42 lb (26498.87 g)
For Country/Region United States
Package Contents
  • Smart-UPS 1500VA LCD RM 2U 120V with SmartConnect
  • Installation guide
  • Rack mounting support rails
  • USB cable
  • Certifications & Standards cULus|ENERGY STAR V2.0 (USA)
    Software Included Powerchute Serial Edition
    Energy Star Yes
    Optimized Energy Efficiency Yes
    Product Take Back Program Yes
    Mercury Free Yes
    RoHS Exemption Information https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT1500RM2UC_ROHS_DECLARATION&p_FileName=SMT1500RM2UCKIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=465940358&lang=en-us
    EU RoHS Declaration URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465940358&lang=en-us
    Environmental Profile Availability https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN
    End of Life Manual Availability https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN
    California Proposition 65 Warning WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Energy Star URL https://www.energystar.gov/products/uninterruptible_power_supplies
    REACH free of SVHC No
    WEEE Statement The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Country of Origin Philippines
    Environmentally Friendly Yes
    Energy Efficiency Certification ENERGY STAR 2.0
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Limited Warranty 3 Year
    Additional Warranty Information 3 years repair or replace (excluding battery) and 2 years for battery
    Directly Connected Equipment Guarantee $150000 Lifetime
