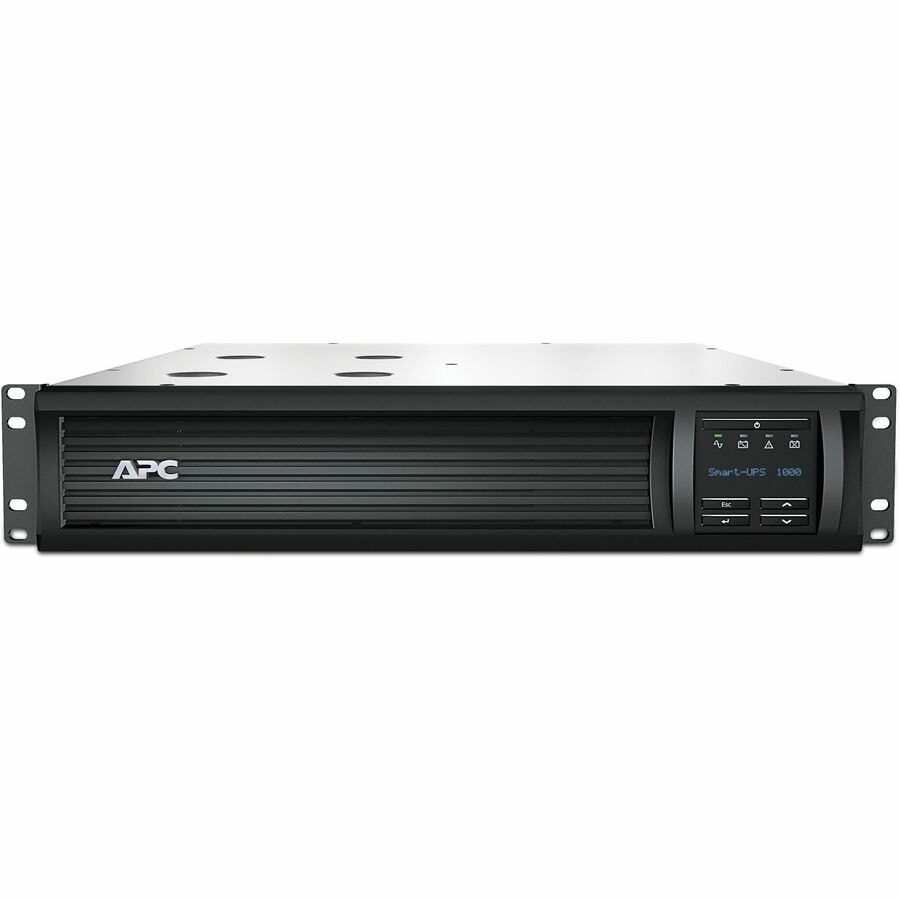

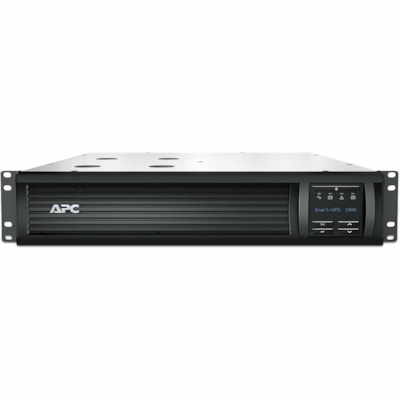

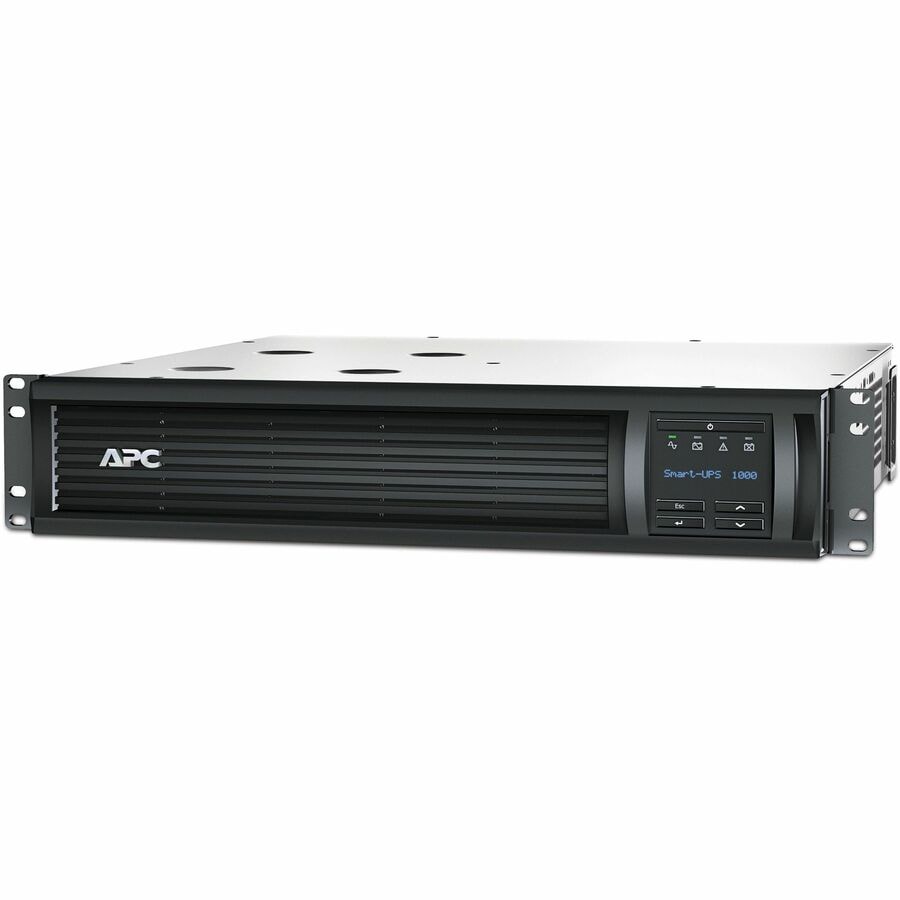

APC by Schneider Electric Smart-UPS SMT1000RM2UC 1000VA Rack-mountable UPS - 2U Rack-mountable - 3 Hour Recharge - 120 V Input - 120 V AC Output - Sine Wave - 6 x NEMA 5-15R Receptacle(s) - 6 x Battery/Surge Outlet - SmartConnect

SMT1000RM2UC
Also known as SMT1000RM2UCCA

New! Log in or create an account to see price and availability


MARKETING INFORMATION

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1000VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

More from the Manufacturer

DETAILS

  • Plug/Connector Type : NEMA 5-15P
  • Receptacle Type : NEMA 5-15P

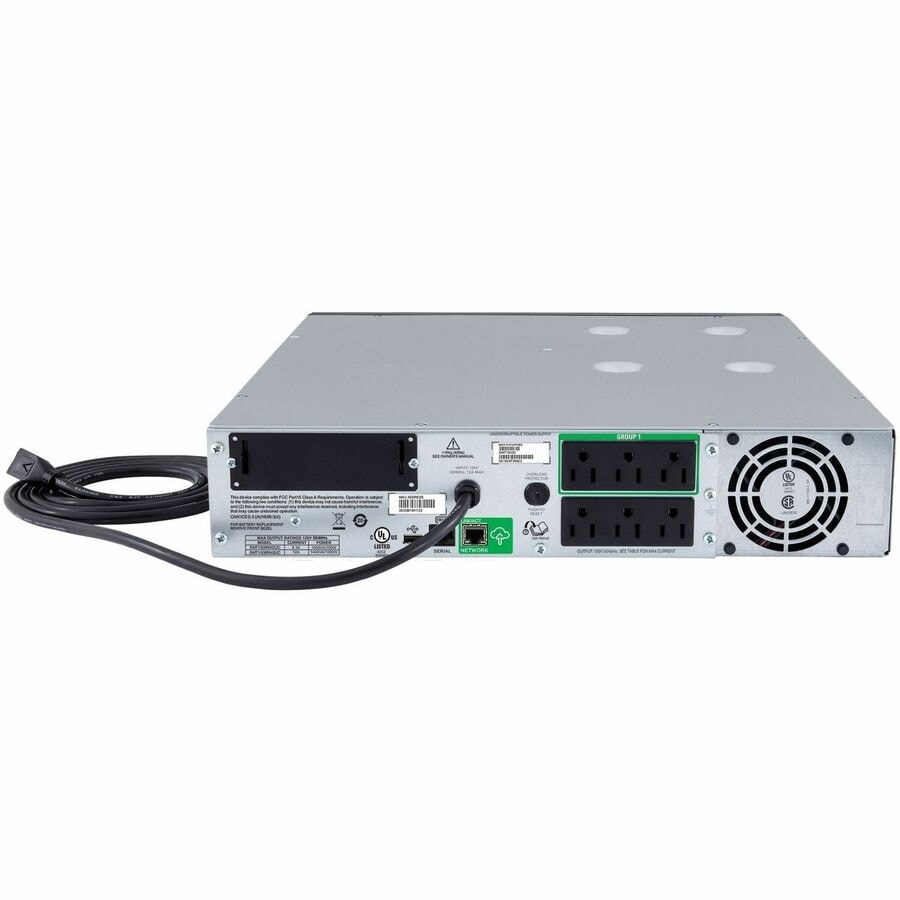

  • Receptacle Detail : 6 x NEMA 5-15R
  • Number of Battery & Surge Outlets : 6
  • Cord Length : 8 ft (2.44 m)
  • Transfer Time : 6 ms
  • Application/Usage : Server,Switch,Router,Network Device,POS Terminal,Network Hub
  • Load Capacity (VA) : 1 kVA
  • Load Capacity (Watt) : 700 W
  • Input Voltage : 120 V
  • Input Voltage Range : 82 V AC - 144 V AC,75 V AC - 154 V AC
  • Output Voltage : 120 V AC
  • Waveform Type : Sine Wave
  • Surge Energy Rating : 680 J
  • Network Management : SmartConnect
  • Battery Chemistry : Lead Acid
  • Hot Swappable : Yes
  • Typical Battery Recharge Time : 3 Hour
  • Product Color : Black
  • Height : 3.39" (86 mm)
  • Width : 17.01" (432 mm)
  • Depth : 18.78" (477 mm)
  • Rack Height : 2U
  • Form Factor : Rack-mountable
  • Weight (Approximate) : 55.78 lb (25301.38 g)
  • Software Included : Powerchute Serial Edition
  • Energy Star : Yes
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 3 Year
  • Additional Warranty Information : 3 years repair or replace (excluding battery) and 2 years for battery
  • 700 W load capacity - backup power for your valuable electronics
  • Prevent critical data loss by staying powered during a blackout with up to 700 W load capacity
  • 1 kVA load capacity - work without any interruption during power outages

SPECIFICATIONS

Manufacturer Schneider Electric SA
Manufacturer Part Number SMT1000RM2UC
Manufacturer Website Address http://www.schneider-electric.com
Brand Name APC by Schneider Electric
Product Line Smart-UPS
Product Model SMT1000RM2UC
Product Name Smart-UPS SMT1000RM2UC 1000VA Rack-mountable UPS
Packaged Quantity 1 Each
Product Type Line-interactive UPS
Plug/Connector Type NEMA 5-15P
Receptacle Type NEMA 5-15P
Receptacle Detail 6 x NEMA 5-15R
Number of Battery & Surge Outlets 6
Cord Length 8 ft (2.44 m)
Transfer Time 6 ms
Application/Usage Network Hub
Application/Usage Server
Application/Usage Switch
Application/Usage POS Terminal
Application/Usage Network Device
Application/Usage Router
Load Capacity (VA) 1 kVA
Load Capacity (Watt) 700 W
Input Voltage 120 V
Input Voltage Range 75 V AC - 154 V AC
Input Voltage Range 82 V AC - 144 V AC
Output Voltage 120 V AC
Waveform Type Sine Wave
Surge Energy Rating 680 J
Network Management SmartConnect
Battery Chemistry Lead Acid
Typical Battery Recharge Time 3 Hour
Hot Swappable Yes
Color Family Black
Product Color Black
Height 3.39" (86 mm)
Width 17.01" (432 mm)
Depth 18.78" (477 mm)
Rack Height 2U
Form Factor Rack-mountable
Mounting Preference Lower
Mounting Location Front
Weight (Approximate) 55.78 lb (25301.38 g)
For Country/Region United States
Package Contents
  • Smart-UPS SMT1000RM2UC 1000VA Rack-mountable UPS
  • Documentation CD
  • Installation guide
  • Rack mounting support rails
  • Smart UPS signalling RS-232 cable
  • USB cable
  • Certifications & Standards cULus|ENERGY STAR V2.0 (USA)
    Software Included Powerchute Serial Edition
    Energy Star Yes
    Optimized Energy Efficiency Yes
    Product Take Back Program Yes
    Mercury Free Yes
    RoHS Exemption Information https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT1000RM2UC_ROHS_DECLARATION&p_FileName=SMT1000RM2UCKIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=465940337&lang=en-us
    EU RoHS Declaration URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465940337&lang=en-us
    Environmental Profile Availability https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN
    End of Life Manual Availability https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN
    California Proposition 65 Warning WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Energy Star URL https://www.energystar.gov/products/uninterruptible_power_supplies
    REACH free of SVHC No
    Environmentally Friendly Yes
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Limited Warranty 3 Year
    Additional Warranty Information 3 years repair or replace (excluding battery) and 2 years for battery
    Directly Connected Equipment Guarantee $150000 Lifetime
