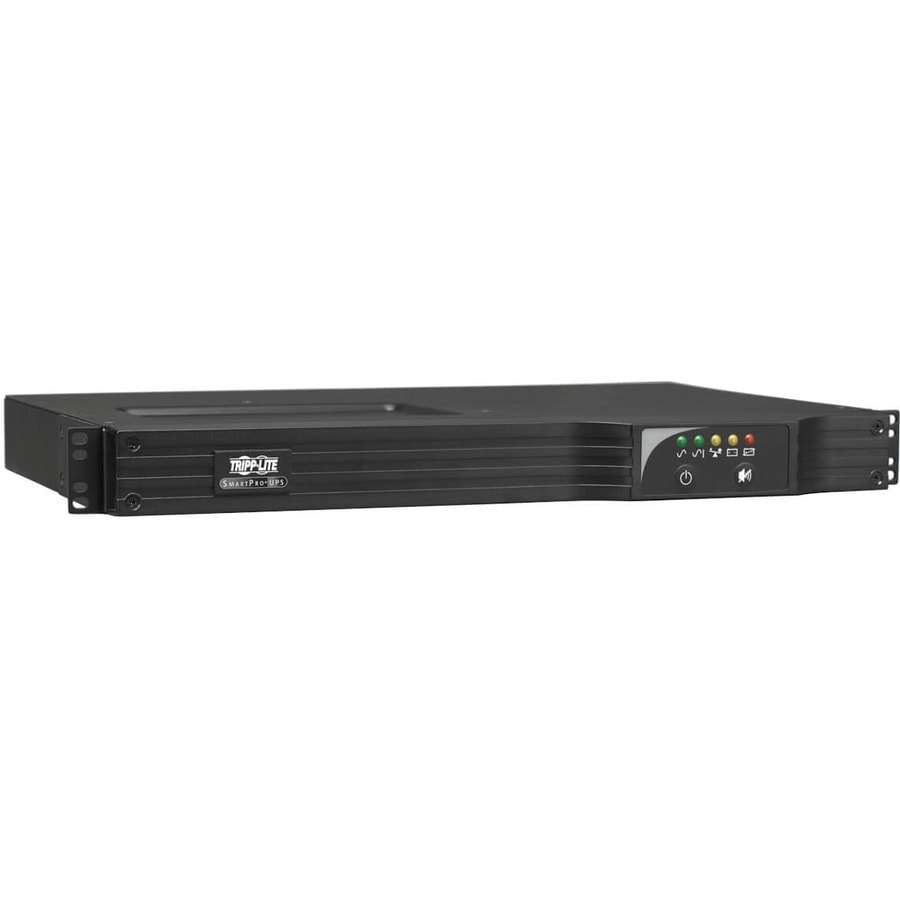

Tripp Lite series SmartPro SMART750RM1UN 750VA Rack-mountable - 1U Rack-mountable - 13.20 Minute Recharge - 4.90 Minute Stand-by - 120 V AC Input - 120 V AC Output - 6 x NEMA 5-15R Receptacle(s)

SMART750RM1UN
Also known as SMART750RM1UNCA,IM13452Z,SY5516030

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Tripp Lite SMART750RM1U 750VA /.75kVA / 600 watt line interactive, sine wave UPS system offers complete power protection for critical network applications in a highly efficient 1U total rack/tower configuration. Network management interfaces support communications via USB port, DB9 serial port and pre-installed WEBCARDLX network management interface card. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. Line interactive voltage regulation, network-grade surge suppression and long-lasting sine wave AC output during blackouts make this UPS ideal for advanced networking applications in datacenters, computer rooms and network closets.

DETAILS

  • Receptacle Type : NEMA 5-15R
  • Receptacle Detail : 6 x NEMA 5-15R
  • Load Capacity (VA) : 750 VA
  • Load Capacity (Watt) : 600 W
  • Input Voltage : 120 V AC
  • Output Voltage : 120 V AC
  • Backup/Run Time (Full Load) : 4.90 Minute
  • Typical Battery Recharge Time : 13.20 Minute
  • Height : 1.70" (43.18 mm)
  • Width : 17.50" (444.50 mm)
  • Depth : 16.80" (426.72 mm)
  • Rack Height : 1U
  • Form Factor : Rack-mountable
  • Weight (Approximate) : 30 lb (13607.77 g)
  • Country of Origin : Taiwan
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 3 Year
  • .75kVA / 750VA / 600W line interactive 1U rackmount UPS, Sine wave output
  • 120V output, Corrects brownouts and overvoltages from 83V to 147V

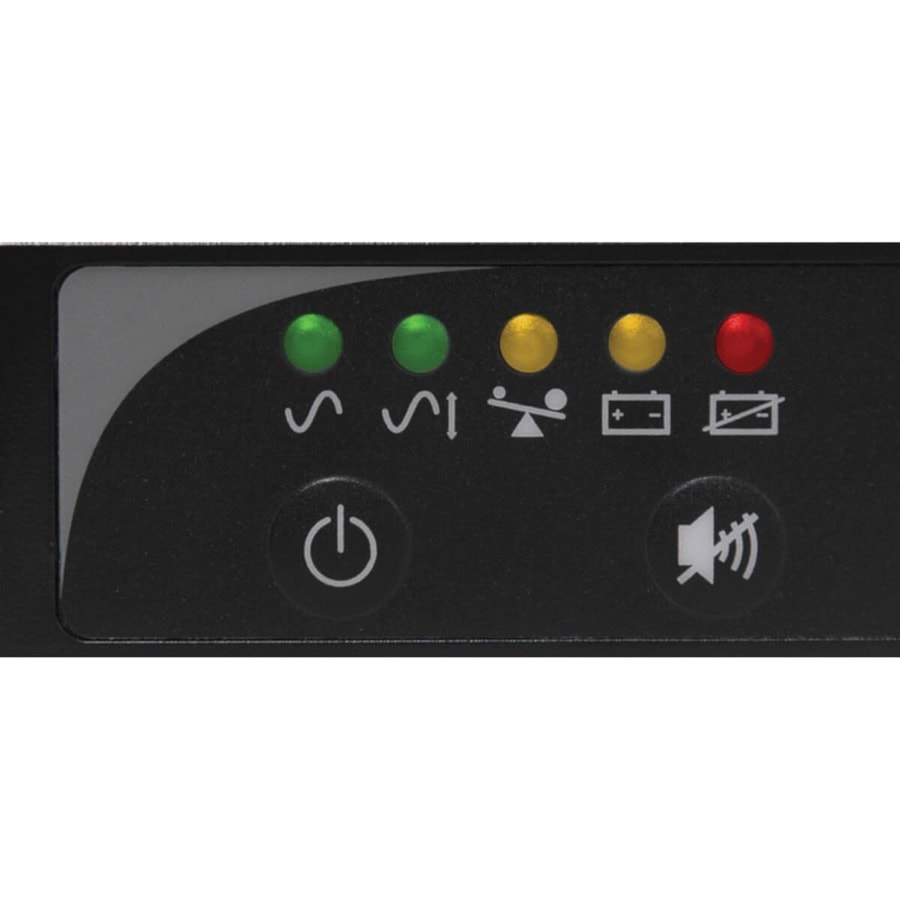

  • 0.8 Power Factor, Front panel status LEDs
  • Mounting brackets support 2 and 4 post installation
  • 98% line-mode efficiency, 2 switched load banks

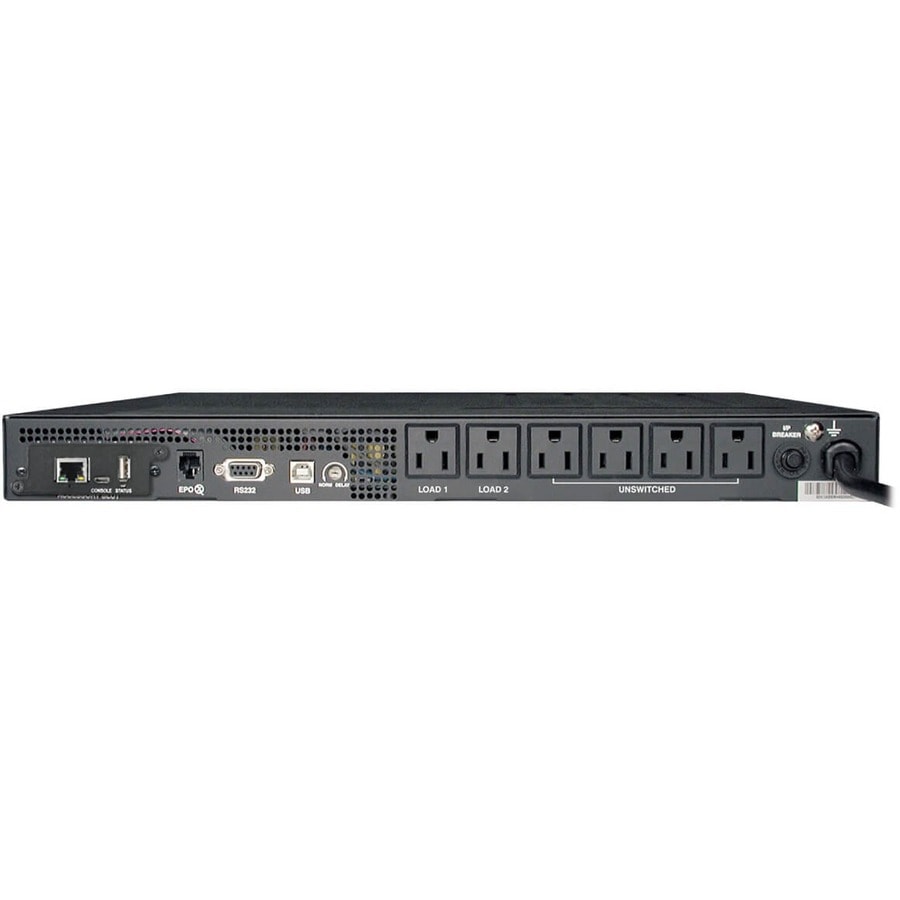

  • USB, RS232, EPO and Pre-installed WEBCARDLX Network Interface
  • 120V NEMA 5-15P input, 6 NEMA 5-15R outlets

SPECIFICATIONS

Manufacturer Eaton Corporation
Manufacturer Part Number SMART750RM1UN
Manufacturer Website Address http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name Tripp Lite series
Product Line SmartPro
Product Model SMART750RM1UN
Product Name SmartPro SMART750RM1UN 750VA Rack-mountable
Product Type Line-interactive UPS
Receptacle Type NEMA 5-15R
Receptacle Detail 6 x NEMA 5-15R
Load Capacity (VA) 750 VA
Load Capacity (Watt) 600 W
Input Voltage 120 V AC
Output Voltage 120 V AC
Backup/Run Time (Full Load) 4.90 Minute
Typical Battery Recharge Time 13.20 Minute
Height 1.70" (43.18 mm)
Width 17.50" (444.50 mm)
Depth 16.80" (426.72 mm)
Rack Height 1U
Form Factor Rack-mountable
Weight (Approximate) 30 lb (13607.77 g)
Package Contents
  • SmartPro SMART750RM1UN 750VA Rack-mountable
  • Mounting Hardware
  • Cabling for USB & DB9 Monitoring and EPO Switching
  • PowerAlert Unattended Shutdown and UPS/Power Monitoring Software
  • Instruction Manual
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty 3 Year
