Tripp Lite SmartPro 750RM1U UPS - 750VA/450W - 5 Minute Full Load - 6 x NEMA 5-15R

SMART750RM1U
Also known as SMART750RM1UCN,IM527509,SY3954596

Tripp Lite SmartPro 750RM1U UPS - 750VA/450W - 5 Minute Full Load - 6 x NEMA 5-15R

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Tripp Lite SMART750RM1U 750VA / .75kVA / 600 watt line interactive, sine wave UPS system offers complete power protection for critical network applications in a highly efficient 1U total rack/tower configuration. Simultaneous-use network management interfaces include USB, RS-232 and optional SNMP/Web accessory card. Line interactive voltage regulation, network-grade surge suppression and long-lasting sine wave AC output during blackouts make this UPS ideal for advanced networking applications in datacenters, computer rooms and network closets.

DETAILS

  • Plug/Connector Type : NEMA 5-15P
  • Receptacle Type : NEMA 5-15R
  • Receptacle Detail : 6 x NEMA 5-15R
  • Cord Length : 10 ft (3.05 m)
  • Load Capacity (VA) : 750 VA
  • Load Capacity (Watt) : 600 W
  • Input Voltage : 120 V AC
  • Output Voltage : 120 V AC
  • Waveform Type : Sine Wave
  • Network Management : SNMP Manageable
  • Alarm : On Battery,Overload,Low Battery

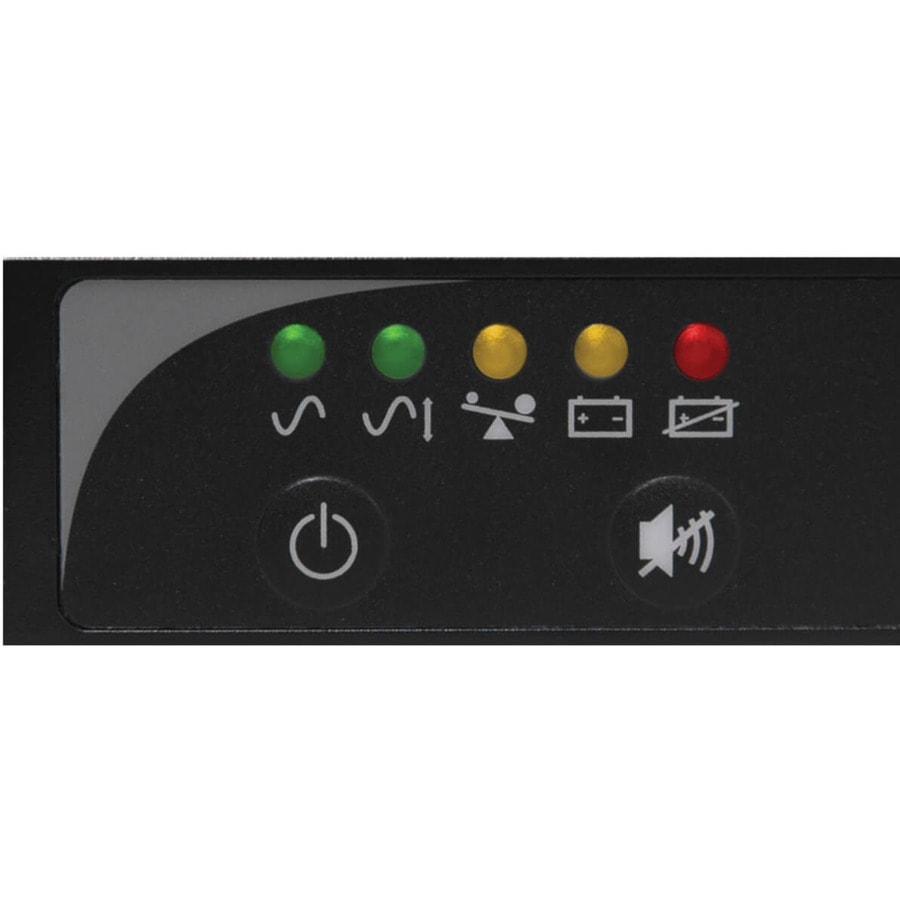

  • Status Indicators : 5 front panel LEDs - Green POWER LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LEVEL LED, red BATTERY WARNING LED.
  • USB : Yes
  • Battery Chemistry : Lead Acid
  • Backup/Run Time (Full Load) : 4.90 Minute
  • Backup/Run Time (Half Load) : 13.20 Minute
  • Battery Life : 6 Year
  • Hot Swappable : Yes
  • Typical Battery Recharge Time : 4 Hour
  • Maximum Operating Temperature : 104°F (40°C)
  • Height : 1.75" (44.45 mm)
  • Width : 17.50" (444.50 mm)
  • Depth : 16.75" (425.45 mm)
  • Rack Height : 1U
  • Weight (Approximate) : 30 lb (13607.77 g)
  • Country of Origin : Taiwan
  • TAA Compliant : Yes
  • Limited Warranty : 3 Year
  • .75kVA / 750VA / 600W line interactive 1U rackmount UPS, Sine wave output
  • 120V output, Corrects brownouts and overvoltages from 83V to 147V
  • 0.8 Power Factor, Front panel status LEDs
  • Mounting brackets support 2 and 4 post installation
  • 98% line-mode efficiency, 2 switched load banks
  • USB, RS232, EPO and slot for SNMPWEBCARD option
  • 120V NEMA 5-15P input, 6 NEMA 5-15R outlets

SPECIFICATIONS

Manufacturer Eaton Corporation
Manufacturer Part Number SMART750RM1U
Manufacturer Website Address http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name Tripp Lite series
Product Line SmartPro
Product Name SmartPro 750RM1U UPS
Product Type Line-interactive UPS
Plug/Connector Type NEMA 5-15P
Receptacle Type NEMA 5-15R
Receptacle Detail 6 x NEMA 5-15R
Emergency Power OFF Yes
Cord Length 10 ft (3.05 m)
Load Capacity (VA) 750 VA
Load Capacity (Watt) 600 W
Input Voltage 120 V AC
Output Voltage 120 V AC
Waveform Type Sine Wave
Network Management SNMP Manageable
Alarm On Battery
Alarm Overload
Alarm Low Battery
Status Indicators 5 front panel LEDs - Green POWER LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LEVEL LED, red BATTERY WARNING LED.
USB Yes
Total Number of Expansion Slots 1
Battery Chemistry Lead Acid
Backup/Run Time (Full Load) 4.90 Minute
Backup/Run Time (Half Load) 13.20 Minute
Battery Life 6 Year
Typical Battery Recharge Time 4 Hour
Hot Swappable Yes
Maximum Operating Temperature 104°F (40°C)
Height 1.75" (44.45 mm)
Width 17.50" (444.50 mm)
Depth 16.75" (425.45 mm)
Rack Height 1U
Weight (Approximate) 30 lb (13607.77 g)
Package Contents
  • SMART750RM1U UPS System
  • Mounting hardware
  • Cabling for USB & DB9 monitoring and EPO switching
  • PowerAlert unattended shutdown and UPS/Power monitoring software
  • Warranty information and instruction manual
Additional Information
  • SMART750RM1U line interactive UPS offers battery derived sine wave AC output during power outages, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression
  • 750VA / 450 watt power handling capability with full-time sine wave output offers guaranteed compatibility with networking, telecom and other sensitive electronic devices
  • Supports 1U rackmount installation in 2 or 4 post rack enclosures, upright tower placement also supported
  • Maintains regulated 120V nominal output during brownouts and overvoltages from 83 to 147V

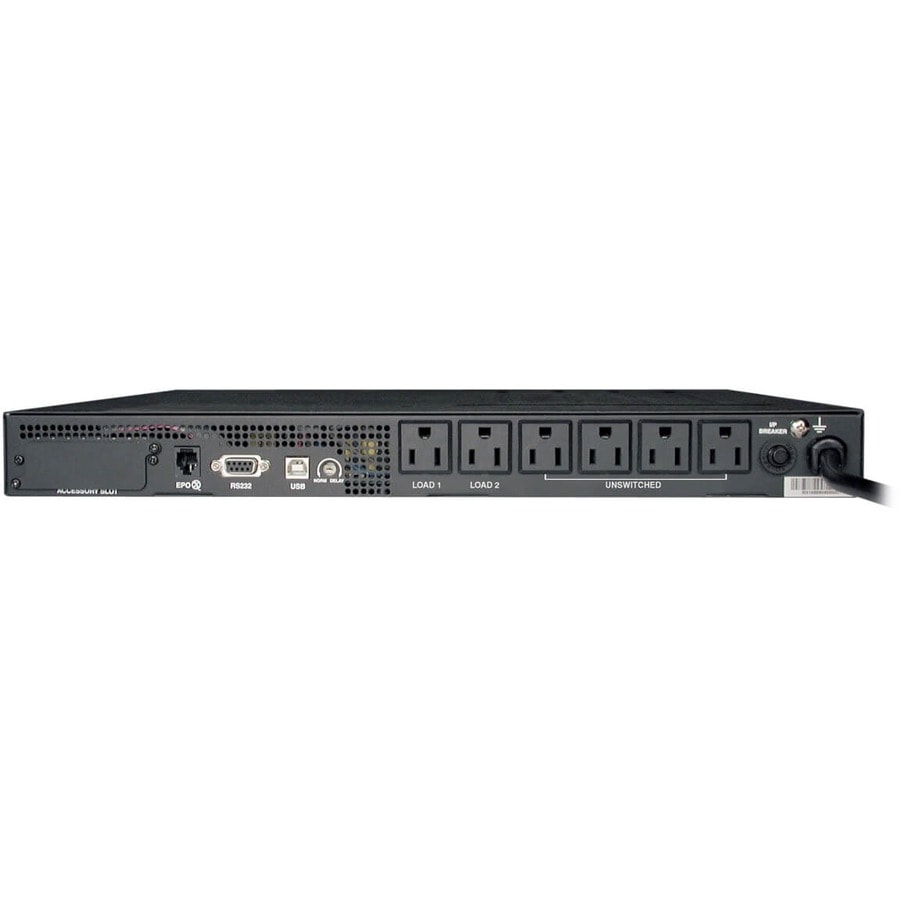

  • Includes 6 UPS-supported outlets arranged in 2 individually controllable load banks (2 outlets per bank) that can be powered off and back on again via software interface
  • PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, pager & email notification, event logging and running user-defined script commands
  • Offers simultaneous monitoring by up to 3 directly-connected devices through included USB, DB9 and SNMP* interfaces (*requires optional SNMPWEBCARD), or the monitoring of any number of additional UPS systems over IP with included PowerAlert monitoring software. Free PowerAlert enterprise management software is also available for select opportunies
  • Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity
  • Supports timed inverter shutoff after unattended shutdown, activate self-test and UPS output power control for scheduled or immediate reboot of connected devices
  • Supports Tripp Lite's WatchDog software application to restore unresponsive programs by systematically restarting applications, operating systems and ultimately rebooting completely locked computers by momentarily switching UPS power off and back on again (requires optional WATCHDOGSW)
  • Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter
  • Emergency Power Off (EPO) interface with cable
  • Multi-function audible alarms and set of 5 front panel LEDs
  • Network-grade AC surge suppression
  • Attractive all-black color scheme
  • UPS battery set ships fully assembled and ready for installation, no time consuming connection of internal batteries by user is necessary
  • Two year warranty with $250,000 connected equipment insurance (USA & Canada only)
Certifications & Standards UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications
Country of Origin Taiwan
TAA Compliant Yes
Limited Warranty 3 Year
