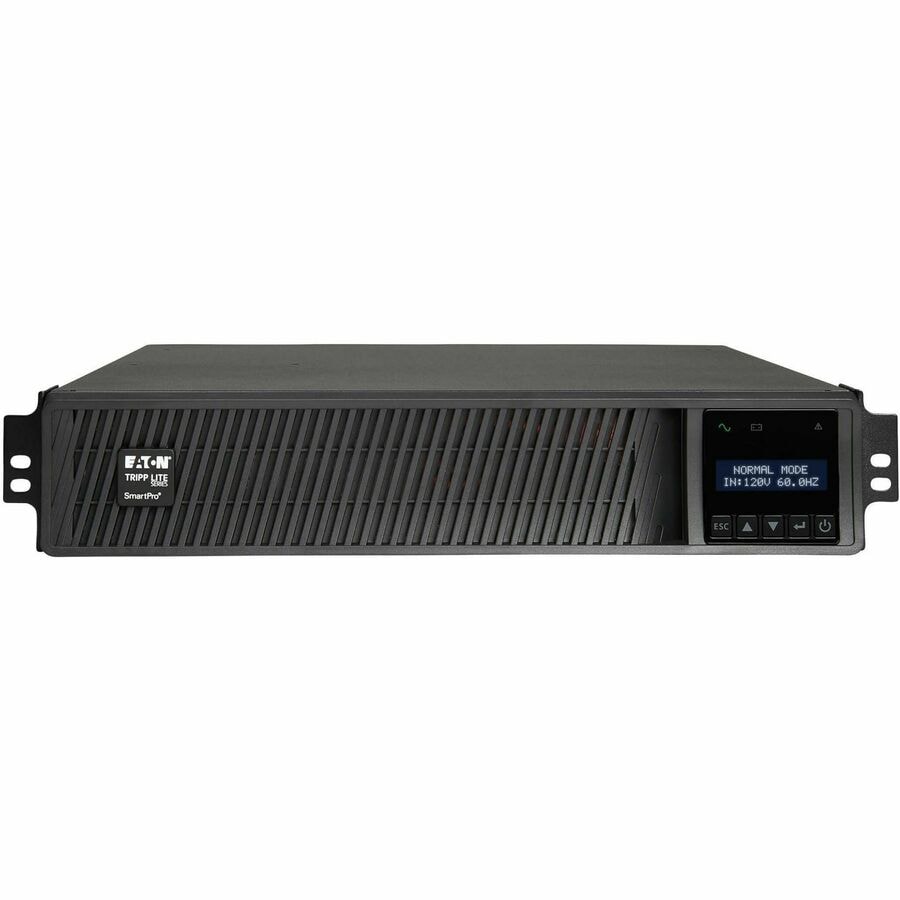

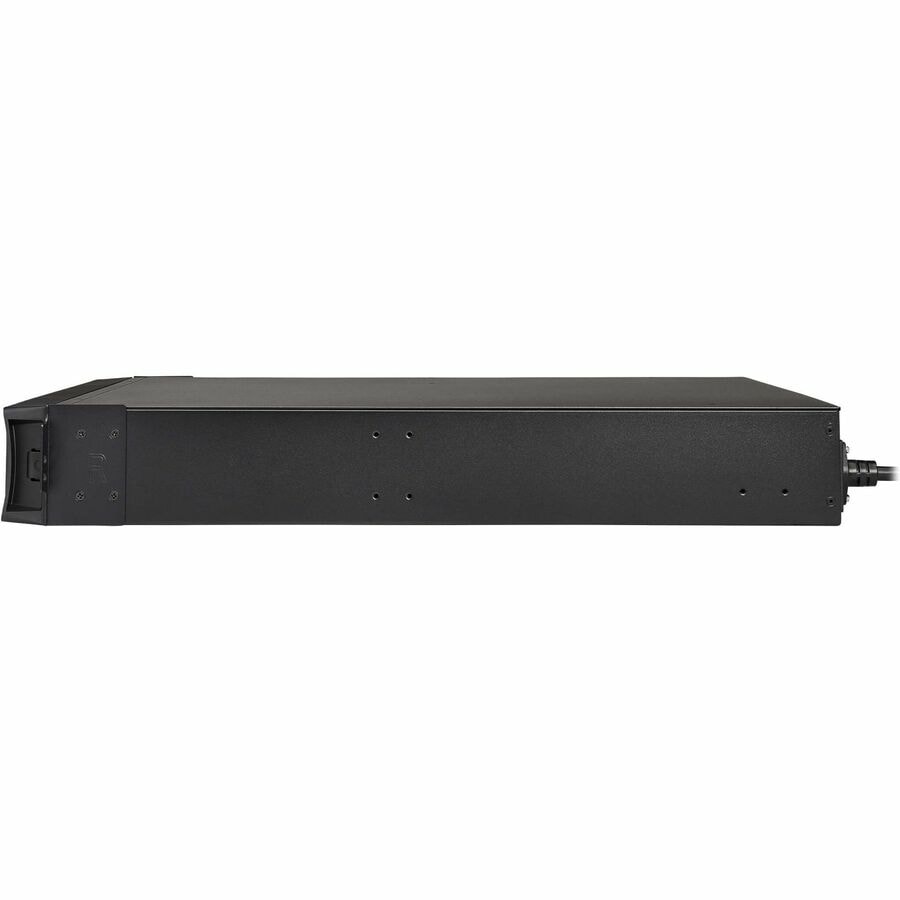

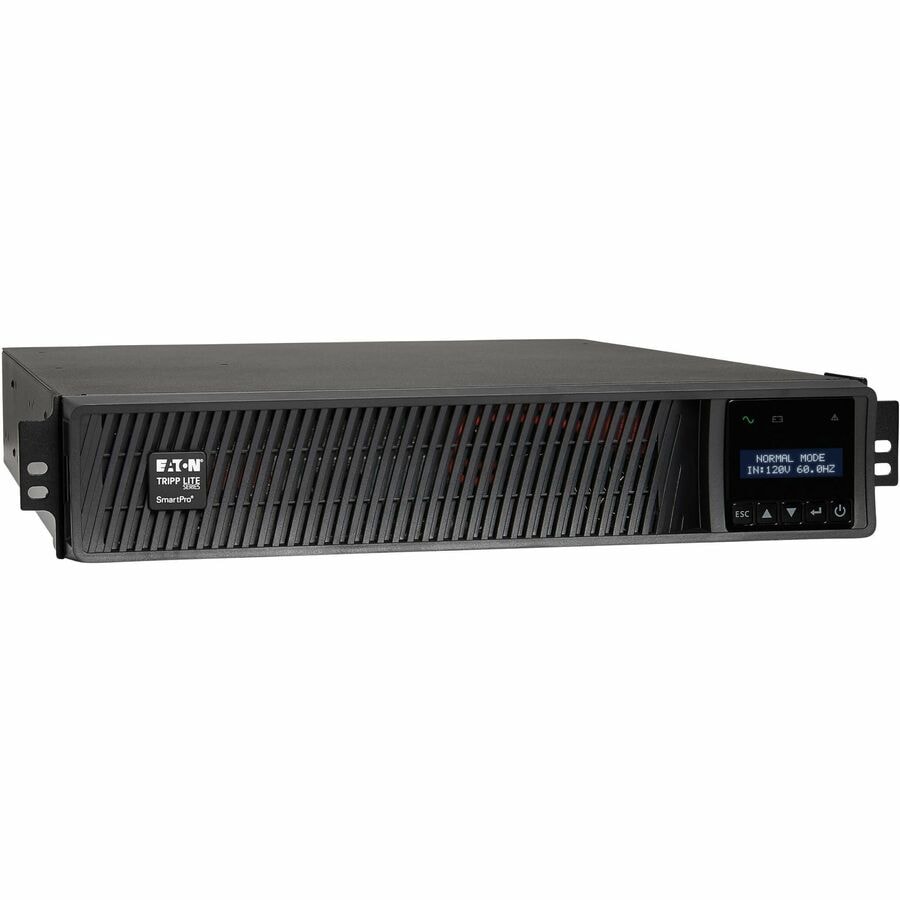

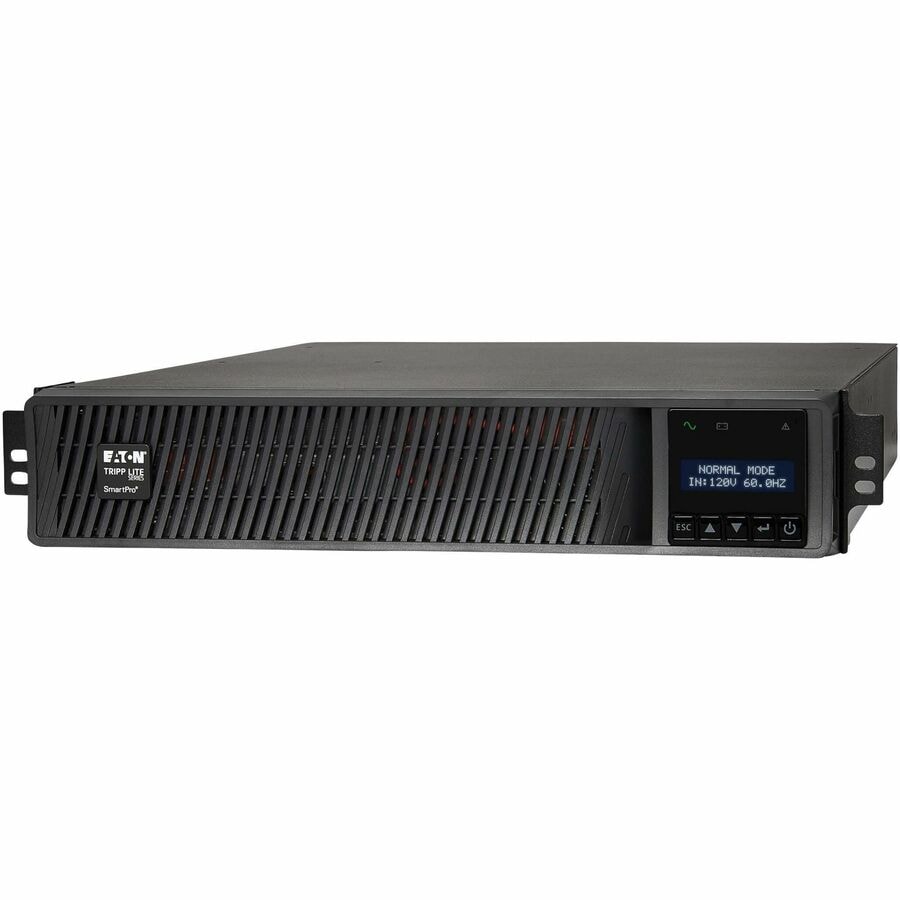

Tripp Lite SmartPro SMART2200RM2U 2200VA Rack-mountable UPS - 2200VA/1920W - 5 Minute Full Load - 4 x NEMA 5-15R, 4 x NEMA 5-15/20R

SMART2200RM2U
Also known as SMART2200RM2UCN,IM96645K,SY3901132

New! Log in or create an account to see price and availability


MARKETING INFORMATION

1.95kVA/1.95kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments
This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your IT equipment or destroy data. The SMART2200RM2U is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP72VRM2U, sold separately).

Optional LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.

NEMA Outlets Protect Your Connected Components

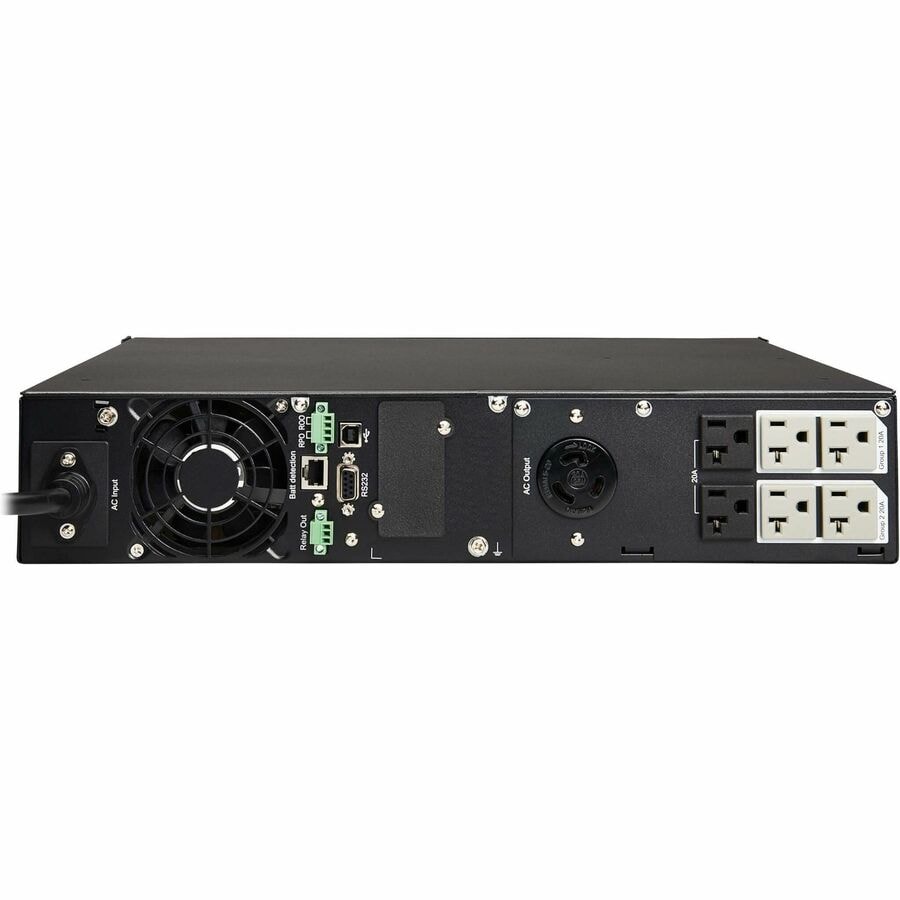

One L5-20R and six 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four 5-20R outlets are split into two independently switchable load banks that let you shed non-critical loads to extend runtime for critical loads. Front and rear cooling fans help protect equipment from overheating.

Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART2200RM2U maintains regulated 120V nominal output during brownouts and overvoltages from 80V to 151V while keeping the battery fully charged and ready to take over in case of power failure.

More from the Manufacturer

DETAILS

  • AVR : Yes

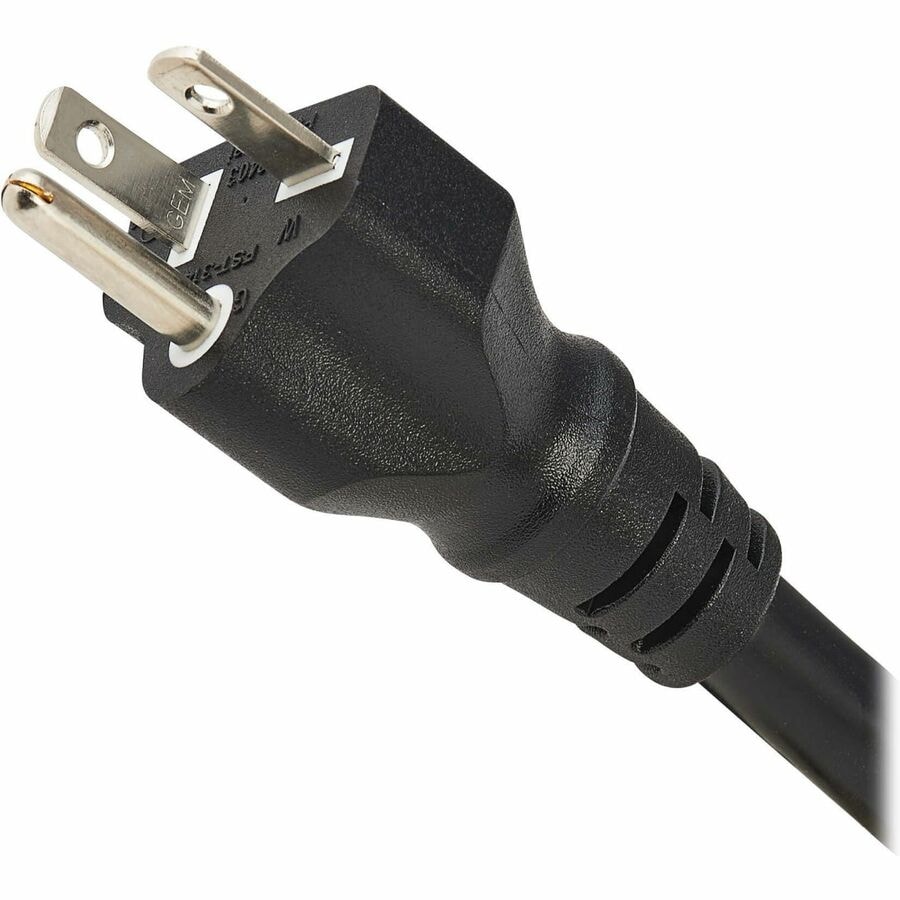

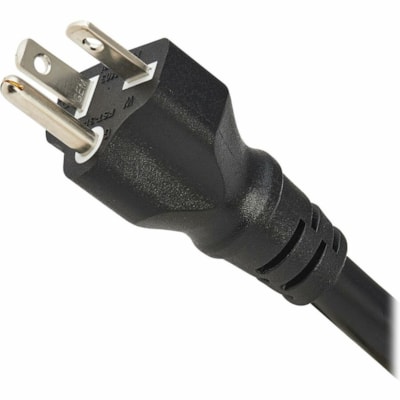

  • Plug/Connector Type : NEMA 5-20P
  • Receptacle Type : NEMA 5-20R,NEMA L5-20R
  • Receptacle Detail : 6 x NEMA 5-20R,1 x NEMA L5-20R
  • Overload Protection : Yes
  • Cord Length : 10 ft (3.05 m)
  • Transfer Time : 4 ms
  • EMI/RFI Noise Filter : Yes
  • Phase : Single Phase
  • Energy Saving : Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
  • Application/Usage : Data Storage,Server,Switch,IT Equipment
  • Load Capacity (VA) : 1.95 kVA
  • Load Capacity (Watt) : 1.95 kW
  • Input Voltage : 120 V AC
  • Input Voltage Range : 70 V AC - 153 V AC
  • Input Current : 16.40 A
  • Output Voltage : 100 V AC,110 V AC,120 V AC,125 V AC
  • Input Frequency : 60 Hz
  • Output Frequency : 60 Hz
  • Waveform Type : Pure Sine Wave
  • Surge Energy Rating : 380 J
  • Output Power Factor : 1
  • Display : LCD
  • Network Management : SNMP/Web
  • Alarm : Remote Shutdown,UPS StartUp,Power Failure,Overload,UPS Fault,Low Battery
  • Serial Port : Yes
  • USB : Yes
  • EPO Port : Yes
  • USB (HID Compliant) Port : Yes
  • DC System Voltage : 72 V DC
  • Battery Characteristics : Valve-regulated
  • Battery Chemistry : Lead Acid
  • Backup/Run Time (Full Load) : 4 Minute
  • Backup/Run Time (Half Load) : 12 Minute
  • Hot Swappable : Yes
  • Typical Battery Recharge Time : 4.50 Hour
  • Replaceable Battery : Yes
  • Maximum Operating Elevation : 10000 ft (3048000 mm)
  • Maximum Storage Elevation : 32808 ft (9999878.40 mm)
  • Storage Temperature : 5°F (-15°C) - 122°F (50°C)
  • Minimum Operating Temperature : 32°F (0°C)
  • Maximum Operating Temperature : 104°F (40°C)
  • Sound Emission (A-Weighted) : 45 dB(A)
  • Height : 3.39" (86 mm)
  • Width : 17.20" (437 mm)
  • Depth : 23.70" (602 mm)
  • Rack Height : 2U
  • Form Factor : Rack/Tower
  • Weight (Approximate) : 65.30 lb (29619.58 g)

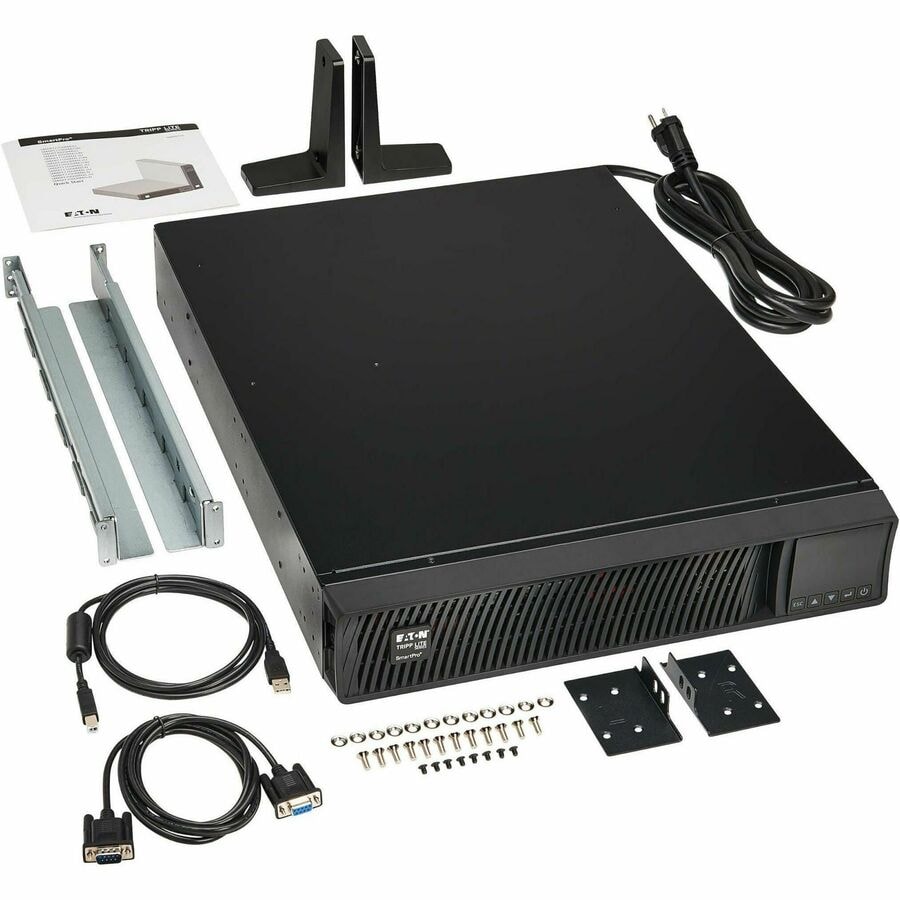

  • Package Contents :
  • SmartPro SMART2200RM2U 1950VA Rack/Tower UPS
  • USB cable
  • DB9 cable
  • Rack-mounting hardware

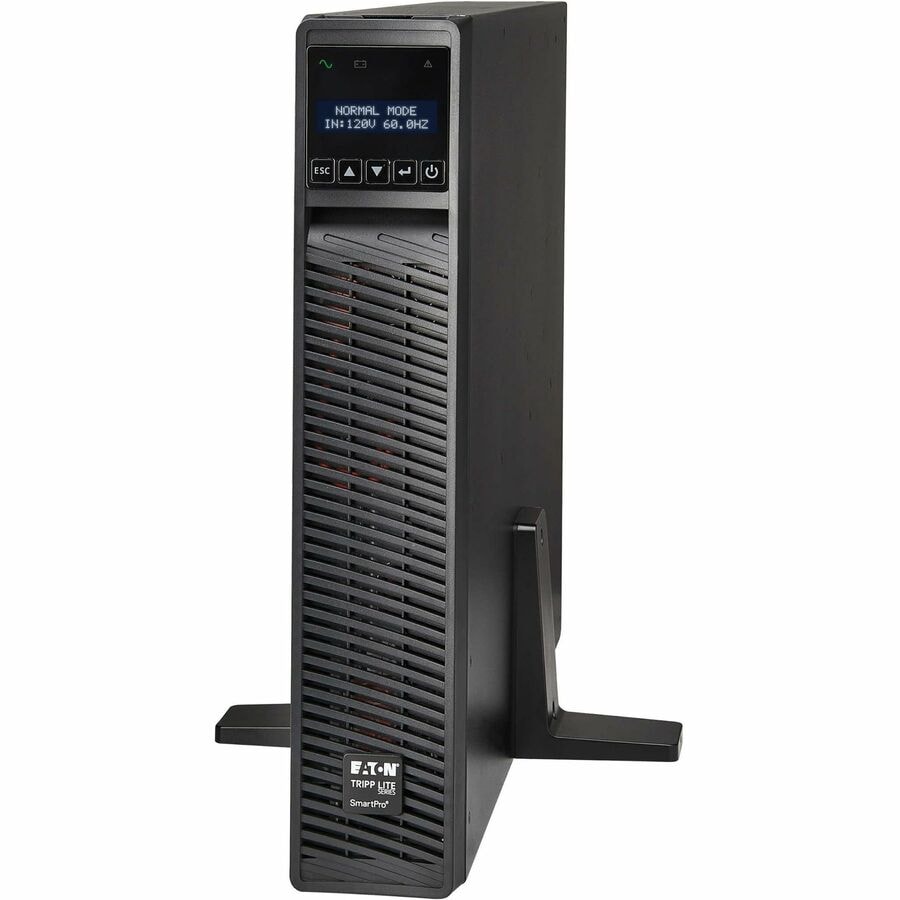

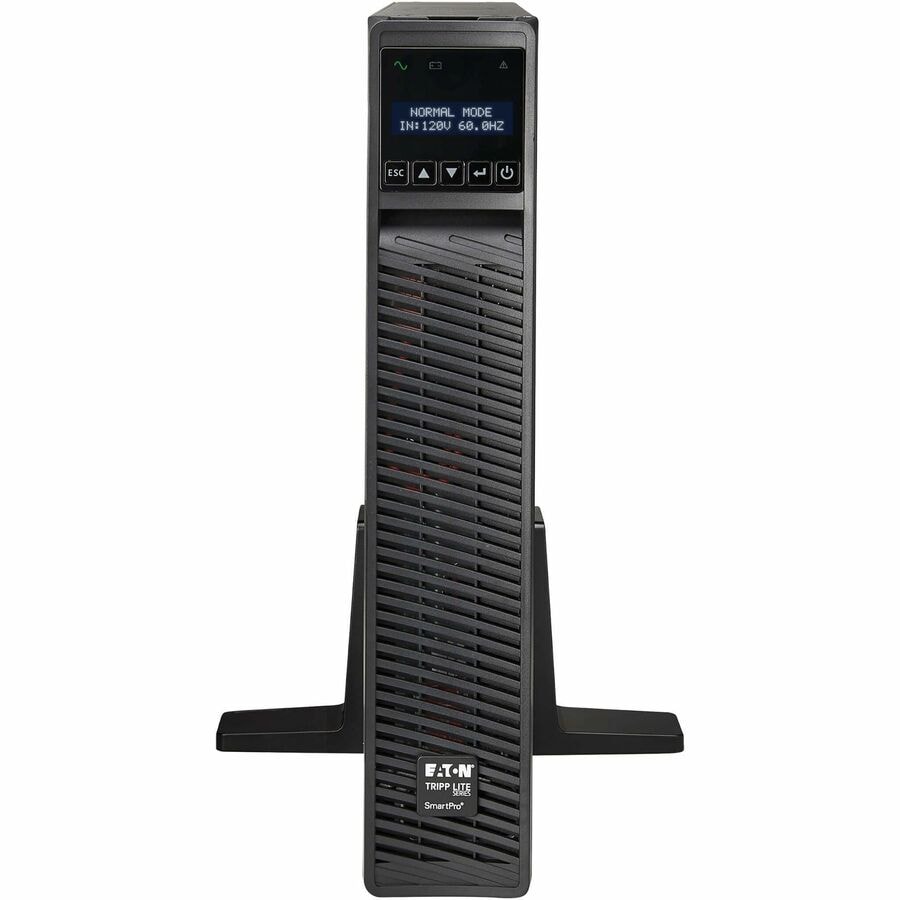

  • Tower support stands
  • Safety instructions
  • Software Included : PowerAlert Software
  • Energy Star : Yes
  • Country of Origin : Philippines
  • TAA Compliant : Yes
  • Environmentally Friendly : Yes
  • Energy Efficiency Certification : ENERGY STAR 2.0
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 3 Year
  • Additional Warranty Information : 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
  • Protects equipment against blackouts, brownouts, transient surges and line noise
  • Keeps equipment running during outages to allow time for file saves and safe shutdown
  • Unity power factor ensures maximum power possible at each power rating
  • ENERGY STAR 2.0-certified to save electricity, lower costs and protect the environment

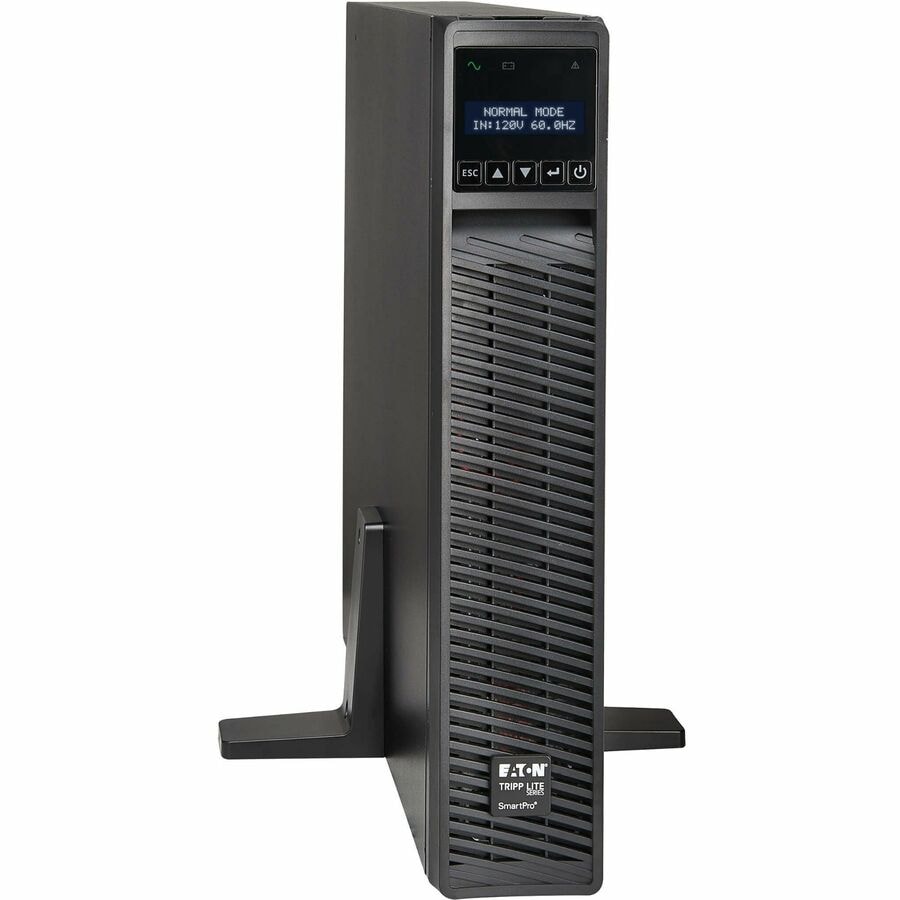

  • 2-line front-panel LCD with 10 selectable screens reports detailed UPS and site power info
  • For remote monitor and control, the WEBCARDLXE is required (sold separately). Not compatible with WEBCARDLX.

SPECIFICATIONS

Manufacturer Eaton Corporation
Manufacturer Part Number SMART2200RM2U
Manufacturer Website Address http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name Tripp Lite series
Product Line SmartPro
Product Model SMART2200RM2U
Product Name SmartPro SMART2200RM2U 1950VA Rack/Tower UPS
Packaged Quantity 1 Each
Product Type Line-interactive UPS
AVR Yes
Plug/Connector Type NEMA 5-20P
Receptacle Type NEMA L5-20R
Receptacle Type NEMA 5-20R
Receptacle Detail 6 x NEMA 5-20R
Receptacle Detail 1 x NEMA L5-20R
Protection Type Over Voltage
Protection Type Under Voltage
Overload Protection Yes
Emergency Power OFF Yes
Cord Length 10 ft (3.05 m)
Transfer Time 4 ms
EMI/RFI Noise Filter Yes
Phase Single Phase
Energy Saving Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
Application/Usage IT Equipment
Application/Usage Switch
Application/Usage Server
Application/Usage Data Storage
Load Capacity (VA) 1.95 kVA
Load Capacity (Watt) 1.95 kW
Input Voltage 120 V AC
Input Voltage Range 70 V AC - 153 V AC
Input Current 16.40 A
Output Voltage 120 V AC
Output Voltage 110 V AC
Output Voltage 125 V AC
Output Voltage 100 V AC
Input Frequency 60 Hz
Output Frequency 60 Hz
Waveform Type Pure Sine Wave
Surge Energy Rating 380 J
Output Power Factor 1
Display LCD
Network Management SNMP/Web
Alarm UPS StartUp
Alarm Power Failure
Alarm UPS Fault
Alarm Low Battery
Alarm Remote Shutdown
Alarm Overload
Status Indicators

5 Front Panel Leds:

  • Green Power Led
  • Green Voltage Correction Led
  • 3 Color Battery Charge Led
  • 3 Color Output Load Led
  • Red Battery Warning Led
Serial Port Yes
USB Yes
EPO Port Yes
USB (HID Compliant) Port Yes
DC System Voltage 72 V DC
Battery Characteristics Valve-regulated
Battery Chemistry Lead Acid
Backup/Run Time (Full Load) 4 Minute
Backup/Run Time (Half Load) 12 Minute
Typical Battery Recharge Time 4.50 Hour
Hot Swappable Yes
Replaceable Battery Yes
Minimum Operating Temperature 32°F (0°C)
Maximum Operating Temperature 104°F (40°C)
Storage Temperature 5°F (-15°C) - 122°F (50°C)
Maximum Operating Elevation 10000 ft (3048000 mm)
Maximum Storage Elevation 32808 ft (9999878.40 mm)
Sound Emission (A-Weighted) 45 dB(A)
Height 3.39" (86 mm)
Width 17.20" (437 mm)
Depth 23.70" (602 mm)
Rack Height 2U
Form Factor Rack/Tower
Weight (Approximate) 65.30 lb (29619.58 g)
Package Contents
  • SmartPro SMART2200RM2U 1950VA Rack/Tower UPS
  • USB cable
  • DB9 cable
  • Rack-mounting hardware
  • Tower support stands
  • Safety instructions
  • Certifications & Standards
    • UL1778 (USA)
    • CSA (Canada)
    • NOM (Mexico)
    • FCC Part 15 Category A (EMI)
    Software Included PowerAlert Software
    Recycled No
    Energy Star Yes
    Country of Origin Philippines
    TAA Compliant Yes
    Environmentally Friendly Yes
    Energy Efficiency Certification ENERGY STAR 2.0
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Limited Warranty 3 Year
    Additional Warranty Information 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
