MARKETING INFORMATION

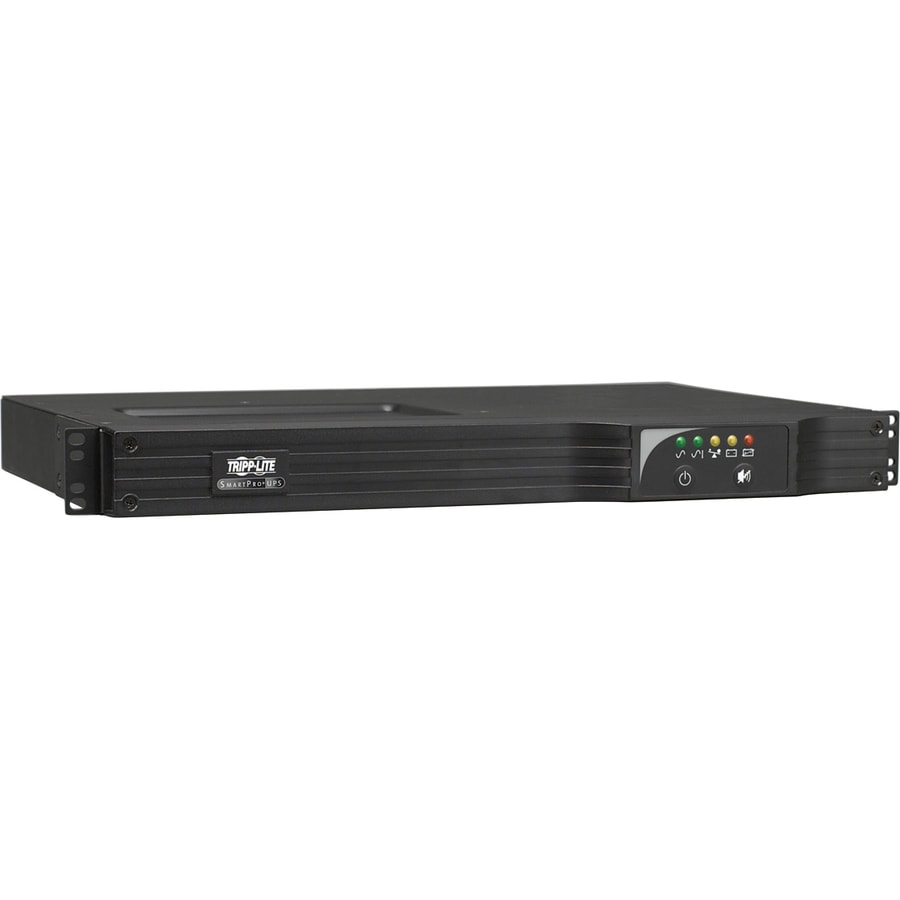

Protects Mission-Critical Rack-Mounted Equipment

• Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware

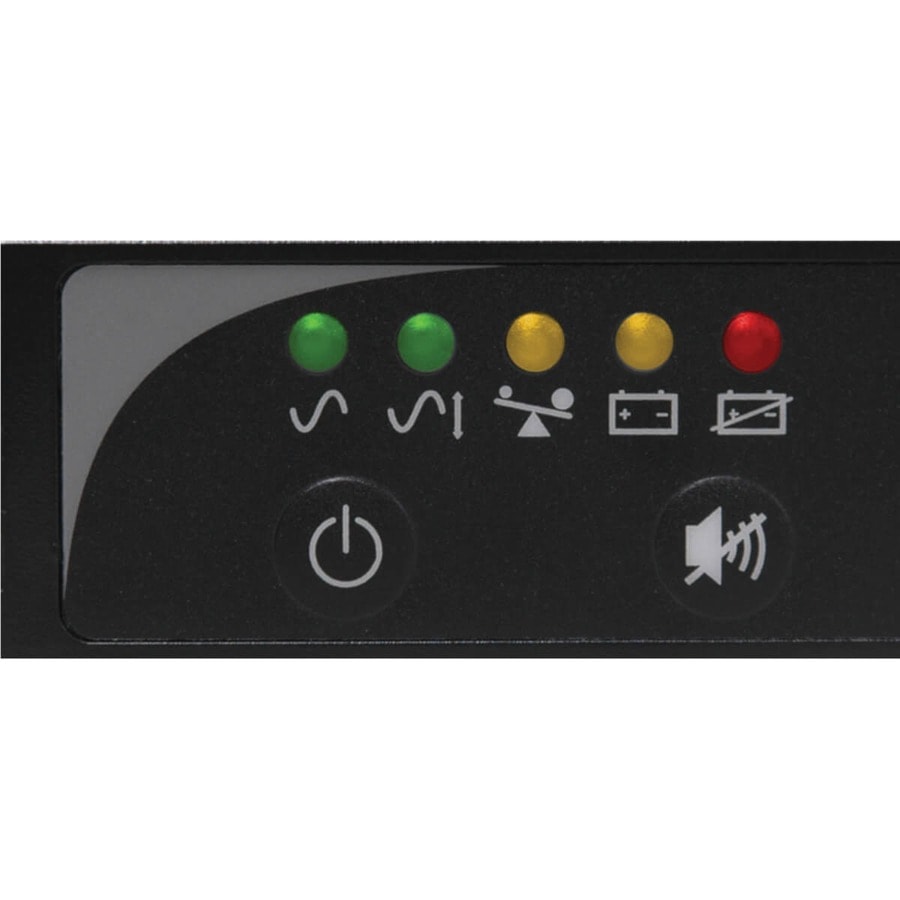

• Audible alarm signals loss of utility power, overload and low battery

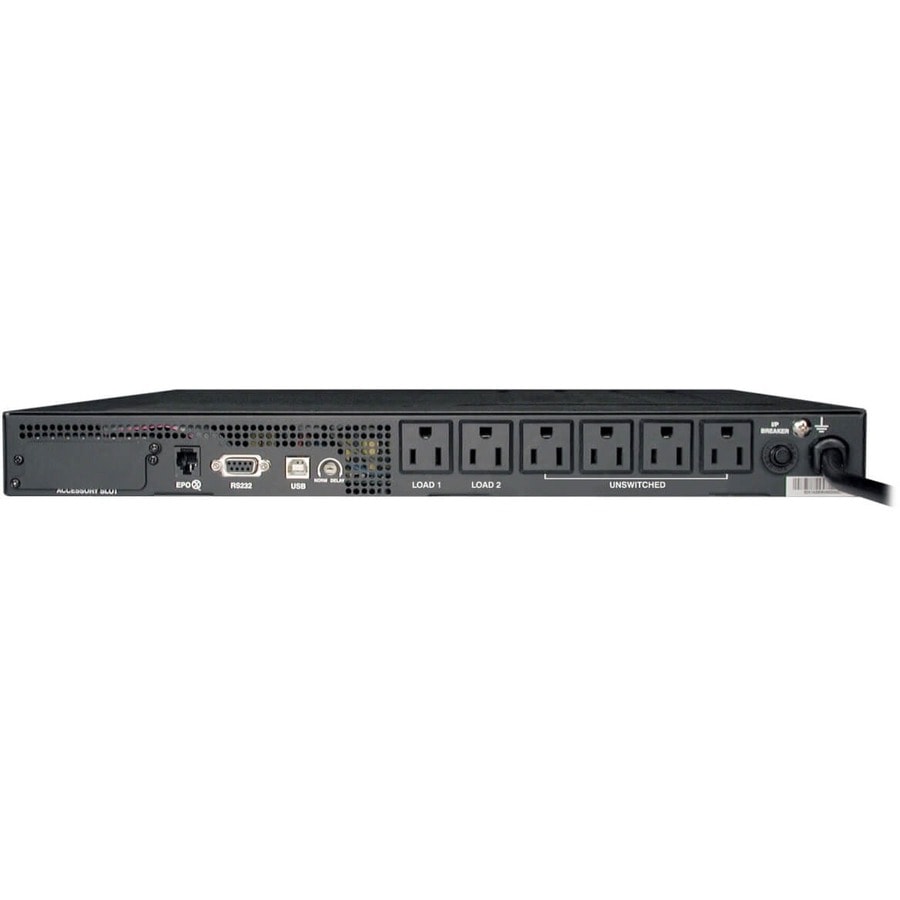

• 6 NEMA 5-15R outlets
• 10 t. (3.1 m) power cord with 120V NEMA 5-15P input
• 450-joule surge suppression rating

Reliable Battery Backup

• Supports half load up to 14 min. and full load up to 4 min.
• Internal batteries designed for hot-swap field replacement

Switchable Outlets

• 2 load banks, each with one outlet individually controllable via software interface to reboot equipment or shed nonessential loads

Automatic Voltage Regulation (AVR)

• Maintains 120V nominal output over input range of 83V-147V without using battery power

EMI/RFI Line Noise Filtering

• Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance

High Efficiency Operation

• 99% line mode efficiency saves money, energy and protects the environment

Network Management Cards

• Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX and SNMPWEBCARD

Communications Ports

• USB and DB9 ports combine with PowerAlert software (available via free download from www.tripplite.com/poweralert) to monitor operating conditions, monitor AC power, and enable safe unattended system shutdown and file saves in case of a prolonged power failure
• EPO port supports emergency shutdown in large facilities

Versatile Installation Options

• Hardware included for mounting in 1U of EIA-standard 19 in. 2- or 4-post rack
• Optional 4POSTRAILKIT1U accessory available for extra support in 4-post installations
• Compatible with vertical mount cabinets

DETAILS

• Plug/Connector Type : NEMA 5-15P
• Receptacle Type : NEMA 5-15R
• Receptacle Detail : 6 x NEMA 5-15R
• Transfer Time : 5 ms
• Application/Usage : Data Center,VoIP Phone System,Computer
• Load Capacity (VA) : 1 kVA
• Load Capacity (Watt) : 800 W
• Input Voltage : 120 V AC
• Output Voltage : 110 V AC,115 V AC,120 V AC
• Waveform Type : Pure Sinusoidal
• Backup/Run Time (Full Load) : 4 Minute
• Hot Swappable : Yes
• Typical Battery Recharge Time : 4.50 Hour
• Height : 1.75" (44.40 mm)
• Width : 17.50" (444.50 mm)
• Depth : 16.75" (425.40 mm)
• Rack Height : 1U
• Form Factor : Rack-mountable
• Weight (Approximate) : 31.99 lb (14510 g)
• Country of Origin : Taiwan
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)
• Limited Warranty : 2 Year

• Corrects under- and overvoltages from 83V to 147V
• 6 NEMA 5-15R outlets-2 switchable via network interface
• Network power management and control capability
• 14 min. runtime at half load; 4 min. at full load
