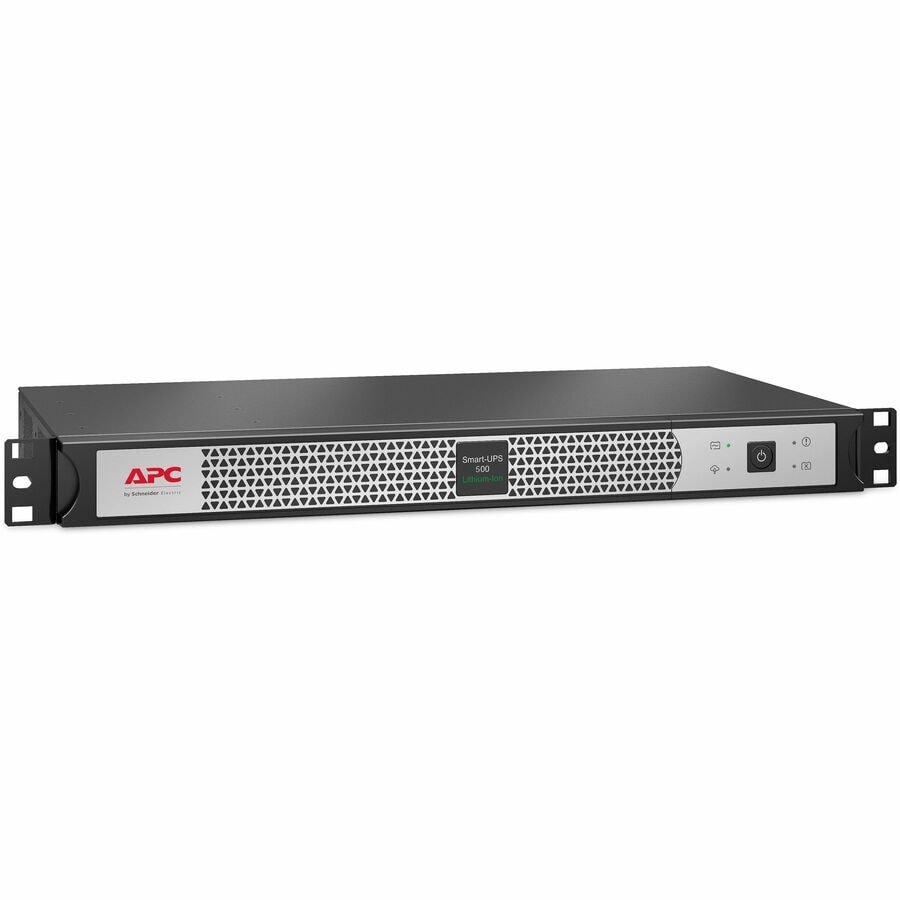

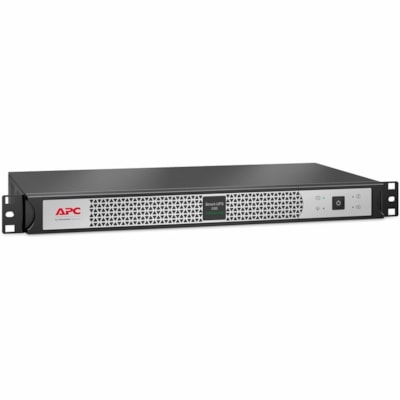

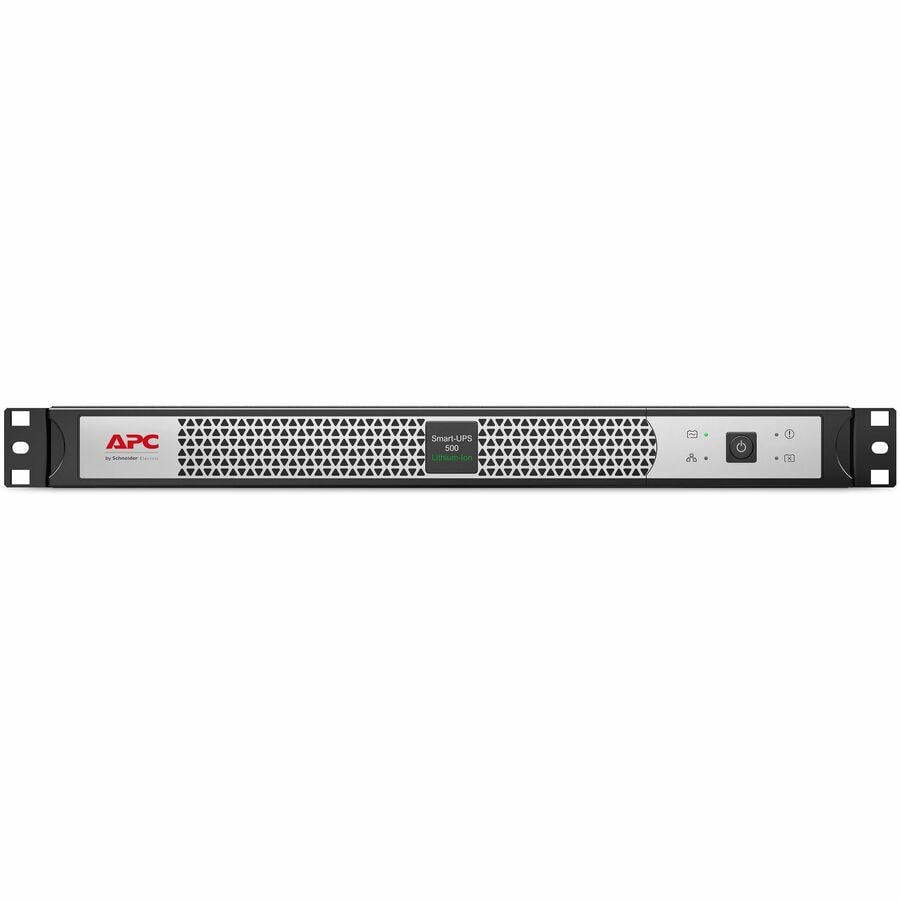

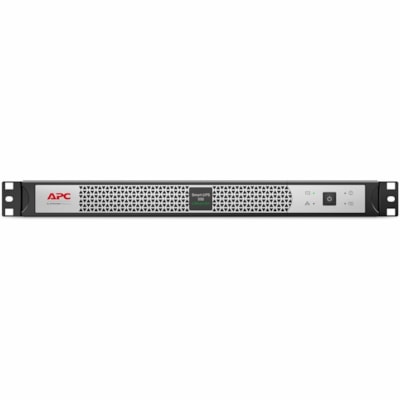

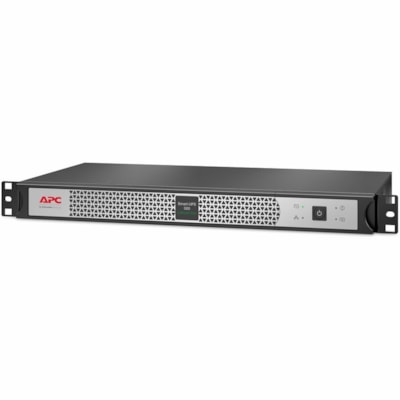

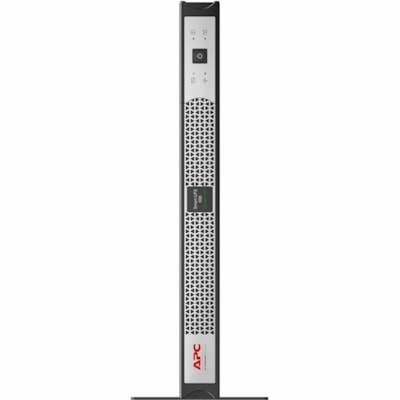

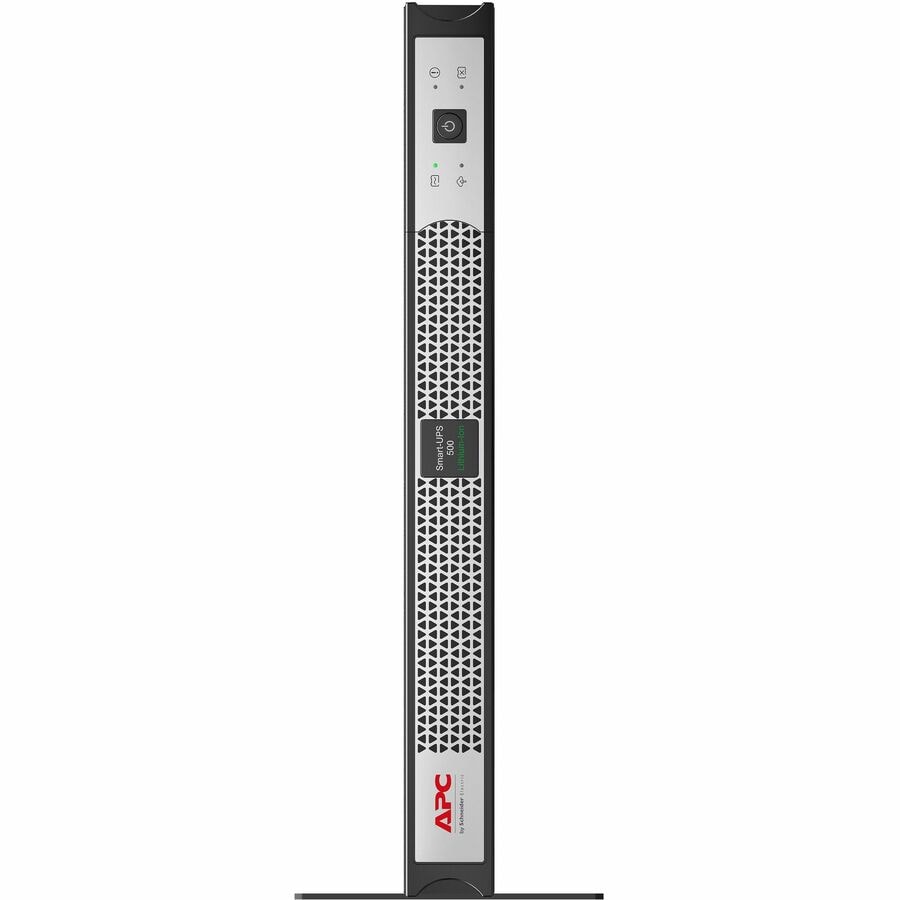

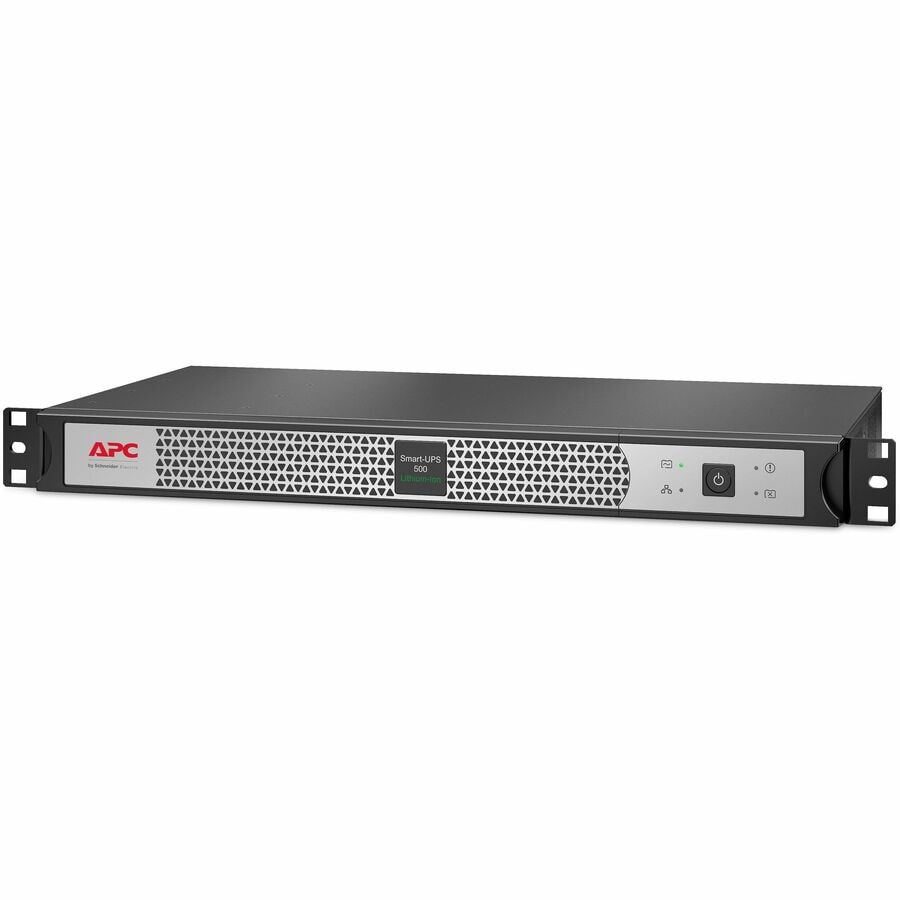

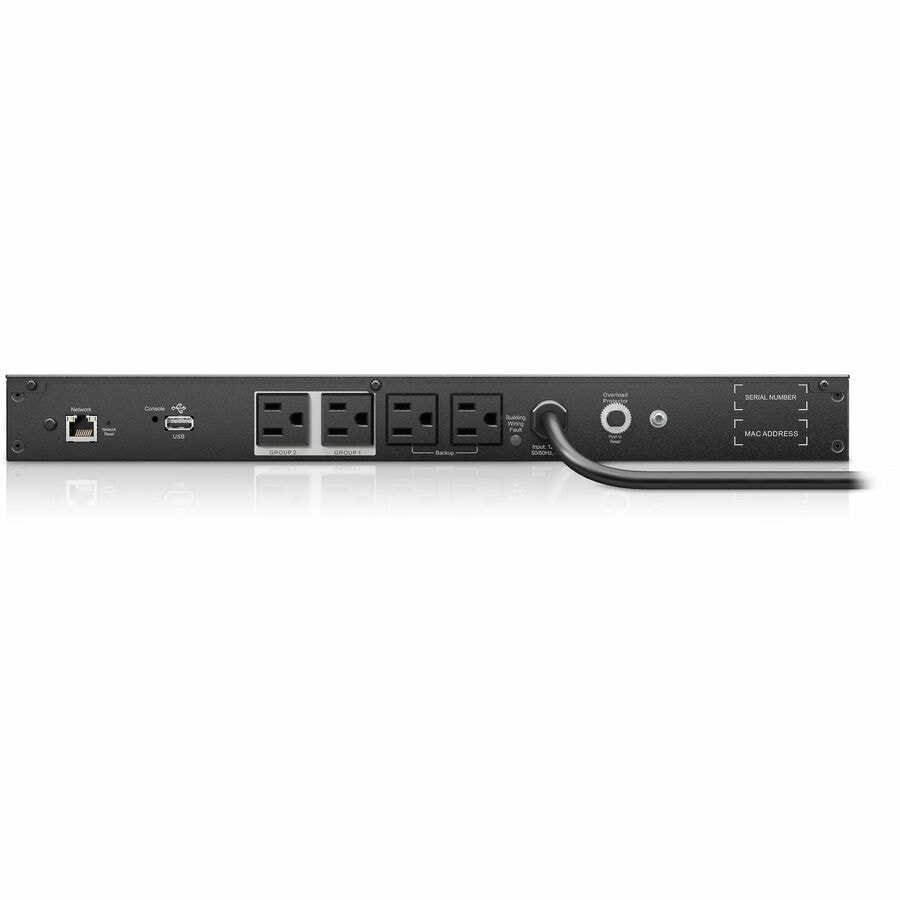

APC by Schneider Electric Smart-UPS 500VA Rack-mountable UPS - 1U Rack-mountable - AVR - 3 Hour Recharge - 2.70 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - Serial Port - 4 x NEMA 5-15R Receptacle(s) - 4 x Battery/Surge Outlet
SCL500RM1UNC
Also known as SCL500RM1UNCCA,IM8177ZW,SY6385477
MARKETING INFORMATION
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4 NEMA5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.DETAILS
- AVR : Yes
- Plug/Connector Type : NEMA 5-15P
- Receptacle Type : NEMA 5-15P
- Receptacle Detail : 4 x NEMA 5-15R
- Number of Battery & Surge Outlets : 4
- Overload Protection : Yes
- Cord Length : 6 ft (1.83 m)
- Transfer Time : 6 ms
- Application/Usage : Server,POS Terminal,Router,Switch,Network Hub,IT Equipment,Network Device,Business,Storage System,Critical System,Security System,Communication System
- Load Capacity (VA) : 500 VA
- Load Capacity (Watt) : 400 W
- Input Voltage : 120 V
- Output Voltage : 120 V AC
- Input Frequency : 63 Hz
- Output Frequency : 60 Hz
- Waveform Type : Sine Wave
- Surge Energy Rating : 680 J
- Alarm : On Battery,Low Battery,Configurable Delay
- Status Indicators :
LED Status Display:
- On Battery
- On Line
- Serial Port : Yes
- USB (HID Compliant) Port : Yes
- Battery Chemistry : Lithium Ion (Li-Ion)
- Battery Energy : 108 kJ
- Backup/Run Time (Full Load) : 2.70 Minute
- Backup/Run Time (Half Load) : 6.30 Minute
- Hot Swappable : Yes
- Typical Battery Recharge Time : 3 Hour
- Replaceable Battery : Yes
- Maximum Operating Elevation : 6561 ft (1999792.80 mm)
- Maximum Storage Elevation : 49212 ft (14999817.60 mm)
- Storage Temperature : 5°F (-15°C) - 113°F (45°C)
- Maximum Operating Temperature : 104°F (40°C)
- Sound Emission (A-Weighted) : 45 dB(A)
- Product Color : Black,Silver
- Height : 1.73" (44 mm)
- Width : 17.01" (432 mm)
- Depth : 9.13" (232 mm)
- Rack Height : 1U
- Form Factor : Rack-mountable
- Weight (Approximate) : 9.30 lb (4218.41 g)
- Package Contents :
- Smart-UPS 500VA Rack-mountable UPS
- CD with software
- Documentation CD
- Installation guide
- Rack mounting support rails
- USB cable
- Software Included : Powerchute Serial Edition
- Energy Star : Yes
- Country of Origin : Philippines
- Environmentally Friendly : Yes
- Environmental Compliance : Restriction of Hazardous Substances (RoHS)
- Limited Warranty : 5 Year
- Additional Warranty Information : 5 year repair or replace
- Experience higher efficiency with lower energy cost
- Prevent critical data loss by staying powered during a blackout with up to 400 W load capacity
- Up to 2.70 minute runtime on full load to preserve critical data from power shortage interruptions
- 500 VA load capacity provides sufficient backup during power failures
SPECIFICATIONS
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SCL500RM1UNC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 500VA Rack-mountable UPS |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 4 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 4 |
| Overload Protection | Yes |
| Cord Length | 6 ft (1.83 m) |
| Transfer Time | 6 ms |
| Application/Usage | Critical System |
| Application/Usage | Storage System |
| Application/Usage | Business |
| Application/Usage | Network Device |
| Application/Usage | IT Equipment |
| Application/Usage | Network Hub |
| Application/Usage | Switch |
| Application/Usage | Router |
| Application/Usage | POS Terminal |
| Application/Usage | Server |
| Application/Usage | Security System |
| Application/Usage | Communication System |
| Load Capacity (VA) | 500 VA |
| Load Capacity (Watt) | 400 W |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Input Frequency | 63 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 680 J |
| Alarm | Low Battery |
| Alarm | Configurable Delay |
| Alarm | On Battery |
| Status Indicators | LED Status Display:
|
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Energy | 108 kJ |
| Backup/Run Time (Full Load) | 2.70 Minute |
| Backup/Run Time (Half Load) | 6.30 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 6561 ft (1999792.80 mm) |
| Maximum Storage Elevation | 49212 ft (14999817.60 mm) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Color Family | Dual Color |
| Product Color | Black |
| Product Color | Silver |
| Height | 1.73" (44 mm) |
| Width | 17.01" (432 mm) |
| Depth | 9.13" (232 mm) |
| Rack Height | 1U |
| Form Factor | Rack-mountable |
| Mounting Preference | No Preference |
| Weight (Approximate) | 9.30 lb (4218.41 g) |
| For Country/Region | United States |
| Package Contents | |
| Certifications & Standards | cULus|NOM |
| Software Included | Powerchute Serial Edition |
| Energy Star | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SCL500RM1UNC_ROHS_DECLARATION&p_FileName=SCL500RM1UNCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=511500678&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=511500678&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1812001_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1812001_EN |
| REACH free of SVHC | No |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5 year repair or replace |
| Directly Connected Equipment Guarantee | $150000 Lifetime |
