Tripp Lite series NetDirector 16-Port 1U Rack-Mount Console IP KVM Switch w/19 in. LCD - 16 Computer(s) - 19" LCD - 1280 x 1024PS/2 PortUSBVGA - Keyboard120 V AC, 230 V AC Input Voltage - 1U High - Black
B020-U16-19-IP
Also known as IMEL0679,DHB020U1619IPCA,SY5488344
MARKETING INFORMATION

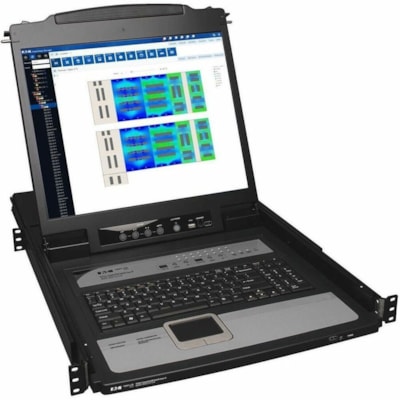

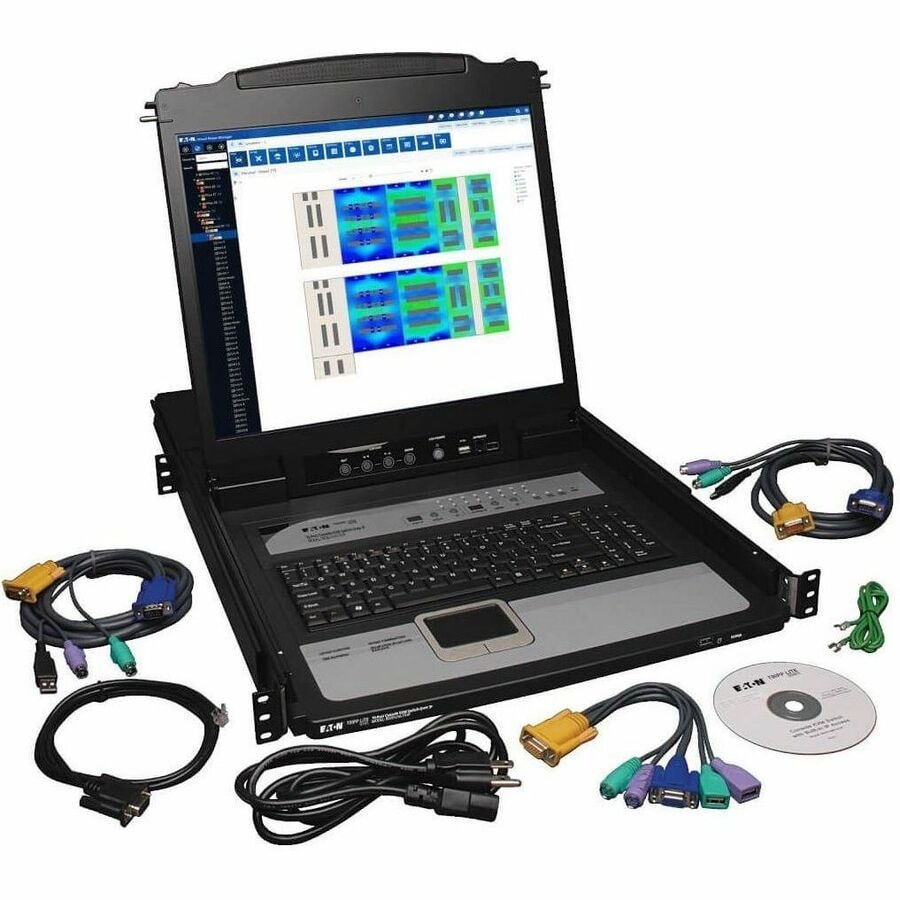

The B020-U16-19-IP NetDirector 16-Port 1U Rack-Mount Console IP KVM Switch combines a 16-port KVM switch, keyboard, touch pad, numeric keypad, 19-inch LCD and built-in IP remote access into a compact housing that stores neatly in 1U of rack space. Ideal for data centers, server rooms and other environments with multiple servers, the B020-U16-19-IP lets you handle complex problems without needing to be on-site, which saves money and time.You can control up to 16 servers or computers directly from the KVM switch or remotely from anywhere else via LAN, WAN or the Internet, including system administration, BIOS-level troubleshooting, GUI application installations and equipment reboots. The built-in 19-inch monitor supports VGA video resolution up to 1280 x 1024 (@ 75 Hz). Compatible with both USB and PS/2 connections using the included cable kits, the KVM switch allows you to select a connected computer using console buttons or keyboard hotkeys. It supports IPv4 and IPv6, as well as Link Local IPv6 Address and Stateless Auto Configuration protocol.
The B020-U16-19-IP is compatible with all major operating systems and web browsers. Three levels of password protection, as well as advanced encryption and activity logging, keep your confidential data secure. You can create up to 64 user accounts, which can communicate and manage port access through a message board. An external USB port lets you connect a flash drive or card reader to share external data among connected computers.
DETAILS
- KVM Switch : Yes
- KVM Technology : Digital
- Number of Computers Supported : 16
- Device Type : LCD Rack Console
- Screen Size : 19"
- Display Screen Type : LCD
- Screen Resolution : 1280 x 1024
- Keyboard : Yes
- PS/2 Port : Yes
- USB : Yes
- VGA : Yes
- Input Voltage : 120 V AC,230 V AC
- Color Family : Black
- Product Color : Black
- Rack Height : 1U
- Height : 1.73" (43.94 mm)
- Width : 18.90" (480.06 mm)
- Depth : 27" (685.80 mm)
- Weight (Approximate) : 31 lb (14061.36 g)
- Environmentally Friendly : Yes
- Country of Origin : Taiwan
- TAA Compliant : Yes
- Limited Warranty : 1 Year
- Controls up to 16 computers remotely via LAN, WAN or Internet
- Installs in just 1U to save rack space
- Works with all major operating systems and browsers
- Protects data with 3 security levels (Admin, User and Select)
- Enables up to 64 secure user accounts
SPECIFICATIONS
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B020U1619IP |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Line | NetDirector |
| Product Model | B020-U16-19-IP |
| Product Name | NetDirector 16-Port 1U Rack-Mount Console IP KVM Switch w/19 in. LCD |
| Product Type | LCD Rack Console |
| KVM Switch | Yes |
| KVM Technology | Digital |
| Number of Computers Supported | 16 |
| Device Type | LCD Rack Console |
| Screen Size | 19" |
| Display Screen Type | LCD |
| Screen Resolution | 1280 x 1024 |
| Keyboard | Yes |
| PS/2 Port | Yes |
| USB | Yes |
| VGA | Yes |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Color Family | Black |
| Product Color | Black |
| Rack Height | 1U |
| Height | 1.73" (43.94 mm) |
| Width | 18.90" (480.06 mm) |
| Depth | 27" (685.80 mm) |
| Weight (Approximate) | 31 lb (14061.36 g) |
| Package Contents |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Limited Warranty | 1 Year |
