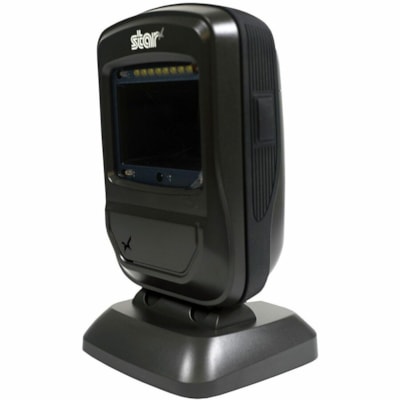

Star Micronics BSD-40U Desktop 1D/2D Barcode Scanner - Cable Connectivity - 8.66" (220 mm) Scan Distance - 1D, 2D - LED - CMOS - USB, Serial - Black - IP52 - Retail, Hospitality, Healthcare
37950900
Also known as IMBP9584
MARKETING INFORMATION
Premium USB Desktop Barcode Scanner
The BSD-40U is a top-tier 2D desktop barcode scanner, blending high performance with reliable design. It efficiently and accurately reads 1D and 2D barcodes on a variety of surfaces, including paper, uneven media, and digital screens. This scanner's advanced technology extends to reading and parsing data from IDs and driver's licenses, making it versatile for age verification and other diverse business needs. It features exceptional motion tolerance and an IR sensor for fast scanning in multiple modes. With an IP52-rated construction, the BSD-40U is built for durability and comes with a 2-year warranty with options to extend. Sleek and versatile, it's compatible with iOS, Android, and Windows platforms and plugs directly into any of Star'smCollection®products, making it a perfect fit for any business seeking reliable POS hardware solutions.
DETAILS
- Connectivity Technology : Cable
- Scanning Capability : 1D,2D
- Light Source : LED
- Image Sensor Type : CMOS
- Scan Mode : Trigger
- Scanning Distance : 8.66" (220 mm)
- Field of View (Horizontal) : 51°
- Field of View (Vertical) : 32°
- Reading Angle (Skew) : 45°
- Reading Angle (Pitch) : 50°
- Reading Angle (Roll) : 360°
- Motion Tolerance : 98.43 in/s (2500 mm/s)
- Drop Specification :
1.2m drop Resistance
- Minimum Print Contrast : 25%
- Maximum Element Resolution (Code 39) : 5 mil (0.13 mm)
- Image Sensor Resolution : 1280 x 800
- Illumination Type : LED
- Illumination Color : White
- Air Electrostatic Discharge (+/-) : 14kV
- Contact Electrostatic Discharge (+/-) : 8kV
- Host Interface : USB,Serial
- Operating Temperature : -4°F (-20°C) to 140°F (60°C)
- Storage Temperature : -40°F (-40°C) to 158°F (70°C)
- Humidity (Non-condensing) : 5% to 95%
- Form Factor : Desktop
- Color Family : Black
- Product Color : Black
- Durability : Dust Resistant
- Height : 5.79" (147 mm)
- Width : 3.15" (80 mm)
- Length : 3.23" (82 mm)
- Weight (Approximate) : 10.48 oz (297 g)
- Ingress Protection (IP) Rating : IP52
- Application/Usage : Retail,Hospitality,Healthcare
- Platform Supported : iOS,Android
- Environmentally Friendly : Yes
- Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
- Limited Warranty : 2 Year
- Laser-free design provides high-performance scanning without the risk of eye injury
- Perfect for applications that require direct association with a workstation or a notebook
SPECIFICATIONS
| Manufacturer | Star Micronics, Inc |
| Manufacturer Part Number | 37950900 |
| Manufacturer Website Address | http://www.starmicronics.com |
| Brand Name | Star Micronics |
| Product Model | BSD-40U |
| Product Name | BSD-40U Desktop 1D/2D Barcode Scanner |
| Product Type | Barcode Scanner |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Scanning Capability | 2D |
| Barcode Symbology Supported | 2D: PDF417, Micro PDF417, QR Code, Data Matrix, Micro QR Code, Aztec 1D: Code-11, Code-128, Code-39, GS1-128(UCC/EAN-128), AIM-128, ISBT-128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1Composite, EAN-8, EAN-13, ISBN/ISSN, Interleaved 2 of 5, Febraban, Matrix 2 of 5, Industrial 25, ITF-6, ITF-14, Standard 25, ChinaPost25, MSI-Plessey, Plessey, GS1Databar (RSS) |
| Light Source | LED |
| Image Sensor Type | CMOS |
| Scan Mode | Trigger |
| Depth of Field |
|
| Scanning Distance | 8.66" (220 mm) |
| Field of View (Horizontal) | 51° |
| Field of View (Vertical) | 32° |
| Reading Angle (Skew) | 45° |
| Reading Angle (Pitch) | 50° |
| Reading Angle (Roll) | 360° |
| Motion Tolerance | 98.43 in/s (2500 mm/s) |
| Drop Specification | 1.2m drop Resistance |
| Minimum Print Contrast | 25% |
| Maximum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 14kV |
| Contact Electrostatic Discharge (+/-) | 8kV |
| Host Interface | Serial |
| Host Interface | USB |
| Operating Temperature | -4°F (-20°C) to 140°F (60°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Form Factor | Desktop |
| Color Family | Black |
| Product Color | Black |
| Durability | Dust Resistant |
| Height | 5.79" (147 mm) |
| Width | 3.15" (80 mm) |
| Length | 3.23" (82 mm) |
| Weight (Approximate) | 10.48 oz (297 g) |
| Compatibility | Star Micronics:
|
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Healthcare |
| Application/Usage | Hospitality |
| Application/Usage | Retail |
| Platform Supported | Android |
| Platform Supported | iOS |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Limited Warranty | 2 Year |
