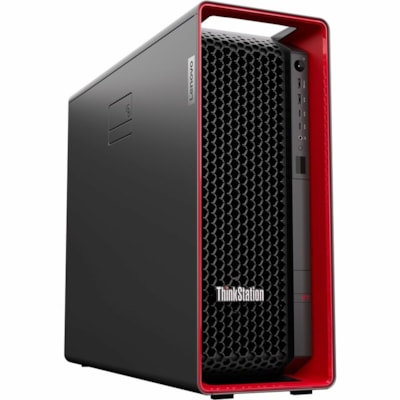

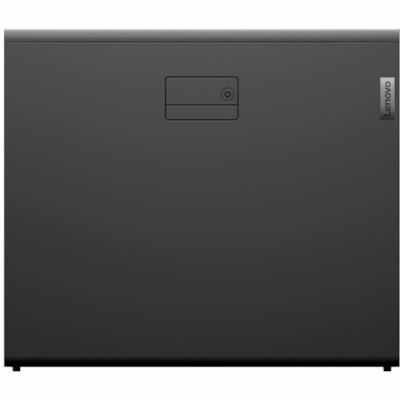

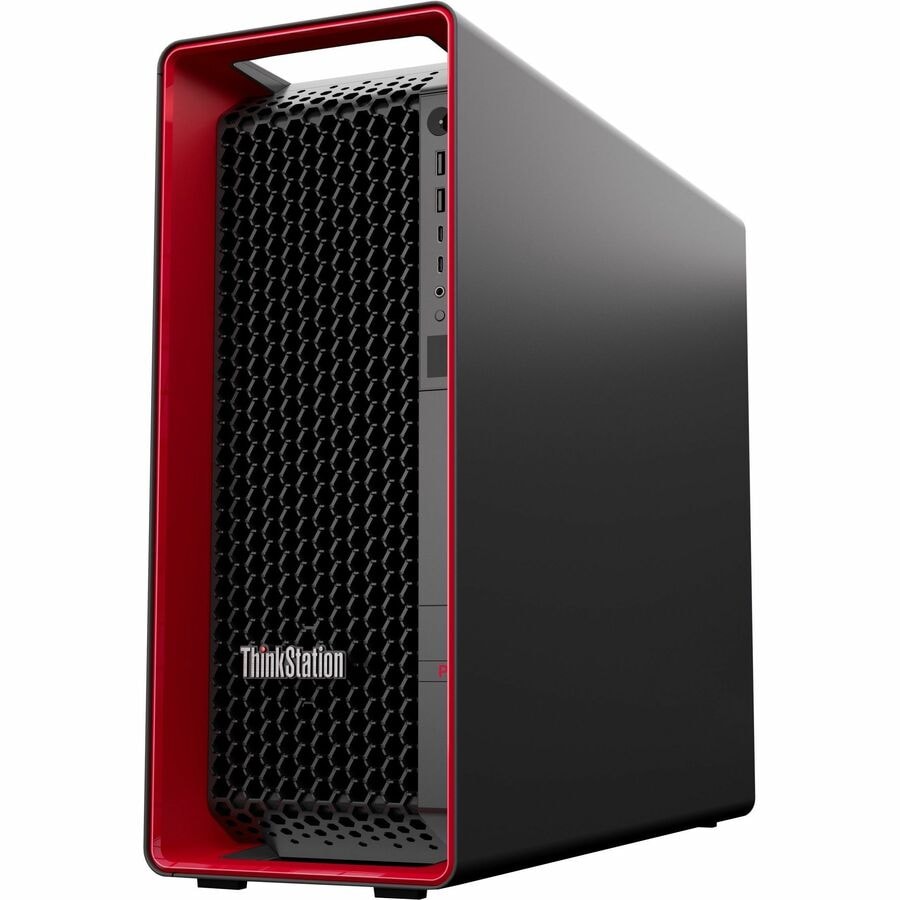

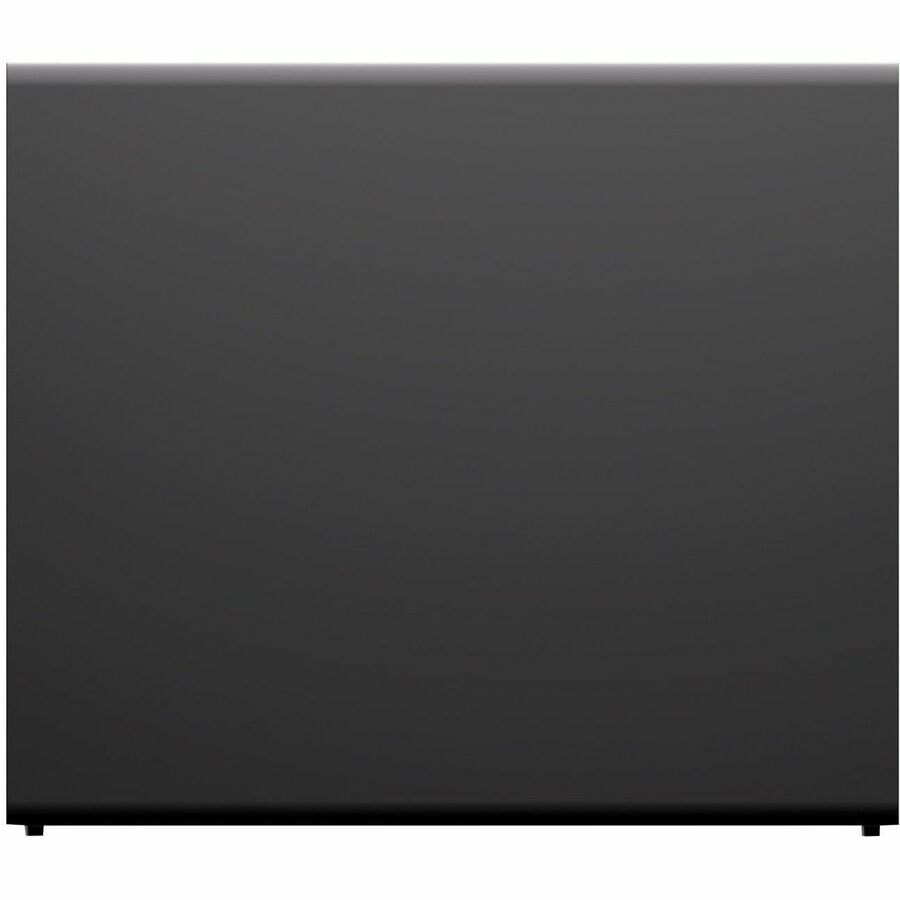

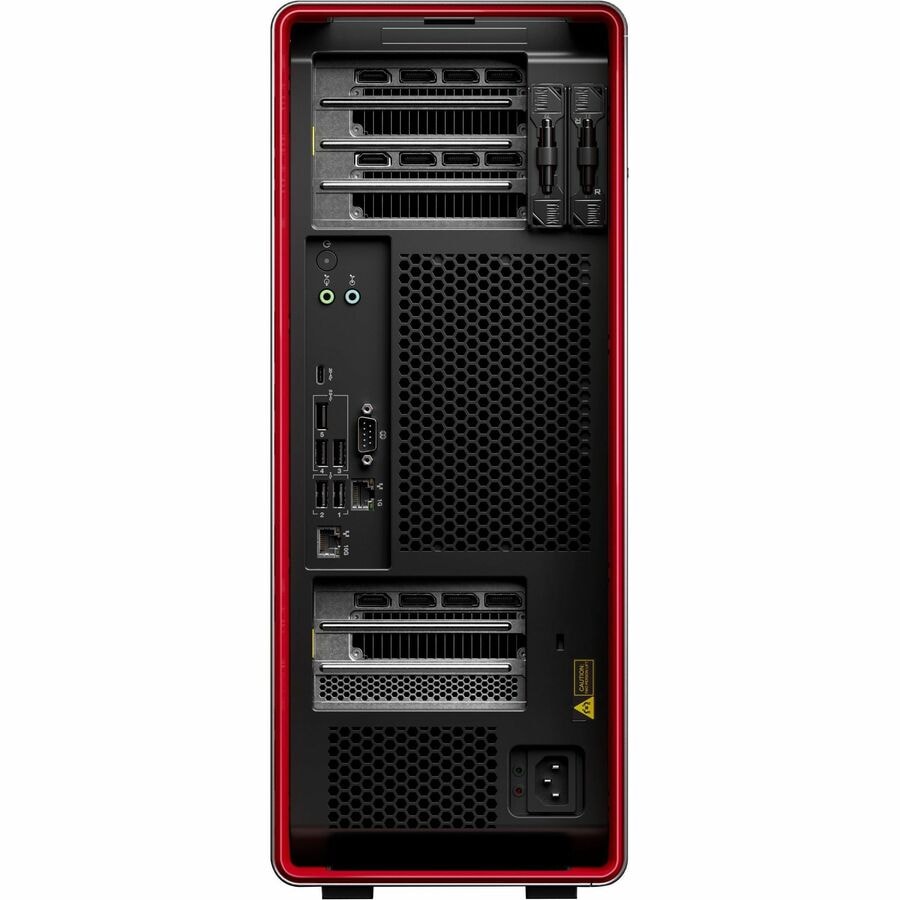

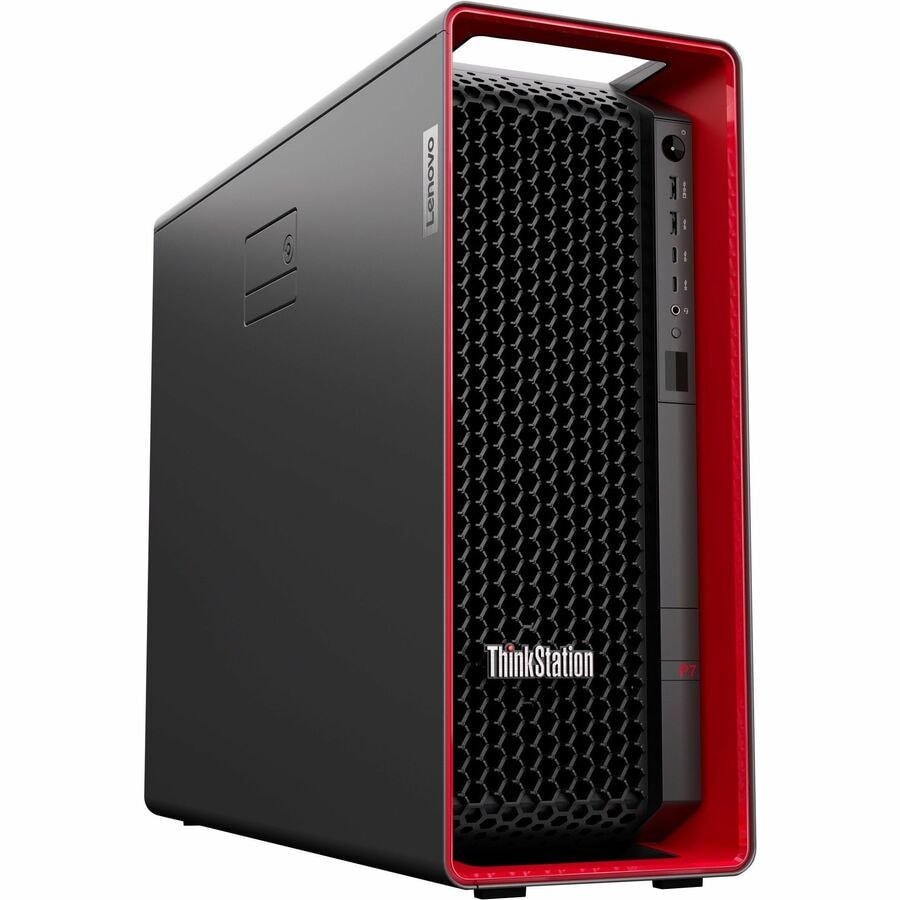

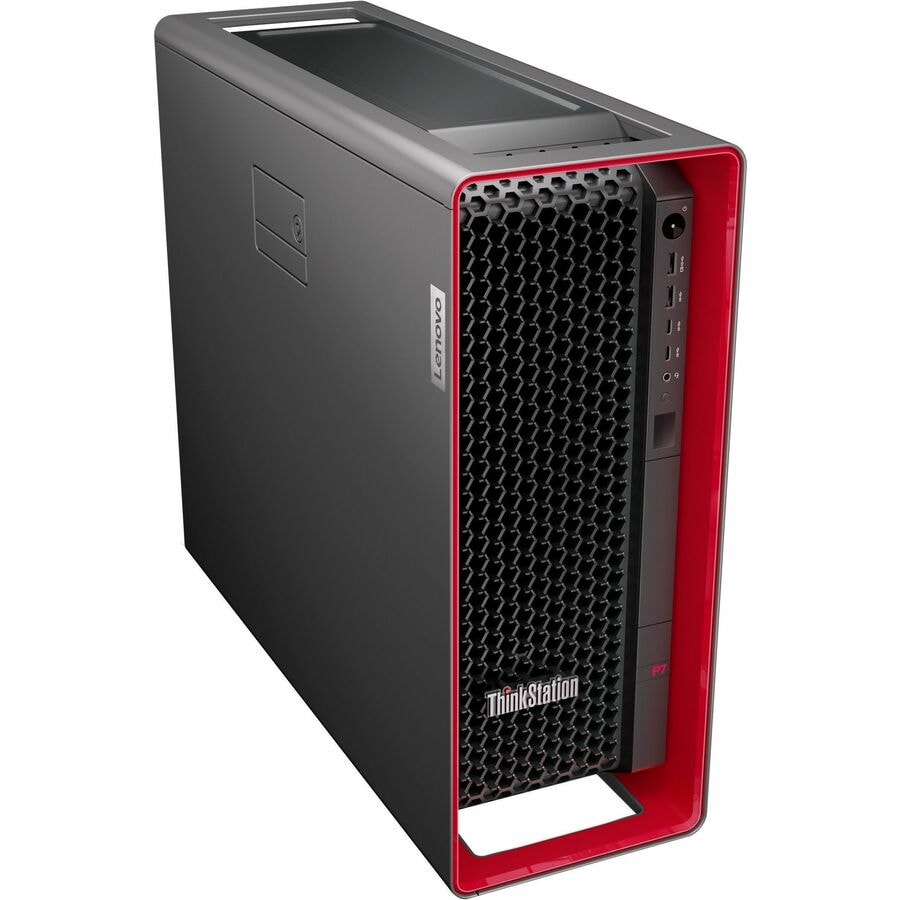

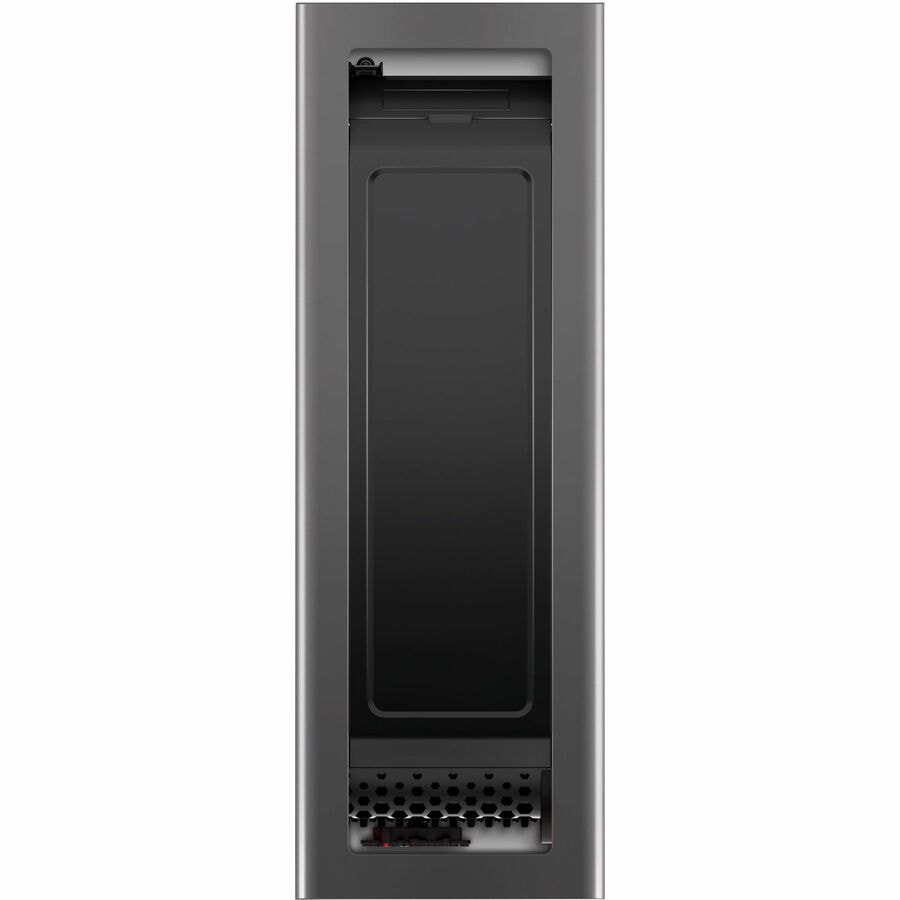

Lenovo ThinkStation P7 30F3003NUS Workstation - 1 Xeon w7-3455 - vPro Technology - 64 GB - 2 TB SSD - Intel W790 Chip - Windows 11 Pro for Workstations - 1 RTX A2000 12 GB Graphics - Serial ATA, NVMe Controller - English Keyboard - Gigabit Ethernet, 10 Gigabit Ethernet - Wireless LAN
30F3003NUS
Also known as IMBP4347
MARKETING INFORMATION
THINKSTATION & THINKPAD | P SERIES WORKSTATION FAMILY
Fostering creativity for professionals across industries
DETAILS
- Number of Processors Supported : 1
- Number of Processors Installed : 1
- Processor Type : Xeon
- Processor Model : w7-3455
- Processor Core : Tetracosa-core (24 Core)
- Processor Speed : 2.50 GHz
- Processor Socket : Socket LGA-4677
- Processor Threads : 48
- vPro Technology : Yes
- Chipset Manufacturer : Intel
- Chipset Model : W790
- Standard Memory : 64 GB
- Maximum Memory Supported : 1 TB
- Memory Technology : DDR5 SDRAM
- Total Number of Memory Slots : 8
- Memory Clock Speed : 4.80 GHz
- Memory Configuration : 4 x 16 GB
- Error Checking : ECC
- Signal Processing : Registered
- Drive Type : SSD
- Total Solid State Drive Capacity : 2 TB
- Solid State Drive Interface : PCI Express NVMe 4.0 x4
- Controller Type : Serial ATA,NVMe
- RAID Supported : No
- Number of Graphic Controllers : 1
- Graphics Controller Model : RTX A2000
- Graphics Memory Capacity : 12 GB
- Graphics Memory Accessibility : Dedicated
- Ethernet Technology : Gigabit Ethernet,10 Gigabit Ethernet
- Wireless LAN : Yes
- Bluetooth : Yes
- Keyboard Localization : English
- Total Number of USB Ports : 10
- Number of USB 2.0 Ports : 2
- Number of USB 3.2 Gen 2 Ports : 5
- USB Type-C : Yes
- USB Type-C Detail : 2x USB-C® 3.2 Gen 2; 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only
- Operating System Platform : Windows
- Operating System : Windows 11 Pro for Workstations
- Operating System Language : English
- Maximum Power Supply Wattage : 1.40 kW
- Height : 17.10" (434.40 mm)
- Width : 6.89" (175 mm)
- Depth : 20" (508 mm)
- Weight (Approximate) : 54.01 lb (24500 g)
- Package Contents :
- ThinkStation P7 30F3003NUS
- Keyboard
- Mouse
- Energy Star : Yes
- Environmentally Friendly : Yes
- Environmental Certification : Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),TCO Certified 9.0
- Energy Efficiency Certification : ENERGY STAR 8.0
- Environmental Compliance : Restriction of Hazardous Substances (RoHS)
- TCO Certified : Yes
- Limited Warranty : 3 Year
- Additional Warranty Information :
- Base Warranty 3-year, Onsite
- Included Upgrade 3Y Premier Support Upgrade from 3Y Onsite
- Experience high performance, built-in security and remote management capabilities with the Intel Xeon 2.50 GHz processor
- 64 GB of gigantic memory enables you to do multitasking and run intensive games lag-free
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- 1.40 kW power supply unit (PSU) included
SPECIFICATIONS
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30F3003NUS |
| Manufacturer Website Address | http://www.lenovo.com |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P7 |
| Product Model | 30F3003NUS |
| Product Name | ThinkStation P7 30F3003NUS |
| Product Type | Workstation |
| Release Year | 2023 |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | w7-3455 |
| Processor Core | Tetracosa-core (24 Core) |
| Processor Speed | 2.50 GHz |
| vPro Technology | Yes |
| Processor Socket | Socket LGA-4677 |
| Processor Threads | 48 |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Error Checking | ECC |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 4 x 16 GB |
| Signal Processing | Registered |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Solid State Drive Configuration | 1 x 2TB |
| Controller Type | Serial ATA |
| Controller Type | NVMe |
| RAID Supported | No |
| Number of Graphic Controllers | 1 |
| Graphics Controller Model | RTX A2000 |
| Graphics Memory Capacity | 12 GB |
| Graphics Memory Accessibility | Dedicated |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 2x USB-C® 3.2 Gen 2; 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Number Of Ethernet Ports | 2 |
| Keyboard Localization | English |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro for Workstations |
| Operating System Language | English |
| Maximum Power Supply Wattage | 1.40 kW |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 54.01 lb (24500 g) |
| Package Contents |
|
| Energy Star | Yes |
| TCO Certified | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | TCO Certified 9.0 |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold) |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 3 Year |
| Additional Warranty Information |
|
