VIGI NVR Introduction

The VIGI network video recorder coordinates with camera systems to help you view, store, and playback videos.

Security for every hour and every day.

24/7 Continuous Recording

Automatically stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.

Every angle all on one screen.

8-Channel Real-Time Live View

Sharp image definition up to 5MP and an 8 channel display ensures you capture every detail, from every angle.

Reviewing footage is faster than ever.

4-Channel Simultaneous Playback

Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.

Keep an eye on things even when you are on the move.

Remote Monitoring

Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.

More compression. More savings.
Same quality. H.265+

Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

No need to check long compatibility lists.
Onvif Ensures Compatibility

Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

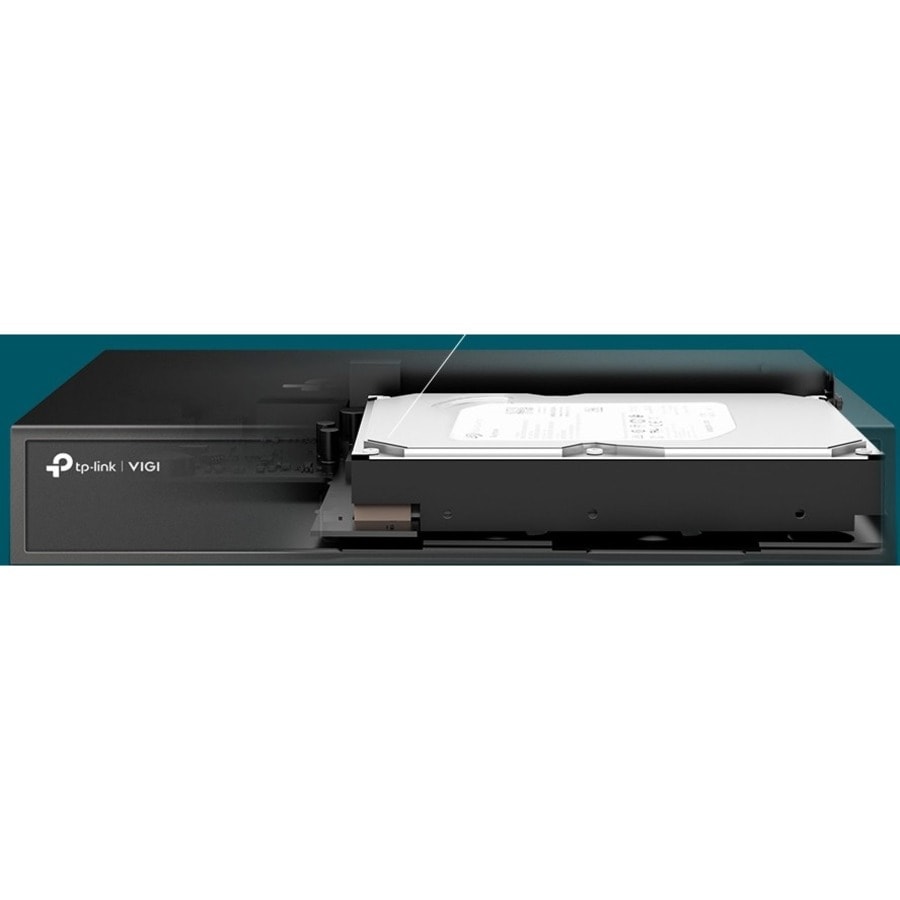

Up to 720 days of footage stored locally.

1 HDD (up to 10 TB)

Stores up to 10 TB ( 720 days of video) on a SATA hard drive, keeping your data storage secured locally.

Greet your visitors before they enter.

Two-Way Audio

With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

More bandwidth for more cameras.

80 Mbps Video Access Bandwidth

High video access bandwidth ensures your NVR connects more cameras with high resolution.
Based on laboratory testing using VIGI cameras, VIGI NVR can connect up to eight 4MP cameras.

Manage everything with one.

Run your business with peace of mind.

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you've worked hard to build-whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

DETAILS

• Total Number of Channels : 8
• Connectivity Technology : Wired
• HD Recording : Yes
• System Components : Network Video Recorder
• Video Formats : H.265,H.265+,H.264,H.264+
• Maximum Resolution : 5MP
• Ethernet : Yes
• Remote Management : Yes
• Number of VGA Out : 1
• HDMI : Yes
• Power Consumption : 4.25 W
• Height : 9.69" (246.20 mm)
• Width : 5.83" (148.20 mm)
• Depth : 1.77" (45 mm)
• NVR Weight : 1.28 lb (578.50 g)

• Up to 8 number of channels to address small-to-mid range requirements
• Allows the camera to record at greater image per second levels
• Manage remotely. Just get it connected to the internet and it will start monitoring
