MARKETING INFORMATION

2kVA/1.8kW/120V Long-Term Battery Backup for IT Installations and Edge Networks

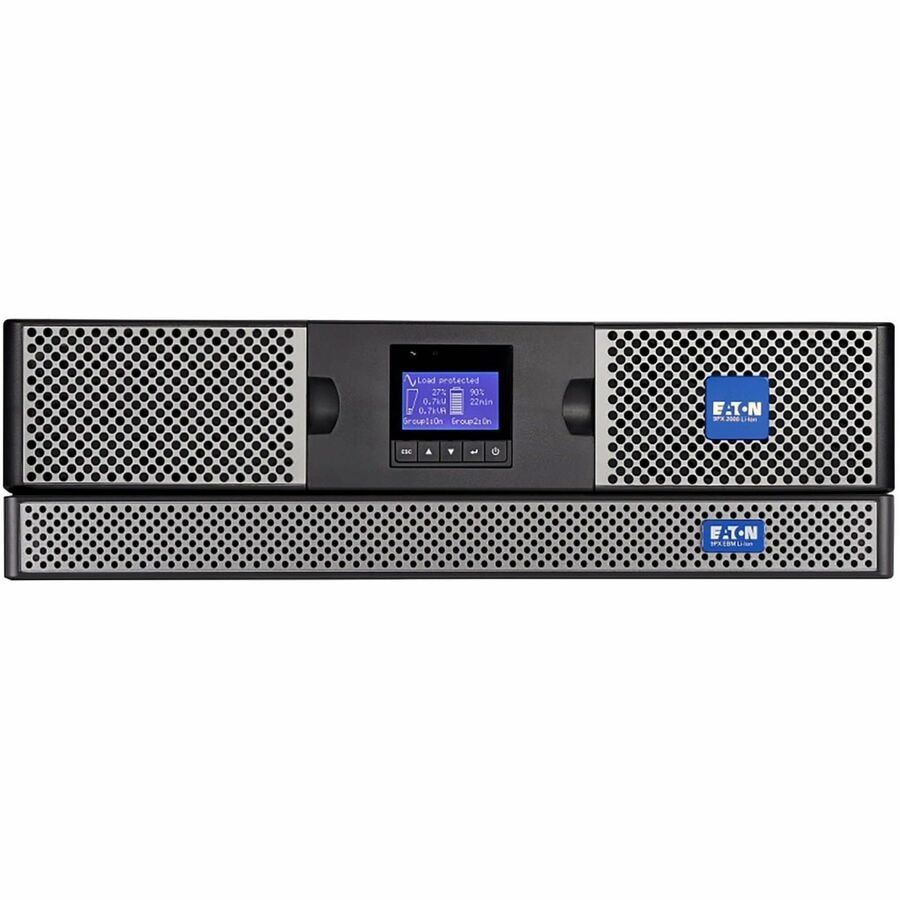

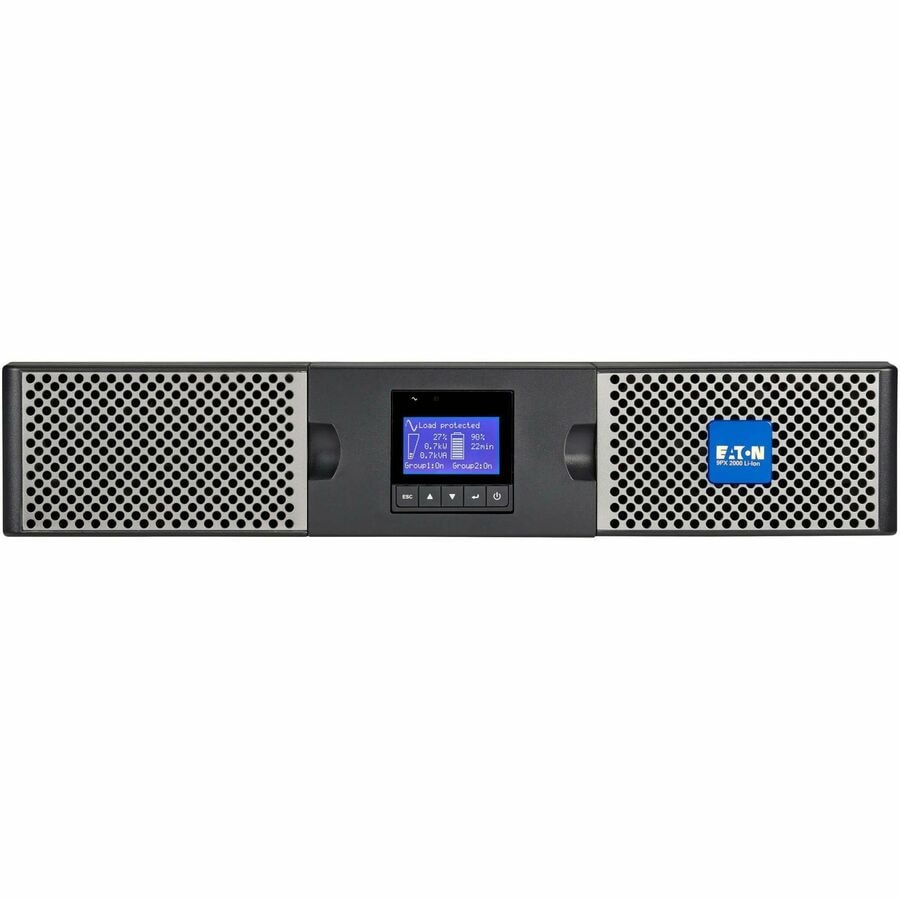

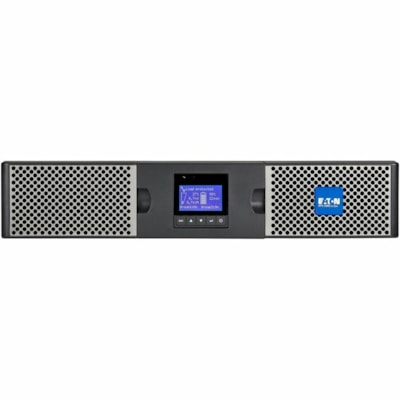

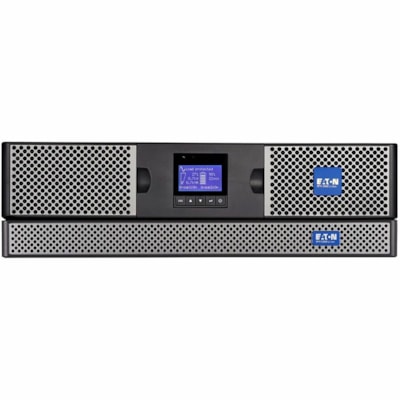

This 9PX rack-mount online double-conversion UPS system provides reliable, low-maintenance battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. Ideal for locations that are difficult to access or infrequently maintained, the 9PX2000RTN-L is an efficient "set it and forget it" solution. It's ideal power management for education, commercial, financial or healthcare networking components, including Cisco switches and servers.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages

The hot-swappable maintenance-free lithium-ion battery modules have a service life of 8 to 10 years. They allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. These lithium iron phosphate (LFP) batteries provide 80 to 120 percent more runtime at full load than equivalent lead-acid UPS systems while weighing up to 40 percent less, reducing the overall UPS weight.

Supports External Batteries for Scalable Extended Runtime

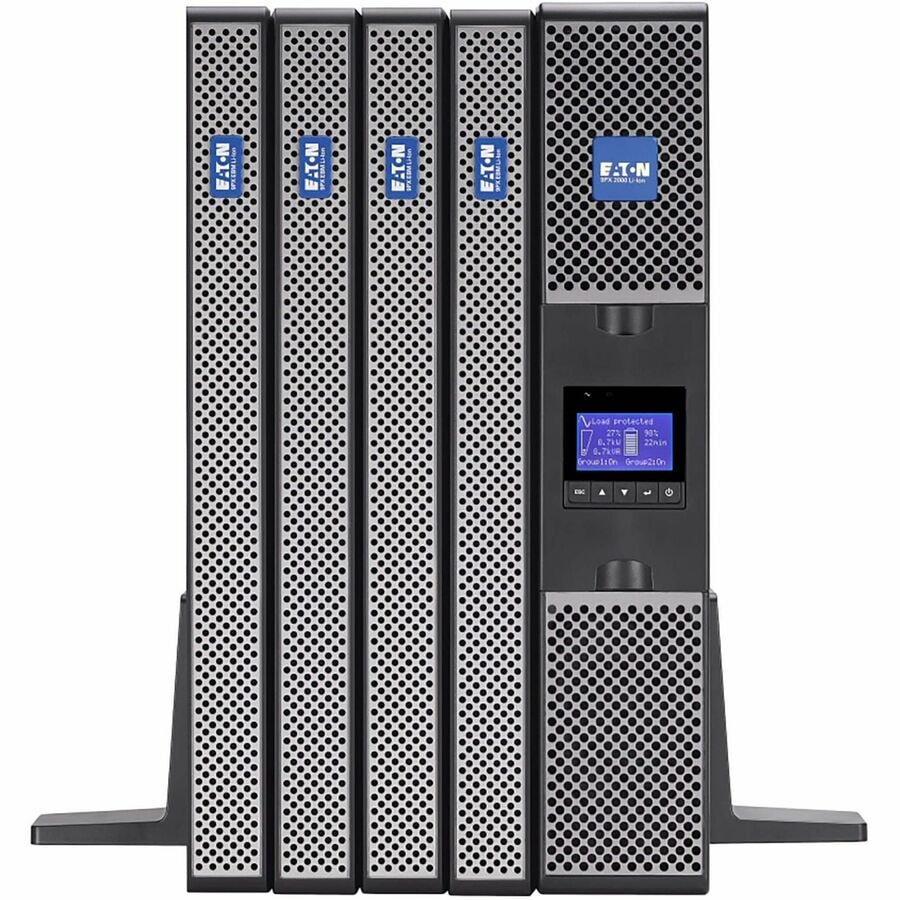

For mission-critical applications demanding continuous uptime, the UPS supports the connection of up to four expanded battery modules (9PXEBM72RT-L, sold separately) for hours of extended runtime.

Included Gigabit Network Interface Offers 24/7 Remote Access

The NETWORK-M3 network card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M3 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.

NEMA Outlets Protect Your Connected Components

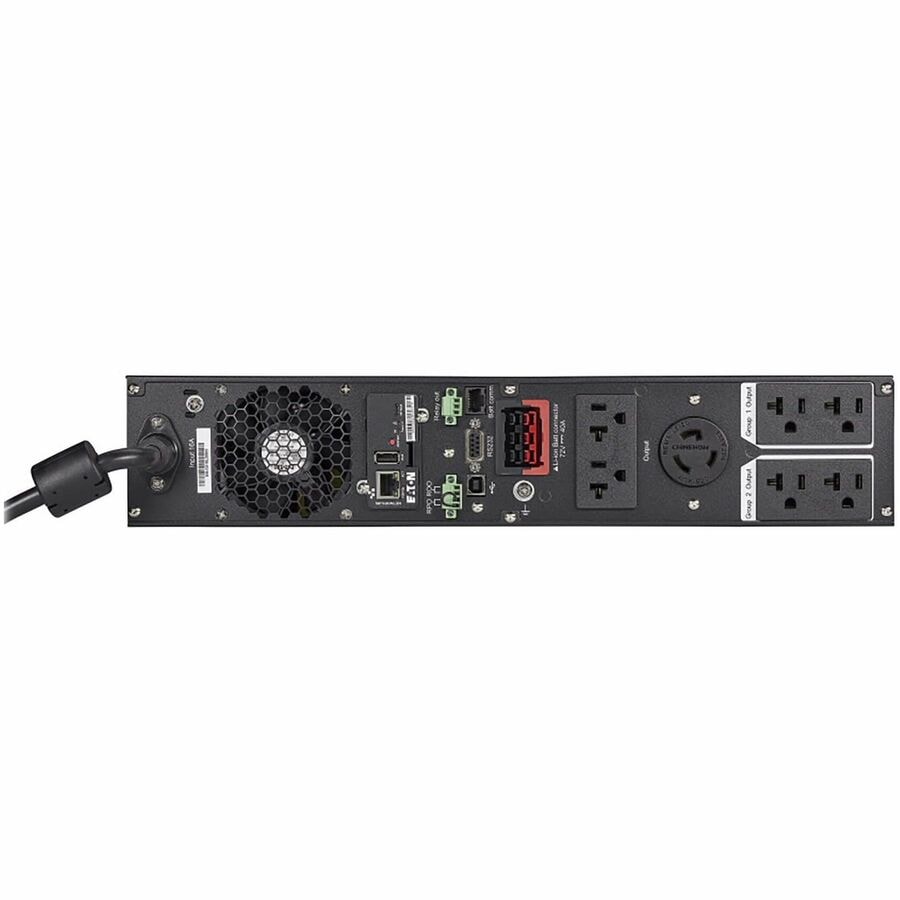

One L5-20R and six 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four 5-20R outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.

Rotating LCD Interface Keeps You Informed at a Glance

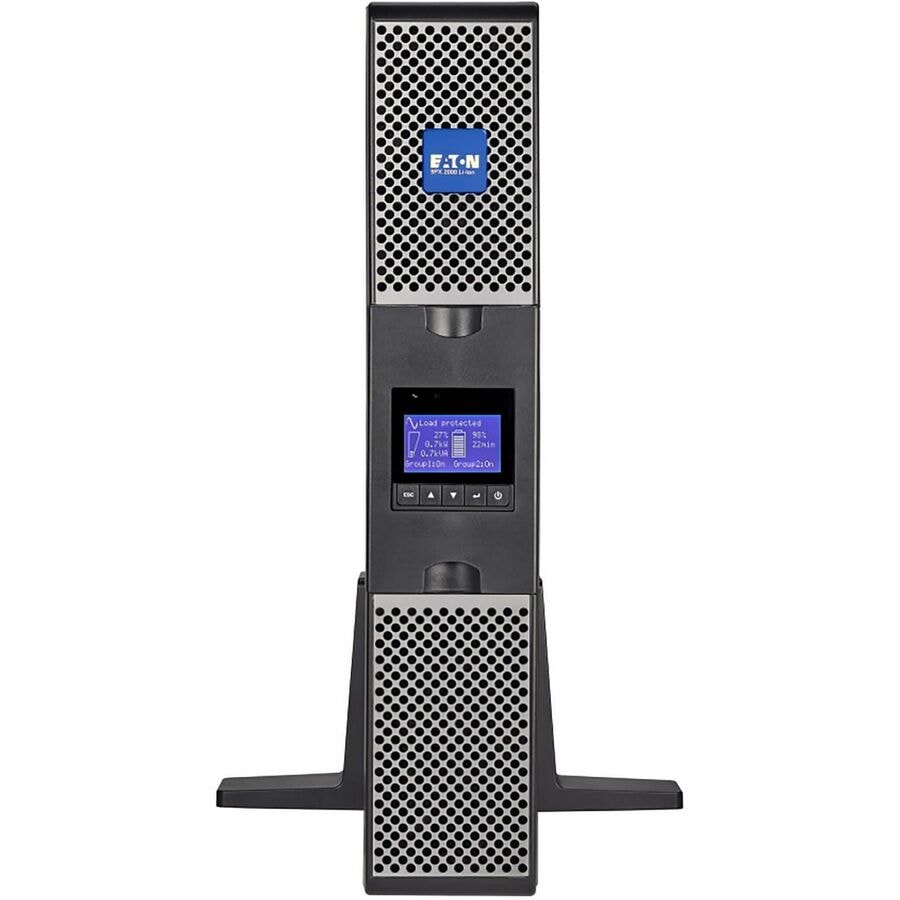

The high-contrast front-panel LCD provides control settings and critical information to help diagnose any issues. The interface rotates to accommodate both rack-mount and tower configurations, and it tilts up to 45 degrees for more comfortable viewing.

Advanced Communications Ports Allow for Automatic Saves and Shutdowns

RS-232 and USB ports connect to a serial-enabled device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO port permits emergency shutdown or remote restart of all connected equipment.

DETAILS

• Plug/Connector Type : NEMA 5-20P
• Receptacle Type : NEMA 5-20R,NEMA L5-20R
• Receptacle Detail : 6 x NEMA 5-20R,1 x NEMA L5-20R
• Application/Usage : IT,Edge Computing,Medical,Healthcare,University,Industrial Automation System,Electronic
• Load Capacity (VA) : 2 kVA
• Load Capacity (Watt) : 1.80 kW
• Input Voltage : 120 V AC
• Input Frequency : 60 Hz
• Waveform Type : True Sine Wave
• Network Management : Network-M3 Card
• Status Indicators : Grpahical Display
• Serial Port : Yes
• Network (RJ-45) : Yes
• USB (HID Compliant) Port : Yes
• Battery Chemistry : Lithium Ion (Li-Ion)
• Hot Swappable : Yes
• Replaceable Battery : Yes
• Sound Emission : 47 dB
• Product Color : Black,Silver
• Height : 3.40" (86.36 mm)
• Width : 17.30" (439.42 mm)
• Depth : 23.80" (604.52 mm)
• Rack Height : 2U
• Form Factor : Rack/Tower
• Weight (Approximate) : 51.60 lb (23405.37 g)
• Country of Origin : Philippines
• Limited Warranty : 5 Year

• Keeps equipment running during outages to allow time for file saves and safe shutdown
• Improved lithium-ion batteries have service life up to 10 years ? set it and forget it!
• Provides 80% to 120% more runtime at full load than equivalent lead-acid UPS systems
• Interactive LCD interface keeps you updated on critical load information in real time
• Included Gigabit network card enables full remote access and management 24/7
