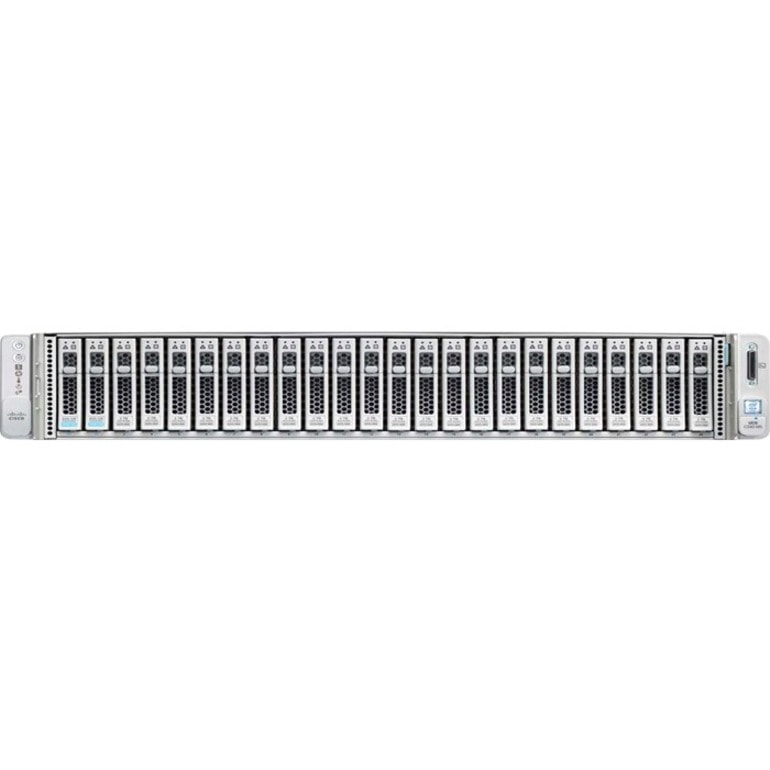

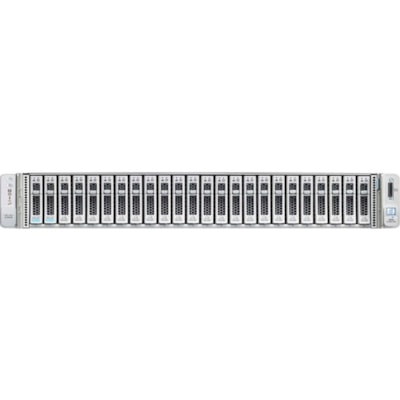

Cisco HyperFlex HyperFlex HX240 M5 Edge Server Barebone System - 2U Rack-mountable - 2 x Processor Support - Intel C621 Chip - 3 TB DDR4 SDRAM Maximum RAM Support - 24 Total Memory Slots - 12Gb/s SAS RAID Supported Controller - G200e 16 MB Graphic(s) - Processor Support (Xeon) - 10 Gigabit Ethernet
HX-E-240-M5SX
Also known as IM989A9H
MARKETING INFORMATION
Cisco HyperFlex Edge Systems are optimized for remote sites, branch offices, and edge environments. As a smaller form factor of Cisco HyperFlex, Cisco HyperFlex Edge keeps the full power of a next generation hyperconverged platform even without connecting to Cisco UCS Fabric Interconnects. Cisco HyperFlex Edge Systems support a variable configuration of 2, 3, or 4 HX converged nodes and supports the scale up of CPU, memory, and storage capacity (hot-add additional capacity drives).HyperFlex Edge operates using existing top of rack 1GE or 10/25GE switching with options for both single and dual switch configurations. HyperFlex Edge is typically deployed in environments with a minimal infrastructure footprint, hence the use of UCS compute-only nodes is not supported.
The HyperFlex HXAF-E-240/HX-E-240 M5 Edge server extends the capabilities of Cisco's HyperFlex portfolio in a 2U form factor with the addition of the 2nd Gen Intel® Xeon® Scalable Processors, 12 DIMM slots per CPU for 2933-MHz DDR4 DIMMs with DIMM capacity points up to 128 GB.
DETAILS
- Number of Processors Supported : 2
- Processor Supported : Xeon
- Chipset Manufacturer : Intel
- Chipset Model : C621
- Maximum Memory Supported : 3 TB
- Memory Technology : DDR4 SDRAM
- Total Number of Memory Slots : 24
- Controller Type : 12Gb/s SAS
- RAID Supported : Yes
- Graphics Controller Model : G200e
- Graphics Memory Capacity : 16 MB
- Ethernet Technology : 10 Gigabit Ethernet
- Number of Total Expansion Bays : 2
- Total Number of USB Ports : 2
- Number of USB 3.0 Ports : 2
- Number of VGA Ports : 1
- Operating System Supported : Windows Server 2019 Datacenter,Windows Server 2019 Standard
- Input Voltage : 120 V AC,230 V AC
- Form Factor : Rack-mountable
- Rack Height : 2U
- Height : 3.43" (87.12 mm)
- Width : 18.96" (481.58 mm)
- Depth : 30.18" (766.57 mm)
- Weight (Approximate) : 37.50 lb (17009.71 g)
- Experience high performance, built-in security and remote management capabilities with Intel Xeon processor
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- With 2 USB ports, connect/disconnect devices while not having to shut down the system
- 12Gb/s SAS interface for high speed and reliability
SPECIFICATIONS
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | HX-E-240-M5SX |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Line | HyperFlex |
| Product Series | HX240 M5 |
| Product Model | HyperFlex HX240 M5 Edge |
| Product Name | HyperFlex HX240 M5 Edge Barebone System |
| Product Type | Server Barebone System |
| Number of Processors Supported | 2 |
| Processor Supported | Xeon |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 24 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 16 MB |
| Ethernet Technology | 10 Gigabit Ethernet |
| Number of Total Expansion Bays | 2 |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 1 |
| Operating System Supported | Windows Server 2019 Standard |
| Operating System Supported | Windows Server 2019 Datacenter |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.43" (87.12 mm) |
| Width | 18.96" (481.58 mm) |
| Depth | 30.18" (766.57 mm) |
| Weight (Approximate) | 37.50 lb (17009.71 g) |
