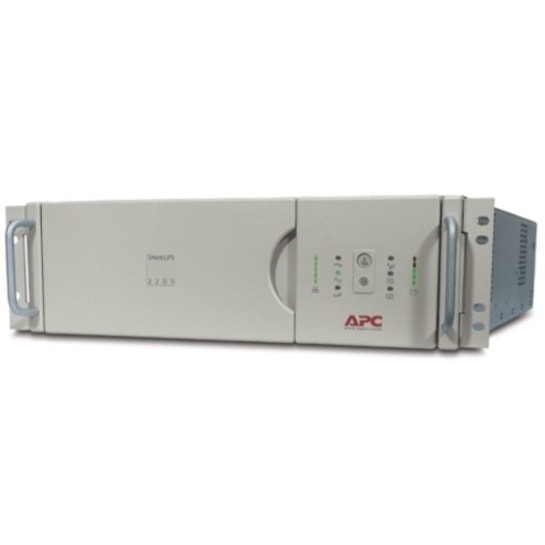

APC Smart-UPS 2200VA RM - 2200VA - 6.8 Minute Full Load - 6 x NEMA 5-15R

SU2200R3X167
Also known as IM98711X

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Smart-UPS 2200VA protects your data by supplying network-grade battery backup when power fails. With PowerChute® plus software the uninterruptible power supply (UPS) will safely store data and shut down your network operating system before the battery is fully discharged, whether you're there or not. SmartSlot internal accessory slot allows you to install optional accessories to enhance the performance of your UPS. APC Smart-UPS is the perfect UPS for fileservers, minicomputers, UNIX CPU's, internet hubs, telecommunications systems and other mission-critical applications.

More from the Manufacturer

DETAILS

  • Plug/Connector Type : NEMA 5-20P
  • Receptacle Type : NEMA 5-15R
  • Receptacle Detail : 6 x NEMA 5-15R
  • Cord Length : 6 ft (1.83 m)
  • Load Capacity (VA) : 2.20 kVA
  • Input Voltage : 110 V AC
  • Output Voltage : 120 V AC
  • Waveform Type : Sine Wave
  • Surge Energy Rating : 480 J
  • Network Management : SNMP Manageable
  • Alarm : On Battery,Low Battery
  • Status Indicators : LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
  • Serial Port : Yes
  • Battery Characteristics : Maintenance-free
  • Battery Chemistry : Lead Acid
  • Backup/Run Time (Full Load) : 6.80 Minute
  • Backup/Run Time (Half Load) : 24.50 Minute
  • Hot Swappable : Yes
  • Typical Battery Recharge Time : 3 Hour
  • Maximum Operating Temperature : 113°F (45°C)
  • Sound Emission (A-Weighted) : 47 dB(A)
  • Thermal Dissipation : 275 BTU/h
  • Product Color : Beige
  • Height : 5.20" (132.08 mm)
  • Width : 19" (482.60 mm)
  • Depth : 25" (635 mm)
  • Rack Height : 3U
  • Form Factor : Rack-mountable
  • Weight (Approximate) : 103 lb (46720.01 g)
  • Package Contents :
  • Smart-UPS 2200VA RM
  • CD with software
  • Country-specific detachable power cord
  • Smart UPS signalling RS-232 cable
  • User manual
  • Country of Origin : United States
  • Limited Warranty : 2 Year
  • Works adequately in situations where the supply is prone to sags and surges
  • Keep your sensitive devices powered with a backup of up to 6.80 minute at full load
  • 2.20 kVA load capacity - work without any interruption during power outages

SPECIFICATIONS

Manufacturer Schneider Electric SA
Manufacturer Part Number SU2200R3X167
Manufacturer Website Address http://www.schneider-electric.com
Brand Name APC by Schneider Electric
Product Line Smart-UPS
Product Name Smart-UPS 2200VA RM
Product Type Line-interactive UPS
Plug/Connector Type NEMA 5-20P
Receptacle Type NEMA 5-15R
Receptacle Detail 6 x NEMA 5-15R
Emergency Power OFF Optional
Cord Length 6 ft (1.83 m)
Load Capacity (VA) 2.20 kVA
Input Voltage 110 V AC
Output Voltage 120 V AC
Power Consumption 1600 W
Waveform Type Sine Wave
Surge Energy Rating 480 J
Network Management SNMP Manageable
Alarm On Battery
Alarm Low Battery
Battery Management Intelligent Battery Management
Status Indicators LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Serial Port Yes
Total Number of Expansion Slots 1
Battery Characteristics Maintenance-free
Battery Chemistry Lead Acid
Backup/Run Time (Full Load) 6.80 Minute
Backup/Run Time (Half Load) 24.50 Minute
Typical Battery Recharge Time 3 Hour
Hot Swappable Yes
Maximum Operating Temperature 113°F (45°C)
Sound Emission (A-Weighted) 47 dB(A)
Thermal Dissipation 275 BTU/h
Color Family Beige
Product Color Beige
Height 5.20" (132.08 mm)
Width 19" (482.60 mm)
Depth 25" (635 mm)
Rack Height 3U
Form Factor Rack-mountable
Weight (Approximate) 103 lb (46720.01 g)
Package Contents
  • Smart-UPS 2200VA RM
  • CD with software
  • Country-specific detachable power cord
  • Smart UPS signalling RS-232 cable
  • User manual
  • Additional Information
    • Automatic Voltage Regulation (AVR)
    • Building wiring fault indicator
    • Overload Indicator
    • Replace Batt Indicator
    • Software
    • User Replaceable batteries
    Certifications & Standards
    • CSA
    • FCC A
    • UL 1778
    Country of Origin United States
    Limited Warranty 2 Year
