MARKETING INFORMATION

Create pixel perfect imagery with the high-end panel quality of the new fully commercial NEC MA Series large format displays. By implementing premium features and focusing on creating impressionable digital signage experiences, the MA series gives customers an elite display option with its one-of-a-kind wide color gamut commercial panel coupled with the proprietary SpectraView Engine capabilities while also allowing customers the modularity possibilities to customize their product based on their needs and application. The new series contain a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters - the message. Robust connectivity options allow customers to have up-to-date connectivity options while also allowing for enhanced daisy chain capabilities when tying displays together for video or control signal distribution. The NEC MA series boasts 500 cd/m2 brightness which is ideal for a majority of high end digital signage applications in restaurants, command and control, retail, museums and corporate environments when high-end and feature rich displays are necessary to convey important messaging.

• 4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!
• Wide Color Gamut panels allow for a broader range of viewable colors compared to traditional commercial panels

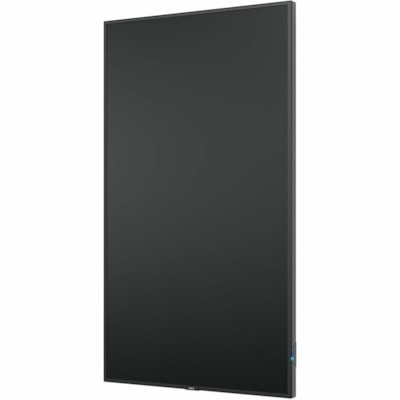

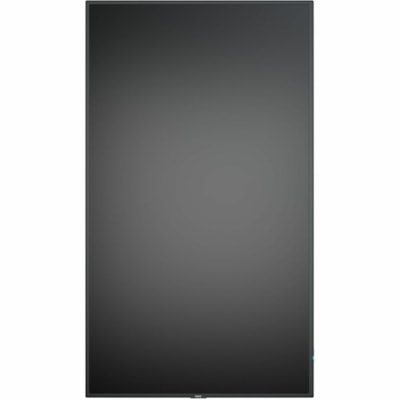

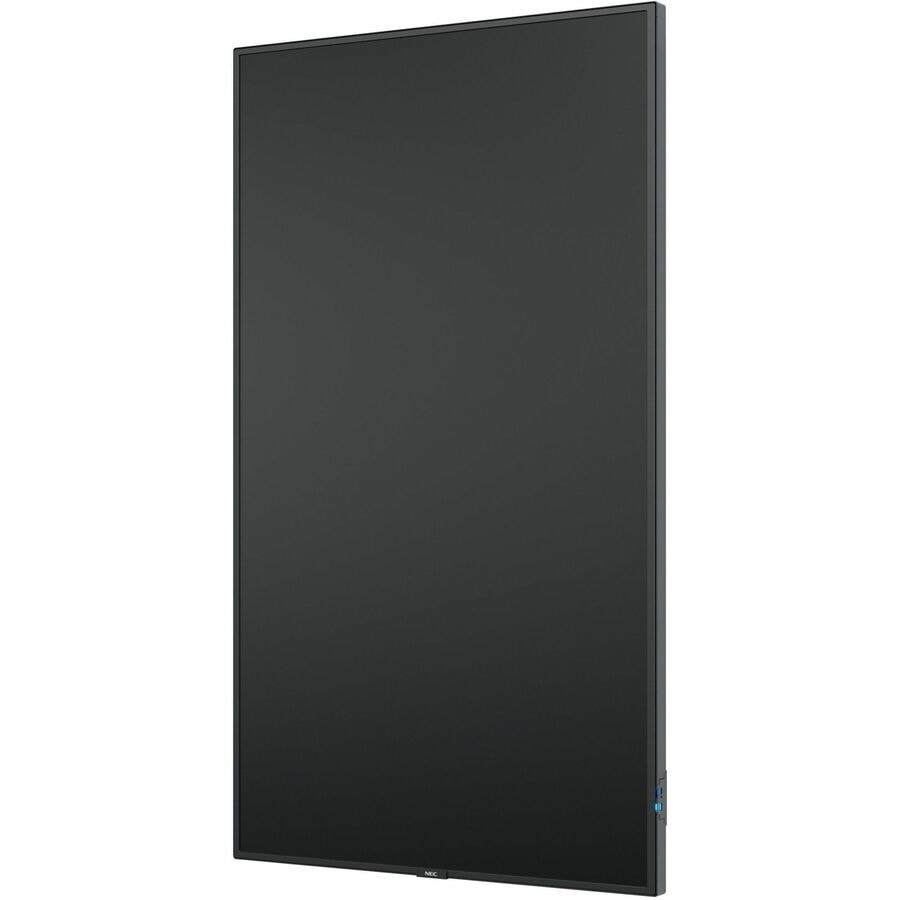

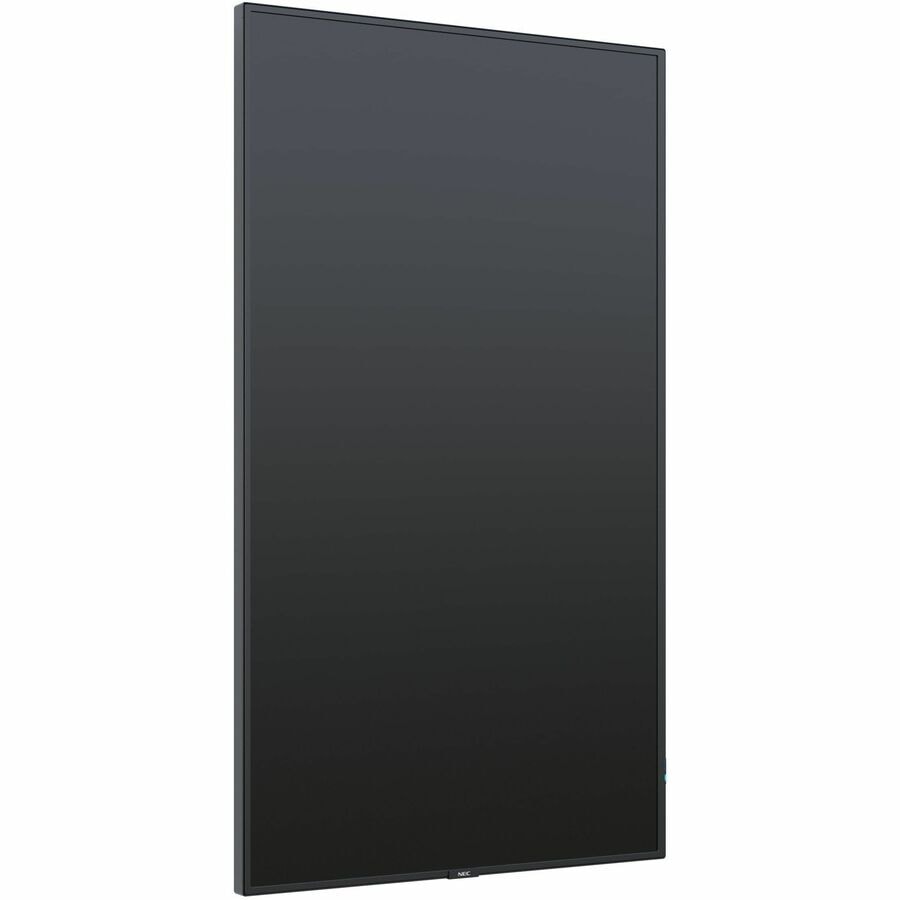

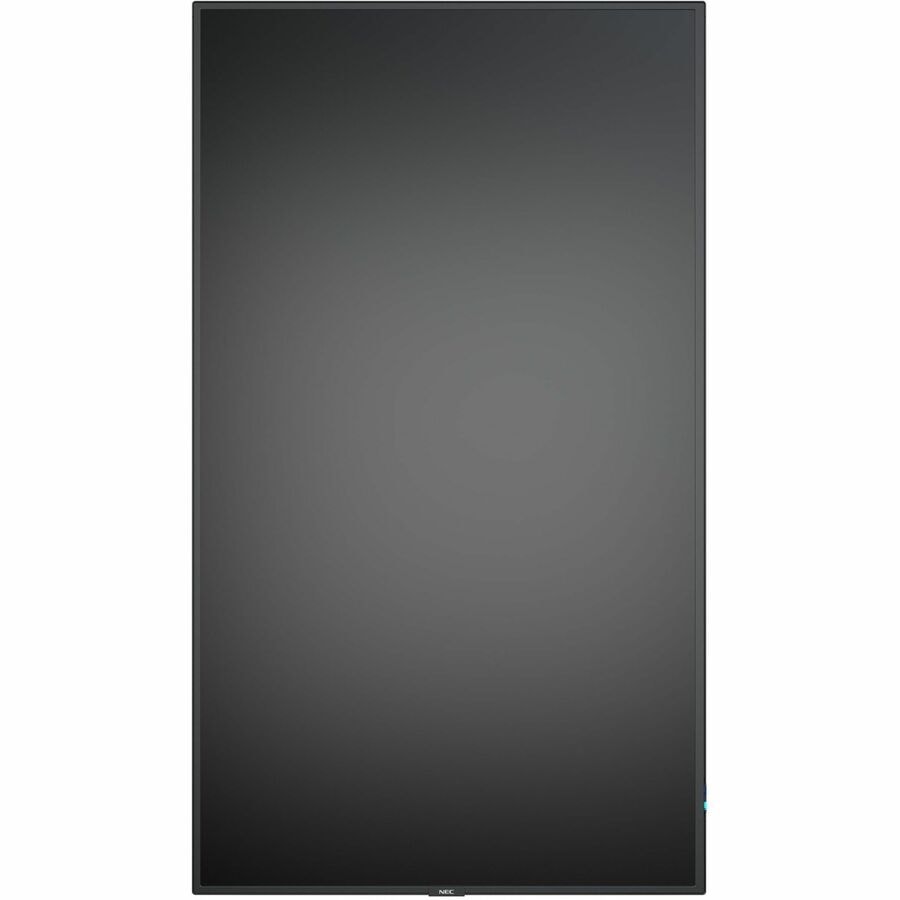

• Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
• Accepts Intel® Smart Display Module Small or Large allowing for sleek all-in-one intelligence and interoperability in a small form factor setting by accepting Intel processor-based products and other peripherals directly into the displays
• Raspberry Pi Compute Module 4 allows for future proof expansion and NEC Mediaplayer support (Q2 2021)

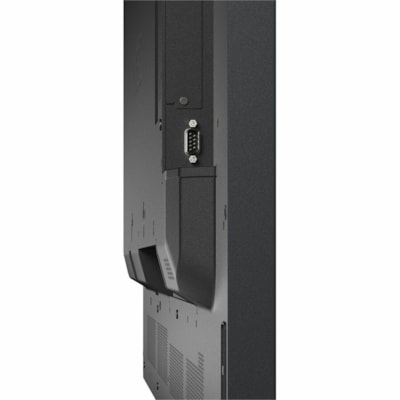

• Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C
• 500 cd/m2 brightness and HDR compatibilty will capture the attention of audience in almost any situation
• Enhanced Daisy Chain Capabilities through both HDMI and DisplayPort Out Connections
• Multi Picture Mode allows for the display to show multiple simultaneous images on the screen at once without the use of additional software or hardware
• Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
• Energy Star 8.0 Certified Product
• Full 3 year commercial warranty to allow for peace of mind and protection of your investment

DETAILS

• Video Wall Compatible : Yes
• Bezel Width (Top) : 0.47" (11.94 mm)
• Bezel Width (Bottom) : 0.61" (15.49 mm)
• Bezel Width (Left) : 0.49" (12.45 mm)
• Bezel Width (Right) : 0.49" (12.45 mm)
• Viewable Screen Size : 55" (1397 mm)
• Screen Size Class : 55" (1397 mm)
• Display Screen Type : LCD
• High Dynamic Range (HDR) : Yes
• High Dynamic Range (HDR) Type : HLG,HDR10
• Display Resolution : 3840 x 2160
• Backlight Technology : Edge LED
• Scan Format : 2160p
• Dynamic Contrast Ratio : 8,000:1
• Brightness : 500 cd/m²
• Color Gamut : 86% DCI

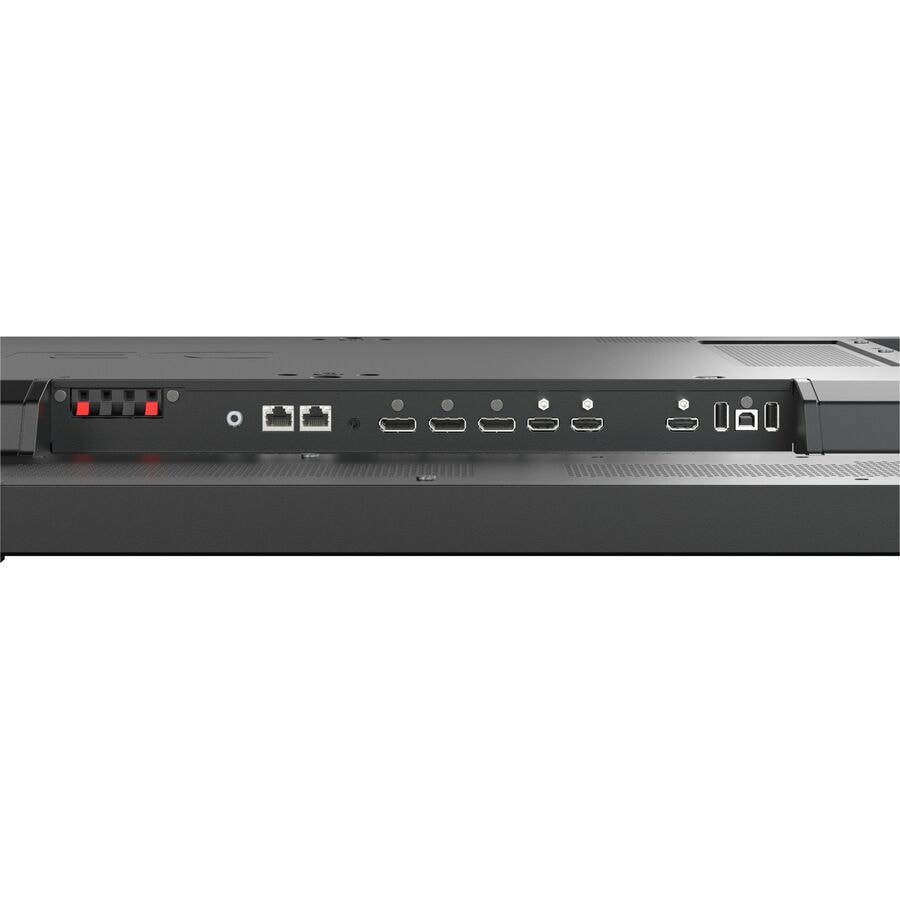

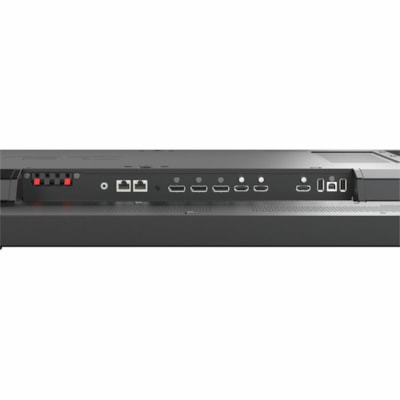

• Ethernet : Yes
• USB : Yes
• HDMI : Yes
• DisplayPort : Yes

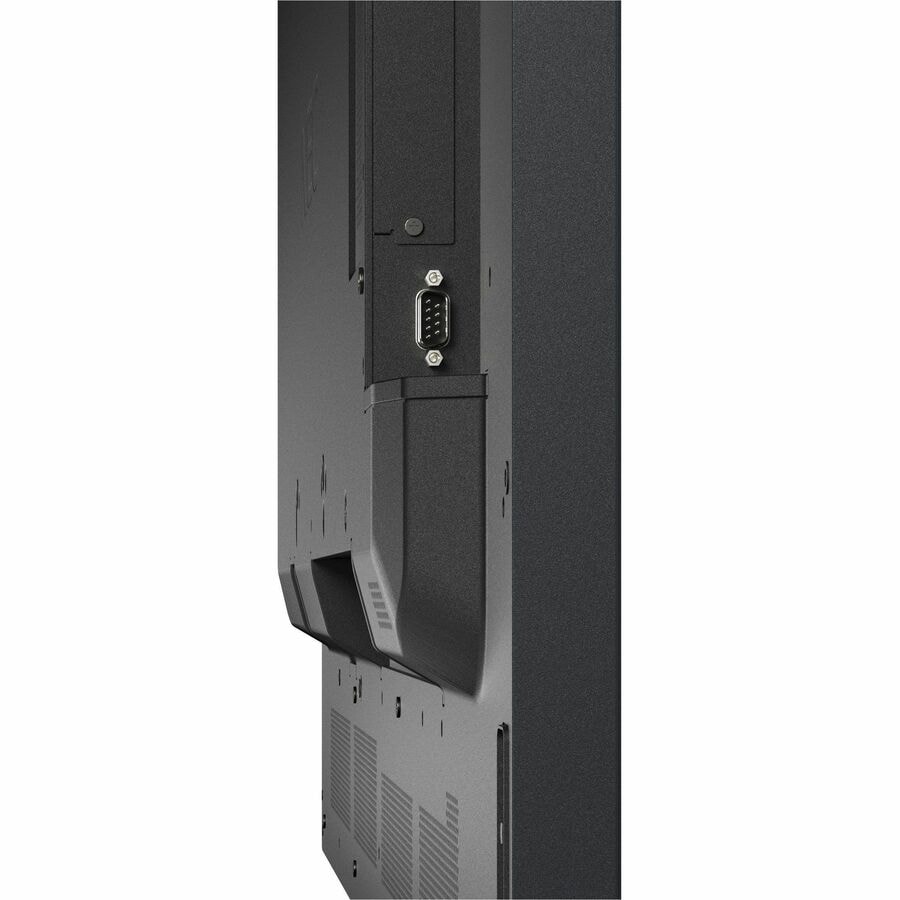

• Serial : Yes
• Number of USB 2.0 Ports : 2
• Number of HDMI Inputs : 2
• Number of HDMI Outputs : 1
• Number of DisplayPorts : 3
• Input Voltage : 120 V AC,230 V AC
• Color Family : Black
• Product Color : Black

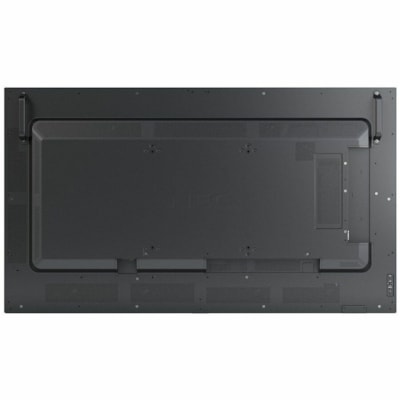

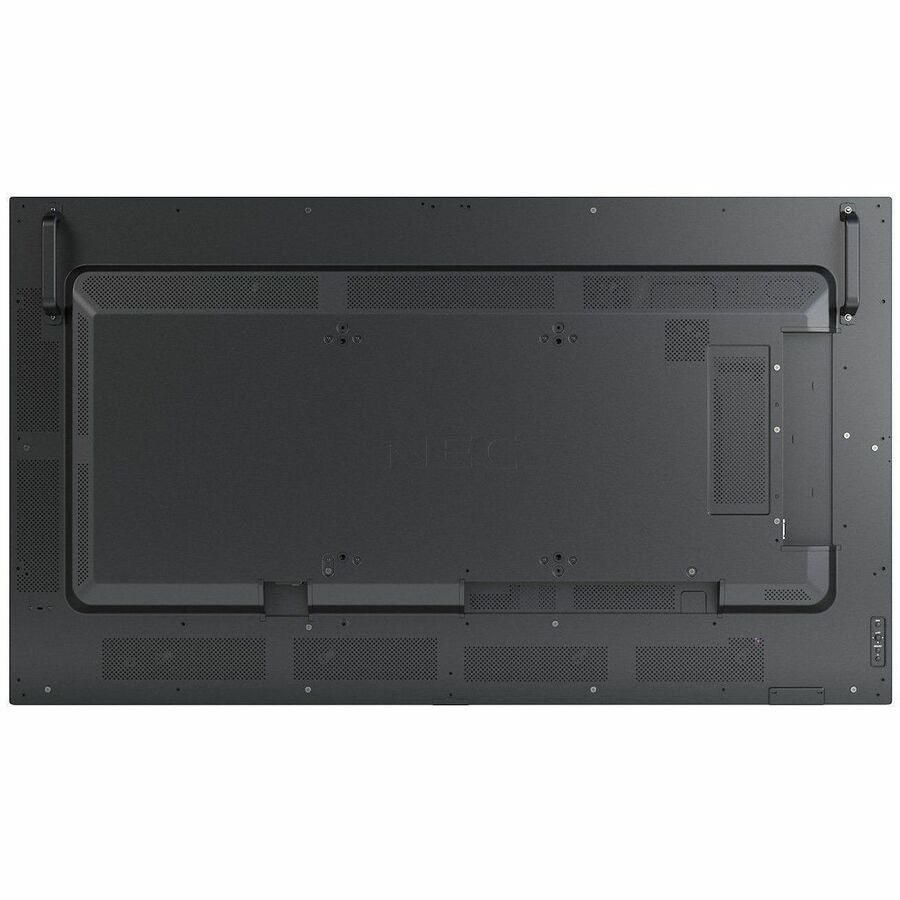

• VESA Mount Standard : 300 x 300
• Mount Type : Wall Mountable,Table Mount
• Height : 36.40" (924.56 mm)
• Width : 9.80" (248.92 mm)
• Depth : 56.10" (1424.94 mm)
• Weight (Approximate) : 69.80 lb (31660.75 g)
• Energy Star : Yes
• Environmentally Friendly : Yes
• Energy Efficiency Certification : ENERGY STAR 8.0
• Country of Origin : China
• Limited Warranty : 3 Year

• Digital Signage Display - Ideal for rack, passageway, booth or display counter
• Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details
• Experience luminescent visual images with LCD display
• Features a 4k Ultra HD 3840 x 2160 resolution
• 2160p 4K UHD - Regardless of wherever or whenever the content is watched and no matter how detailed it is, this signage system is made to impress its viewers
• Engages your customers and makes their viewing experience breathtaking with its 2160p content
• Edge LED backlight technology offers elegant low profile frame and transmits light from sides to generate a brighter content
• Edge LED lighting offers stunning brightness for both plain and entertainment content
