MARKETING INFORMATION

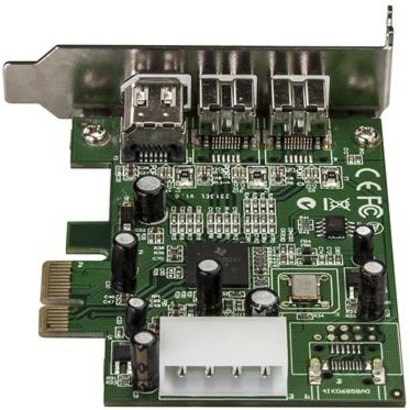

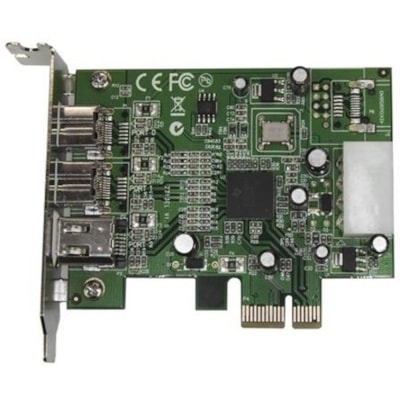

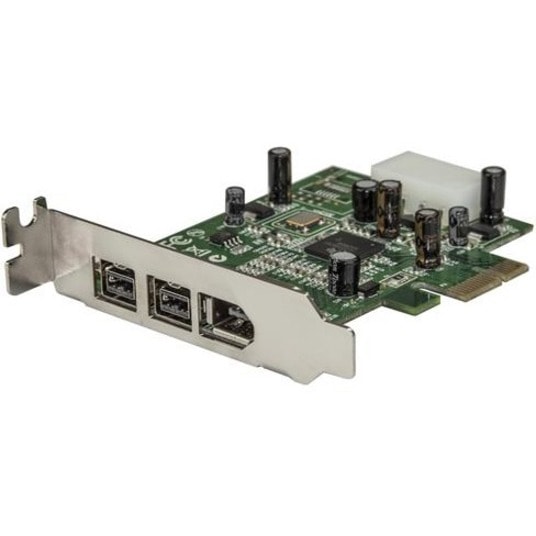

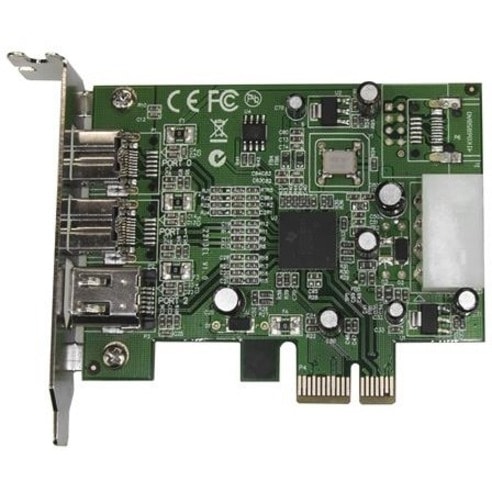

This 3 Port PCI Express FireWire card comes equipped with a low profile bracket for installation in small form factor PCs, and includes an optional full-size bracket for installation in a standard-sized PC case.
The FireWire card can be installed in a PCIe slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).
The 2x FireWire 800 and 1x FireWire 400 card features a native (single chip) PCI Express chipset, which provides faster, more reliable and cost-effective performance than expansion cards that utilize a "bridge" chip.

More from the Manufacturer

More from the Manufacturer

DETAILS

• Host Interface : PCI
• Data Transfer Rate : 800 MB/s
• Total Number of FireWire/i.LINK Ports : 3
• Number of FireWire/i.LINK 400 Ports : 1
• Number of FireWire/i.LINK 800 Ports : 2
• Operating System Supported : Windows 2000,Windows XP,Windows Vista,Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019,Windows Server 2022,Mac OS X 10.6 Snow Leopard,Mac OS X 10.8 Mountain Lion,Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura,Linux 3.5.x
• Form Factor : Plug-in Card
• Height : 0.80" (20.32 mm)
• Width : 2.30" (58.42 mm)
• Length : 3.30" (83.82 mm)
• Weight (Approximate) : 1.50 oz (42.52 g)
• Platform Supported : PC,Mac,Linux
• Country of Origin : Taiwan
• TAA Compliant : Yes
• Environmentally Friendly : Yes
• Limited Warranty : Lifetime

• Two 9-pin FireWire 800 ports, each with transfer rates up to 800Mbps
• One 6-pin FireWire 400 port, each with transfer rates up to 400Mbps
• Includes full/standard profile installation bracket
• Built with a native PCI Express chipset, no bridge chip
• Internal power connector for high-powered FireWire devices
• Compliant with IEEE 1394b and backwards compatible with IEEE 1394a - 2000 as well as 1394-1995 standards
