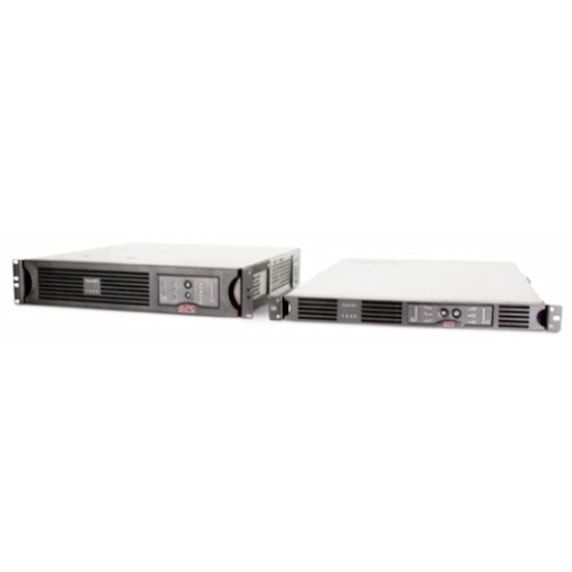

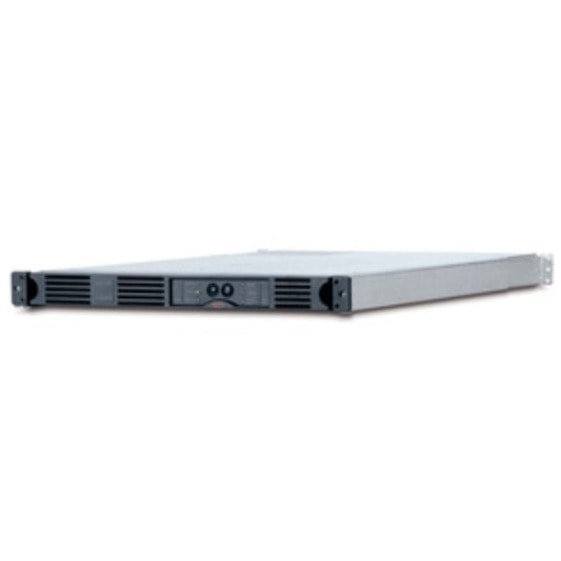

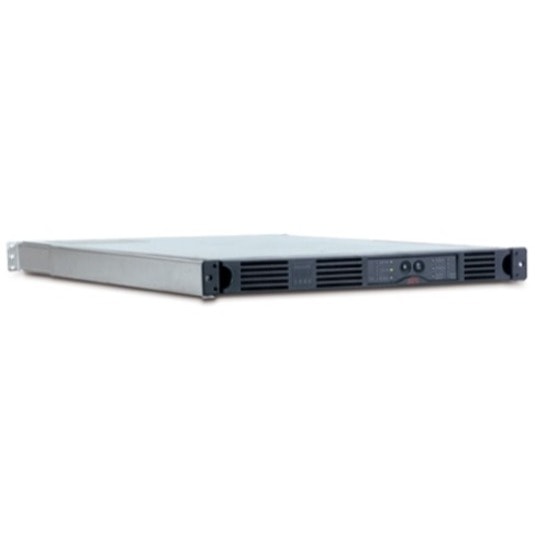

APC Smart-UPS 1000VA - 1000VA/640W - 5.4 Minute Full Load - 4 x IEC 320-C13, 2

SUA1000RMI1U
Also known as IM94371U

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Smart-UPS protects your data by supplying network-grade battery backup when power fails. With PowerChute® plus software the uninterruptible power supply (UPS) will safely store data and shut down your network operating system before the battery is fully discharged, whether you're there or not. SmartSlot internal accessory slot allows you to install optional accessories to enhance the performance of your UPS. APC Smart-UPS is the perfect UPS for fileservers, minicomputers, UNIX CPU's, internet hubs, telecommunications systems and other mission-critical applications.

DETAILS

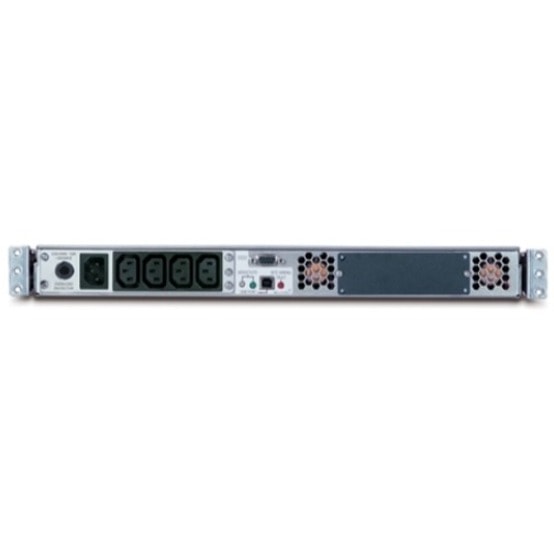

  • Plug/Connector Type : IEC 320-C14
  • Receptacle Type : IEC 60320 C13
  • Receptacle Detail : 4 x IEC 60320 C13,2
  • Number of Battery & Surge Outlets : 6
  • Load Capacity (VA) : 1 kVA
  • Load Capacity (Watt) : 640 W
  • Input Voltage : 220 V AC
  • Output Voltage : 230 V AC
  • Waveform Type : Sine Wave
  • Surge Energy Rating : 480 J
  • Network Management : SNMP Manageable
  • Alarm : Low Battery,On Battery
  • Status Indicators :
    • On Battery
    • Replace Battery
    • Overload
  • Serial Port : Yes
  • USB : Yes
  • Battery Characteristics : Spill-proof, Maintenance-free
  • Battery Chemistry : Lead Acid
  • Backup/Run Time (Full Load) : 5.40 Minute
  • Backup/Run Time (Half Load) : 14.50 Minute
  • Hot Swappable : Yes
  • Maximum Operating Temperature : 113°F (45°C)
  • Thermal Dissipation : 130 BTU/h
  • Product Color : Black
  • Height : 1.72" (43.69 mm)
  • Width : 17" (431.80 mm)
  • Depth : 26" (660.40 mm)
  • Rack Height : 1U
  • Form Factor : Rack-mountable
  • Weight (Approximate) : 48 lb (21772.43 g)
  • Package Contents :
  • Smart-UPS 1000VA
  • CD with software
  • Rack mounting brackets
  • Rack mounting support rails
  • Smart UPS signalling RS-232 cable
  • USB cable
  • User manual
  • Environmentally Friendly : Yes
  • Limited Warranty : 2 Year
  • Works adequately in situations where the supply is prone to sags and surges
  • 640 W load capacity - backup power for your valuable electronics
  • Up to 5.40 minute runtime on full load to preserve critical data from power shortage interruptions
  • 1 kVA load capacity - work without any interruption during power outages

SPECIFICATIONS

Manufacturer Schneider Electric SA
Manufacturer Part Number SUA1000RMI1U
Manufacturer Website Address http://www.schneider-electric.com
Brand Name APC by Schneider Electric
Product Line Smart-UPS
Product Series SUA
Product Name Smart-UPS 1000VA
Packaged Quantity 1 Each
Product Type Line-interactive UPS
Plug/Connector Type IEC 320-C14
Receptacle Type IEC 60320 C13
Receptacle Detail 2
Receptacle Detail 4 x IEC 60320 C13
Number of Battery & Surge Outlets 6
Load Capacity (VA) 1 kVA
Load Capacity (Watt) 640 W
Input Voltage 220 V AC
Output Voltage 230 V AC
Waveform Type Sine Wave
Surge Energy Rating 480 J
Network Management SNMP Manageable
Alarm Low Battery
Alarm On Battery
Battery Management Intelligent Battery Management
Status Indicators
  • On Battery
  • Replace Battery
  • Overload
Serial Port Yes
USB Yes
Total Number of Expansion Slots 1
Battery Characteristics Spill-proof, Maintenance-free
Battery Chemistry Lead Acid
Backup/Run Time (Full Load) 5.40 Minute
Backup/Run Time (Half Load) 14.50 Minute
Hot Swappable Yes
Maximum Operating Temperature 113°F (45°C)
Thermal Dissipation 130 BTU/h
Color Family Black
Product Color Black
Height 1.72" (43.69 mm)
Width 17" (431.80 mm)
Depth 26" (660.40 mm)
Rack Height 1U
Form Factor Rack-mountable
Weight (Approximate) 48 lb (21772.43 g)
Package Contents
  • Smart-UPS 1000VA
  • CD with software
  • Rack mounting brackets
  • Rack mounting support rails
  • Smart UPS signalling RS-232 cable
  • USB cable
  • User manual
  • Additional Information
    • Automatic Self Test
    • Automatic Voltage Regulation (AVR)
    • Load Meter
    • Network-grade line conditioning
    • Wide input voltage range
    Certifications & Standards
    • C-tick
    • CE
    • EN 50091-1
    • EN 50091-2
    • GOST
    • PCBC
    • VDE
    • UL 1449
    Environmentally Friendly Yes
    Limited Warranty 2 Year
