MARKETING INFORMATION

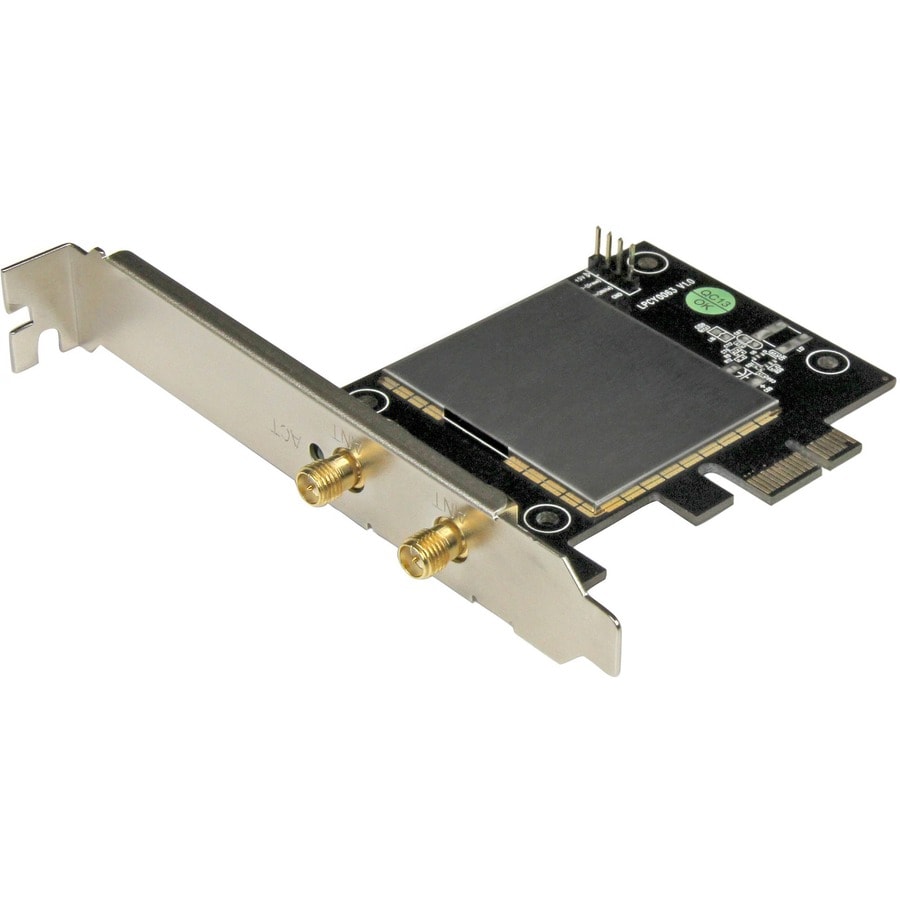

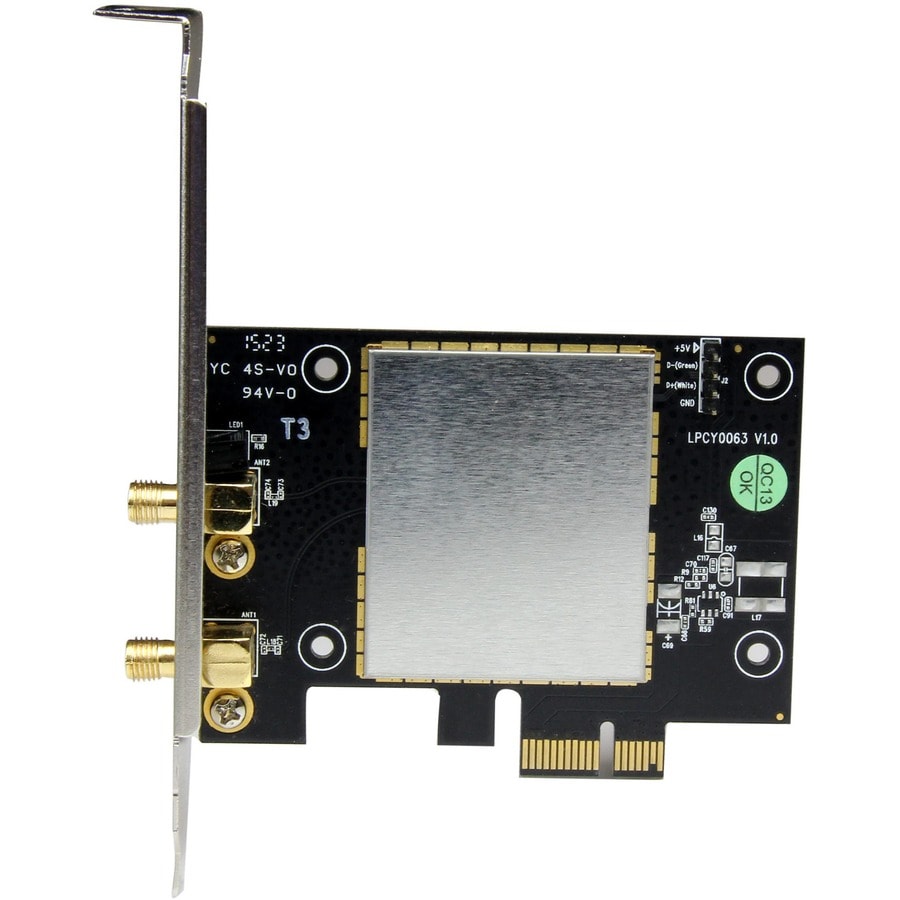

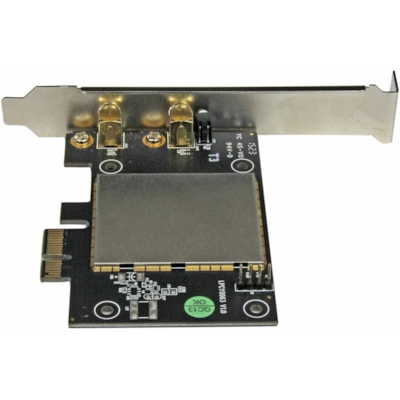

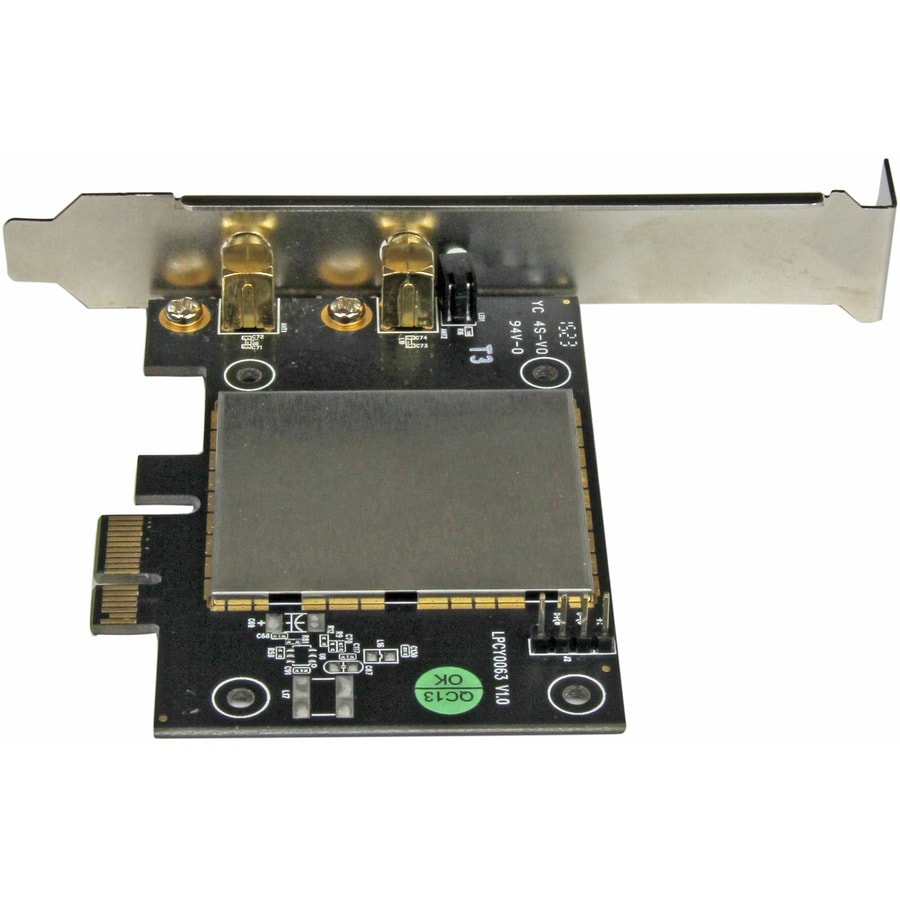

Upgrade your desktop PC or server to powerful 802.11ac wireless networking. This AC600 network card fits easily into a PCI Express expansion slot to give you dual-band wireless-AC connectivity with speeds up to 433 Mbps.

Add dual-band Wireless-AC connectivity

This wireless-AC adapter lets you add dual-band wireless-AC connectivity to a desktop computer through a PCIe slot. Ideal for your office or home environment, the PCIe Wi-Fi® adapter provides a wireless range ofup to 100 feet (30m), when paired with an 802.11ac router. It's a cost-effective solution foradding or upgradingto the latest 802.11ac dual-band wireless networking.

The Wi-Fi adapter supports data rates of up to 433 Mbps at 5 GHz, and 150 Mbps at 2.4 GHz.Two detachable external antennas enhance reception and provide more reliable connections.

Versatile use

The versatileUSB Wi-Fiadapter gives you dual-band 2.4/5 GHz support, so you can connect easily to the less congested 5GHz wireless network to enjoy lag-free HD video streaming, online gaming, file transfers or other bandwidth-intensive applications. The WMM Quality of Service (QoS) feature quickly prioritizes video streams, Internet calls and online gaming.

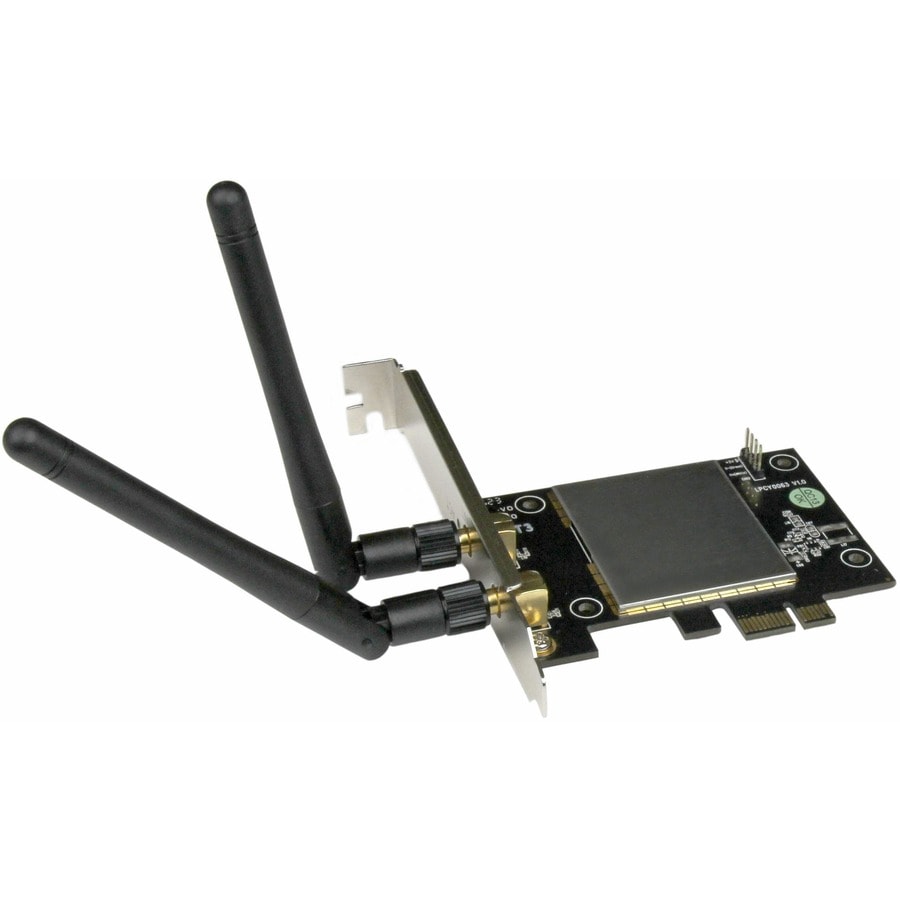

This network adapter has a 1T1R (1transmitter, 1receiver) antennadesign and features two detachable external antennas(dual-band 3dBi).To integrate easily with all of your networking devices, the wireless network adapter is backward compatible with 802.11a/b/g/n networks.

Quick and easy installation

The network card is easy to install in the PCI Express slot on your standard or small form-factor computer. It comes equipped with a standard profile bracket, and includes a low-profile bracket that you can swap in to mount the card in smaller or space-constrained systems.

The PEX433WAC11 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

DETAILS

• Wi-Fi Generation : Wi-Fi 5
• Wireless LAN Standard : IEEE 802.11ac
• ISM Band : Yes
• UNII Band : Yes
• ISM Maximum Frequency : 2.40 GHz
• UNII Maximum Frequency : 5 GHz
• Wireless Transmission Speed : 600 Mbit/s
• Host Interface : PCI Express
• Height : 0.90" (22.86 mm)
• Width : 3.80" (96.52 mm)
• Depth : 4.80" (121.92 mm)
• Weight (Approximate) : 1.70 oz (48.19 g)
• Package Contents :
  • AC600 Wireless-AC Network Adapter - 802.11ac, PCI Express
  • Driver CD
  • Low Profile Bracket
  • Quick Start Guide
• Device Supported : Desktop Computer,Video Server
• Environmentally Friendly : Yes
• Country of Origin : Taiwan
• TAA Compliant : Yes
• Limited Warranty : 2 Year

• Wireless AC600 compatible with speeds up 433Mbps (5GHz) and up to 150Mbps (2.4GHz)
• Dual band 2.4 / 5GHz support (802.11ac is 5 GHz only)
• Compliant with 802.11 ac/a/b/g/n networks
• Single antenna (1T1R) for transmitting and receiving
• Dual external (detachable) dual-band 3dBi antennas
• PCI Express host interface
• Wireless security with 64/128bit WEP, WPA, WPA2 and TKIP/AES
• Supports WMM Quality of Service and WMM-PS
• Supports Soft AP mode

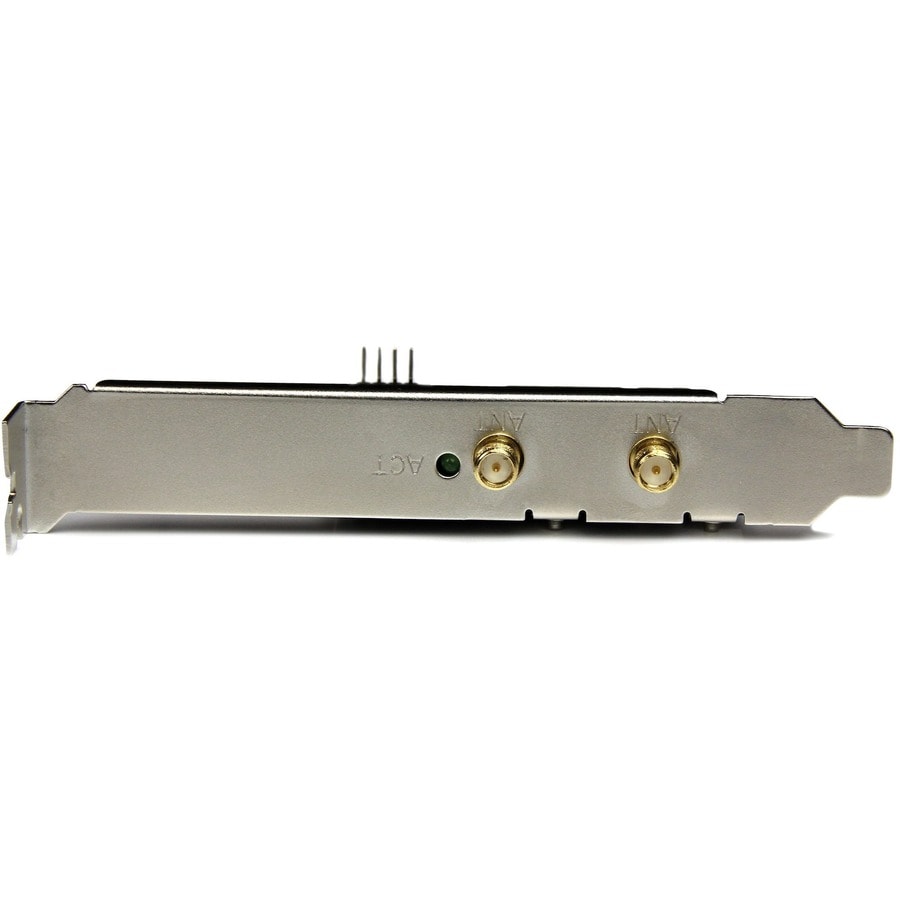

• Configured with standard profile bracket, low profile and half-height bracket included
