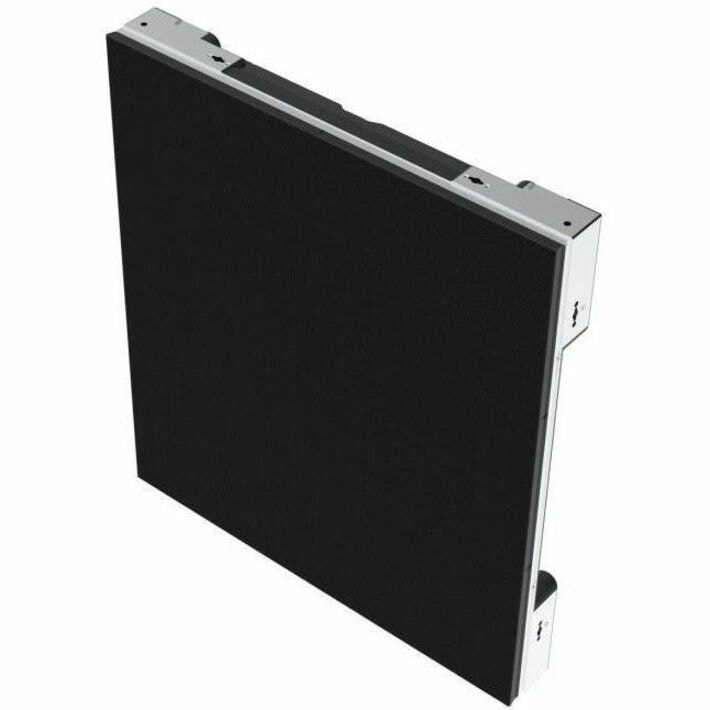

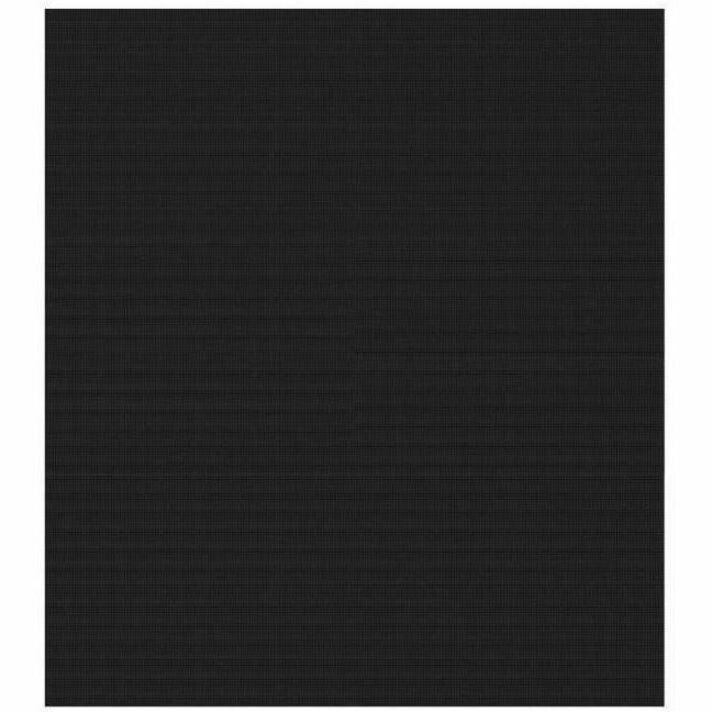

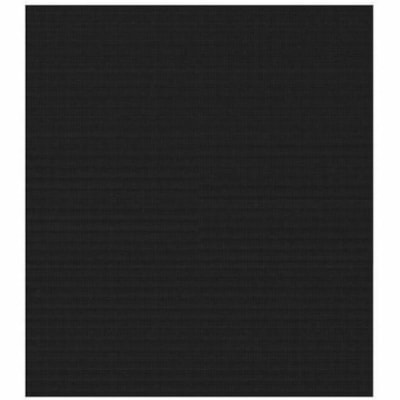

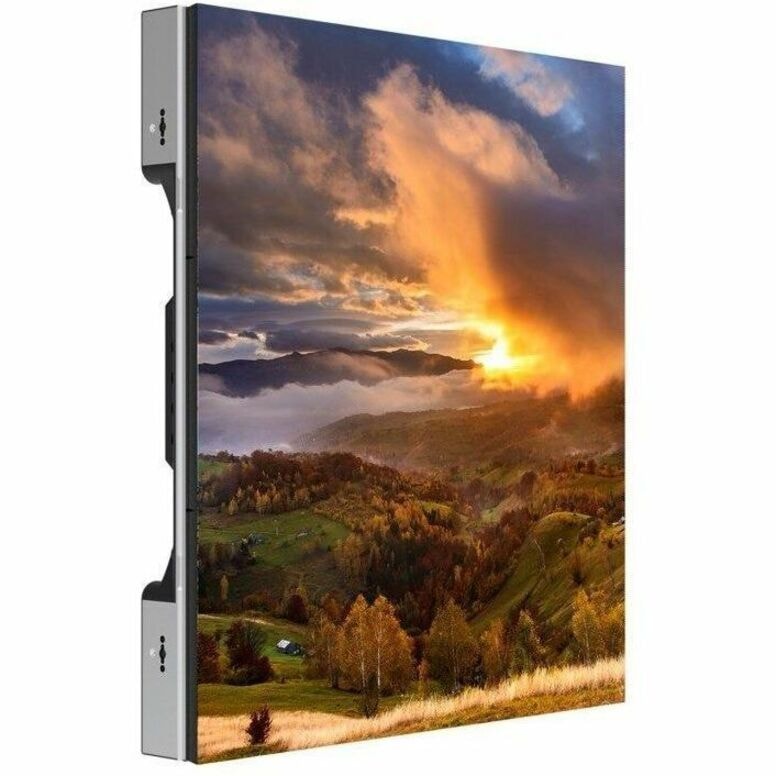

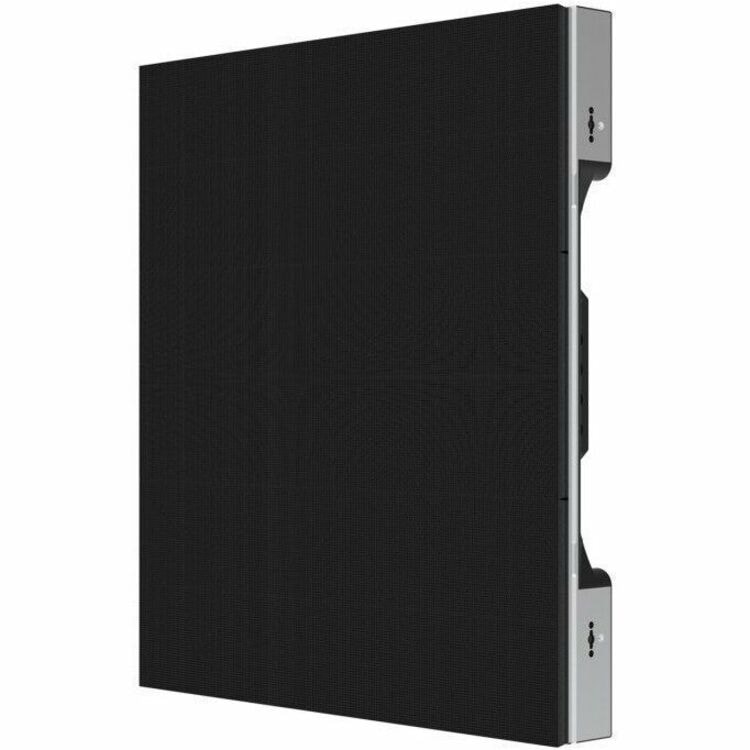

LG Essential GSCC066-GN Digital Signage Display - LCD - 96 x 108 - LED - 5000 cd/m² - Black
GSCC066-GN
Also known as IM937A2D
MARKETING INFORMATION
GSCC Essential Series | Customizable Screen Ratio
Cabinets of the GSCC series can be assembled to configure any screen size including the 16:9, 8:9 and 4:3 screen ratio. This enables customers to customize LED Screens according to installation needs.
Fast Assembly and Easy Maintenance

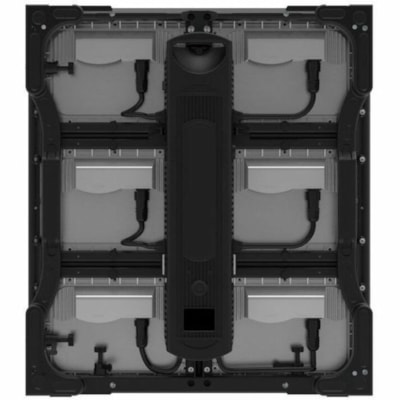

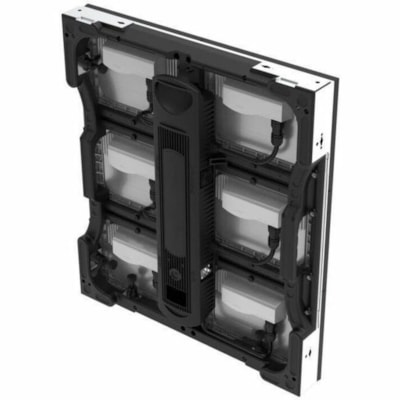

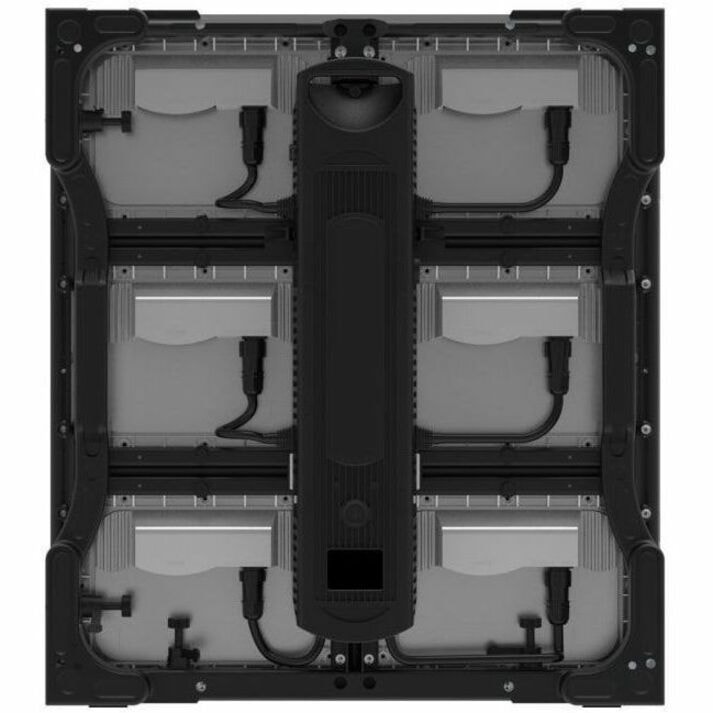

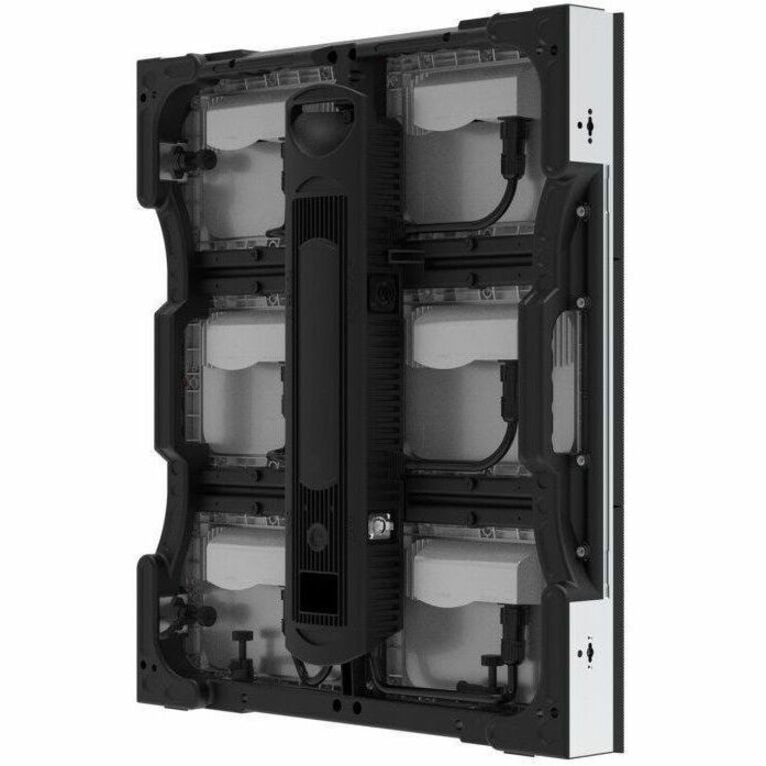

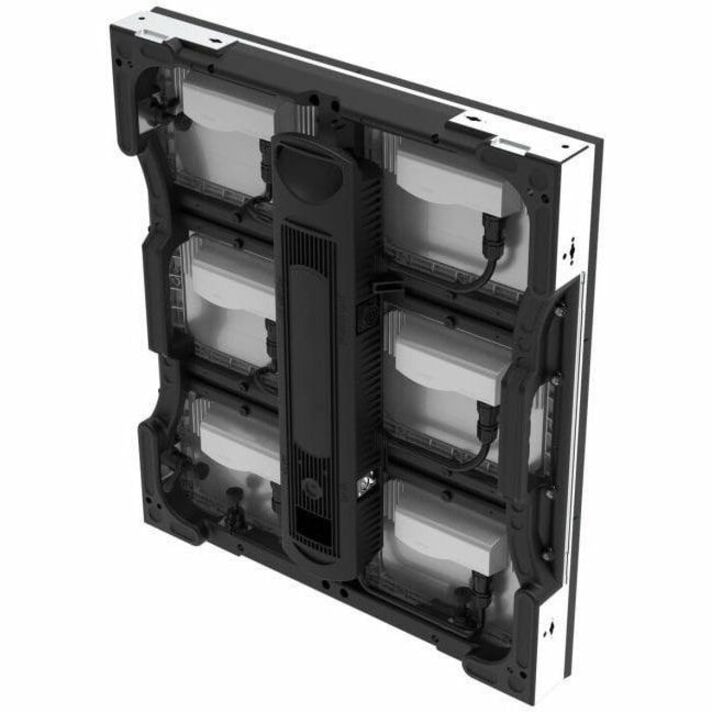

The fast lock helps LED modules be simply set up or dismantled. Separate power and control unit design also facilitates easy maintenance.
Front or Rear Serviceability
The product offers either front access or rear access, allowing customers to choose installation options according to their environment.
90° Corner Design Available
If you add a 90° corner option, the GSCC series can deliver virtually seamless content even when installed on the corners.
IP Rated Weatherproof Design
The front of the cabinet is IP65 certfied and the back is IP54 certified, allowing stable operation unaffected by weather and harmful outdoor environments.
DETAILS
- Video Wall Compatible : Yes
- Ingress Protection (IP) Rating : IP65,IP54
- Display Screen Type : LCD
- Display Resolution : 96 x 108
- Module Resolution : 48 x 36
- Backlight Technology : LED
- Number of Modules Per Cabinet : 2x3
- Dynamic Contrast Ratio : 5,000:1
- Brightness : 5000 cd/m²
- Input Voltage : 120 V AC,230 V AC
- Color Family : Black
- Product Color : Black
- Height : 28.30" (718.82 mm)
- Width : 25.20" (640.08 mm)
- Depth : 4.40" (111.76 mm)
- Weight (Approximate) : 37.50 lb (17009.71 g)
- Minimum Operating Temperature : -4°F (-20°C)
- Maximum Operating Temperature : 122°F (50°C)
- Minimum Operating Humidity : 10%
- Maximum Operating Humidity : 99%
- Application/Usage : Outdoor,Commercial Audio/Video
- Environmentally Friendly : Yes
- Environmental Compliance : Restriction of Hazardous Substances (RoHS)
- Digital Signage Display - Ideal for rack, passageway, booth or display counter
- Experience luminescent visual images with LCD display
- Experience stunning picture result with cost-effective LED backlighting
SPECIFICATIONS
| Manufacturer | LG Electronics |
| Manufacturer Part Number | GSCC066GN |
| Manufacturer Website Address | http://www.lg.com |
| Brand Name | LG |
| Product Line | Essential |
| Product Series | GSCC |
| Product Model | GSCC066-GN |
| Product Name | Essential GSCC066-GN Digital Signage Display |
| Product Type | Digital Signage Display |
| Video Wall Compatible | Yes |
| Ingress Protection (IP) Rating | IP54 |
| Ingress Protection (IP) Rating | IP65 |
| Display Screen Type | LCD |
| Display Resolution | 96 x 108 |
| Pixel Pitch | 0.26" (6.67 mm) |
| Backlight Technology | LED |
| Number of Modules Per Cabinet | 2x3 |
| Module Resolution | 48 x 36 |
| Standard Refresh Rate | 3.84 kHz |
| Frame Refresh Rate | 60 Hz |
| Dynamic Contrast Ratio | 5,000:1 |
| Color Depth | 14-bit |
| Brightness | 5000 cd/m² |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Operating Power Consumption (Energy Star) | 330 W |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 99% |
| Color Family | Black |
| Product Color | Black |
| Height | 28.30" (718.82 mm) |
| Width | 25.20" (640.08 mm) |
| Depth | 4.40" (111.76 mm) |
| Weight (Approximate) | 37.50 lb (17009.71 g) |
| Housing Material | Die-cast Aluminum |
| Application/Usage | Commercial Audio/Video |
| Application/Usage | Outdoor |
| Certifications & Standards | FCC (Regulatory) CE (Regulatory ETL (Safety) |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
