MARKETING INFORMATION

Easy to Use PoE Switch with Innovative Design

Up To 250m Data and Power Transmission for Surveillance

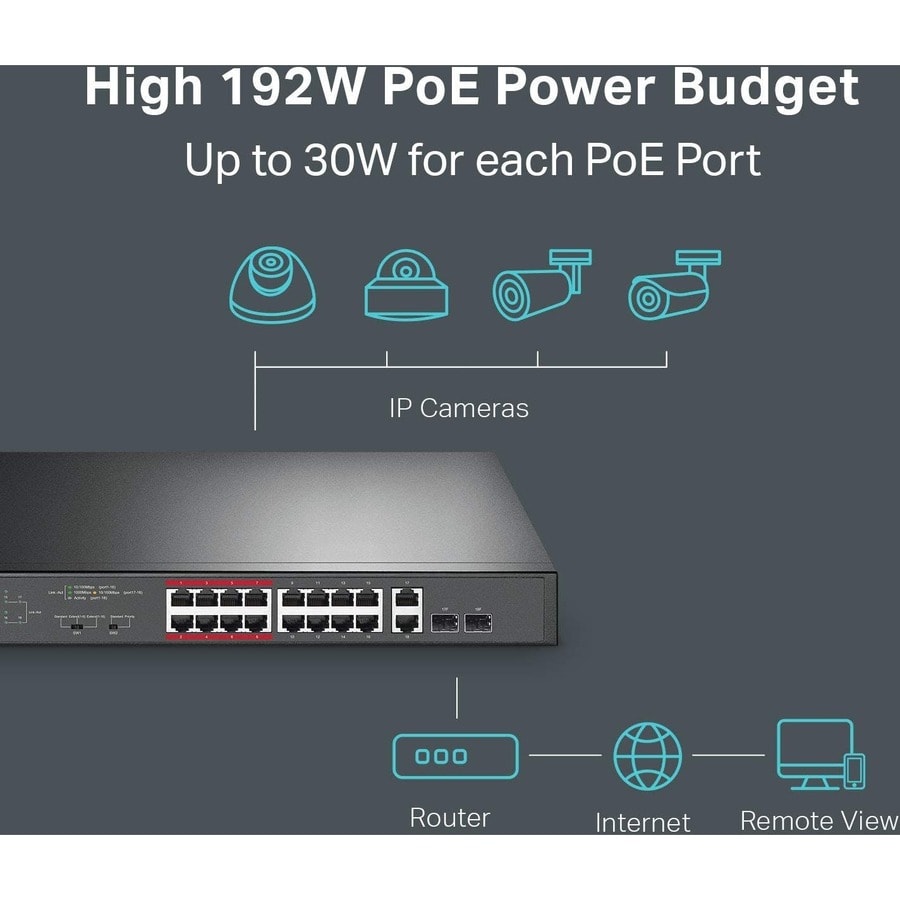

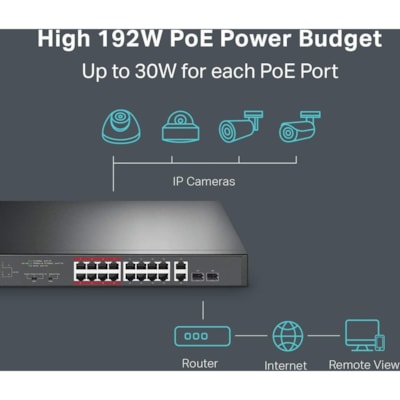

High PoE Power Budget

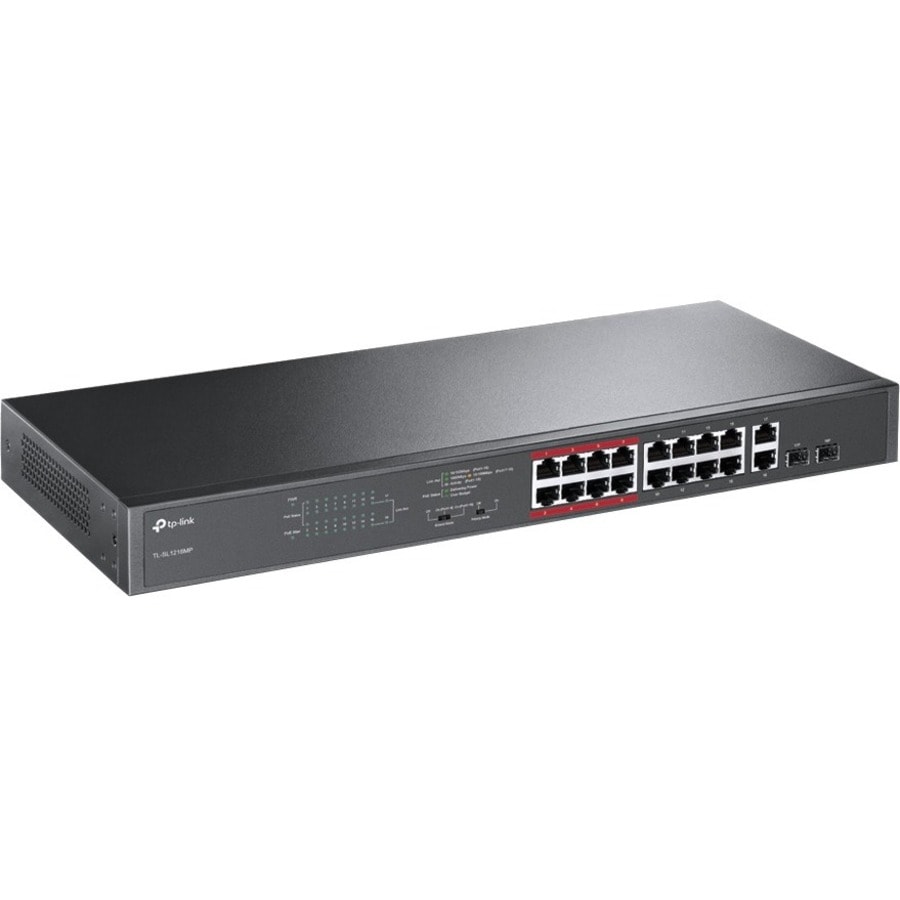

TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

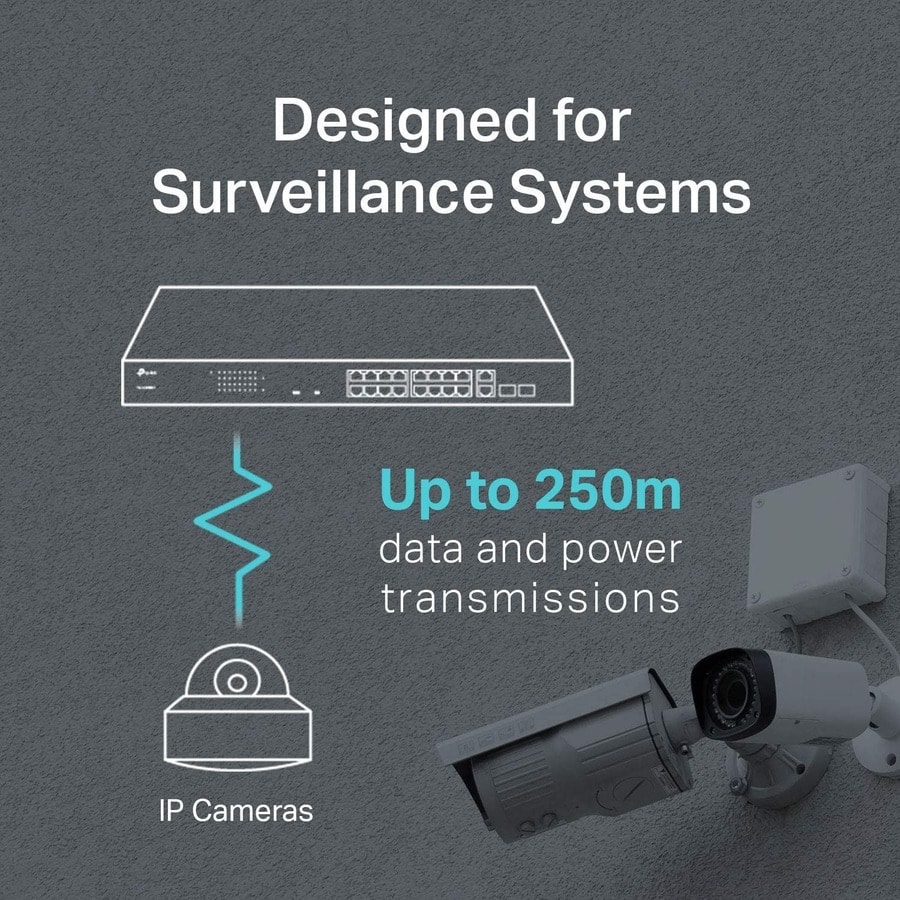

Up to 250m Transmission for Surveillance

TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m which makes it perfect for IP Camera deployment in large area coverage.

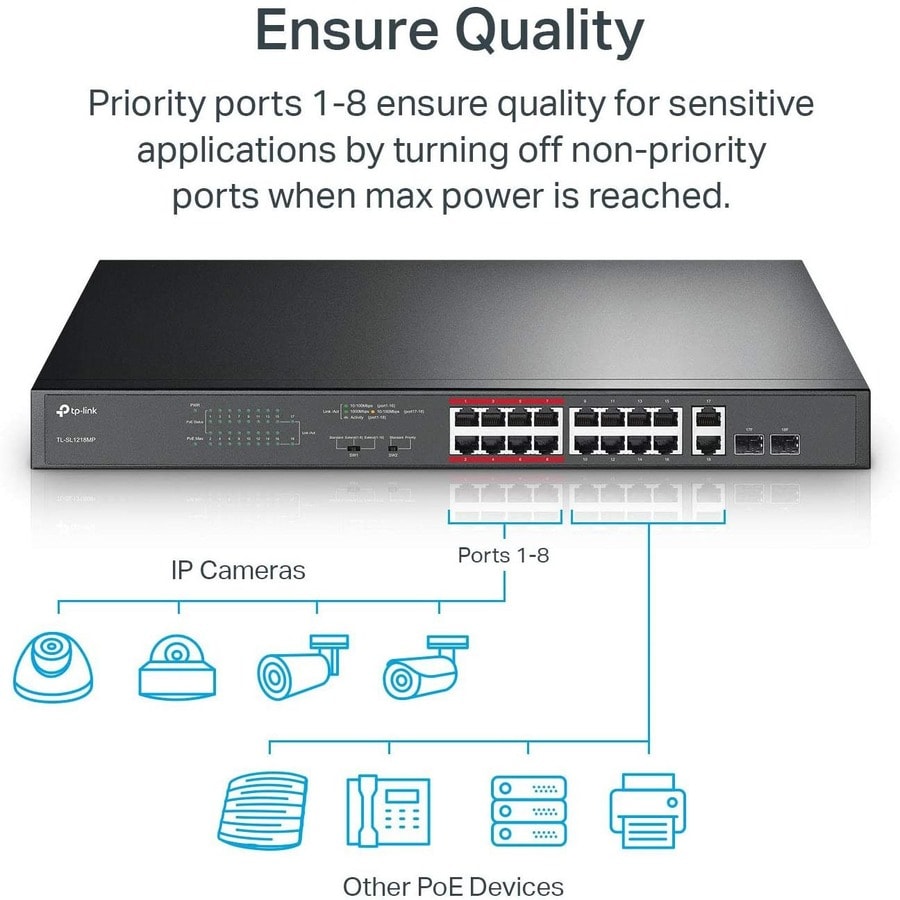

Video Quality Guaranteed

Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.

DETAILS

• Total Number of Network Ports : 16
• Network (RJ-45) : Yes
• Modular : Yes
• Port/Expansion Slot Details : 16 x Fast Ethernet PoE+,2 x Gigabit Ethernet Network,2 x Gigabit Ethernet Expansion Slot
• Media Type Supported : Twisted Pair,Optical Fiber
• Ethernet Technology : Fast Ethernet,Gigabit Ethernet
• Network Technology : 10/100Base-T,10/100/1000Base-T,1000Base-X
• Total Number of Expansion Slots : 2
• Expansion Slot Type : SFP (mini-GBIC)
• Shared SFP Slot : Yes
• Number of SFP Slots : 2
• Layer Supported : 2
• Networking Standards : IEEE 802.3af,IEEE 802.3at,IEEE 802.3x
• Manageable : No
• PoE (RJ-45) Port : Yes
• PoE Budget : 250 W
• Power Source : Power Supply
• Power Consumption : 15 W
• Product Material : Metal
• Compatible Rack Unit : 1U
• Form Factor : Rack-mountable
• Height : 1.73" (44 mm)
• Width : 17.32" (440 mm)
• Depth : 7.09" (180 mm)
• Package Contents :
  • 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
  • Power Cable
  • Installation Guide
  • 2 x Mounting Brackets and the Fittings
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)
• Country of Origin : China

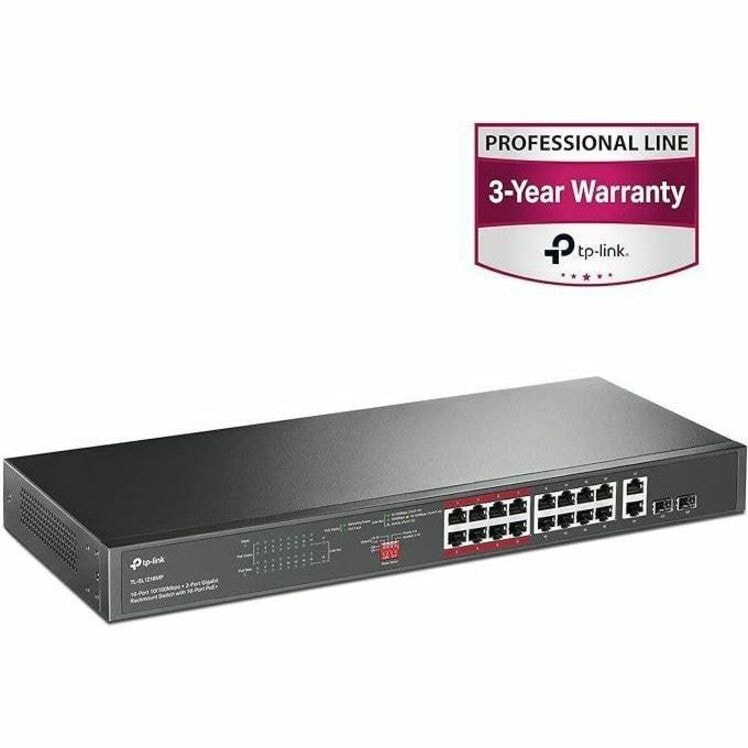

• Limited Warranty : 3 Year

• 16 PoE+ 10/100Mbps RJ45 ports, 2 gigabit RJ45 ports and 2 combo Gigabit SFP slots.
• Up to 250M data and power transmission under extend mode specially designed for surveillance system.
• Priority mode for portal to guarantees the quality of sensitive applications like video monitor.
• High PoE power budget with up to 30W for each PoE port and 194W for all PoE ports.

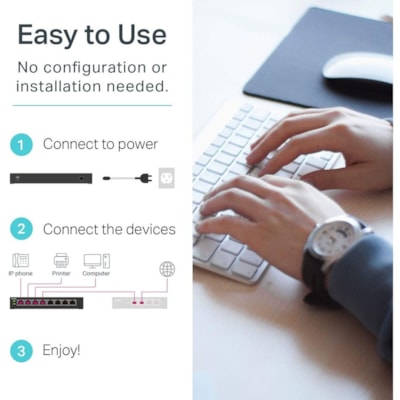

• Easy to use, with no configuration and installation needed.
