Tripp Lite SMART5000RT3U 5000 VA Rack/Tower Line Interactive UPS - 5000VA/4000W - 16 Minute Full Load - 10 x NEMA 5-15R, 2 x NEMA 5-20R, 1 x NEMA L6-30R, 1 x NEMA L14-30R

SMART5000RT-3U
Also known as IM93270U,SY5318153

Tripp Lite SMART5000RT3U 5000 VA Rack/Tower Line Interactive UPS - 5000VA/4000W - 16 Minute Full Load - 10 x NEMA 5-15R, 2 x NEMA 5-20R, 1 x NEMA L6-30R, 1 x NEMA L14-30R PERP

New! Log in or create an account to see price and availability


MARKETING INFORMATION

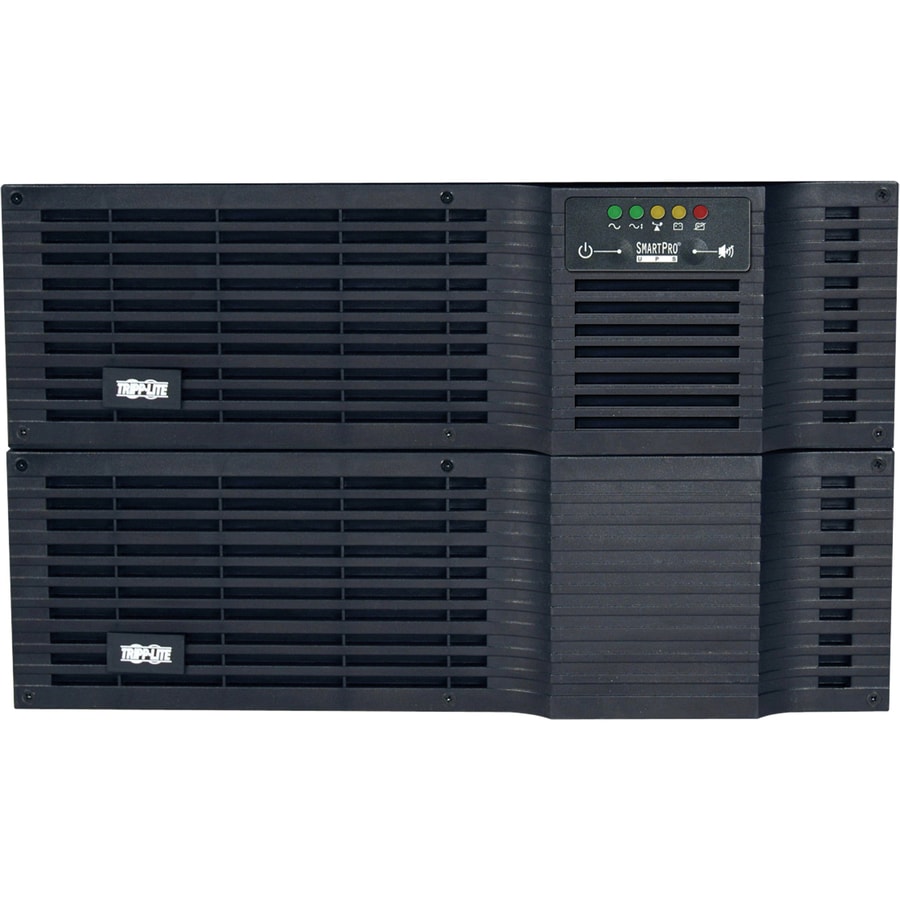

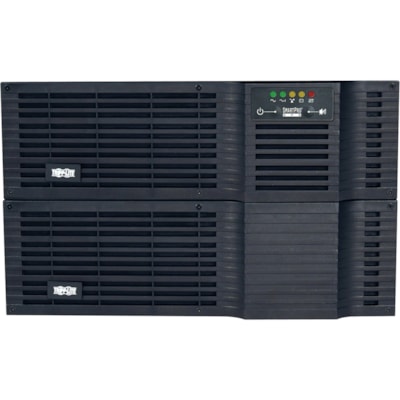

Tripp Lite's line-interactive SMART5000RT3U UPS System protects server, networking or telecommunications equipment from blackouts, voltage fluctuations and surges in a compact tower/rackmount housing. Large capacity 5000VA/4000W power module converts raw 208V AC input to fully regulated dual output 208/120 voltage for simultaneous protection of both high- and low-voltage equipment loads. True sine wave output at all times offers guaranteed compatibility with all equipment types. Includes 14 outlets, 8 of which can be individually reset via software interface to selectively reboot remote equipment or shed less critical loads to extend battery runtime for more critical equipment. Includes slot for internal SNMP/web card, plus two DB9 and two USB enhanced monitoring ports for unattended shutdown, remote control and monitoring of UPS system and power data. 2 Year Warranty standard. 3 Year Warranty with product registration.

DETAILS

  • Plug/Connector Type : NEMA L6-30P
  • Receptacle Type : NEMA 5-20R,NEMA L14-30R,NEMA 5-15R,NEMA L6-30R
  • Receptacle Detail : 2 x NEMA 5-20R,1 x NEMA L14-30R,10 x NEMA 5-15R,1 x NEMA L6-30R
  • Cord Length : 10 ft (3.05 m)
  • Transfer Time : 4 ms
  • Load Capacity (VA) : 5 kVA
  • Load Capacity (Watt) : 4 kW
  • Input Voltage : 220 V AC
  • Output Voltage : 208 V AC
  • Waveform Type : Sine Wave
  • Network Management : SNMP Manageable
  • Alarm : On Battery,Overload,Low Battery
  • Status Indicators : 5 front panel LEDs - Green 5 front panel LEDs - Green POWER LED, Green VOLTAGE CORRECTION LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LED, red BATTERY WARNING LED
  • USB : Yes
  • Battery Chemistry : Lead Acid
  • Backup/Run Time (Full Load) : 16 Minute
  • Backup/Run Time (Half Load) : 38 Minute
  • Battery Life : 6 Year
  • Hot Swappable : Yes
  • Typical Battery Recharge Time : 4 Hour
  • Maximum Operating Temperature : 104°F (40°C)
  • Height : 3.50" (88.90 mm)
  • Width : 17.25" (438.15 mm)
  • Depth : 16.75" (425.45 mm)
  • Rack Height : 6U
  • Weight (Approximate) : 58.50 lb (26535.15 g)
  • Country of Origin : China
  • Limited Warranty : 3 Year
  • 5kVA / 5000VA / 4000W line interactive 6U rack/tower UPS; Sine wave output
  • 208 & 120V output during brownouts to 151V and overvoltages to 260V
  • USB, Serial, EPO & optional SNMP/Web card monitoring options
  • Expandable runtime; 8 single-outlet switched output load banks
  • NEMA L6-30P input; 10 5-15R, 2 5-15/20R, 1 L6-30R & 1 L14-30R outlets

SPECIFICATIONS

Manufacturer Eaton Corporation
Manufacturer Part Number SMART5000RT3U
Manufacturer Website Address http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name Tripp Lite series
Product Line SmartPro
Product Model SMART5000RT3U
Product Name SMART5000RT3U 5000 VA Rack/Tower Line Interactive UPS
Product Type Line-interactive UPS
Plug/Connector Type NEMA L6-30P
Receptacle Type NEMA 5-15R
Receptacle Type NEMA L6-30R
Receptacle Type NEMA 5-20R
Receptacle Type NEMA L14-30R
Receptacle Detail 10 x NEMA 5-15R
Receptacle Detail 1 x NEMA L14-30R
Receptacle Detail 1 x NEMA L6-30R
Receptacle Detail 2 x NEMA 5-20R
Emergency Power OFF Yes
Cord Length 10 ft (3.05 m)
Transfer Time 4 ms
Load Capacity (VA) 5 kVA
Load Capacity (Watt) 4 kW
Input Voltage 220 V AC
Output Voltage 208 V AC
Waveform Type Sine Wave
Network Management SNMP Manageable
Alarm Overload
Alarm On Battery
Alarm Low Battery
Status Indicators 5 front panel LEDs - Green 5 front panel LEDs - Green POWER LED, Green VOLTAGE CORRECTION LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LED, red BATTERY WARNING LED
USB Yes
Total Number of Expansion Slots 1
Battery Chemistry Lead Acid
Backup/Run Time (Full Load) 16 Minute
Backup/Run Time (Half Load) 38 Minute
Battery Life 6 Year
Typical Battery Recharge Time 4 Hour
Hot Swappable Yes
Maximum Operating Temperature 104°F (40°C)
Height 3.50" (88.90 mm)
Width 17.25" (438.15 mm)
Depth 16.75" (425.45 mm)
Rack Height 6U
Weight (Approximate) 58.50 lb (26535.15 g)
Package Contents
  • SMART5000RT3U UPS
  • SMART5000RT3U UPS System
  • BP48V60RT3U battery pack
  • PowerAlert Software and cabling
  • Mounting hardware
  • Instruction manual with warranty information
Additional Information
  • Large 5000VA / 4000 watt output capacity with full time sine wave output offers guaranteed compatibility with all equipment types
  • High power density 5kVA power module and battery pack occupy only 3 rack spaces (3U) each (UPS and battery pack use 6U when installed)
  • 38 minutes half load runtime, expandable runtime with multiple external battery packs (part# BP48V60RT3U)
  • Line interactive voltage regulation corrects severe brownouts and overvoltages without using battery power
  • Dual voltage output is simultaneously compatible with both 208 and 120V equipment

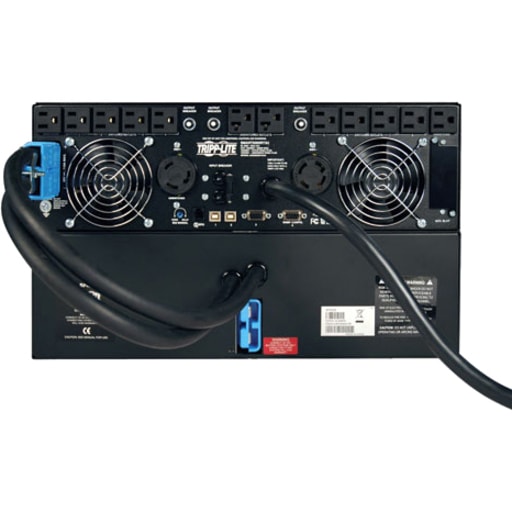

  • 14 total outlets (120V: 10 5-15R, 2 5-20R / 208v: 1 L6-30R, 1 L14-30R)
  • Diagnostic LEDs provide visual indication of 17 separate performance conditions
  • Included PowerAlert Software provides e-mail or pager notification of power problems and the simultaneous automatic unattended shutdown of multiple servers
  • 4 built-in communications ports (2-DB9, 2-USB) for remote monitoring and unattended shutdown
  • Slot for SNMP/web card SNMPWEBCARD and environmental sensor ENVIROSENSE for remote communications in large IP environments
  • 8 customized load management receptacles can be individually powered off and back on again via software interface to reboot remote equipment or automatic "load shedding" of less critical loads to extend battery runtime for the most critical equipment
  • Emergency Power Off (EPO) interface for emergency shutoff in large facilities
  • Hot-swappable / user replaceable batteries allow on-site battery replacement through the front panel without powering off connected equipment or removing the UPS from the rack
  • UPS battery set ships fully assembled and ready for connection to the power module, no time consuming, connection of individual internal batteries by user is necessary
  • $250,000 Ultimate Lifetime Insurance (USA & Canada Only). No warranty cards required for coverage!
  • 2 year manufacturers product warranty
Certifications & Standards UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications
Country of Origin China
Limited Warranty 3 Year
