StarTech.com Flat Screen TV Wall Mount - Tilting - For 32" to 75" TVs - Steel - VESA TV Mount - Monitor Wall Mount - Save space by mounting a television to your wall with easy +15 / -15 degree tilt for ideal viewing - Flat-Screen TV Wall Mount for 32 to 75" LCD / LED / Plasma TV - Fits curved TVs -

FLATPNLWALL
Also known as IM9306DE,DHFLATPNLWALLCA,SY5813588

New! Log in or create an account to see price and availability


MARKETING INFORMATION

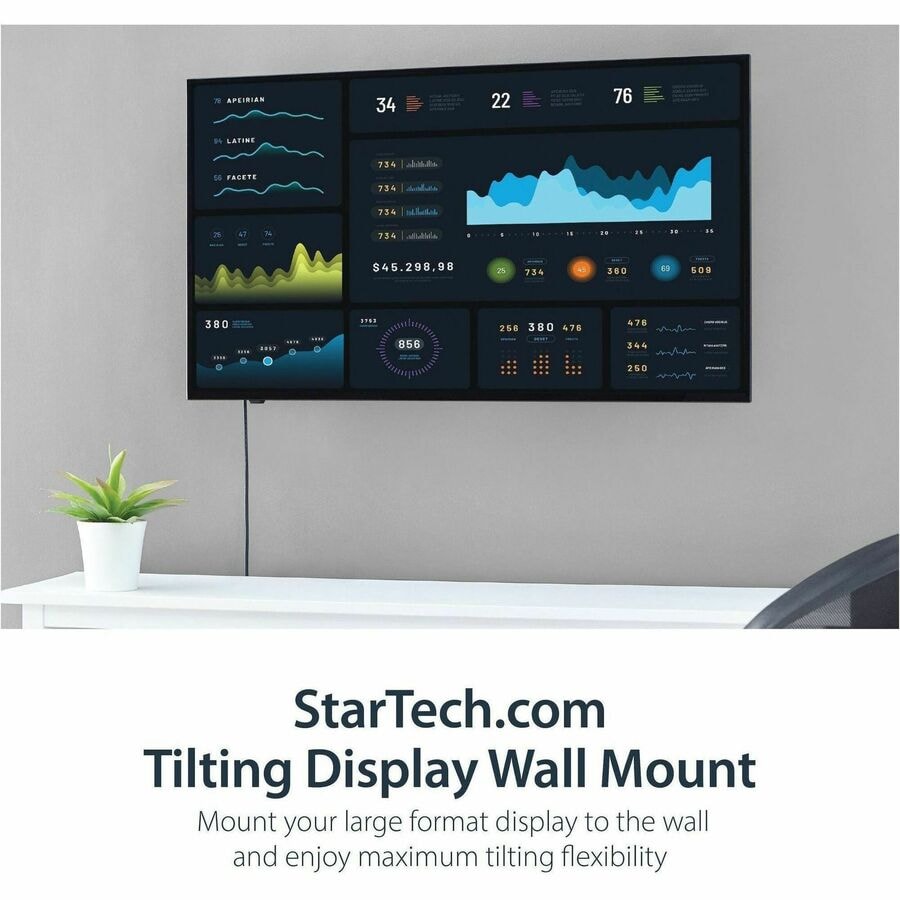

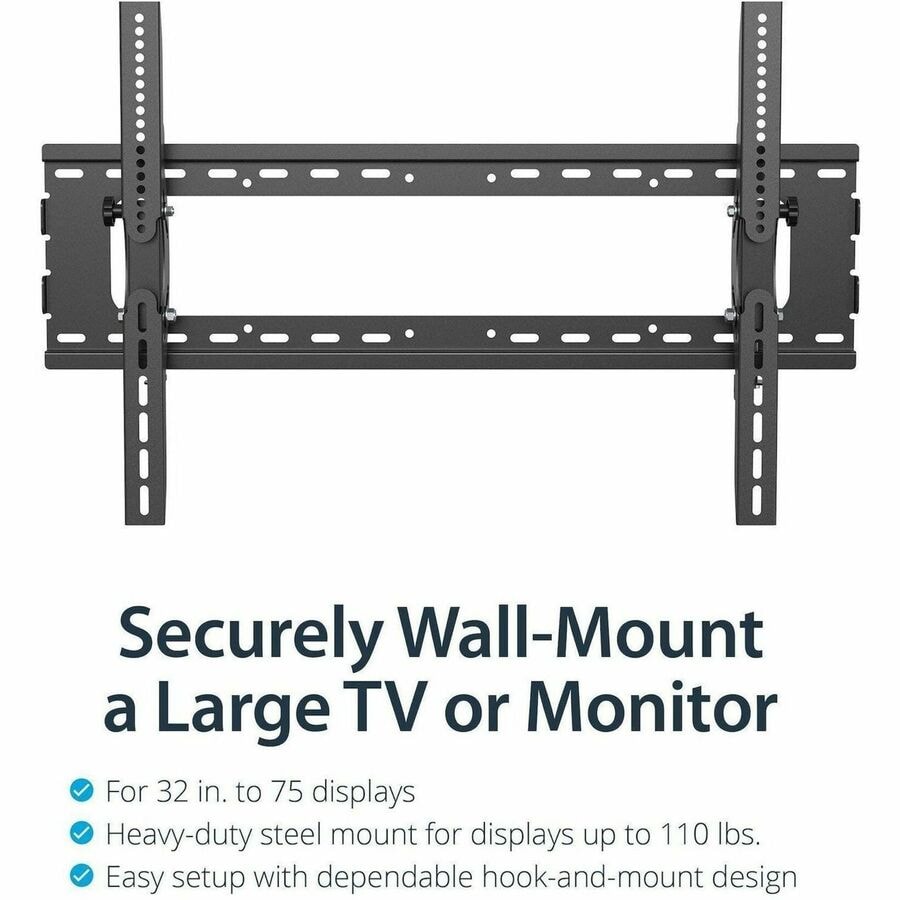

Maximize space while creating an impressive display with this flat-screen TV wall mount for large TVs or monitors. The heavy-duty wall mount securely supports a VESA Mount compliant TV from 32" to 75" , with easy-to-use tilt adjustment for comfortable viewing.

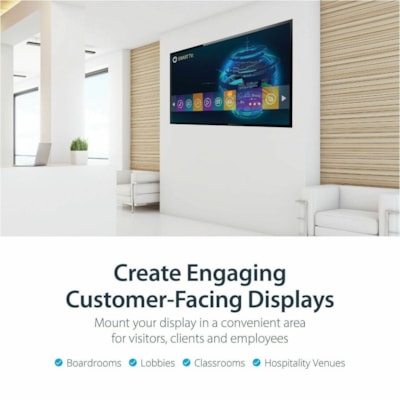

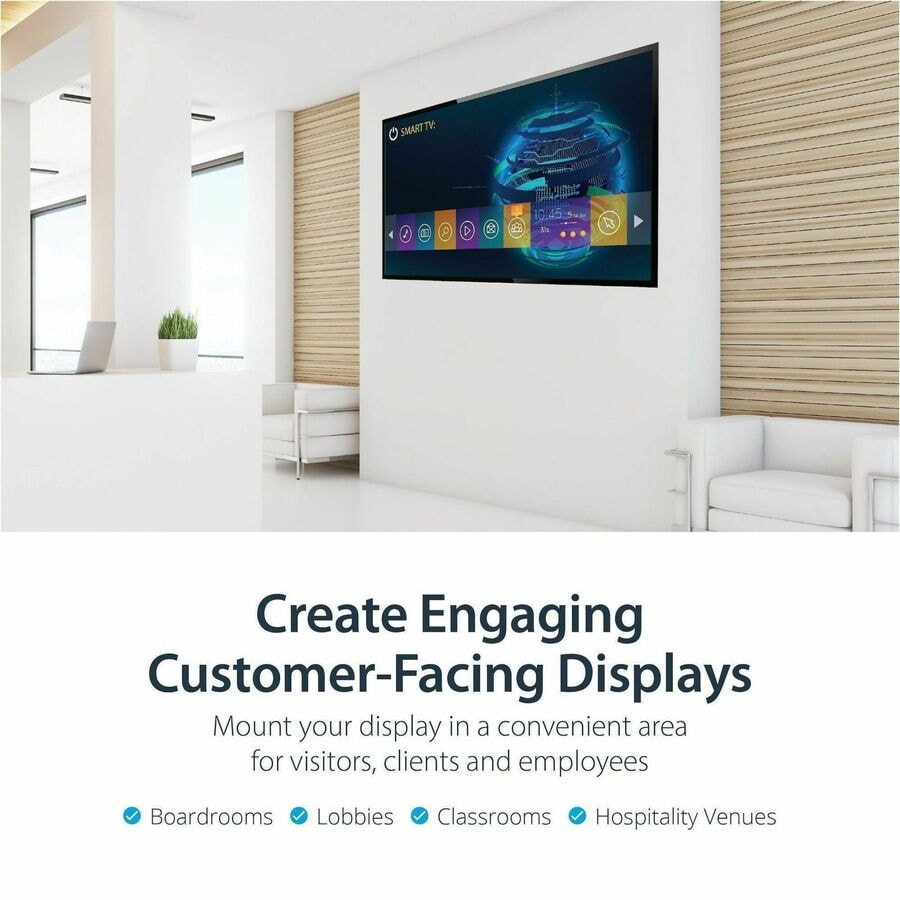

Ideal for the Boardroom, or Digital Signage

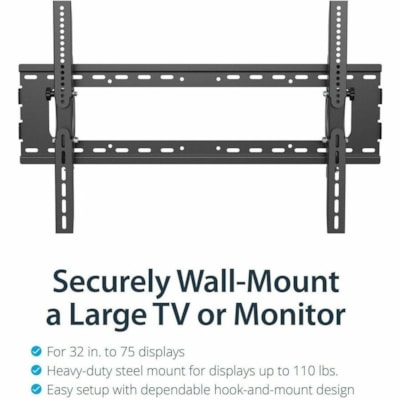

Mount your flat-screen TV in a location that's convenient for visitors, clients and employees, while saving valuable space. The wall mount is ideal for boardrooms, lobbies or other venues providing an impressive and secure way to display a large flat-panel TV or create digital signage. The robust wall mount supports a large 32" to 75" flat-screen TV weighing up to 165 lb. (75 kg).

Tilt Your Display to the Ideal Viewing Angle

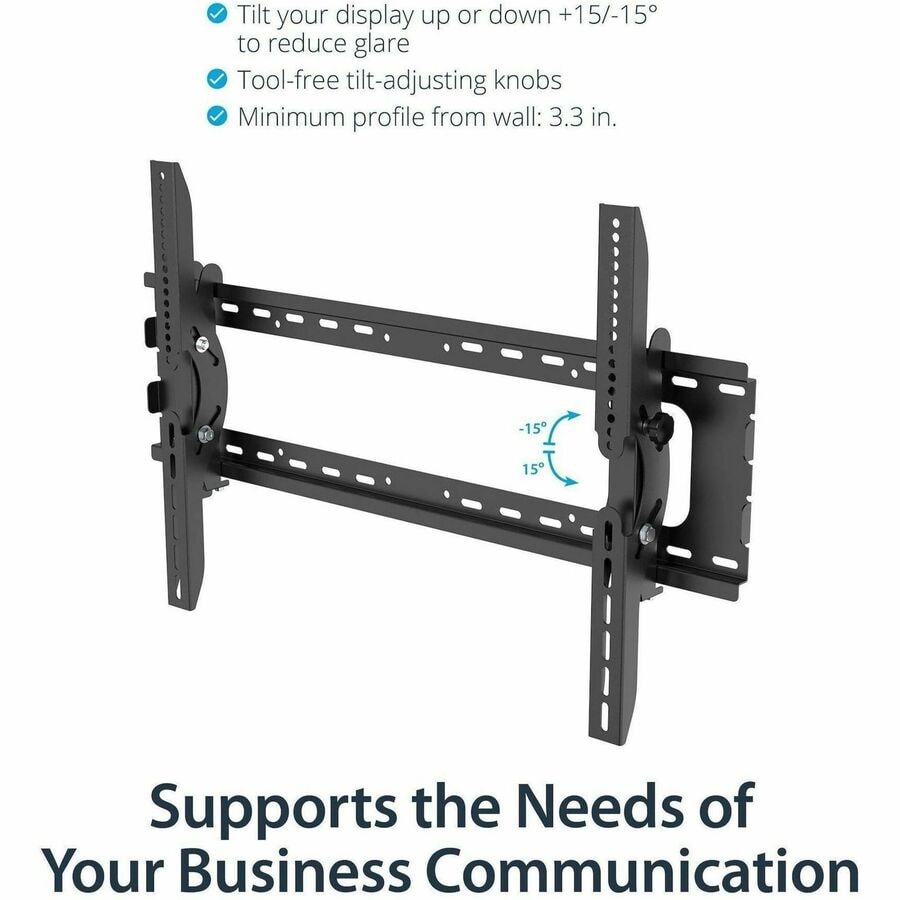

The TV wall mount lets you angle your TV display toward your audience. With the tilt feature, you can mount your TV lower or higher than eye level and still view it comfortably. The tilt-adjusting knobs make it easy to adjust your TV to the ideal viewing angle.

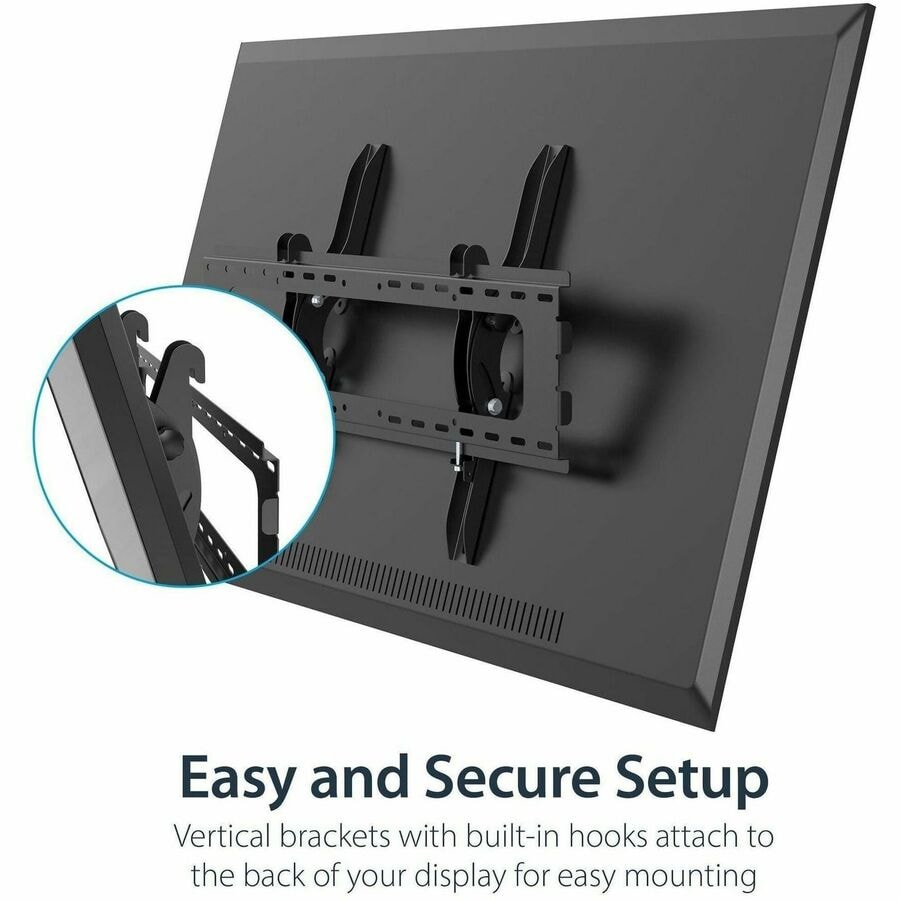

Easy and Secure Setup

The hook-and-mount design of the TV wall mount makes setup fast and easy. You simply attach the vertical brackets, with built-in hooks, to the back of your TV. Once the brackets are attached, you then hang your TV securely onto the wall mount. Cable management helps to keep cables out of view.

More from the Manufacturer

DETAILS

  • Device Supported : TV,Monitor,Digital Signage Display,LCD Display,LED Display,Curved Screen Display
  • Number of Displays Supported : 1
  • Maximum Load Capacity : 165.35 lb (75000 g)
  • Minimum Screen Size Supported : 32"
  • Maximum Screen Size Supported : 75"
  • Features : Tilt,Space Saving Design,Heavy Duty,Adjustable Tilt,Cable Management
  • Color Family : Black
  • Product Color : Black
  • Product Material : Steel
  • VESA Mount Compatible : Yes
  • Mounting Pattern : 700 x 400,600 x 400,400 x 200,400 x 400,300 x 300,200 x 200,75 x 75,100 x 100,100 x 200,200 x 100,200 x 300,200 x 400,300 x 200,400 x 300,600 x 200,600 x 300
  • Height : 19.70" (500.38 mm)
  • Width : 3.30" (83.82 mm)
  • Length : 31.90" (810.26 mm)
  • Weight (Approximate) : 10.81 lb (4904.47 g)
  • Country of Origin : China
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Limited Warranty : 5 Year
  • TV WALL MOUNT: Heavy-duty TV wall mount supports VESA-compatible displays, including curved TVs up to 75" (165 lb / 75 kg) with support for many VESA patterns
  • EASY INSTALLATION: Mount 32" to 75" LCD, LED, or plasma TVs in three simple steps using the intuitive hook-and-mount design; Screws, spacers, and concrete anchors are included
  • COMPATIBILITY: Universal LCD/LED TV mount is compatible with most 32" to 75" TVs that use standard VESA mounting patterns, including 100x100, 100x200, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, and 600x400
  • SLIM DESIGN: Low-profile bracket sits just 3.3" (8.2 cm) from the wall and offers a ±15° tilt for comfortable upward or downward viewing; Ideal for boardrooms, lobbies, lecture halls, and meeting spaces
  • THE IT PRO'S CHOICE: Designed and built for IT Professionals, this TV / monitor wall mount is backed for 5-years, including free lifetime 24/5 multi-lingual technical assistance

SPECIFICATIONS

Manufacturer StarTech.com
Manufacturer Part Number FLATPNLWALL
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name Flat-Screen TV Wall Mount - For 32in to 70in LCD, LED or Plasma TV
Packaged Quantity 1 Each
Product Type Wall Mount
Device Supported LCD Display
Device Supported TV
Device Supported Digital Signage Display
Device Supported Monitor
Device Supported LED Display
Device Supported Curved Screen Display
Number of Displays Supported 1
Maximum Load Capacity 165.35 lb (75000 g)
Minimum Screen Size Supported 32"
Maximum Screen Size Supported 75"
Features Cable Management
Features Tilt
Features Adjustable Tilt
Features Heavy Duty
Features Space Saving Design
Color Family Black
Product Color Black
VESA Mount Compatible Yes
Mounting Pattern 600 x 300
Mounting Pattern 600 x 200
Mounting Pattern 400 x 300
Mounting Pattern 300 x 200
Mounting Pattern 200 x 400
Mounting Pattern 200 x 300
Mounting Pattern 200 x 100
Mounting Pattern 100 x 200
Mounting Pattern 100 x 100
Mounting Pattern 75 x 75
Mounting Pattern 200 x 200
Mounting Pattern 400 x 400
Mounting Pattern 400 x 200
Mounting Pattern 600 x 400
Mounting Pattern 700 x 400
Mounting Pattern 300 x 300
Product Material Steel
Height 19.70" (500.38 mm)
Width 3.30" (83.82 mm)
Length 31.90" (810.26 mm)
Weight (Approximate) 10.81 lb (4904.47 g)
Package Contents
  • 1 x Wall Plate
  • 1 x Left Bracket
  • 1 x Right Bracket
  • 1 x Allen Key
  • 4 x M5x14 mm Screws
  • 4 x M6x14 mm Screws
  • 4 x M8x30 mm Screws
  • 4 x M6x30 mm Screws
  • 4 x M8x50 mm Screws
  • 4 x Washers
  • 8 x Short Spacers
  • 8 x Long Spacers
  • 6 x 6.3x55 mm Screws
  • 6 x Concrete Anchors
  • 6 x Flat Washers
  • 1 x Instruction Manual
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty 5 Year
