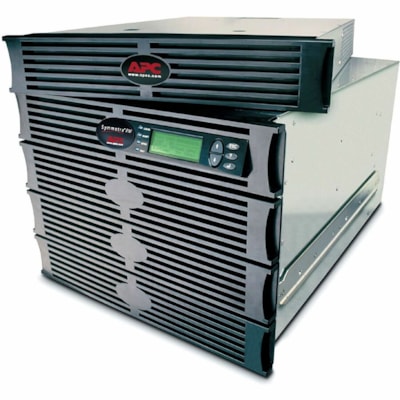

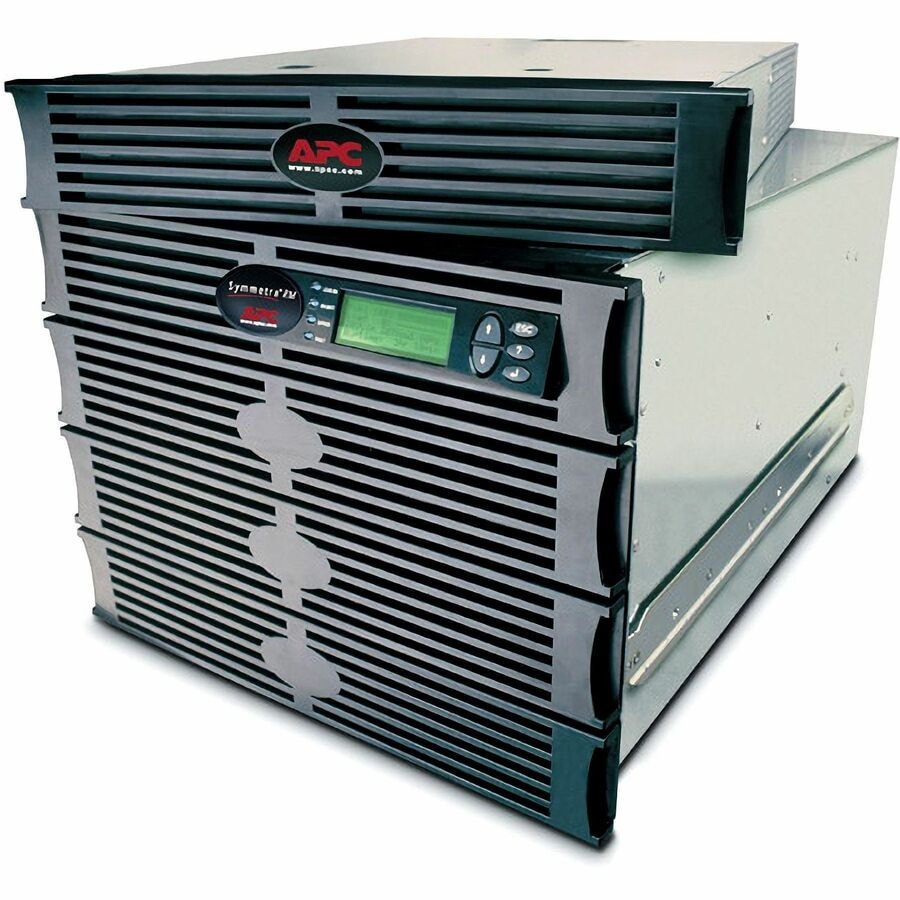

APC Symmetra RM 2kVA Scalable to 6kVA with Step-Down Transformer - 11.9 Minute Full Load - 6kVA - SNMP Manageable

SYH2K6RMT-P1
Also known as IM91887L

APC Symmetra RM 2kVA Scalable to 6kVA with Step-Down Transformer - 11.9 Minute Full Load - 6kVA - SNMP Manageable PERP

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Highly available single phase UPS features redundant and scalable double-conversion on-line power protection

DETAILS

  • Plug/Connector Type : Hard Wire 3-wire,NEMA L6-30P
  • Receptacle Type : NEMA L6-30P 30A
  • Receptacle Detail : 12 x NEMA 5-20R,2 x NEMA L6-20R
  • Number of Battery & Surge Outlets : 14
  • Overload Protection : Yes
  • Cord Length : 10 ft (3048 mm)
  • Load Capacity (VA) : 2 kVA
  • Input Voltage : 208 V AC
  • Output Voltage : 120 V AC,208 V AC
  • Input Frequency : 63 Hz
  • Output Frequency : 60 Hz
  • Waveform Type : Sine Wave
  • Network Management : SNMP Manageable
  • Alarm : On Battery,Low Battery,Configurable Delay
  • Battery Characteristics : Spill-proof/Maintenance-free
  • Battery Chemistry : Lead Acid
  • Backup/Run Time (Full Load) : 11.90 Minute
  • Backup/Run Time (Half Load) : 27.70 Minute
  • Typical Battery Recharge Time : 4 Hour
  • Maximum Operating Temperature : 104°F (40°C)
  • Sound Emission (A-Weighted) : 60 dB(A)
  • Product Color : Black
  • Form Factor : Rack-mountable
  • Rack Height : 10U
  • Height : 17.52" (445 mm)
  • Width : 19.02" (483 mm)
  • Depth : 28.74" (730 mm)
  • Weight (Approximate) : 259.55 lb (117729.90 g)
  • Package Contents :
  • Symmetra RM 2kVA Scalable to 6kVA with Step-Down Transformer
  • CD with software
  • Rack mounting brackets
  • Rack mounting support rails
  • User manual
  • Country of Origin : Philippines
  • Environmentally Friendly : Yes
  • Limited Warranty : 2 Year
  • Additional Warranty Information : 2 years repair or replace, optional on-site warranties available, optional extended warranties available

SPECIFICATIONS

Manufacturer Schneider Electric SA
Manufacturer Part Number SYH2K6RMT-P1
Manufacturer Website Address http://www.schneider-electric.com
Brand Name APC by Schneider Electric
Product Line Symmetra
Product Name Symmetra RM 2kVA Scalable to 6kVA with Step-Down Transformer
Product Type Double Conversion Online UPS
Plug/Connector Type Hard Wire 3-wire
Plug/Connector Type NEMA L6-30P
Receptacle Type NEMA L6-30P 30A
Receptacle Detail 2 x NEMA L6-20R
Receptacle Detail 12 x NEMA 5-20R
Number of Battery & Surge Outlets 14
Overload Protection Yes
Cord Length 10 ft (3048 mm)
Load Capacity (VA) 2 kVA
Input Voltage 208 V AC
Output Voltage 208 V AC
Output Voltage 120 V AC
Input Frequency 63 Hz
Output Frequency 60 Hz
Waveform Type Sine Wave
Network Management SNMP Manageable
Alarm On Battery
Alarm Low Battery
Alarm Configurable Delay
Bypass Switch Automatic & Manual
Emergency Power OFF Yes
Modular Slots 1 x SmartSlot
Battery Characteristics Spill-proof/Maintenance-free
Battery Chemistry Lead Acid
Backup/Run Time (Full Load) 11.90 Minute
Backup/Run Time (Half Load) 27.70 Minute
Typical Battery Recharge Time 4 Hour
Maximum Operating Temperature 104°F (40°C)
Sound Emission (A-Weighted) 60 dB(A)
Color Family Black
Product Color Black
Form Factor Rack-mountable
Rack Height 10U
Mounting Location Front
Mounting Preference Lower
Height 17.52" (445 mm)
Width 19.02" (483 mm)
Depth 28.74" (730 mm)
Weight (Approximate) 259.55 lb (117729.90 g)
For Country/Region United States
Package Contents
  • Symmetra RM 2kVA Scalable to 6kVA with Step-Down Transformer
  • CD with software
  • Rack mounting brackets
  • Rack mounting support rails
  • User manual
    		•
    Additional Information
    • Efficiency at full load: 85 %
    • Output Voltage Distortion: Less than 5% at full load
    • Crest Factor: Up to 5 : 1
    • Battery Slots Empty: 4
    • Automatic restart of loads after UPS shutdown
    • Generator compatible
    Certifications & Standards CSA
    Product Take Back Program No
    RoHS Exemption Information https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYH2K6RMT-P1_ROHS_DECLARATION&p_FileName=SYH2K6RMT-P1KIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036251&lang=en-us
    EU RoHS Declaration URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036251&lang=en-us
    Environmental Profile Availability https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1511005_EN
    End of Life Manual Availability https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1511005_EN
    California Proposition 65 Warning WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    REACH free of SVHC No
    Country of Origin Philippines
    Environmentally Friendly Yes
    Limited Warranty 2 Year
    Additional Warranty Information 2 years repair or replace, optional on-site warranties available, optional extended warranties available
