MARKETING INFORMATION

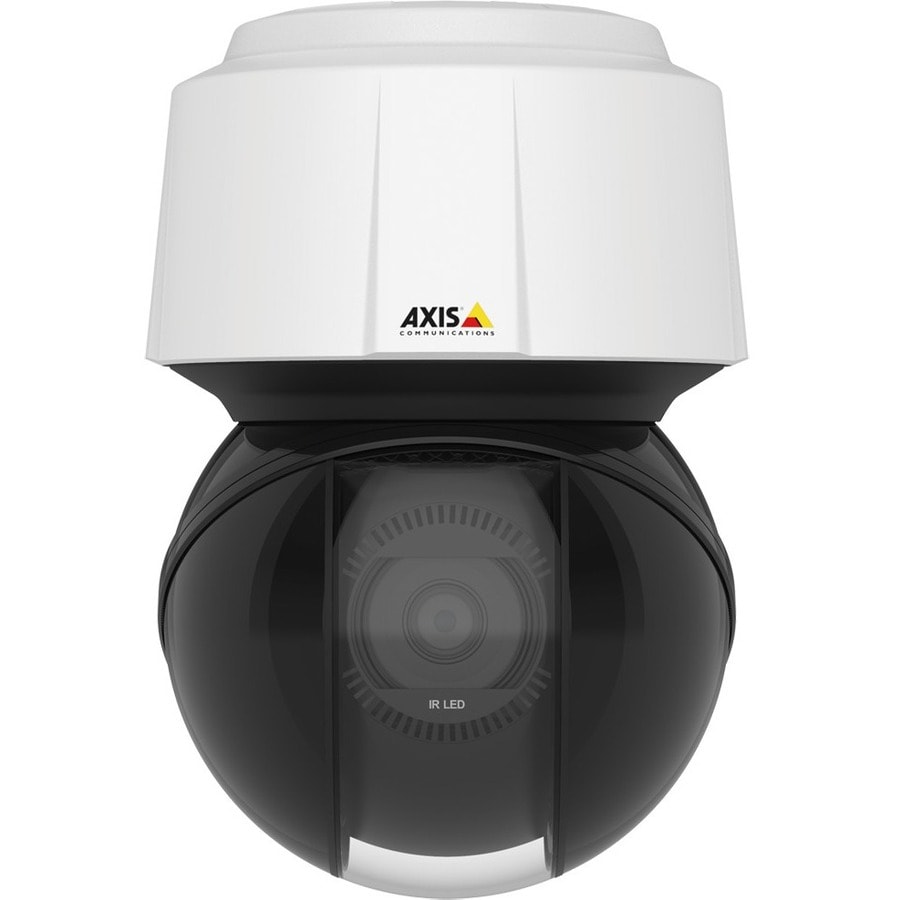

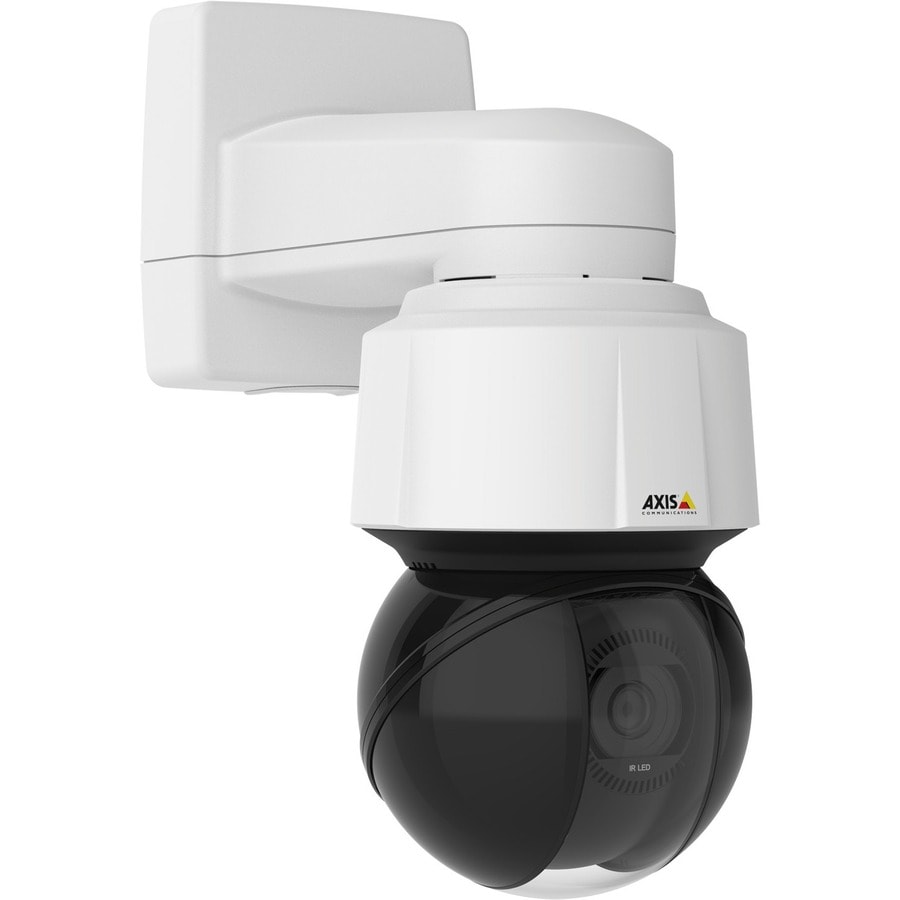

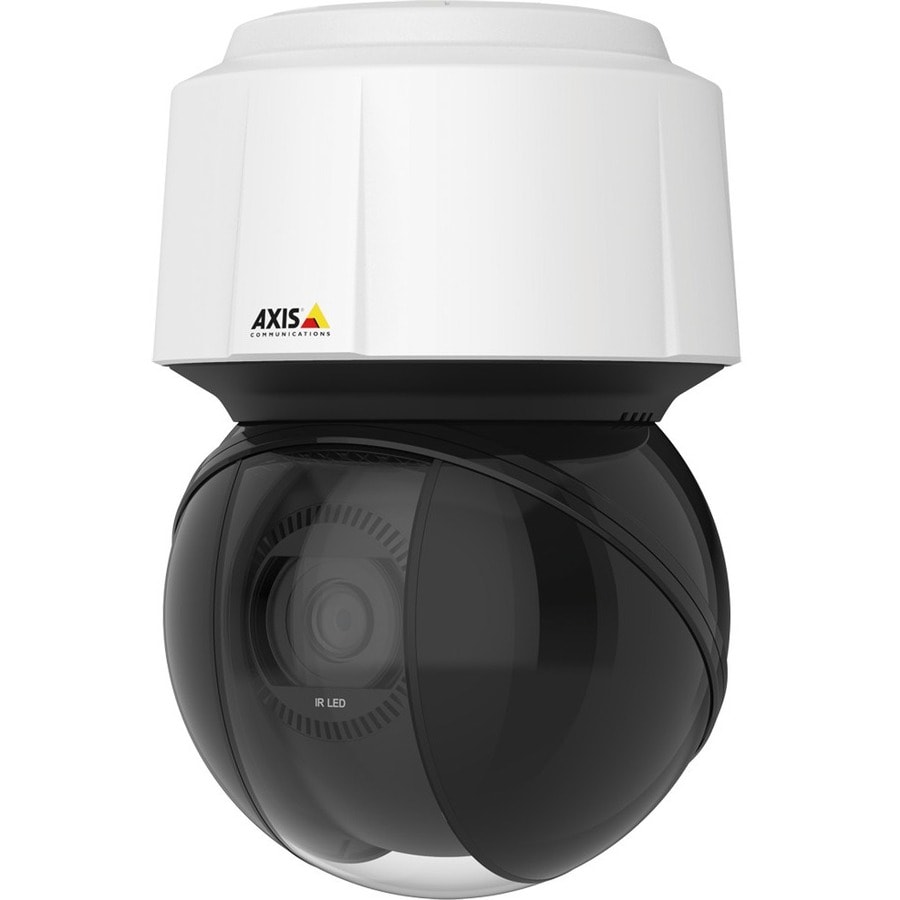

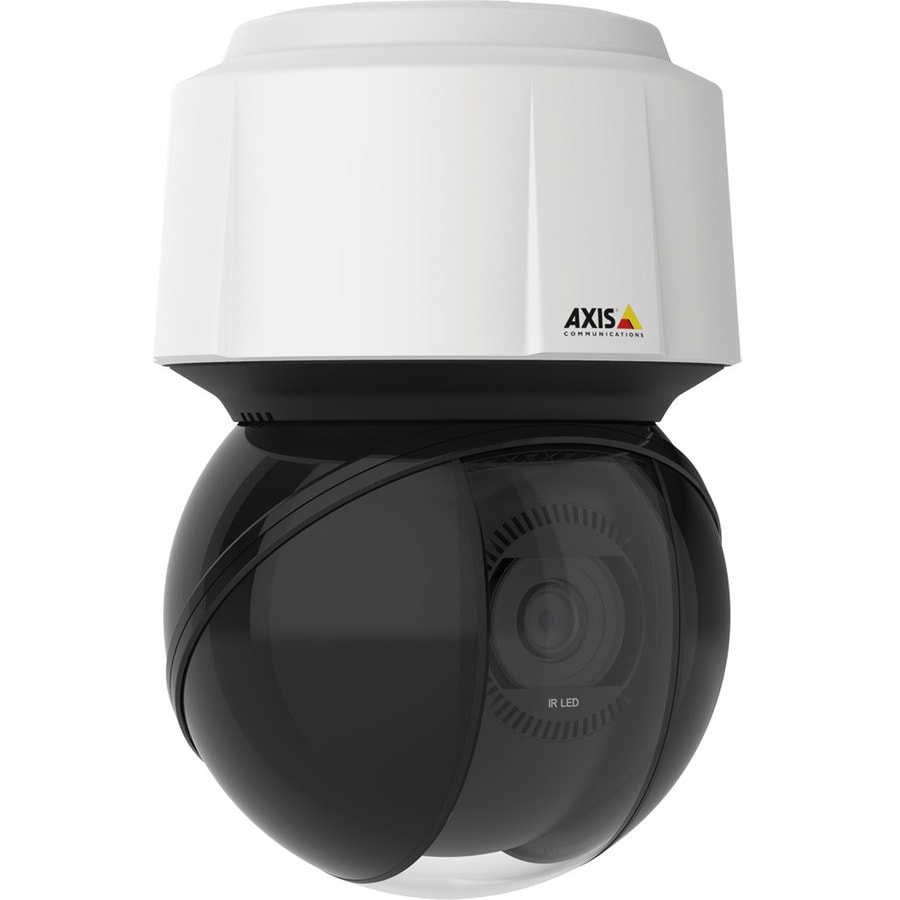

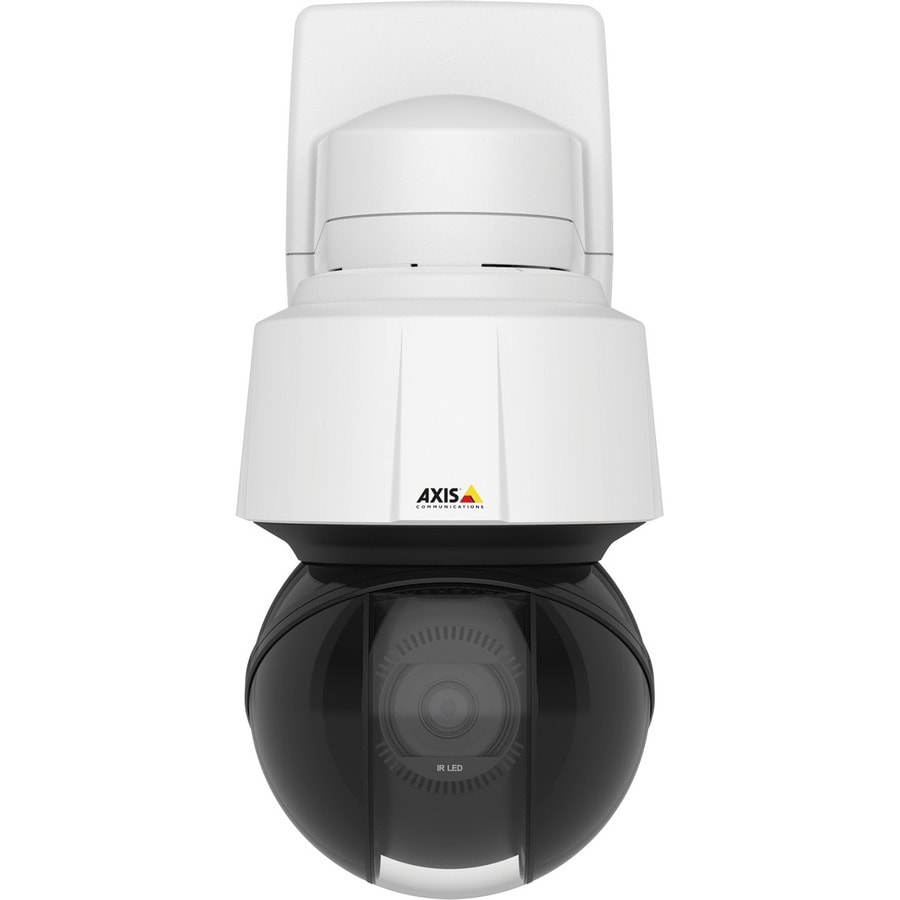

AXIS Q6135-LE is a high-speed PTZ camera that offers OptimizedIR up to 250 m (820 ft) as well as Lightfinder 2.0 for clear, sharp overviews and excellent details in demanding light conditions. And, AXIS Object Analytics lets you detect and classify humans and vehicles. It's ideal for city surveillance in any unlit or low-light area - such as parks and alleys- eliminating the need for additional lighting.

See it all - anytime, anywhere

AXIS Q6135-LE is equipped with OptimizedIR with automatically adaptable IR LED illumination enabling surveillance in total darkness up to 250 m (820 ft) or more depending on the scene. Thanks to the sharpdome design it allows you to see 20° above the horizon with the same sharp image quality as below. It offers 32x optical zoom, superior video and excellent details in HDTV 1080p resolution. Featuring Lightfinder 2.0 this camera captures low-light images with more saturated colors and sharper images of moving objects. Furthermore, speed dry ensures clarity in rainy weather and supports efficient cleaning.

Whenever, wherever it's needed

This top-of-the-line camera contains all the functionality you need to track and identify suspect behavior. With AXIS Object Analytics, it allows you to detect and classify humans and vehicles, all tailored to your specific needs. It includes orientation aid with support for dynamic overlays for quick orientation. Autotracking 2 with click and track functionality allows for active object tracking. Furthermore, where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Additionally, Zipstream with support for H.264 and H.265 significantly lowers bandwidth and storage requirements without compromising image quality.

Keeping you secure

Thanks to the newest generation of Axis chip, AXIS Q6135-LE is packed with advanced security features to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed. And, if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach.

DETAILS

• HD Recording : Yes
• Recording Formats : Full HD
• Night Vision : Yes
• Night Vision Distance : 820.21 ft (250 m)
• Night Vision Type : Infrared
• Image Sensor Type : CMOS
• Color Supported : Color
• Field of View : Horizontal field of view: 58.3°-2.4° Vertical field of view: 34.9°-1.3°
• Effective Camera Resolution : 2 Megapixel
• Video Formats : H.264,H.265,MJPEG
• Maximum Video Resolution : 1920 x 1080
• Maximum Frame Rate : 60 fps
• Lens Type : Varifocal
• Minimum Focal Length : 4.3 mm (0.17")
• Maximum Focal Length : 137.6 mm (5.42")
• Lens Included : Yes
• Minimum Aperture : f/4
• Maximum Aperture : f/1.4
• Optical Zoom : 32x
• Shortest Shutter Speed : 1/66500 Second
• Longest Shutter Speed : 2 Second
• Connectivity Technology : Wired
• Remote Management : Yes
• Storage Type : Memory Card
• Network (RJ-45) : Yes
• Input Voltage : 240 V AC
• Power Source Type : PoE,AC
• Color Family : White
• Product Color : White
• Mount Type : Parapet Mount
• Form Factor : Dome
• Durability : Vandal Resistant,Impact Resistant
• Height : 9.49" (241 mm)
• Diameter : 6.50" (165 mm)
• Weight (Approximate) : 6.61 lb (3000 g)
• Minimum Operating Temperature : -58°F (-50°C)
• Maximum Operating Temperature : 122°F (50°C)
• Maximum Operating Humidity : 100%
• Features : SD Card Local Storage,Human Detection,Ingress Protection,Privacy Masking,Built-in IR LED,Electronic Image Stabilization,Auto Tracking,PTZ,Day/Night,Cross Line Detection,Alarm Detection,Password Protection,HTTPS Encryption
• Indoor/Outdoor : Outdoor
• Package Contents :
  • Q6135-LE PTZ Network Camera
  • IP66-rated RJ45 connector kit
  • AXIS High PoE 60 W SFP Midspan
  • Installation guide
  • Windows Decoder 1-User licence
• Impact Protection Rating : IK08,IK10
• Ingress Protection Rating : IP66
• Country of Origin : Poland
• TAA Compliant : Yes
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)
• Limited Warranty : 5 Year

• For remote surveillance needs, this network camera is best suited
• Up to 1920 x 1080 video resolution
• CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
• Provides night vision of objects at a distance of up to 820.21 ft (250 m)
