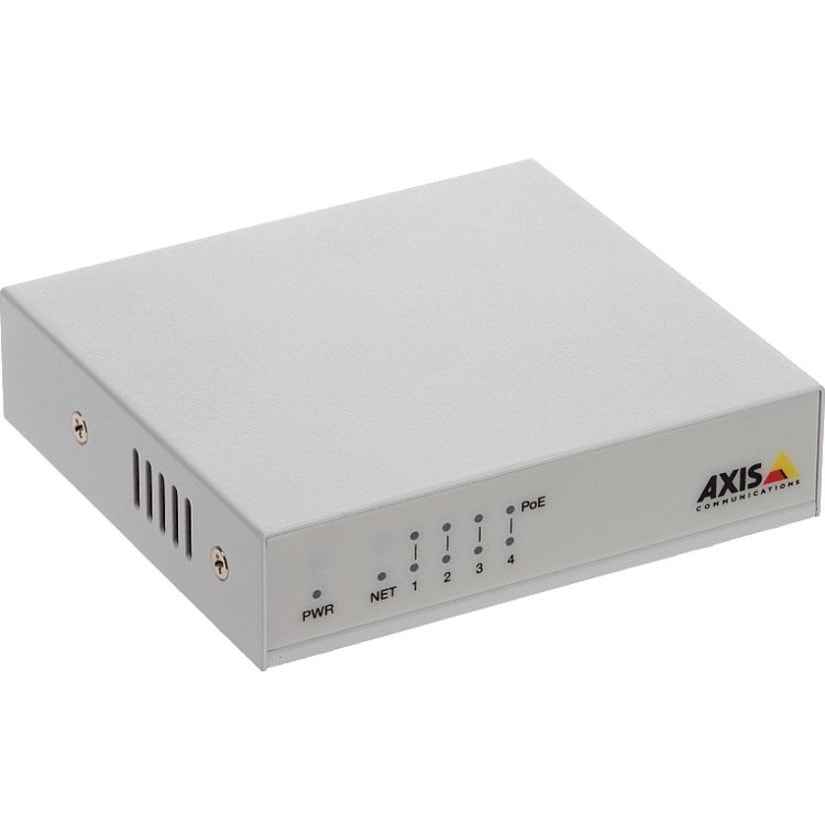

AXIS D8004 Unmanaged PoE Switch - 4 Ports - 2 Layer Supported - 62.50 W Power Consumption - 60 W PoE Budget - Twisted Pair - PoE Ports - Desktop - 3 Year Limited Warranty

02101-004
Also known as IM8CN322

AXIS D8004 Unmanaged PoE Switch - 4 Ports - 2 Layer Supported - 62.50 W Power Consumption - 60 W PoE Budget - Twisted Pair - PoE Ports - Desktop - 3 Year Limited Warranty HPERP

New! Log in or create an account to see price and availability


MARKETING INFORMATION

  • 60 W PoE power budget
  • 4-port 10/100 Mbps 802.3af/at PoE+
  • Palm-sized, metal casing
  • Plug and play installation
  • Level VI energy efficiency compliance

The palm-sized AXIS D8004 Unmanaged PoE Switch delivers network and power for up to 4 network devices with plug and play installation. Using AXIS D8004 as a central power source simplifies both installation and maintenance. The switch, together with an Axis surveillance card inserted in an Axis camera, is perfect for small systems with a few devices and basic video storage requirements. AXIS D8004 is also ideal when it's not possible to pull multiple cables. If there's local power available, simply pull one cable with data connection from the core switch or router, and AXIS D8004 can provide Power over Ethernet (PoE) for all 4 products.

DETAILS

  • Total Number of Network Ports : 4
  • Port/Expansion Slot Details : 4 x Fast Ethernet PoE+
  • Media Type Supported : Twisted Pair
  • Ethernet Technology : Fast Ethernet
  • Network Technology : 10/100Base-TX
  • Layer Supported : 2
  • Manageable : No
  • PoE (RJ-45) Port : Yes
  • PoE Budget : 60 W
  • Power Source : Power Supply,PoE+
  • Power Consumption : 62.50 W
  • Form Factor : Desktop
  • Height : 0.83" (21 mm)
  • Width : 3.54" (90 mm)
  • Depth : 3.15" (80 mm)
  • Weight (Approximate) : 6.07 oz (172 g)
  • Package Contents :
    • D8004 Unmanaged PoE Switch
    • Power Cord
    • Power Adapter
    • 4 x Rubber Feet
    • 2 x Brackets
  • Environmentally Friendly : Yes
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Limited Warranty : 3 Year
  • Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 4 ports
  • Built-in power supply to ensure all components are being supplied with accurate voltage
  • With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
  • The desktop installation makes it ideal for deployments outside the wiring closet
  • The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
  • Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network

SPECIFICATIONS

Manufacturer Axis Communications
Manufacturer Part Number 02101-004
Manufacturer Website Address http://www.axis.com
Brand Name AXIS
Product Model D8004
Product Name D8004 Unmanaged PoE Switch
Product Type Ethernet Switch
Total Number of Network Ports 4
Port/Expansion Slot Details 4 x Fast Ethernet PoE+
Media Type Supported Twisted Pair
Ethernet Technology Fast Ethernet
Network Technology 10/100Base-TX
Layer Supported 2
Manageable No
PoE (RJ-45) Port Yes
PoE Budget 60 W
Power Source Power Supply
Power Source PoE+
Power Consumption 62.50 W
Form Factor Desktop
Height 0.83" (21 mm)
Width 3.54" (90 mm)
Depth 3.15" (80 mm)
Weight (Approximate) 6.07 oz (172 g)
Package Contents
  • D8004 Unmanaged PoE Switch
  • Power Cord
  • Power Adapter
  • 4 x Rubber Feet
  • 2 x Brackets
Environmentally Friendly Yes
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty 3 Year
