Tripp Lite series SmartPro SMART1000RM2UL 1kVA Rack/Tower UPS - 2U Rack/Tower - AVR - 2.70 Hour Recharge - 8.30 Minute Stand-by - 120 V AC Input - 120 V AC Output - Serial Port - 6 x NEMA 5-15R Receptacle(s)

SMART1000RM2UL
Also known as IM893DDT,SMART1000RM2UCA,SY6242686

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Reliable LiFePO4 Battery Backup Offers Longer Life and Less Weight than Lead Acid Battery

This Tripp Lite SmartPro® UPS lithium battery backup features a state-of-the-art lithium iron phosphate (LiFePO4) internal battery with longer life, more cycles and faster recharge. It more than doubles the service life of an equivalent lead acid battery, and offers up to three times more charge/discharge cycles. It recharges to 100% capacity in less than three hours, making the lithium UPS system an ideal backup in case of power outage. The LiFePO4 battery has 60% the weight of an equivalent lead acid battery, which reduces the overall UPS weight.

120-Volt Battery Backup Keeps Equipment Operating Through Short Power Failures

The SMART1000RM2UL provides up to 20 minutes (half load) and 8.3 minutes (full load) of battery backup, as well as AC power protection, for critical server, network and telecom equipment. In case of a prolonged blackout, the single-phase lithium UPS system gives you enough time to save important data and perform an orderly system shutdown.

Automatic Voltage Regulation (AVR) Conserves Battery Power

With an 800W capacity (1000VA), the line-interactive UPS system with automatic voltage regulation (AVR) maintains regulated 120V nominal output over an input range of 83V-147V without using battery power. Conserving power allows your LiFePO4 battery to last longer and maintain full capacity until needed.

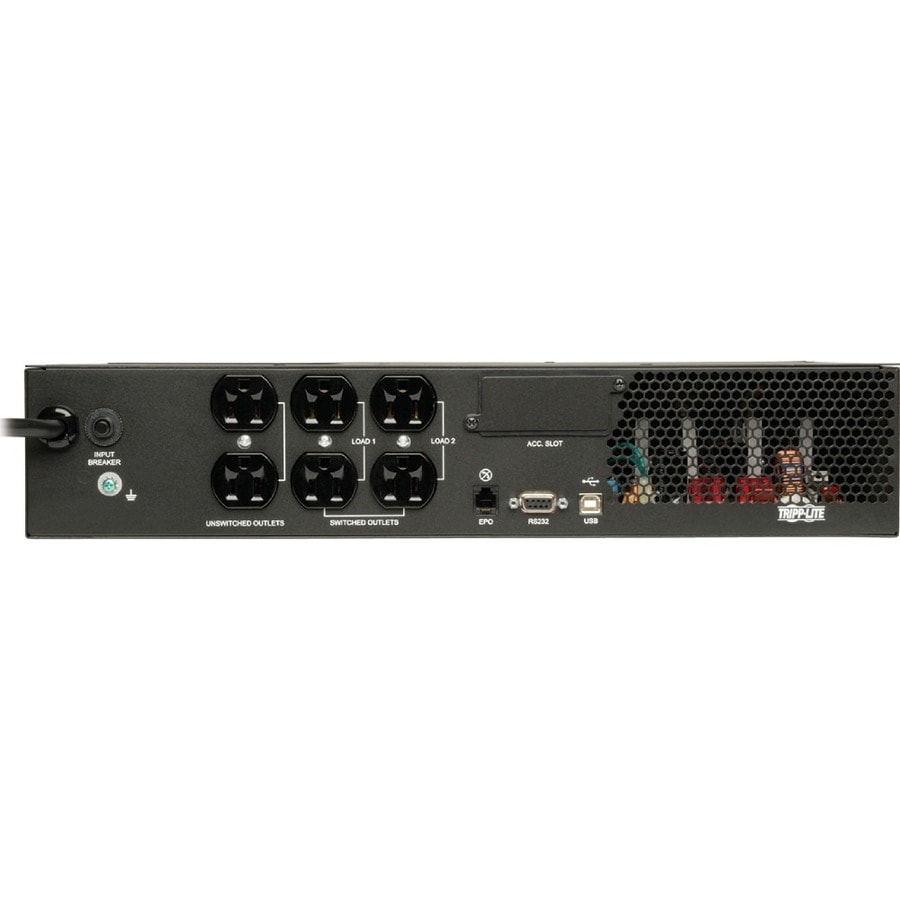

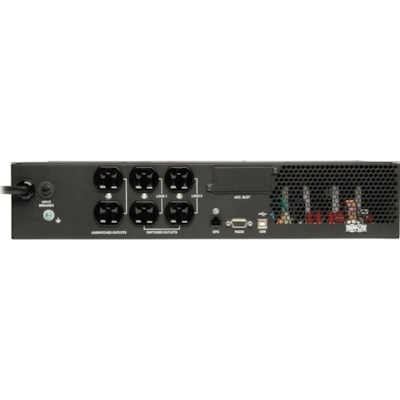

6 Outlets Protect Your Mission-Critical Rack Equipment

Plug your equipment into the six NEMA 5-15R outlets. Four outlets are split into two dual-outlet load banks that are switchable via network interface. These four outlets let you power connected equipment on and off remotely to reset or reboot connected equipment or to shed less significant loads to extend battery runtime for more critical equipment. All six outlets are protected by 570-joule network-grade surge protection to fight off damaging power surges and spikes.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better

This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

High Efficiency Helps the Environment and Your Cash Flow

Operating with a high 95% line-mode efficiency, the 1kVA UPS system can save BTU heat output and energy costs.

Advanced Communications Ports Connect to Any Workstation or Server

USB and DB9 ports (cables are included) enable data-saving unattended shutdown when used with Tripp Lite's free downloadable PowerAlert® software. Capabilities include detailed monitoring of equipment load levels, self-test data and utility power condition. The Emergency Power Off (EPO) interface offers options for instantaneous power-off of the UPS system and connected equipment in case of fire or other facility emergency.

Optional Network Management Cards Allow Detailed Monitoring of Conditions

The SMART1000RM2UL is compatible with Tripp Lite network management cards, such as WEBCARDLX, for detailed monitoring of UPS and site power conditions.

DETAILS

  • AVR : Yes
  • Plug/Connector Type : NEMA 5-15P
  • Receptacle Type : NEMA 5-15R
  • Receptacle Detail : 6 x NEMA 5-15R
  • Transfer Time : 4 ms
  • EMI/RFI Noise Filter : Yes
  • Application/Usage : Server,Network,Telecommunication
  • Load Capacity (VA) : 1 kVA
  • Load Capacity (Watt) : 800 W
  • Input Voltage : 120 V AC
  • Input Voltage Range : 83 V AC - 147 V AC
  • Output Voltage : 120 V AC
  • Output Frequency : 60 Hz
  • Waveform Type : Pure Sine Wave
  • Surge Energy Rating : 570 J
  • Alarm : Power Failure,Low Battery,Overload,UPS Fault,Remote Shutdown
  • Status Indicators :
    • Multi-Function LCD
    • Audible Alarms
  • Serial Port : Yes
  • EPO Port : Yes
  • USB (HID Compliant) Port : Yes
  • Battery Chemistry : Lithium-Ion (LiFePO4)
  • Backup/Run Time (Full Load) : 8.30 Minute
  • Backup/Run Time (Half Load) : 20 Minute
  • Typical Battery Recharge Time : 2.70 Hour
  • Storage Temperature : 5°F (-15°C) - 122°F (50°C)
  • Storage Relative Humidity : 95%
  • Maximum Operating Temperature : 104°F (40°C)
  • Sound Emission (A-Weighted) : 45.5 dB(A)
  • Thermal Dissipation : 141 BTU/h
  • Height : 3.50" (88.90 mm)
  • Width : 17.35" (440.69 mm)
  • Depth : 12.50" (317.50 mm)
  • Rack Height : 2U
  • Form Factor : Rack/Tower
  • Weight (Approximate) : 16.30 lb (7393.56 g)

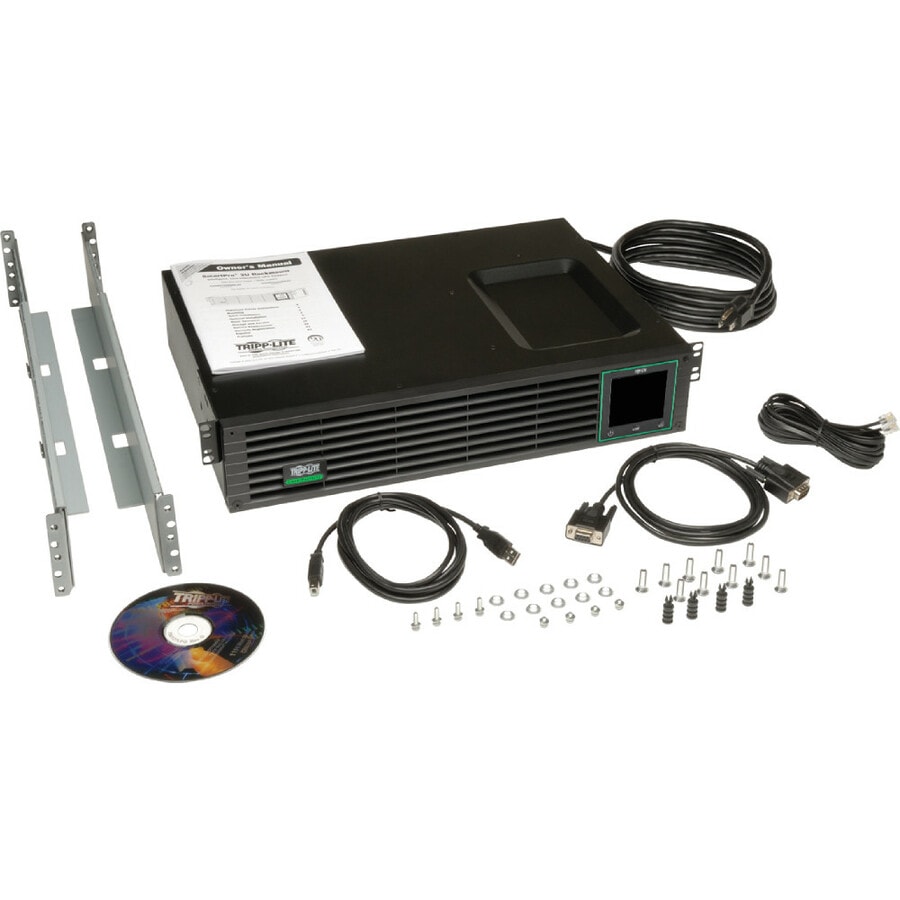

  • Package Contents :
    • SmartPro SMART1000RM2UL 1kVA Rack/Tower UPS
    • USB Cable
    • DB9 Cable
    • EPO Cable
    • Rack-Mounting Hardware
    • Owner's Manual
  • Country of Origin : China
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 5 Year
  • 800 W load capacity - backup power for your valuable electronics
  • Up to 8.30 minute runtime on full load to preserve critical data from power shortage interruptions
  • 1 kVA load capacity provides sufficient backup during power failures

SPECIFICATIONS

Manufacturer Eaton Corporation
Manufacturer Part Number SMART1000RM2UL
Manufacturer Website Address http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name Tripp Lite series
Product Line SmartPro
Product Model SMART1000RM2UL
Product Name SmartPro SMART1000RM2UL 1kVA Rack/Tower UPS
Product Type Line-interactive UPS
AVR Yes
Plug/Connector Type NEMA 5-15P
Receptacle Type NEMA 5-15R
Receptacle Detail 6 x NEMA 5-15R
Transfer Time 4 ms
EMI/RFI Noise Filter Yes
Application/Usage Telecommunication
Application/Usage Server
Application/Usage Network
Load Capacity (VA) 1 kVA
Load Capacity (Watt) 800 W
Input Voltage 120 V AC
Input Voltage Range 83 V AC - 147 V AC
Output Voltage 120 V AC
Output Frequency 60 Hz
Waveform Type Pure Sine Wave
Surge Energy Rating 570 J
Alarm Power Failure
Alarm Low Battery
Alarm Overload
Alarm UPS Fault
Alarm Remote Shutdown
Status Indicators
  • Multi-Function LCD
  • Audible Alarms
Serial Port Yes
EPO Port Yes
USB (HID Compliant) Port Yes
Battery Chemistry Lithium-Ion (LiFePO4)
Backup/Run Time (Full Load) 8.30 Minute
Backup/Run Time (Half Load) 20 Minute
Typical Battery Recharge Time 2.70 Hour
Maximum Operating Temperature 104°F (40°C)
Storage Temperature 5°F (-15°C) - 122°F (50°C)
Storage Relative Humidity 95%
Sound Emission (A-Weighted) 45.5 dB(A)
Thermal Dissipation 141 BTU/h
Height 3.50" (88.90 mm)
Width 17.35" (440.69 mm)
Depth 12.50" (317.50 mm)
Rack Height 2U
Form Factor Rack/Tower
Weight (Approximate) 16.30 lb (7393.56 g)
Package Contents
  • SmartPro SMART1000RM2UL 1kVA Rack/Tower UPS
  • USB Cable
  • DB9 Cable
  • EPO Cable
  • Rack-Mounting Hardware
  • Owner's Manual
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty 5 Year
