MARKETING INFORMATION

Protects Mission-Critical Rack-Mounted Equipment

• Provides fully regulated sine wave AC output for point-of-sale applications, VoIP systems and small business networks
• Audible alarm signals loss of utility power, overload, low battery and fault conditions

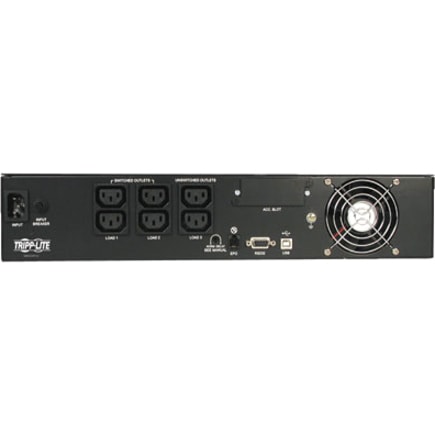

• 6 C13 outlets
• C14 inlet accepts user-supplied AC power cord with country-specific plug
• 350-joule surge suppression rating

Reliable Battery Backup

• Supports half load up to 11.9 min. and full load up to 3.6 min.
• Internal batteries designed for hot-swap field replacement
• 97% line-power efficiency rating saves money in energy costs

2 Load Banks with Switchable Outlets

• Can control 4 outlets remotely to reboot equipment or shed nonessential loads

Automatic Voltage Regulation (AVR)

• Maintains 230V nominal output over input range of 182V-278V without using battery power

EMI/RFI Line Noise Filtering

• Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance

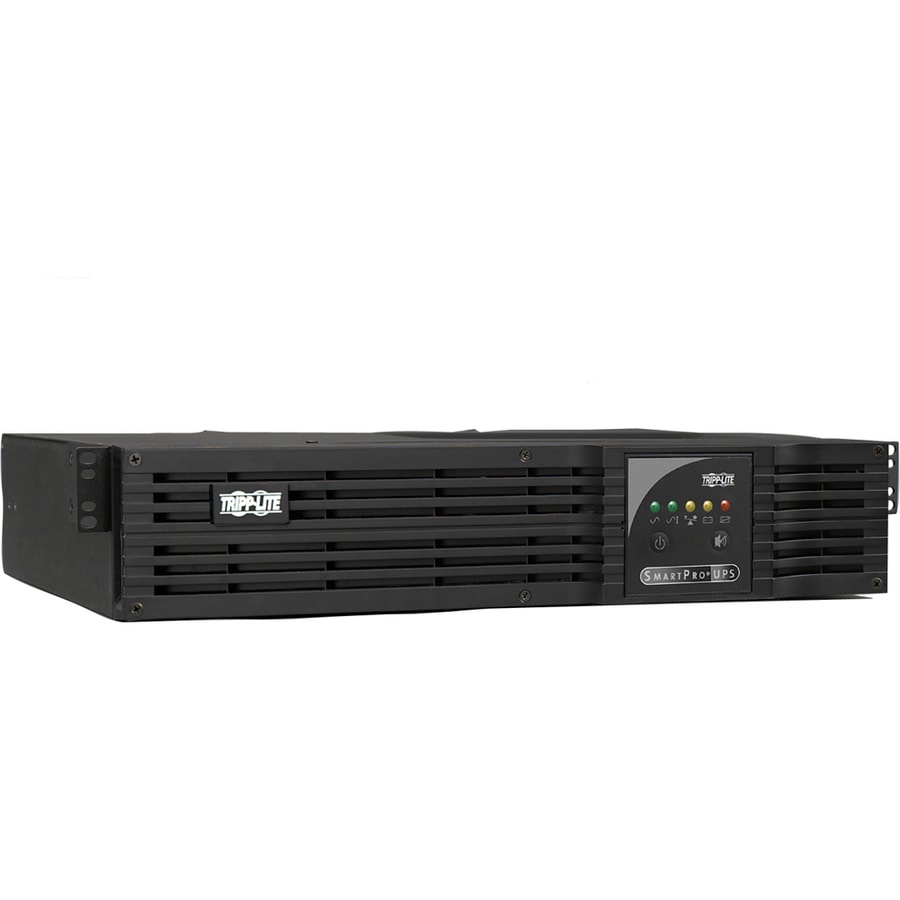

Interactive LCD Screen

• Front-panel LCD signals voltage, battery and load statuses
• Supports multiple advanced user setup and operating preferences
• Rotates for easy viewing in rack-mount or tower configurations

Optional Network Management Cards

• Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX and SNMPWEBCARD
• Optional WEBCARDLX (sold separately) with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
• PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
• IP-based Auto Probe detects lost connectivity and restores service autonomously

Communications Ports

• USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite's Power Alert software (available via free download at <li">www.tripplite.com/poweralert)
• <li">EPO port supports emergency shutdown in large facilities

Versatile Installation Options

• Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
• Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
• Mounts in upright tower position with optional 2-9USTAND accessory

DETAILS

• Plug/Connector Type : IEC 320-C14
• Receptacle Type : IEC 60320 C13
• Receptacle Detail : 6 x IEC 60320 C13
• Transfer Time : 4 ms
• Load Capacity (VA) : 1 kVA
• Load Capacity (Watt) : 900 W
• Input Voltage : 220 V AC
• Output Voltage : 230 V AC
• Network Management : SNMP Manageable
• Serial Port : Yes
• USB : Yes
• Backup/Run Time (Full Load) : 3.60 Minute
• Backup/Run Time (Half Load) : 11.90 Minute
• Hot Swappable : Yes
• Typical Battery Recharge Time : 4 Hour
• Height : 3.50" (88.90 mm)
• Width : 17.50" (444.50 mm)
• Depth : 13.50" (342.90 mm)
• Rack Height : 2U
• Form Factor : Rack/Tower
• Weight (Approximate) : 33.40 lb (15149.99 g)
• Software Included : PowerAlert monitoring software
• Country of Origin : China
• Limited Warranty : 2 Year

• Corrects under- and overvoltages from 182V to 278V
• 6 C13 outlets-4 switchable via network interface
• Network power management and control capability
• Interactive LCD monitoring screen
• 11.9 min. runtime at half load; 3.6 min. at full load
