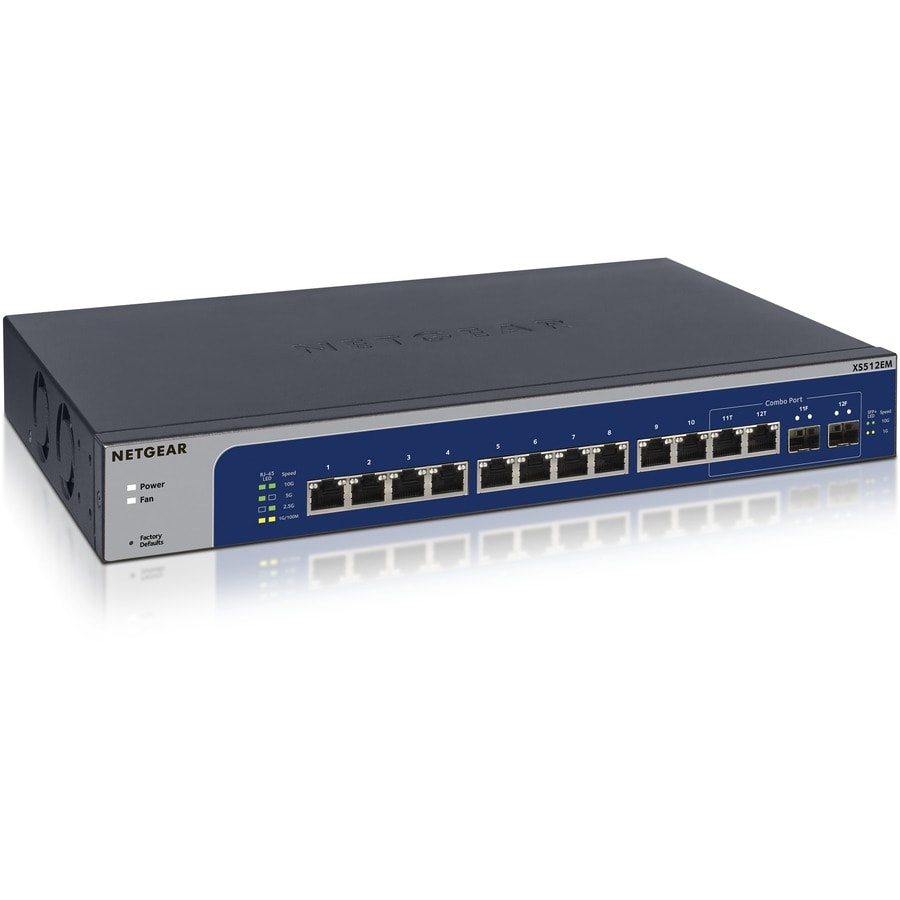

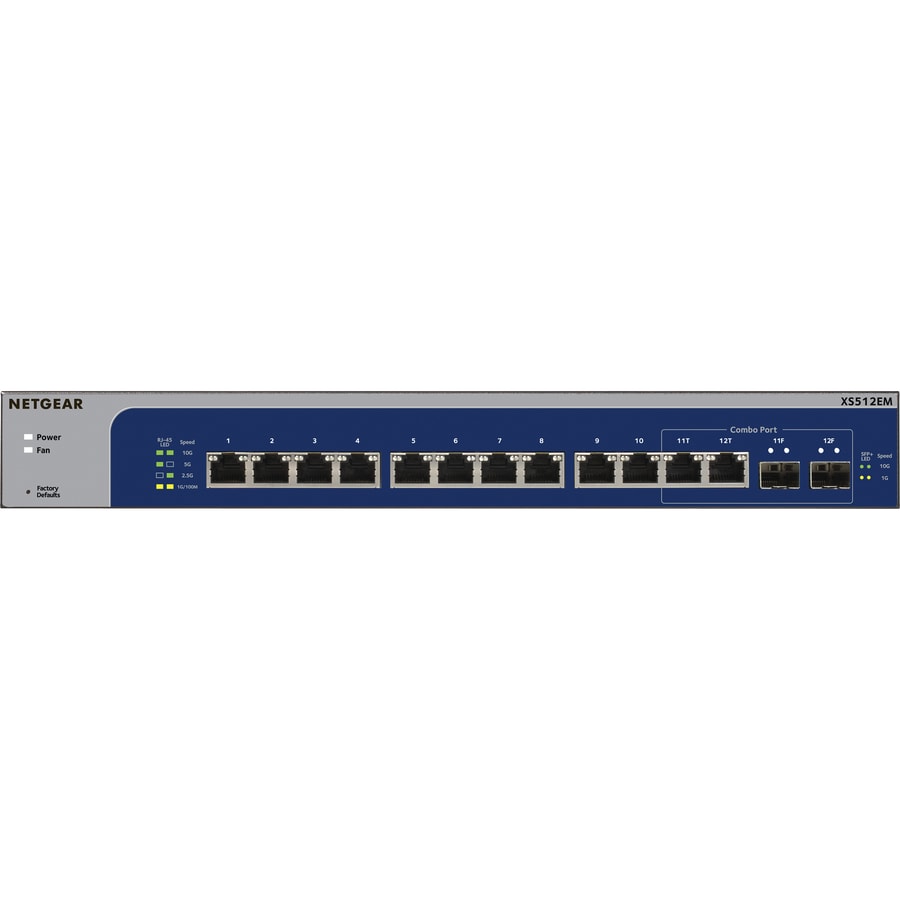

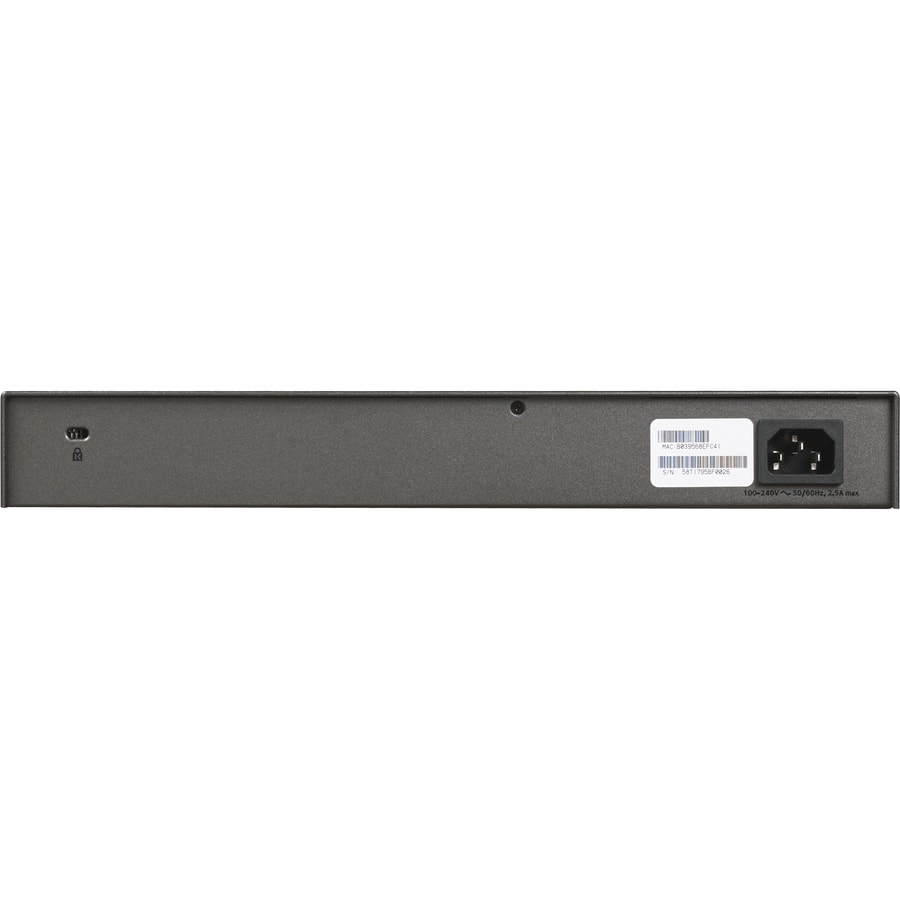

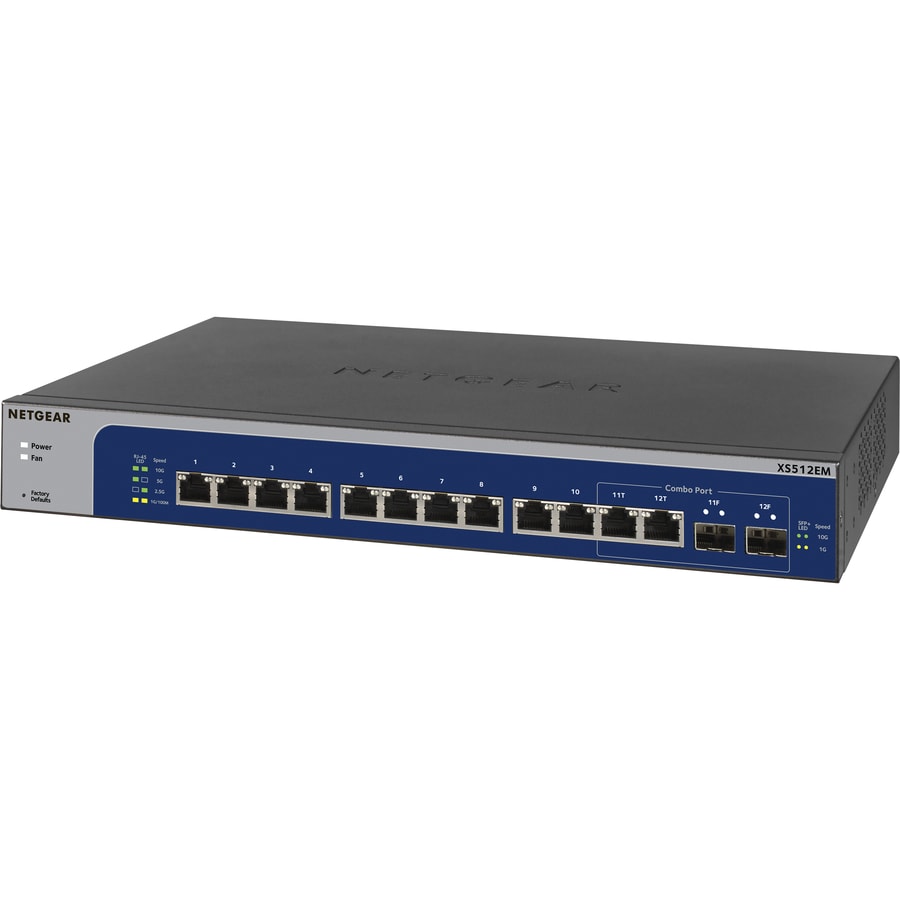

Netgear 12-Port 10-Gigabit/Multi-Gigabit Ethernet Smart Managed Plus Switch (XS512EM) - 12 Ports - Manageable - 10 Gigabit Ethernet - 10GBase-T - 3 Layer Supported - Modular - Twisted Pair, Optical Fiber - Desktop, Rack-mountable - Lifetime Limited Warranty
XS512EM-100NAS
Also known as IM8514EB,XS512EM100NASCA
MARKETING INFORMATION
NETGEAR introduces the XS512EM, the first 12-port 10-Gigabit/Multi-Gigabit Multi-speed Ethernet Smart Managed Plus Switch with 2 SFP+ port and 5-speed 100M/1G/2.5G/5G/10G per port for flexible connectivity. Through an intuitive GUI, it provides easy, reliable and affordable connectivity with VLAN, QoS, LAG and IGMP management capabilities. The flexible mounting options (rackmount or desktop) and the silent design make the XS512EM ideal for any SMB environment.
The XS512EM also includes the full set of Smart Managed Plus software features, such as traffic prioritization and link aggregation. It also comes with the NETGEAR ProSAFE Lifetime Limited Warranty and 24/7 lifetime chat for complete peace of mind.
DETAILS
- Total Number of Network Ports : 12
- Uplink Port : No
- Modular : Yes
- Stack Port : No
- Port/Expansion Slot Details : 12 x 10 Gigabit Ethernet Network,2 x 10 Gigabit Ethernet Expansion Slot
- Media Type Supported : Twisted Pair,Optical Fiber
- Ethernet Technology : 10 Gigabit Ethernet
- Network Technology : 10GBase-T,10GBase-X
- Total Number of Expansion Slots : 2.0
- Expansion Slot Type : SFP+
- Shared SFP Slot : Yes
- Number of SFP+ Slots : 2
- Layer Supported : 3
- Manageable : Yes
- Switch Management Type : Easy Smart Managed
- Power Source : Power Supply
- Redundant Power Supply Supported : No
- Form Factor : Desktop,Rack-mountable
- Height : 1.69" (43 mm)
- Width : 12.91" (328 mm)
- Depth : 8.03" (204 mm)
- Weight (Approximate) : 5.53 lb (2510 g)
- Package Contents :
- 12-Port 10-Gigabit/Multi-Gigabit Ethernet Smart Managed Plus Switch (XS512EM)
- Power Cord
- Rack-mounting Kit
- Quick Install Guide
- Country of Origin : China
- Limited Warranty : Lifetime
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 12 ports
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Supports layer 3 switching for enhanced performance and usability
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
SPECIFICATIONS
| Manufacturer | Netgear, Inc |
| Manufacturer Part Number | XS512EM-100NAS |
| Manufacturer Website Address | http://www.netgear.com |
| Brand Name | Netgear |
| Product Model | XS512EM |
| Product Name | 12-Port 10-Gigabit/Multi-Gigabit Ethernet Smart Managed Plus Switch (XS512EM) |
| Product Type | Ethernet Switch |
| Total Number of Network Ports | 12 |
| Uplink Port | No |
| Modular | Yes |
| Stack Port | No |
| Port/Expansion Slot Details | 12 x 10 Gigabit Ethernet Network |
| Port/Expansion Slot Details | 2 x 10 Gigabit Ethernet Expansion Slot |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-X |
| Network Technology | 10GBase-T |
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP+ |
| Shared SFP Slot | Yes |
| Number of SFP+ Slots | 2 |
| Layer Supported | 3 |
| Manageable | Yes |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| Form Factor | Desktop |
| Form Factor | Rack-mountable |
| Height | 1.69" (43 mm) |
| Width | 12.91" (328 mm) |
| Depth | 8.03" (204 mm) |
| Weight (Approximate) | 5.53 lb (2510 g) |
| Package Contents |
|
| Country of Origin | China |
| Limited Warranty | Lifetime |
